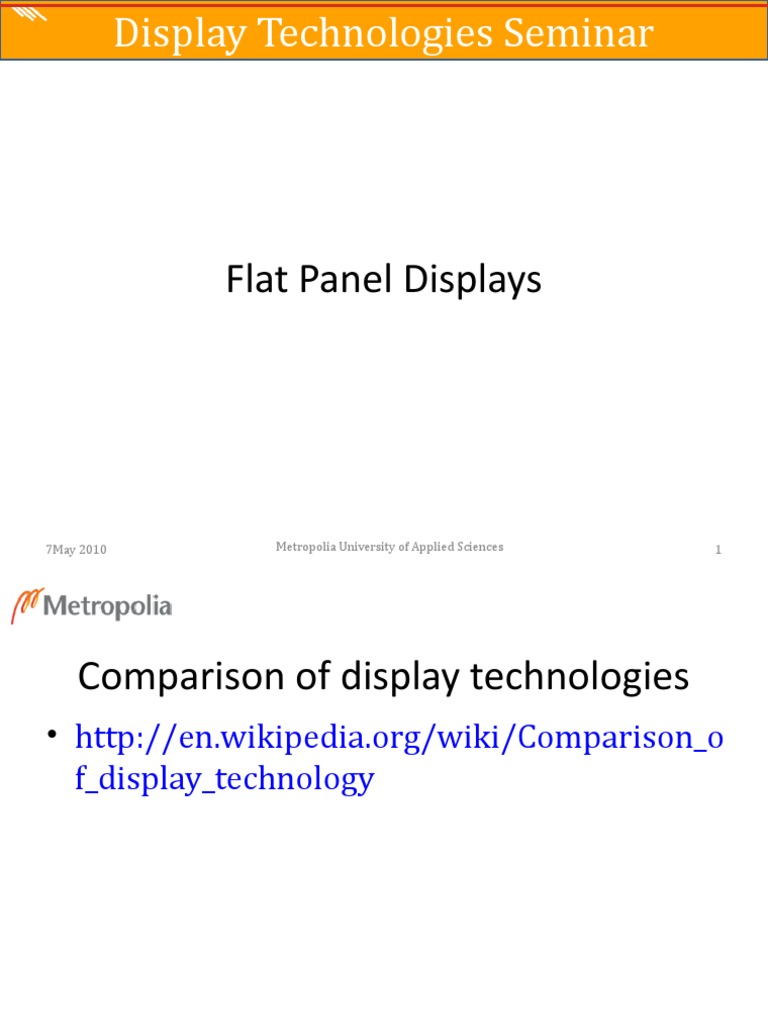

Display Technologies

The Science of DigitalSeminar

Media

Flat Panel Displays

7May 2010 Metropolia University of Applied Sciences 1

 The Science of Digital Media
Comparison of display technologies
• http://en.wikipedia.org/wiki/Comparison_o
f_display_technology

17 March 2010 Metropolia University of Applied Sciences 2

 The Science of Displays
Flat Panel Digital Media
Agenda
• Introduction
• FPD in general
• FED
• OLED
• PLED
• SED
• Conclusions

17 March 2010 Metropolia University of Applied Sciences 3

 The Science of Displays
Flat Panel Digital Media
Flat Panel Displays
Volatile Static
• Pixels are periodically • Material with bistable
refreshed to retain their color states
state • No energy to maintain
• Refresh many times a image needed, only to
second change
• Otherwise image will • Slow refresh state
fade from the screen • Deployment in limited
• Plasma, LCD, OLED, applications
LED, ELD, SED and • Cholesteric displays,
FED-displays outdoor advertising,
e-book products

17 March 2010 Metropolia University of Applied Sciences 4

 The Science of Displays
Flat Panel Digital Media
Field Emission Display
• Developed by Motorola and others during the 1990s

• Very similar to a CRT

• Utilizes an electron emitter which activates
phosphors on a screen
• In CRT an electron gun scatters the charged
particles
• Each FED pixel has its own corresponding
electron source

• At first conical electron emitters (known as a "Spindt

tip") – nowdays carbon nanotubes

• Electrons in a FED are not produced by heat

17 March 2010 Metropolia University of Applied Sciences 5

 The Science of Displays
Flat Panel Digital Media
FED

17 March 2010 Metropolia University of Applied Sciences 6

 The Science of Displays
Flat Panel Digital Media
FED
Advantages
• More power efficient
than LCD
• Less weight that same
size LCD
• Fewer total components
and processes involved
17 March 2010 Metropolia University of Applied Sciences
Disadvantages
• Erosion of the emitters
• Extremely high vacuum
required in order to operate
• Hard to manufacture
for commercial use
• Production difficulties
7
 The Science of Displays
Flat Panel Digital Media
FED
First models 2007
•19.2-inches.
•1,280 x 960 resolution
•brightness of 400cd/m2
•20,000:1 contrast ratio

•Sony’sField Emission
Technologies, whose
purpose was to develop
the displays closed it
doors in 2009.
•Reason mainly due to
difficulty in raising funds
for manufacturing.

17 March 2010 Metropolia University of Applied Sciences 8

 The Science of Displays
Flat Panel Digital Media
Organic Light-emitting Diode
• Developed by Eastman-Kodak

• Two types: small molecule OLED and polymer

OLED

• A Layer of organic material is sandwiched between

two conductors (an anode and a cathode) which are
between seal and subsrate
• Electro-luminescent bright light is produced from
the organic material when current is applied to
the conductors

17 March 2010 Metropolia University of Applied Sciences 9

 The Science of Displays
Flat Panel Digital Media
OLED color
• Only pure colors expressed when an electric current
stimulates the relevant pixels

• Primary color matrix arranged in red, green, and blue

pixels, mounted directly to a printed circuit board

• Ambient light interference reduced with "micro-cavity”

structure -> improves overall color contrast

• Organic layer adjusted for each color for strongest light

• Colors purified with color filter without the need for

polarizer -> outstanding color purity.
17 March 2010 Metropolia University of Applied Sciences 10
 The Science of Displays
Flat Panel Digital Media
OLED

Source: http://www.oled-display.net/how-works-the-oled-technology

17 March 2010 Metropolia University of Applied Sciences 11

 The Science of Digital Media
How OLED is built
OLED production

VS.

LCD production

Source: http://www.oled-display.net/how-works-the-oled-technology
 The Science of Displays
Flat Panel Digital Media
PLED

Source: http://www.educypedia.be/electronics/pled.htm

17 March 2010 Metropolia University of Applied Sciences 13

 The Science of Digital Media
Different OLED technologies
• AM OLED = Active Matrix OLED device
• FOLED = Flexible Organic Light Emitting Diode (UDC)
• OLED = Organic Light Emitting Diode/Device/Display
• PhOLED = Phosphorescent Organic Light Emitting Diode (UDC)
• PLED = Polymer Light Emitting Diode (CDT)
• PM OLED = Passive Matrix OLED device
• POLED = Polymer Organic Light Emitting Diode (CDT)
• RCOLED = Resonant Color Organic Light Emitting Diode
• SmOLED = Small Molecule Organic Light Emitting Diode (Kodak)
• SOLED = Stacked Organic Light Emitting Diode (UDC)
• TOLED = Transparent Organic Light Emitting Diode (UDC)
 The Science of Displays
Flat Panel Digital Media
OLED
Advantages Disadvantages
• Can be printed onto • Lifespan (especially blue)
any suitable substrate • Color balance issues (due
with inkjet (PLED) lifespan issues)
• Flexible displays • Water damage
• Great artificial contrast • Outdoor performance
ratio and color potential • Power consumption
• No need for a backlight • Possible screen burn-in
• Great viewing angle
• Fast response times

17 March 2010 Metropolia University of Applied Sciences 15

 The Science of Displays
Flat Panel Digital Media
OLED
• Samsung SDI exhibited a
40-inch OLED panel at
the FPD International 2008
• full HD resolution of 1920 x 1080
• contrast ratio of 1,000,000:1
• color gamut of 107% NTSC
• luminance of 200cd/m2 (peak
luminance of 600cd/m2)

• Samsung shows 3D Panels at

CES-2010.

• Sony shows 24.5-inch

prototype OLED 3D television
during the Consumer Electronics
Show in January 2010.

17 March 2010 Metropolia University of Applied Sciences 16

 The Science of Displays
Flat Panel Digital Media
OLED

Source: DisplaySearch Q2,09 Quarterly OLED Shipment

and Forecast Report
17 March 2010 Metropolia University of Applied Sciences 17
 The Science of Displays
Flat Panel Digital Media
Surface-conduction Electron-emitter
Display
• Co-developed by Canon and Toshiba Corporation

• Very similar to a CRT

• Utilizes an electron emitter which activates
phosphors on a screen

• The electron emission element is made from few

nanometers thick electron emission film

• No electron beam deflector required

• Separate emitter for each color phosphor, 3/pixel
or 1/sub-pixel
17 March 2010 Metropolia University of Applied Sciences 18
 The Science of Displays
Flat Panel Digital Media
SED

Source: http://www.oled-display.info/what-means-sed-tv

17 March 2010 Metropolia University of Applied Sciences 19

 The Science of Displays
Flat Panel Digital Media
SED vs. FED
• The significant
differences between SED (a)
and FED (b) is in the electron
source plate and the drive
electronics

Source: http://www.oled-display.info/structure-and-manufacturing-of-an-sed-tv-and-fed-
tv-partii

17 March 2010 Metropolia University of Applied Sciences 20

 The Science of Displays
Flat Panel Digital Media
SED
Advantages Disadvantages
•The overall power •Potential screen burn-in
efficiency about ten •Mass production
times better than a LCD difficulties
of the same size
•Less complex than LCD
•Fast response time and
high contrast ratio
•Wide viewing angle
•advantages over the
FED in manufacturing
state

17 March 2010 Metropolia University of Applied Sciences 21

 The Science of Displays
Flat Panel Digital Media
SED
Prototype 2006
• 1080p 55-inch models
• 450 nits of brightness
• 50,000:1 contrast ratio
• 1ms response time

•Mass production delayed

due to lawsuits between
Canon and Nano-
Proprietary Inc
concerning SED panel
patent license agreement

17 March 2010 Metropolia University of Applied Sciences 22

 The Science of Displays
Flat Panel Digital Media
Future
• Some of the technologies have faded after the
prototype phase

• OLEDs are the most promising

• Flexible displays
• Printing technology

• Printed vs non printed

• Rigid vs flexible
• Inorganic vs organic,
• Cost of materials vs process

• New technologies still in development

17 March 2010 Metropolia University of Applied Sciences 23
 The Science of Displays
Flat Panel Digital Media
Future
Samsung Wave (Super-
AMOLED)

vs.

Nokia X6 (TFT LCD

capacitive touchscreen)

17 March 2010 Metropolia University of Applied Sciences 24

 The Science of Displays
Flat Panel Digital Media

Questions?

Thank you!

17 March 2010 Metropolia University of Applied Sciences 25
