Data Model

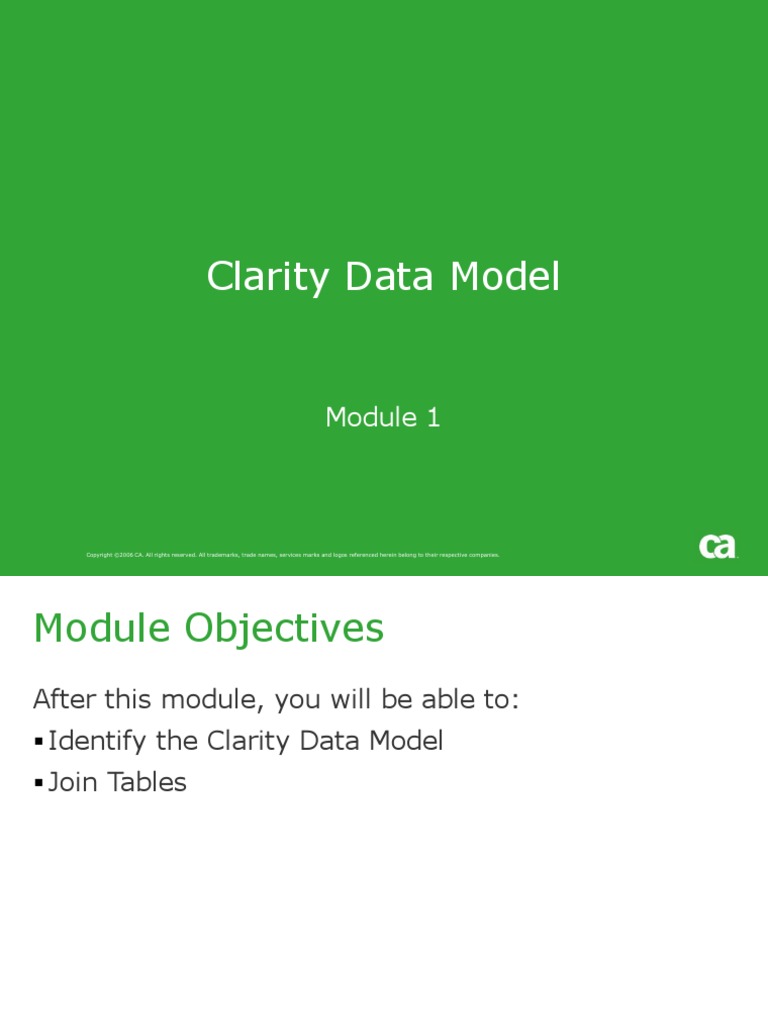

Clarity Data Model
Module 1
Copyright ©2006 CA. All rights reserved. All trademarks, trade names, services marks and logos referenced herein belong to their respective companies.
Module Objectives
After this module, you will be able to:
 Identify the Clarity Data Model
 Join Tables
2 © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies.
Identify the Clarity Data Model
Task 1
Data Model Overview
 Over 3000 database objects
 Over 600 tables
 Data Model consists of standard and non-standard
schemas
Data Model Reference
 Best source for data model information is the
Clarity Technical Reference Guide, which contains:
-Entity Relationship Diagrams (ERD)
-Table Descriptions
-Field Descriptions
-Information broken down by Modules
Clarity Technical Reference Guide

http://support.niku.com > Product Documentation
Security ERD
Standard Schema
Naming Convention - Database objects have the
following naming rules
<component>_<sub_component>_<additional desc>_<type_id>
where:
- helps identify the module or the component within the
<component> Clarity application
<sub_component> - further describes the component
<additional desc> -further describes the <sub_component>
<type_id> -describes the database object
(i.e. cmn_sec_groups_u1 – common security group unique

index 1)
Standard Schema
This table lists most of the Components used in Clarity
Component Identifier
Business Development BIZ
Business Process Management BPM
Calendaring CAL
Capacity Planning CAP
Collaboration CLB
Common CMN
Methodology MR
Data Mart NBI
Discussions NTD
eXtensible Data Model XDM
Object Definition Fields ODF
Portfolio Management PMA
Project Accounting PAC
Project/Portfolio Management PRJ
Resource Management RSM
Shared SRM Objects (Master tables) SRM
Standard Schema
This table lists most of the Type IDs used in Clarity
Type Type ID Identifier

Primary Key Constraints These need to be named explicitly as they control the name of the
PK
and Indexes primary key index (which is automatically created)
These need to be named explicitly (“alter table XYZ add XYZ_FK1

Foreign Key Constraints FKx
foreign key
Check Constraints CKx i.e. CK1 or CK2
Unique Indexes Ux i.e. U1
Non-Unique Indexes Nx i.e. N1 or N2
i.e. S1 or S2. S1 is used for Primary Key sequences only, i.e.

Sequences (Oracle only) Sx
CMN_LOOKUPS_S1
Triggers TRGx or Tx i.e. TRG1 or TRG2, T1 or T2
Packages PKG Collection of Stored Procedures
Stored Procedures SP Routine to run a list of Commands
Functions FCT Routine that performs a calculation and returns the value
Views V Displays fields from one or more Tables through one Object
Aggregate/Summary
SUM Calculations
Tables
Standard Schema

PK

foreign key

CMN_LOOKUPS_S1
Aggregate/Summary
SUM Calculations
Tables
Standard Schema

PK

foreign key

CMN_LOOKUPS_S1
Aggregate/Summary
SUM Calculations
Tables
Standard Schema

PK

foreign key

CMN_LOOKUPS_S1
Aggregate/Summary
SUM Calculations
Tables
Standard Schema
These columns exist in all tables in the standard schema
Data Type/Length
Column Name Description Constraint
Oracle SQL/Server
Primary Key – a
system-generated
ID NUMBER NOT NULL INT NOT NULL
unique identifier for
this row in this table.
Date/time record/row DATETIME NOT

CREATED_DATE DATE NOT NULL
was created NULL
User that created the

CREATED_BY record. Foreign key to NUMBER NOT NULL INT NOT NULL
CMN_SEC_USERS.ID
Date/time this
DATETIME NOT
LAST_UPDATED_DATE record/row was last DATE NOT NULL
NULL
updated
User that updated the

LAST_UPDATED_BY record. Foreign key to NUMBER NOT NULL INT NOT NULL
CMN_SEC_USERS.ID
Non-Standard Schema
 In order to support the legacy software packages,
in Clarity, the Non-Standard Schemas from the
legacy packages were incorporated into Clarity
almost entirely “as is”, except for a few changes
where Tables were redundant and the functionality
could be included in the Standard Schema
 Non Standard Schema table, for example, have a
“prID” field as the Primary Key where many
Standard Schema Tables have “ID” as the Primary
Key
Sequences
 Where possible, data is segregated by their IDs.
This allows us to determine whether a record is
part of a demo load, for instance. The sequence
limits are:
- Seed data: 000000 – 1999999
- Demo data: 2000000 – 4999999
- Customer data: 5000000 +
Sequences example
Seed data
Customer data
Lookups
 Many of the fields in Clarity are Browse and Pull-
down values
 The underlying data comes from Lookups
 Static Lookups are stored in 2 main tables
- CMN_LOOKUP_TYPES – original value
- CMN_LOOKUPS – associated values
 Dynamic lookups are based on queries and can
be created to dynamically update the listing or
choices
Lookups
Core Lookup Tables
Aquadata
 Aquadata is a query analyzer providing access to
the Data Model data tables and fields
 Aquadata allows users to build and run simple SQL
queries and then displays the fields in a table
format
 Users can preview the fields and data contained in
tables first, prior to building complex SQL or
Clarity NSQL statements
 Aquadata is not part of the Clarity package
Resources
 When Users enter data in the Resource
Management module, data is written into tables:
- SRM_RESOURCES
- PRJ_RESOURCES
 Labor Resources are also written into the table:
- CMN_SEC_USERS
- After rows are inserted, the user record is
“locked” (can not login).
Resources cont.
 Labor Resources (created from application
resources) are also written into the table:
- CMN_SEC_USERS
“locked” (can not login).
Resources cont.
 Admin Tool Resources are also written into the
table:
- CMN_SEC_USERS
“active” and has “right access”
Resources
Core Resource Tables
Users
 Users are considered Resources with a Login Name
and Password and can have Access Groups or
Rights assigned to them
 Users are stored in a table called:
-CMN_SEC_USERS
 Any table with created_by or last_updated_by
fields will have to link to CMN_SEC_USERS to get
the Resource’s First Name and Last Name
 Users are created from the Resources link via the
Administration Tools page
-Clarity application automatically makes an entry
into the srm_resources table
Users
Core User Tables
Projects
 Customers use Clarity to manage and summarize
Project Information.
 INV_Projects is the master header table for
Project data.
 More detailed data about a Project is stored in:
- PRJ_PROJECTS: Project plan information
- PAC_MNT_PROJECTS: Information about the
Financials
- PRTEAM: What Resources are Staffed to which
Projects?
- PRTASK: What Tasks are on the Project?
- PRASSIGNMENT: Which Resources are
Assigned to the Project Tasks?
Projects
Core Project Tables
Projects
Projects
SQL to display the name of SQL to display which tasks are
the assigned to which resources
project manager on which projects
select select
P.id niku_project_id, P.id niku_project_id,
P.name projectname, P.name projectname,
P.unique_name projectid, P.unique_name projectid,
PP.manager_id projectmanagerID, T.prname taskname,
U.last_name R.last_name resource_lastname,
projmgr_lastname, R.first_name resource_firstname
U.first_name from srm_projects P,
projmgr_firstname prtask T,
from srm_projects P, prassignment A,
prj_projects PP, srm_resources R
cmn_sec_users U where P.id = T.prprojectid
where P.id = PP.prid and T.prid = A.prtaskid
and PP.manager_id = U.id and R.id = A.prresourceid
Object Defined Fields
 Clarity allows Users to create new Object Defined
Fields (custom fields) associated with Standard
Objects and Custom Objects
 This is done through the Objects link in Clarity Studio
 Object Defined Fields are stored in tables with a
prefix of “ODF_CA_”:
•Action Items: odf_ca_actionitem •Other Work: odf_ca_other
•Applications: odf_ca_application •Portfolio: odf_ca_portfolio
•Assets: odf_ca_asset •Product: odf_ca_product
•Assignment: odf_ca_assignment •Projects: odf_ca_project
•Baseline: odf_ca_baseline •Requisition: odf_ca_requisition
•Change Requests: odf_ca_change •Resources: odf_ca_resource
•Company: odf_ca_company •Risk: odf_ca_risk
•Idea: odf_ca_idea •Task: odf_ca_task
•Incident: odf_ca_incident •Team: odf_ca_team
•Issue: odf_ca_issue
 Object Defined Fields are stored in tables with a

prefix of “ODF_CA_”: (continued)
-When a new Custom Object is created, a
corresponding “odf_ca_” prefixed table also gets
created.
-Custom Master objects can be created. They
have a partition code but not a parent id.
-code: this Field contains the ID value entered
from the Clarity UI
-odf_parent_id: contains the link to the Business
Object Record
Object Defined Field Links Example,
Using the Project Object
Time
 Customers use Clarity Time to capture Actuals
against Projects
 PRTIMEPERIOD: Table defines which day of the
week is the start of the week and end of the week.
 Also shows if a Time Period is Open or Closed for
entering time.
 prStart: Starting date.
 prFinish: Ending date.
Time cont.
 Additional Data regarding prStart and prFinish
- Date is saved to include all minutes and
seconds for the day. The minutes and seconds
have a timestamp of 00:00 of the next day.
This represents the end of a given day and the
beginning of the following day.
- For example, when entering a finish date of
1/31/2006, it is saved in the field as 2/1/2006
00:00.
- Need to subtract 1 from the prFinish date to
show the actual given date.
Time – Additional Tables
 PRTIMESHEET: Shows which week and which Resource
information is being captured
- prStatus: this field contains information on Status of the
Timesheet, i.e.,
 0 = Unsubmitted
 1 = Submitted
 2 = Rejected (Returned)
 3 = Approved
 4 = Posted
 5 = Adjusted
 PRTIMEENTRY: Captures time entered for a given Time
Period by Task
- prActCurve: BLOB field stores all the Actuals
- prActSum: Sum of all Time information stored in
seconds. Divide by 3600 to convert to hours
Core Time Tables
PRTIMEENTRY example
Time Slices
 Time information is stored in BLOB fields in Clarity
 Data stored in hours
 Main Time Slice tables are:
-PRJ_BLB_SLICEREQUESTS
 Contains the settings for each Time Slice type
-PRJ_BLB_TIMESLICES
 All cracked BLOB information is stored here
 slice_request_id: field identifies what type of Time Slice the
information is for.
Core Time Slice Tables
Data Model Review
 Clarity Technical Reference Guide
http://support.niku.com > Product
Documentation
 Standard Schema Naming Conventions
<component>_<sub_component>_<additional
desc>_<type_id>
 Clarity Data Model includes Standard Schema
and Non-Standard Schema “as is” legacy tables
Interactive Demonstration
Join Tables
Task 2
Query Analyzer Reviews Tables
Using SQL queries
 Define Basic SQL example and statement
 Review table types and Table purpose
 Review NBI Tables
 Review Mapping fields to tables per SQL statement
Joining Practices
 Use query analyzer to join tables and view results
 SQL statements are used to join tables
SQL Statements
 SELECT
 FROM
 WHERE
 GROUP BY
Create a Simple SQL Statement
 Create a SQL which includes the Project ID,
Project Name, Unique Project Name for all projects
that are active
Simple SQL Result
Joining Exercises
 Find which tasks are assigned to which resources
for projects.
 Tables needed:
PRTASK
SRM_PROJECTS
PRASSIGNMENTS
SRM_RESOURCES
Joining Tables
Last Name First Name Project Name PR Task

Name
Starkey Rebecca Call Center Effort

Improvements
Nurberg Mary Co-Funded CRM Prep cost
Enhancements And benefit
estimate
Sauer Jason HR Benefits Coding
Upgrade
SQL Joining Statement Result
Joining Tables
Show all Projects ID’s, the Name of the Project and
the full name of all resources assigned to the
project.
Resources assigned to projects
Joining Exercises
 List all the managers with resources that report to
them. Include the managers first, last name and
the resources first and last name.
Viewing NBI Tables
 Project ID
 Project Name
 Start date
 End date
 Open for Time Entry
 Project Manager Name
 Team member
 Tasks
 Accumulated EST, ACTUAL, etc. time
Interactive Demonstration
Skill Builder
Module Summary
You should now be able to:
 Identify the Clarity Data Model
 Join Tables

Data Model

Uploaded by

Copyright:

Available Formats

You might also like

Data Model

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Data Model

Uploaded by

Copyright:

Available Formats

Clarity Data Model

Clarity Technical Reference Guide

<sub_component> - further describes the component

<additional desc> -further describes the <sub_component>

<type_id> -describes the database object

(i.e. cmn_sec_groups_u1 – common security group unique

Business Process Management BPM

Capacity Planning CAP

Data Mart NBI

eXtensible Data Model XDM

Object Definition Fields ODF

Portfolio Management PMA

Project Accounting PAC

Project/Portfolio Management PRJ

Resource Management RSM

Shared SRM Objects (Master tables) SRM

Type Type ID Identifier

These need to be named explicitly (“alter table XYZ add XYZ_FK1

Check Constraints CKx i.e. CK1 or CK2

Unique Indexes Ux i.e. U1

Non-Unique Indexes Nx i.e. N1 or N2

i.e. S1 or S2. S1 is used for Primary Key sequences only, i.e.

Triggers TRGx or Tx i.e. TRG1 or TRG2, T1 or T2

Packages PKG Collection of Stored Procedures

Stored Procedures SP Routine to run a list of Commands

Type Type ID Identifier

These need to be named explicitly (“alter table XYZ add XYZ_FK1

Check Constraints CKx i.e. CK1 or CK2

Unique Indexes Ux i.e. U1

Non-Unique Indexes Nx i.e. N1 or N2

i.e. S1 or S2. S1 is used for Primary Key sequences only, i.e.

Triggers TRGx or Tx i.e. TRG1 or TRG2, T1 or T2

Packages PKG Collection of Stored Procedures

Stored Procedures SP Routine to run a list of Commands

Type Type ID Identifier

These need to be named explicitly (“alter table XYZ add XYZ_FK1

Check Constraints CKx i.e. CK1 or CK2

Unique Indexes Ux i.e. U1

Non-Unique Indexes Nx i.e. N1 or N2

i.e. S1 or S2. S1 is used for Primary Key sequences only, i.e.

Triggers TRGx or Tx i.e. TRG1 or TRG2, T1 or T2

Packages PKG Collection of Stored Procedures

Stored Procedures SP Routine to run a list of Commands

Type Type ID Identifier

These need to be named explicitly (“alter table XYZ add XYZ_FK1

Check Constraints CKx i.e. CK1 or CK2

Unique Indexes Ux i.e. U1

Non-Unique Indexes Nx i.e. N1 or N2

i.e. S1 or S2. S1 is used for Primary Key sequences only, i.e.

Triggers TRGx or Tx i.e. TRG1 or TRG2, T1 or T2

Packages PKG Collection of Stored Procedures

Stored Procedures SP Routine to run a list of Commands

Date/time record/row DATETIME NOT

User that created the

User that updated the

 Object Defined Fields are stored in tables with a

Last Name First Name Project Name PR Task

Starkey Rebecca Call Center Effort

You might also like
