1) Modeling and similarity allows researchers to predict the behavior of an actual physical system (prototype) by conducting experiments on a scaled physical model.
2) For a model to correctly replicate a prototype, it must satisfy three types of similarity: geometric, kinematic, and dynamic. Geometric similarity means all dimensions are scaled equally. Kinematic similarity means particle paths and velocity ratios are similar. Dynamic similarity means all force ratios between the model and prototype are the same.
3) Achieving all three similarities ensures a model is a "true" replica of the prototype and will allow researchers to accurately predict how the full-scale system would behave.
1) Modeling and similarity allows researchers to predict the behavior of an actual physical system (prototype) by conducting experiments on a scaled physical model.
2) For a model to correctly replicate a prototype, it must satisfy three types of similarity: geometric, kinematic, and dynamic. Geometric similarity means all dimensions are scaled equally. Kinematic similarity means particle paths and velocity ratios are similar. Dynamic similarity means all force ratios between the model and prototype are the same.
3) Achieving all three similarities ensures a model is a "true" replica of the prototype and will allow researchers to accurately predict how the full-scale system would behave.
1) Modeling and similarity allows researchers to predict the behavior of an actual physical system (prototype) by conducting experiments on a scaled physical model.
2) For a model to correctly replicate a prototype, it must satisfy three types of similarity: geometric, kinematic, and dynamic. Geometric similarity means all dimensions are scaled equally. Kinematic similarity means particle paths and velocity ratios are similar. Dynamic similarity means all force ratios between the model and prototype are the same.
3) Achieving all three similarities ensures a model is a "true" replica of the prototype and will allow researchers to accurately predict how the full-scale system would behave.

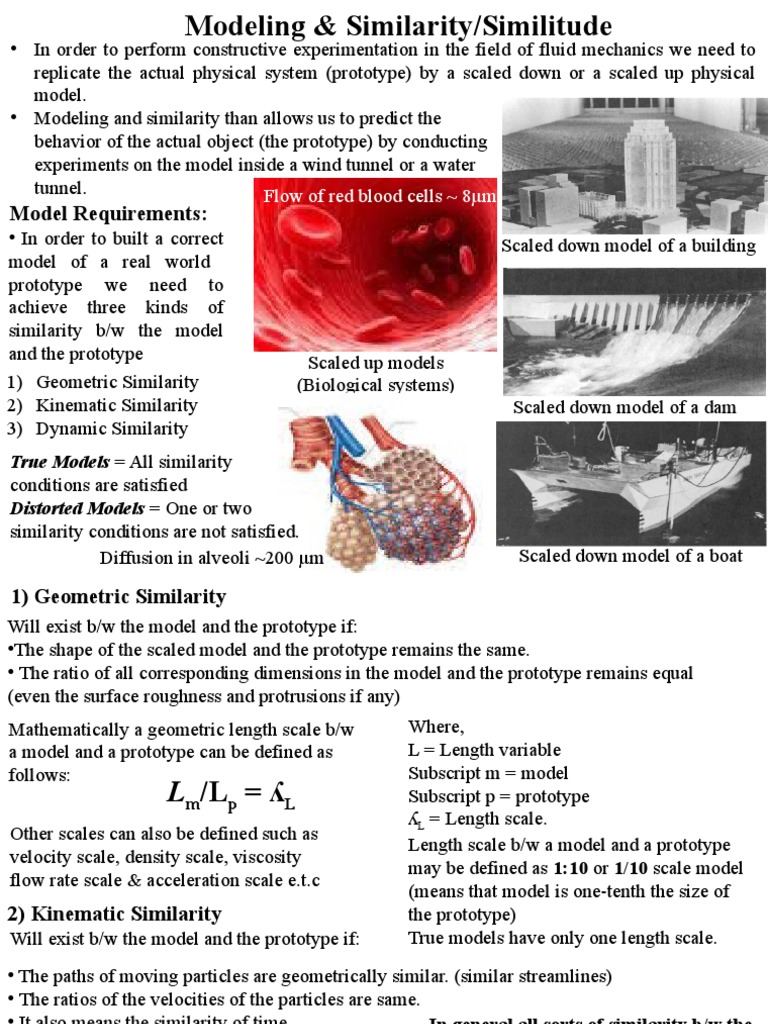

• In order to perform constructive experimentation in the field of fluid mechanics we need to
replicate the actual physical system (prototype) by a scaled down or a scaled up physical model. • Modeling and similarity than allows us to predict the behavior of the actual object (the prototype) by conducting experiments on the model inside a wind tunnel or a water tunnel. Flow of red blood cells ~ 8μm Model Requirements: • In order to built a correct Scaled down model of a building model of a real world prototype we need to achieve three kinds of similarity b/w the model and the prototype Scaled up models 1) Geometric Similarity (Biological systems) 2) Kinematic Similarity Scaled down model of a dam 3) Dynamic Similarity True Models = All similarity conditions are satisfied Distorted Models = One or two similarity conditions are not satisfied. Diffusion in alveoli ~200 μm Scaled down model of a boat 1) Geometric Similarity Will exist b/w the model and the prototype if: •The shape of the scaled model and the prototype remains the same. • The ratio of all corresponding dimensions in the model and the prototype remains equal (even the surface roughness and protrusions if any) Mathematically a geometric length scale b/w Where, a model and a prototype can be defined as L = Length variable follows: Subscript m = model Lm/Lp = ʎL Subscript p = prototype ʎL = Length scale. Other scales can also be defined such as Length scale b/w a model and a prototype velocity scale, density scale, viscosity may be defined as 1:10 or 1/10 scale model flow rate scale & acceleration scale e.t.c (means that model is one-tenth the size of 2) Kinematic Similarity the prototype) Will exist b/w the model and the prototype if: True models have only one length scale. • The paths of moving particles are geometrically similar. (similar streamlines) • The ratios of the velocities of the particles are same. • It also means the similarity of time. In general all sorts of similarity b/w the model & the prototype will be achieved 3) Dynamic Similarity if all their Pi- terms are equal. Will exist b/w the model and the prototype if: • The ratios of all forces (pressure, inertia, viscous, surface tension e.t.c) in the model and the prototype are the same. Dynamic similarity also demands the kinematic & geometric similarity.
