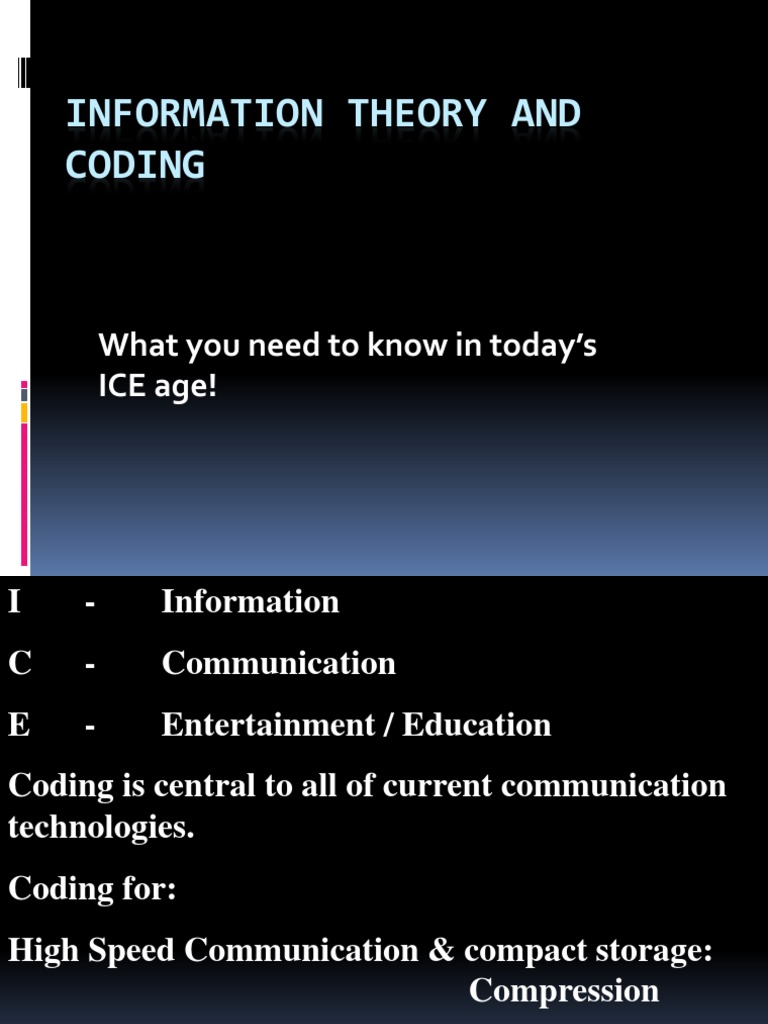

INFORMATION THEORY AND

CODING

What you need to know in today’s

ICE age!
I - Information
C - Communication
E - Entertainment / Education
Coding is central to all of current communication
technologies.
Coding for:
High Speed Communication & compact storage:
Compression
Reliability: Error Correction
Secrecy: Cryptography
Contact Information:
P.K.Thiruvikraman

thiru@hyderabad.bits-pilani.ac.in
Chamber: A214
Website:
http://sites.google.com/site/pkthiruvikraman/
For lecture slides and other material

Also available on CMS

Codes used in daily life:
1. Morse Code
2. Bar code
3. QR code
QR Code
 Encrypter (for
Encoder (for
security)
compression)

Channel coder

Decoder (for
Channel
decompression)
(usually has
some noise)

Decrypter
Channel Decoder (for
error detection and
correction)
Compression in daily life : Abbreviation
BITS, CGPA, asap, BTW,sms, OMG, lol
LTC, SAC
So in general, compression is achieved by encoding the
information contained in the source symbols into code
words.
For storage purposes, we compress it and at a later stage, it
can be uncompressed.
Sometimes, a given codeword may not be uniquely
decodable!
Eg: WWF : World Wildlife Fund
World Wrestling Federation
BITSian: “If Business Standard can interpret AI
as Air India, then I know another way we can
interpret BS”
More howlers in the news:
India's state TV channel has fired a news anchor
for referring to Chinese President Xi Jinping as
"Eleven" Jinping.
Data is the means by which we convey information.
Various amounts of data maybe used to convey the
same information. Hence compression is possible.
Compression is achieved by removing redundancy.
An example of redundancy in the English
language:
Queen, quick, quite etc. Q is always followed by u ,
hence we can compress the message by not
transmitting the u.
Then why do we have redundancy in the first
place?
Error detection and correction : it’s an insurance
against failures
Redundancies in daily life:
•Redundancy in Computer Networks
•Repetition in lectures: Students who doze off for a
minute can “get back” into the lecture
•Redundancy in movies: You can miss half the
movie and still understand the story!
Coding :
Aim: To convert a message i.e, a sequence of
symbols (source alphabets) into a binary (or in
general q-ary message (consisting of code words).
Here the code alphabets are 0 and 1 and a string
made up of 0s and 1s is called a code word.
Definition:
Given finite sets A (source alphabet) and
B (code alphabet), a coding is a rule which assigns
to each source symbol exactly one word in the code
alphabet.
A code is a set of vectors called codewords
Compression ratio = n1 /n2
Where n1 and n2 are the number of information-
carrying units in the two data sets
A code is a rule which assigns to each
source symbol a code word.

A 00001

B 00010

C 00011

D 00100

E 00101
 Uniquely decodable code (UDC):
Example of a code which is not a UDC
Source symbol Code word
A 00
B 10
C 101
D 110
E 1001

Try decoding 10110

Block codes and variable length codes:
In variable length coding, we represent frequently
occurring source symbols by words of shorter
length and source symbols which occur rarely by
words of greater length.
Compression is achieved if the average word length
is reduced. L 1
lavg   l ( xi ) p( xi )
k 0

Here l(xi) is the length of the code word which represents

the symbol xi and p(xi) is the probability of occurrence of
this symbol.
Now, wait a minute!
Decoding a block code is easy, because I know beforehand
that a certain number of symbols (0s and 1s) correspond to
one source symbol.
But for a variable length code how do we do the decoding?
Ans: We can either use a end-of-word character, but this
would spoil the compression ratio so we try to decode each
code word as soon we get it (instantaneously).
If instantaneous decoding is possible, then such a code is
called an IDC (instantaneously decodable code).
Eg:
Suppose that we are to find a binary coding for the
alphabet {0,1,2,3}, and we observe that 0 appears more
often than any other symbol, then we assign the shortest
code word to 0 and progressively longer code words to
other alphabets which occur less frequently.

Source alphabet Code word

0 0
1 01
2 011
3 111
But, this code is not instantaneously decodable.
If we receive the message
011111111……1
But it is still uniquely decodable
We will not know whether the first symbol is 0,1 or
2 until the message stops!
So for a code to be instantaneous, it should satisfy
the No-prefix condition.
No code word is a prefix of another code word.
An instantaneous code for the same source alphabet is
given below:

Source alphabet Code word

0 0

1 10

2 110

3 111

In order that this code can be decoded, we send this table

to the recipient, along with the actual coded message
For a given code to be instantaneous, it should satisfy the
no-prefix condition. Let the length of the code words
(using binary) be d1,d2,d3,……. dn. Let the source
alphabets be {a1,a2,a3,….an}
We assume that

d1  d 2  d3 .......  d n
Let us say, we have chosen a binary word K(a1) of length
d1. We want to choose a binary word of length d2, but we
want to avoid those words which have K(a1) as a prefix.
The number of such words is:

d 2  d1
2
 Explanation:

1 0 1 0 0 0 0 1 1 0

d1

d2

For the code to be constructed:

d 2 d1
2 2
d2
1
Number of words of length d2 > Number of words
ruled out + 1
Similarly, we have to choose a word of length d3 after
ruling out the words of length d1 and d2 .
Therefore:

d 3  d1 d3 d 2
2 2
d3
2 1
Or:

 d1 d2  d3
1 2 2 2
  d1 d2  d3 dn
1 2 2 2  ..........2

Theorem:
Given a source alphabet of n symbols and a code
alphabet of k symbols, then an instantaneous code
with given lengths d1,d2,d3….dn of code words
exists, whenever the following Kraft’s inequality
 d1 d2  d3 dn
1 k k k  ..........k
Note:
If a given code satisfies Kraft’s inequality
then it does not mean that the given code is
instantaneous. The conclusion is that there exists
at least one instantaneous code with the same
length of code words. The ultimate test for an
instantaneous code is the No-Prefix condition
Decoding of instantaneous codes:
•Compare the first bit received with the code words in the
look-up table. If there is a match, then the corresponding
source symbol can be obtained from the look-up table.
•If there is no match, then concatenate this bit with the
next bit received and then again search for a match with
the code words in the look-up table.
•This process of concatenating the last received bit with all
the preceding bits is continued till a match is found.
•Once a match is found, the temp variable where the
concatenated bits were stored is cleared and the next bit
which is received is stored there and the entire process is
repeated.
Huffman code:
We will now describe a systematic procedure for
arriving at an efficient instantaneous coding scheme called
the Huffman code.
Information Source: An information source is a source
alphabet together with a probability distribution; i.e., a set
{a1,…….an} together with numbers P(a1),……P(an)
satisfying
n

 P(a )  1 and
i 1
i

0 < P(ai) < 1

We will consider a discrete, memoryless information
source: memory-less means that the source symbols
appear independently.
In other words, the probabilities P(ai) fully describe
the statistics of the source messages, and the
probability of a message ai1,ai2,ai3,……air can be
computed from the probabilities of the individual
symbols:
P(ai1,ai2,ai3,……air) = P(ai1)P(ai2)……..P(air)
Construction of Binary Huffman Codes:
A source of two symbols has an obvious Huffman code with the code
words 0 and 1 [and Lmin=1]. A source with three symbols a1,a2,a3 of
which a1 is the most probable, can be reduced to the case of two
symbols, a1 and a2,3 , where P(a2,3) = P(a2) + P(a3).
We find Huffman code for the reduced source
a1 0
a2,3 1
and then we “split” the code word 1 into two words,10 and 11, thus
obtaining a Huffman code for the original source:
a1 0
a2 10
a3 11
In general, let S be an information source with symbols
a1,a2,….an ordered by probability,i.e.,
P(a1) > P(a2)> …………> P(an)
The reduced source S* has symbols a1,a2,a3…..an-2 and a
new symbol an-1,n and its probabilities are P(a1),……
..P(an-2) and P(an-1,n) = P(an-1) + P(an).
If we cannot find a Huffman code for S*, we continue in
the same way, finding a reduction of S* till we end up with
two source symbols.
Note: Before reducing S*, we must move the new symbol
an-1,n in order to maintain the ordering by probability
 1st 2nd 3rd 4th
a P(a) reduction reduction reduction reduction

A 0.4 0.4 0.4 0.4 0 0.6

E 0.2 0.2 0.2 0.4 1 0.4

B 0.1 0.2 0.2 0.2

C 0.1 0.1 0.2

D 0.1 0.1

F 0.1
We now proceed backwards by “splitting” each code word
w assigned to a sum of two probabilities to two words w0
and w1.
splitti
a* P(a*) 1st
ng 2nd spt 3rd 4th

0.6 0 0.4 1 0.4 00 0.4 00 0.4 00

0.4 1 0.4 00 0.2 01 0.2 10 0.2 11

0.2 01 0.2 10 0.2 11 0.1 010

0.2 11 0.1 010 0.1 011

0.1 011 0.1 100

0.1 101

lavg = 2 x0.4+2x0.2+3x0.4=0.8+0.4+1.2=2.4
If we represent in usual binary fixed length code lavg = 3
Implementation of Huffman Encoding:
•We have to keep track of the probabilities which
have been combined. This will be used when we
“split” the code-words when proceeding in the
reverse direction.
function [m,k]= huff(m,k)
global palph1 fl code;
symp=palph1(m,k)+palph1(m-1,k);
tempk=1;
for i=1:m-1,
if symp <= palph1(i,k)
palph1(i,k+1)=palph1(i,k);
else
break;
end
end
fl(i,k+1)=1;
palph1(i,k+1)=symp;
for j=i+1:m-1,
palph1(j,k+1)=palph1(j-1,k);
end
m=m-1;
k=k+1;
if m==2
return;
end
[m,k]= huff(m,k)
% cd is a cell which will contain all the code words
% cellstr creates cell array of strings from
character array.

cd=cell(n,n-1);
cd(1,n-1)=cellstr('1');
cd(2,n-1)=cellstr('0');
while m<n
j=1;
while j<m+1
if fl(j,n-m+1)==0
cd(j,n-m)=cd(j,n-m+1);
else
bj=j;
j=m+1;
end
j=j+1;
end
t1=cd(bj,n-m+1);
t11=strcat(t1,'1');
t2=strcat(t1,'0');
t1=cellstr(t11);
t2=cellstr(t2);
cd(m,n-m)=t1;
cd(m+1,n-m)=t2;
k=bj+1;
while k<m+1
cd(k-1,n-m)=cd(k,n-m+1);
k=k+1;
end

m=m+1;
end
1. a) Is the code given in the following table
uniquely decodable? Is it instantaneously
decodable? Why?

Source symbol Code word

0 1
1 01
2 001
3 0001
 b) How many different instantaneous codes can be
constructed such that the lengths of the code words
for each source symbol are as given in the table
shown above? Give the complete list of all such
codes.
2. a)A binary instantaneous code is to be
constructed in which the length of the code words
are 1,2,4 and 4. Is it possible to construct such a
code? Justify.
b) Is it possible to add a new code word of length 5
without disturbing the existing code words? Why?
If not, what is the minimum number of code
alphabets required to construct an instantaneous
code.
3 Is the code given below instantaneously decodable?
Why? Is it uniquely decodable? Why?

Source Symbol Code word

A 1010
B 001
C 101
D 0001
E 1101
F 1011
