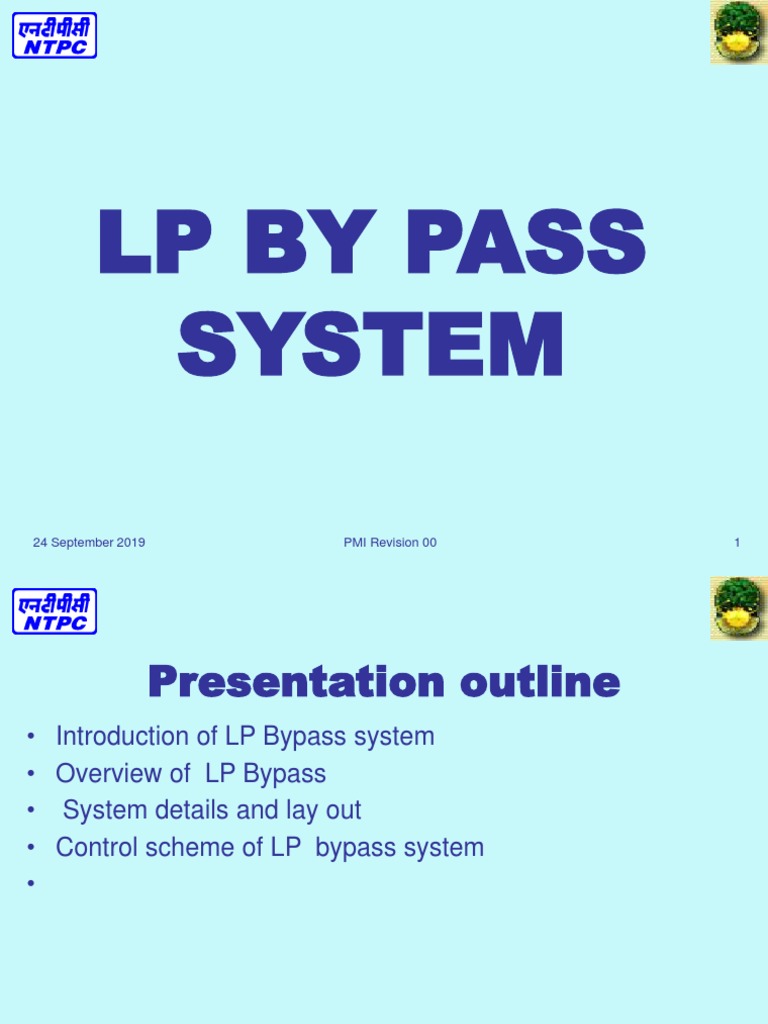

LP BY PASS

SYSTEM

24 September 2019 PMI Revision 00 1

 Presentation outline
• Introduction of LP Bypass system
• Overview of LP Bypass
• System details and lay out
• Control scheme of LP bypass system
•

24 September 2019 PMI Revision 00 2

 L.P. BYPASS SYSTEM

• LP bypass bypasses steam to IPT & LPT & maintain flow

through RH.
Function of LP bypass:-
1. To monitor the pressure in reheat system and to control it
under certain operating condition.
2. The volume of steam not utilized by the IPT & LPT during
start up & shut down must pass through condenser.

24 September 2019 PMI Revision 00 3

 LP BYPASS SYSTEM

LP Bypass system provide a very effective means of

controlling reheat –steam flow during

 Startup
 Low-load / part load operation
 Sudden load rejection

24 September 2019 PMI Revision 00 4

 LP BYPASS SYSTEM

It enhances fast starting capability of turbines from all

initial conditions e.g.

 Cold condition
 Warm condition
 Hot Condition

24 September 2019 PMI Revision 00 5

 LP BYPASS SYSTEM
LP steam-bypass system operates in parallel with the
turbine

Protects Condenser from excessive temperature and

pressure that could result from sudden injection of
superheated steam

24 September 2019 6
 LP BYPASS SYSTEM

• The controls for LP Bypass system are combination of electrical

and well proven hydraulic system

• Electro-hydraulic converter provides the necessary link

between hydraulic actuator and electrical system

24 September 2019 PMI Revision 00 7

 SEQUENCE OF EVENTS RESULTING FROM LOAD
REJECTION
Upon receiving load rejection signal from electrical
system:
 Turbine Speed Controller assumes control of
the TG set

 It initiates fast closure of HP & IP turbine

control valves through position controller

 Fast closure of turbine control valves cause an

immediate decrease in HP 1st. Stage pressure

24 September 2019 PMI Revision 00 8

 SEQUENCE OF EVENTS RESULTING FROM LOAD
REJECTION
 Pressure increases in main and reheat steam
systems

 These pressure changes are sensed by HP and LP

Bypass controllers

 Respective bypass valves are opened

24 September 2019 PMI Revision 00 9

 • If LP steam- bypass system fails or the
condenser cannot accept LP bypass
steam , Safety Valves open and dump
steam to atmosphere

24 September 2019 PMI Revision 00 10

24 September 2019 PMI Revision 00 11
24 September 2019 PMI Revision 00 12
24 September 2019 PMI Revision 00 13
 System details and layout
• The controls for LP Bypass system are combination
of electrical and well proven hydraulic system

• Electro-hydraulic converter provides the necessary

link between hydraulic actuator and electrical
system

24 September 2019 PMI Revision 00 14

 Control scheme

• Set point formation

• Pressure control for LP bypass system
• LP bypass HYDRAULIC System
• Protection system

24 September 2019 PMI Revision 00 15

 Control scheme
• The LPBypass Controller acts as a maximum
pressure Controller

• It regulates the reheater pressure either to the

fixed set value or suitably derived variable set
value

• If the reheater pressure exceeds this set value,

the Controller causes the electro-hydraulic
converter to operate and initiate bypass
operation

24 September 2019 PMI Revision 00 16

 Set Value formation

The Two set values – fixed and variable are formed for the
LPBypass control system
set value to be used is determined by a maximum value
selector
For the formation of variable set point, a pressure
transducer is used to measure the steam pressure in HP
turbine

24 September 2019 PMI Revision 00 17

 Bypass Controller – Block Diagram

24 September 2019 PMI Revision 00 18

 LP Bypass System

24 September 2019 PMI Revision 00 19

 Features of LPBP Controller
• LPBP controller maintains pressure after reheater
by controlling LP bypass valves
• It acts on the coil of the LPBP E-H converter to
position the control valves.
• Two setpoints, fixed and variable are used in
maximum selection circuit
• Variable setpoint is derived from HP first stage
pressure
• Water spray is in two stages depending on steam
flow through LPBP stations.
• LPBP valves cannot open until adequate spray
water pressure and required vacuum is there and
condenser wall temp is not high.
• Valves can also be operated manually
24 September 2019 PMI Revision 00 20
 LP BYPASS SETPOINTS

24 September 2019 PMI Revision 00 21

CONTROLLER
OUTPUT
CHARACTERI
STICS

24 September 2019 PMI Revision 00 22

 Hydraulic Mode of Operation

• The controller controls plunger coil of Electro

Hydraulic Converter
• With increase in voltage, the jet pipe is deflected
towards right
• Converter piston moves downwards leading to
generation of LPB signal oil through Follow-up
pistons provided in the hydraulic control system
24 September 2019 PMI Revision 00 23
 Hydraulic Mode of Operation

• Two Follow-up Pistons actuate and open first stage of

water injection valve
• Remaining two Follow-up Pistons generate signal oil for
opening LPBypass stop and control valve
24 September 2019 PMI Revision 00 24
 ADJUSTMENT
OF
LPBYPASS
CONVERTER

24 September 2019 PMI Revision 00 25

 Design of LPBypass Valves for 210 MW
Steam Turbine

• Controlled by
8 bar mineral
oil

24 September 2019 PMI Revision 00 26

 Design of LPBypass Valve for 500
MW Steam Turbine

• Controlled by 36
bar FRF

24 September 2019 PMI Revision 00 27

 Protection Devices

 Low Vacuum Condensor Protection

 Spray Water Pressure Switch
 Condensor Temperature Protection
24 September 2019 PMI Revision 00 28
 Protection Devices cause closure of
bypass station in case of following
eventualities

a) Condensor vacuum is low ( > 0.6 bar absolute )

b) Spray water pressure is low (< 8.5 / 9.5 bar )
c) Temperature of condenser body is high (> 90° C )

24 September 2019 PMI Revision 00 29

 Water Injection Valves operate in two stages

• Second stage Water Injection Valves open

when steam flow through LPBypass Valves
increases more than 45 %
24 September 2019 PMI Revision 00 30
 CURVE FOR LPBYPASS
CONTROLLER

24 September 2019 PMI Revision 00 31

 Damping device

24 September 2019 PMI Revision 00 32

24 September 2019 PMI Revision 00 33
24 September 2019 PMI Revision 00 34
 Actuator Bypass
Stop Valve
24 September 2019 PMI Revision 00 35
 Actuator
LPBPCV
24 September 2019
500 PMI
MW Revision 00 36
 Pilot valve
for Water
Injection Valve

24 September 2019 PMI Revision 00 37

 Water
Injection
Valve

24 September 2019 PMI Revision 00 38

 Combined Bypass
Stop & Control
Valve 210 MW

24 September 2019 PMI Revision 00 39

 Feedback for Pilot valve of
Bypass Control Valve 210 MW

24 September 2019 PMI Revision 00 40

24 September 2019 PMI Revision 00 41
24 September 2019 PMI Revision 00 42
