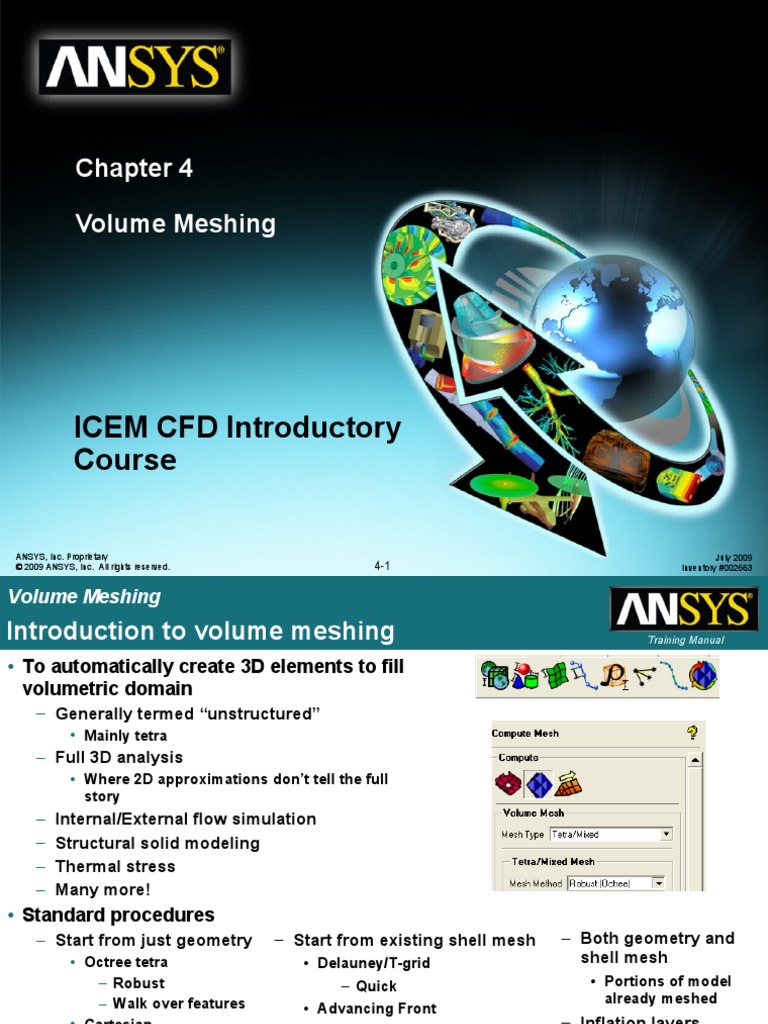

ICEM CFD Introductory Course: Volume Meshing

Chapter 4
Volume Meshing
ICEM CFD Introductory

Course
ANSYS, Inc. Proprietary July 2009

© 2009 ANSYS, Inc. All rights reserved. 4-1 Inventory #002663
Volume Meshing
Introduction to volume meshing Training Manual
• To automatically create 3D elements to fill

volumetric domain
– Generally termed “unstructured”
• Mainly tetra
– Full 3D analysis
• Where 2D approximations don’t tell the full
story
– Internal/External flow simulation
– Structural solid modeling
– Thermal stress
– Many more!
• Standard procedures
– Start from just geometry – Start from existing shell mesh – Both geometry and
• Octree tetra • Delauney/T-grid shell mesh
– Robust – Quick • Portions of model
– Walk over features already meshed
• Advancing Front
• Cartesian – Smoother gradients, size
– Inflation layers
– Fastest transition • “Prism”
• Have to set sizes • Hex Core
• Hex Dominant

Volume Meshing
General Procedure Training Manual
• First decide volume mesh parameters • Load/create surface mesh

– Global Mesh Setup > Volume Meshing
– As in Shell Meshing
Parameters
chapter
– Select Mesh Type
– For Delauney, Advancing
– Select Mesh Method for selected Type
Front, T-grid, Hex-
– Set options for specific Methods Dominant
• Set mesh sizes • Either of these types run
– Globally from geometry will
automatically create
• As in Shell Meshing surface mesh using
– Locally global and local Shell
• Part/Surface/Curve Mesh Setup Mesh settings without
any user input/editing
• As in Shell Meshing
• For From geometry only • If in doubt, run Shell
Mesh first, then from
– Octree
existing mesh
– Cartesian
• Define volumetric region

– Typically for octree on complex models • Compute Mesh
– Multiple volumes – Mesh > Compute Mesh >
• Define density regions (optional) Volume Mesh
• Applying mesh size within volume • Compute Prism (optional)
where geometry doesn’t exist – As separate process
– Also option to run
automatically following
tetra creation
Volume Meshing
Body/Material Point Training Manual
• Define Volumetric Domain

– Optional
• Recommended for complex geometries
• Multiple volumes
– Geometry -> Create Body
– Material Point
• Centroid of 2 points
– Select any two locations whose mid-point is within volume
– Preferred
• At specified point
– Define volume region by “point” within volume
– By Topology
• Defines volume region by set of closed surfaces
• Must first Build Diagnostic Topology
• Entire model
– Automatically define all volumes
• Selected surfaces
– User selects surfaces that form a closed volume

Volume Meshing
Mesh Types Training Manual
• Tetra/mixed
– Most used
Pure tetra
– Tetra
– With hex core
• Hexa (cartesian) filling majority
volume
• Tetra (from delauney algorithm) used
to fill between surface or top of
inflation layers and hex core
• Pyramids to make conformal between
Tetra/Prism
tetra tri and hex quad faces
– With inflation layers
• Prisms from tri surface mesh
• Hexas from quad surface mesh
• Tetra and/or hex core filling interior
• Pyramids to cap off any quad faces
– Of hex core or hex inflation layers Tetra/Prism/Hexcore
– Merged hybrid with structured hex

mesh
Volume Meshing
Mesh Types Training Manual
• Hexa-Dominant
– From existing quad mesh
– Good quality hex near surface
– Somewhat poor in interior
– Typically good enough for
static displacement
– Not covered in detail here
• Cartesian
– Automatic pure hexa
– Rectilinear mesh
– Staircase or
– Body fitted
– Fastest method for creating
volume mesh
– Not covered in detail here

Volume Meshing
Mesh Method Training Manual
• Tetra/Mixed
– Robust (Octree)
• Same as Shell Meshing > Patch Independent
– Retains volumetric tetras
• If you have complex and/or dirty geometry
• Don’t want to spend too much time with geometry
cleanup
• Don’t want to spend too much time with detailed
shell meshing
• Don’t want to spend time defeaturing geometry
• Just set appropriate mesh sizes on geometry
– Parts
– Surfaces
– Curves
– Review Shell Meshing chapter
• Part/Surface/Curve Mesh Setup

Volume Meshing
Octree Method Training Manual
• ICEM Tetra uses patch-independent Octree method

– Volume first generated independent of surface model
– Nodes are projected to model surfaces, curves and points
– Surface mesh is created
• Resulting mesh is independent of the underlying

arrangement of surfaces Mesh detail
– Not all surface edges need to be captured!
– Make curves/points dormant
• Delete
• Filter points/curves under Build Diagnostic Topology
Sliver ignored
Geometry
Mesh

Volume Meshing
Geometry Requirements for Octree Tetra Training Manual
• Tetra requires an enclosed

surface model
– Run Build Diagnostic Topology Geometry Repair
tools quickly locate
to find gaps/holes
and fix these
– Octree can tolerate gaps problems.
smaller then the local element
size
• Recommend points and curves
at key features
• Recommend Material points to
define volumes
– Will create a material point if
none exists
• Set Global, Part, Surface, Curve
Size Parameters Missing inlet surface
– As in Shell Meshing
Hole highlighted by yellow
single edge curve
Volume Meshing
Using Points and Curves Training Manual
• Curves and points included

• Mesh size specified on curves
and surfaces
Mesh captures detail
Coarse mesh ‘walks over’ detail • Curves and points

in surface model affect which
features are
captured by the
mesh!
• Build Topology
easily creates the
necessary points
• Curves and points not included and curves
• Mesh size specified only on surfaces
Volume Meshing
Octree - Options Training Manual
• Setup options:
• Global Mesh Setup > Volume Meshing parameters
– Run as batch process
• Runs as a separate process. GUI will stay interactive.
– Fast Transition
• Allows for a faster transition in element size from finer to coarser
• Reduce element count
– Edge Criterion
• Split elements at a factor greater than set value to better capture
geometry
– Define Thin cuts
• Tool for resolving thin gaps, sharp angles
• User selects pairs of opposing parts
• Resolve elements jumping from one side to another
– Smooth
• Automatically smooths after grid generation process
– Coarsen
– Fix Non-manifold
• Automatically tries to fix elements that jump from surface to another
– For a more detailed description go to Help > Help Topics > Help
Manual > Mesh > Global Mesh Setup > Volume Meshing
Parameters > Tetra/Mixed > Robust (Octree)

Volume Meshing
Octree -Options Training Manual
• Run options: Compute Mesh > Volume Meshing

Parameters
– Create Prism Layers
• Will create prisms marked under Part Mesh Setup
• Immediately after tetra calculation
• Prism layers grown into existing tetra mesh
– Create Hexa-Core
• Will retain tri surface mesh (or tri-prism), throw away
tetra mesh
• Fill volume interior with cartesian
• Cap off with pyramids
• Map tetra to tri or top prism face with delauney algorithm
– Input
• Select Geometry
– All, Visible
– Part by Part
• Meshes each part separately
• Mesh not conformal between parts
– From file
• Select tetin file
– Use Existing Mesh Parts
• Select Parts that are already surface meshed
• Uses Make Consistent to match octree volume mesh to
existing surface mesh

Volume Meshing
Curvature/Proximity Based Refinement Training Manual
• Curvature/Proximity Based Refinement

– Octree only
– Automatically subdivides to create elements that are
smaller than the prescribed entity size in order to capture
finer features
– Min size limit value entered is multiplied by the global Scale
Factor and is a lower limit for the automatic subdivision
– Used primarily to avoid setting up meshing parameters
specifically for individual entities thus allowing the
geometry to determine the mesh size
Min Size Limit: multiplied by

Scale Factor = global minimum
Prescribed element size: Surface/Curve Max. Element
Size times Scale Factor
Prescribed size
is adequate here Auto subdivision
at tighter radius
of curvature

Volume Meshing
Curve Based Refinement Training Manual
• Refinement
– Number of elements along Prescribed size Min size limit
curvature if extrapolated
to 360o
– To avoid subdivision
always to global minimum
which would otherwise
result in too many
elements
– Subdivision will stop Refinement = 12
once number of
elements along curve
is reached
– Won’t exceed global
minimum set by natural
size value
• Example
– Specified refinement
achieved with larger
elements
– Global minimum (Size) not
realized, not necessary to
capture curvature
Volume Meshing
Proximity Refinement, Elements in Gap Training Manual
• Elements in Gap
– Number of cells desired in Prescribed size Min size limit
narrow gaps
– To avoid subdivision
always to global minimum
which would otherwise
result in too many elements
• Subdivision will stop Cells in Gap = 5
once number of cells
in gap is reached
– Will not override global
minimum (Min size limit) Prescribed size Min size limit (1/5th smaller)
• Example
– Only one element in gap
– Can’t go smaller than Min
size limit
– Have to set smaller Min
size limit
Cells in Gap = 5

Volume Meshing
Mesh Methods Training Manual
• Tetra/Mixed • Setup Options:

– Quick (Delauney) – Memory scaling factor
• To allocate more memory
• If already have • Usually does so automatically
good quality
– Expansion factor
surface mesh
• Growth ratio from surface
– From Shell – Fill holes in volume mesh
Mesh • Use to fills holes/voids in
– From Octree existing volume mesh
• e.g. if bad quality region is
– From imported deleted
surface mesh – Mesh all domains
• Uses initial point • For multiple sets of closed
cloud; distributed volumes in one model
so that the • Usually
centroid of any – Flood fill after complete
tetra is outside
• For multiple volumes
circumsphere of
• Will assign tetras within closed
any neighboring volume to Part designated by
tetra Body or Material Point
– Verbose output
• For troubleshooting
Volume Meshing
• Tetra/Mixed
– Smooth (Advancing Front)
• Same as Quick (Delauney) but
• Uses advancing front method that marches tetras
from surface into interior
• Algorithm from GE/CFX
• Results in more gradual change in element size
– “Better” but finer mesh
– Inut surface mesh has to be of fairly high quality
• Setup Options: Do Proximity Checking
– Check to properly fill small gaps
– Longer run time
– Tgrid
• Volume grid generation algorithm from Fluent
• Uses somewhat different delauney approach
• Gradual transition near surface
• Faster transition toward interior
• Setup Options: Use Background Mesh

Volume Meshing
• Run Options:
– Same for Delauney, Advancing Front, TGrid
– Create Prism Layers/Hexa-Core
• Same as for Octree
• Hexa-Core not available for Advancing Front, TGrid
– Input
• All Geometry
– Will run shell mesh first with no user input/editing
– Using parameters from Shell/Part/Surface/Curve
Mesh Setup
– Review Shell Meshing chapter
– If doubtful as to shell mesh quality, run Shell Mesh
first, then use Existing Mesh
• Existing Mesh
• Part by Part/From File
– Same as for Octree
– Volume Part Name
• For newly created tetras

Volume Meshing
Comparison Training Manual
Octree Delauney Adv.front

Volume Meshing
Set Mesh Sizes Training Manual
• Create Mesh Density

– Define volumetric region with certain mesh
size where no geometry exists, e.g. wake
region behind a wing
– Not actual geometry!
• Mesh nodes not constrained to density object
• Can intersect geometry
– Can create densities within densities
• Always subdivides to smallest set size
– Set Size
• As for surface/curve – multiplied by global Scale
Factor
• Ratio – expansion ratio away from density object
• Width – Number of layers from object
– Type
• Points – Select any number of points
– Size and Width (number of layers) will detemine “thickness” of
volume if number of points selected is 1-3
– 4-8 creates polyhedral volume
• Entity bounds – define region by bounding box

of selected entities
Volume Meshing
Periodicity Training Manual
• Define Periodicity
• Forces mesh alignment across periodic sides
• For meshing and solving only one section of
symmetrically repeatable geometry
– Rotational Periodic
• Enter Base, Axis, and Angle
– Translational Periodic
• Enter dX, dY, dZ offset
Tip: Place
material point
close to mid-
plane

Volume Meshing
Workshops Training Manual
• Workshop 1 – Engine Block Model

– Build diagnostic topology
– Octree mesh
– Smooth mesh
– Curvature/proximity refinement
– Delaunay mesh
• Workshop 2 – Valve Model

– Build diagnostic topology
– Create parts, Create body
– Set sizes – Global, Surface, Curves, density
– Octree mesh

Volume Meshing
Workshops Training Manual
• Workshop 3
– Import Design Modeler file into ICEM
– Create Parts from Subsets
– Global, Part mesh set up
– Using ANSYS ICEM CFD Hexa to create a Cartesian initial grid with biasing
– Computing the mesh
– Viewing cut-planes


ICEM CFD Introductory Course: Volume Meshing

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

ICEM CFD Introductory Course: Volume Meshing

Uploaded by

Copyright:

Available Formats

Chapter 4

ICEM CFD Introductory

ANSYS, Inc. Proprietary July 2009

• To automatically create 3D elements to fill

ANSYS, Inc. Proprietary July 2009

• First decide volume mesh parameters • Load/create surface mesh

• Define volumetric region

• Define Volumetric Domain

ANSYS, Inc. Proprietary July 2009

– Merged hybrid with structured hex

ANSYS, Inc. Proprietary July 2009

ANSYS, Inc. Proprietary July 2009

• ICEM Tetra uses patch-independent Octree method

• Resulting mesh is independent of the underlying

ANSYS, Inc. Proprietary July 2009

• Tetra requires an enclosed

• Curves and points included

Mesh captures detail

Coarse mesh ‘walks over’ detail • Curves and points

ANSYS, Inc. Proprietary July 2009

• Run options: Compute Mesh > Volume Meshing

ANSYS, Inc. Proprietary July 2009

• Curvature/Proximity Based Refinement

Min Size Limit: multiplied by

ANSYS, Inc. Proprietary July 2009

ANSYS, Inc. Proprietary July 2009

• Tetra/Mixed • Setup Options:

ANSYS, Inc. Proprietary July 2009

ANSYS, Inc. Proprietary July 2009

Octree Delauney Adv.front

ANSYS, Inc. Proprietary July 2009

• Create Mesh Density

• Entity bounds – define region by bounding box

ANSYS, Inc. Proprietary July 2009

• Workshop 1 – Engine Block Model

• Workshop 2 – Valve Model

ANSYS, Inc. Proprietary July 2009

ANSYS, Inc. Proprietary July 2009

You might also like
