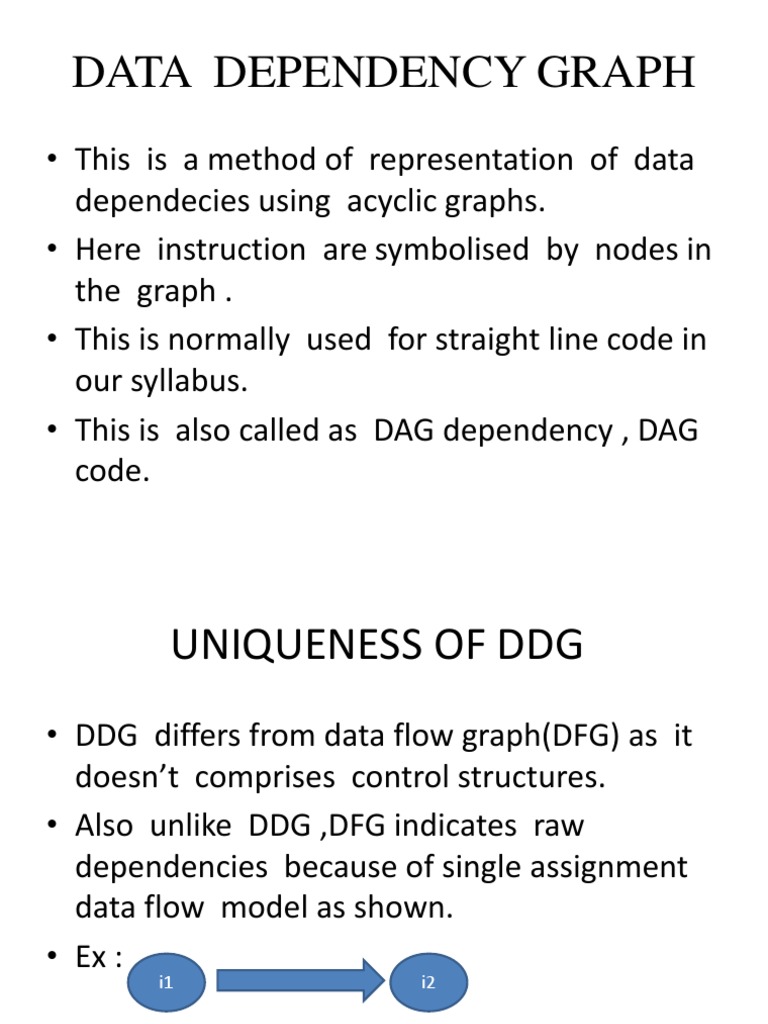

DATA DEPENDENCY GRAPH

• This is a method of representation of data

dependecies using acyclic graphs.
• Here instruction are symbolised by nodes in
the graph .
• This is normally used for straight line code in
our syllabus.
• This is also called as DAG dependency , DAG
code.
 UNIQUENESS OF DDG
• DDG differs from data flow graph(DFG) as it
doesn’t comprises control structures.
• Also unlike DDG ,DFG indicates raw
dependencies because of single assignment
data flow model as shown.
• Ex :
i1 i2

• instruction i2 is dependent on i1
 REPRESENTING DDG
• This is normally represented by tree data
structures as the name itself indicates.
• The basic principle behind this is to examine
all the possible instruction pair for
dependencies.
• If dependencies exists accordingly then
construct the graph accordingly as explained
below.
 Ex

• i1 :load r1,a; i1 i2

• i2 :load r2,b;
• i3 :add r3, r1,r2;
i3
• i4 : mul r1,r2,r4;
• i5 :div r1,r2,r4; i4

i5
