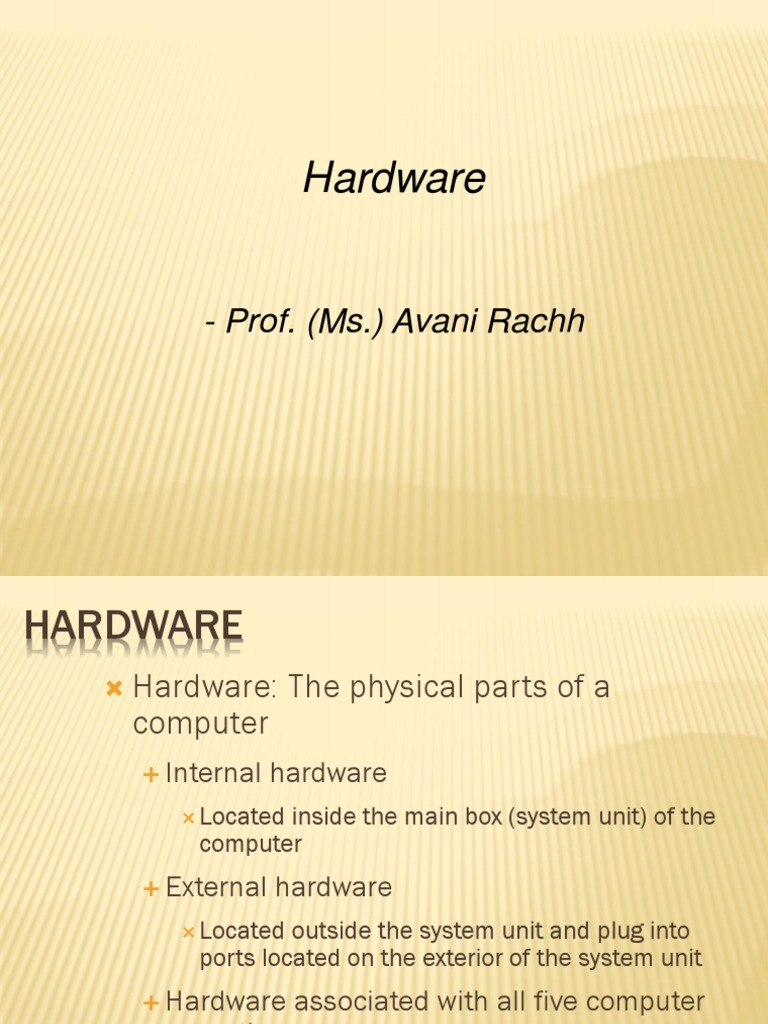

Hardware

- Prof. (Ms.) Avani Rachh

HARDWARE
 Hardware: The physical parts of a
computer
 Internal hardware
 Located
inside the main box (system unit) of the
computer
 External hardware
 Located outside the system unit and plug into
ports located on the exterior of the system unit
 Hardware associated with all five computer
operations
HARDWARE (CONTD…)
HARDWARE (CONTD…)
 Input devices
 Used to input data into the computer
 Keyboards, mice, scanners, cameras,
microphones, joysticks, etc.
 Processing devices
 Perform calculations and control computer’s
operation
 Central processing unit (CPU) and memory

 Output devices
 Present results to the user
 Monitors, printers, speakers, projectors, etc.
HARDWARE (CONTD…)
 Storage devices
 Used to store data on or access data from
storage media
 Hard drives, DVD disks and drives, USB flash
drives, etc.
 Communications devices
 Allow users to communicate with others and
to electronically access information
 Modems, network adapters, etc.
HARDWARE (CONTD…)
 7

INSIDE THE SYSTEM UNIT

 System unit: The main case of a computer
 Houses the processing hardware for a computer
 Also contains memory, the power supply, cooling
fans, and interfaces to connect peripheral devices
 Houses the drive bays in which storage devices
(hard drives, DVD drives, etc.) are located
 With a desktop PC, usually looks like a rectangular
box
 8

INSIDE THE SYSTEM UNIT (CONTD…)

 9

THE MOTHERBOARD
 Computer chip: A very small pieces of silicon or
other semi-conducting material onto which
integrated circuits are embedded
 Circuit board: A thin board containing computer
chips and other electronic components
 Motherboard or system board: The main circuit
board inside the system unit
 Allcomputer components must connect to the
motherboard
 External devices (monitors, keyboards, mice, printers)
typically connect by plugging into a port exposed
through the exterior of the system unit
 10

THE CPU
 Central processing unit (CPU): circuitry and
components packaged together and attached to the
motherboard
 Does the vast majority of processing for a computer
 Alsocalled a processor; called a microprocessor
when talking about PCs
 Dual-core CPU: Contain the processing components
(cores) of two separate processors on a single CPU
 Quad-core CPU: Contains 4 cores
 Typically designed for desktop PCs, portable PCs, or
servers
 Often made by Intel or AMD
THE CPU (CONTD…)
 12

HOW THE CPU WORKS

 CPU: Consists of a variety of circuitry and
components packaged together
 Transistor: Key element of the microprocessor
 Made of semi-conductor material that acts like a switch
controlling the flow of electrons inside a chip
 Today’s CPUs contain hundreds of millions of
transistors; the number doubles about every 18
months (Moore’s Law)
 13

TYPICAL CPU COMPONENTS

 Arithmetic/Logic Unit (ALU): Performs integer
arithmetic and logical operations
 Floating Point Unit (FPU): Performs decimal arithmetic
 Control unit: Coordinates and controls activities
 Prefetch unit: Tries to fetch data and instructions
before they are needed
 Decode unit: Translates instructions so they are
understood by the control unit, ALU, and FPU
 Internal cache and registers: Store data and
instructions needed by the CPU
 Bus interface unit: Where data and instructions flow in
and out of the CPU
 14

TYPICAL CPU COMPONENTS (CONTD…)

 15

MEMORY
 RAM (random access memory): Temporary
memory that the computer uses
 Consists of chips connected to a memory module
which is connected to the motherboard
 Holdsdata and program instructions while they are
needed.
 Adequate RAM is needed to run programs
 Volatile:Contents of RAM is lost when the computer
is shut off
 Some forms of nonvolatile RAM are under
development
 16

MEMORY (CONTD…)
 17

MEMORY (CONTD…)
 ROM (read-only memory): Read-only chips
located on the motherboard into which
data or programs have been permanently
stored
 Retrieved by the computer when needed
 Being replaced with flash memory

 Flash memory: Type of nonvolatile memory

that can be erased and reprogrammed
 Some flash memory chips are used by the PC
 Flash memory chips are also used in flash
memory storage media (sticks, cards, and
drives)
 FANS, HEAT SINKS, AND 18

OTHER COOLING COMPONENTS

 Heat: A continuing problem for CPU and

computer manufacturers
 Fans: Used on most PCs
 Heat sinks: Small components typically made
out of aluminum with fins that help to dissipate
heat
 Water cooling systems: Cool the PC with liquid-
filed tubes
 Other cooling methods (such as ion pump
cooling systems) are under development
FANS, HEAT SINKS, AND 19

OTHER COOLING COMPONENTS (CONTD…)

 EXPANSION SLOTS, EXPANSION CARDS,
20

AND EXPRESSCARDS
 Expansion card: A circuit board used to add
additional functionality or to attach a peripheral
device
 Expansion slot: A location on the motherboard
into which expansion cards are inserted
 ExpressCard modules: Designed for
notebook computer expansion
EXPANSION SLOTS, EXPANSION CARDS,
21

AND EXPRESSCARDS (CONTD…)

 22

BUSES
 Bus: An electronic path within a computer over
which data travels
 System bus: Moves data back and forth between
the CPU and memory
 Expansion buses: Connect the CPU to peripheral
(typically input and output) devices
 PCI and PCI Express (PCIe) bus
 AGP bus
 Universal Serial Bus (USB)
 FireWire/IEEE 1394 bus
 23

BUSES (CONTD…)
PORTS AND CONNECTORS
 Port: A connector on the exterior of a PC’s
system unit to which a device may be
attached
– Serial – USB
– Parallel – FireWire
– Network – SCSI
– Keyboard/Mouse – MIDI
– Monitor (VGA, – IrDA
DVI, HDMI) – Game
– Modem/Phone – eSATA
 25

PORTS AND CONNECTORS (CONTD…)

 26

PORTS AND CONNECTORS (CONTD…)

 Many desktop PCs
come with a variety
of ports on the front
of the system unit
for easy access
 A wired or wireless
hub can connect
many devices to a
single USB or
FireWire port
 27

PORTS AND CONNECTORS (CONTD…)

 Notebook computers
have ports similar to
desktop PCs, but often
not as many
 Handheld computers
and mobile devices
typically have less
ports
 An SD slot is
common for both
memory cards
and to connect
peripheral devices
PORTS AND CONNECTORS (Contd…)
 29

FLASH MEMORY SYSTEMS

 Use flash memory media
 No moving parts so more resistant to shock and
vibration, require less power, makes no sound
 Solid-state storage system

 Most often found in the form of:

 Flash memory cards

 USB flash drives

 Solid-state drives

 Hybrid hard drives

 Very small and so are very appropriate for use with digital
cameras, digital music players, handheld PCs, notebook
computers, smart phones, etc.
 30

FLASH MEMORY SYSTEMS (CONTD…)

 31

FLASH MEMORY CARDS (CONTD…)

 Flash memory card: A small card containing flash
memory chips and metal contacts to connect the card
to the device or reader that it is being used with
 CompactFlash

 Secure Digital (SD)

 Secure Digital High Capacity (SDHC)

 MultiMedia Card (MMC)

 xD Picture Card

 Memory Stick

 SmartMedia (SM)

 Read by flash memory card reader

 32

FLASH MEMORY CARDS (CONTD…)

 33

USB FLASH DRIVES

 Flash memory drives: Consist of flash memory
media and a reader in a single self-contained unit
 Typically portable drives that connect via a USB port
 Also called USB flash memory drives, thumb drives,
jump drives
 Come in a variety of appearances
 34

REMOTE STORAGE SYSTEM

 Remote storage: Using a storage device
not directly a part of the PC being used
 Network storage: Accessible through a local
network
 Online storage: Accessed via the Internet
 Backup

 Transferring files to others or to another PC

 Sharing files with others (online photo sites, etc.)
 35

REMOTE STORAGE SYSTEM (CONTD…)

 36

SMART CARD AS STORAGE SYSTEMS

 Smart card: Credit card-sized piece of
plastic that contains some computer
circuitry (processor, memory, and storage)
 Store small amount of data (about 64 KB or
less)
 Commonly used to store prepaid amounts of
digital cash or personal information
 Smart card readers are built into or attached
to a PC, keyboard, vending machine, or other
device
 Some smart cards store biometric data
 Can be used in conjunction with encryption
and other security technologies
 37

SMART CARDS (CONTD…)

 38

HOLOGRAPHIC STORAGE
 Holographic storage: Store data as holograms
 Emerging type of 3D storage technology
 Uses two blue laser beams to store data in three
dimensions
 Reference beam
 Signal beam

 Potentialinitial applications for holographic data

storage systems include:
 High-speed digital libraries
 Image processing for medical, video, and military purposes
 Any other applications in which data needs to be stored or
retrieved quickly in large quantities but rarely changed
 39

HOLOGRAPHIC STORAGE (CONTD…)

 STORAGE SYSTEMS FOR LARGE COMPUTER
40

SYSTEMS AND NETWORKS

 Usually use a storage server: a hardware device
containing multiple high-speed hard drives
 Businesses have to
storage tremendous
amounts of data
 Business data
 Employee and
customer data
 E-discovery data
 41

NASS AND SANS

 Network attached storage
(NAS): High-performance
storage server individually
connected to a network to
provide storage for
computers on that network
 Storage area network (SAN):
Network of hard drives or
other storage devices that
provide storage for another
network of computers
 RAID
42

 RAID (redundant arrays of independent discs): Method of

storing data on two or more hard drives that work together to
do the job of a larger drive
 Usually involves recording redundant copies of stored
data
 Helps to increase fault tolerance

 Disk striping and disk mirroring

 43

MAGNETIC TAPE SYSTEMS

 Magnetic tape: Plastic tape with a magnetizable
surface that stores data as a series of magnetic
spots
 Primarily used for backup and archival purposes
 Sequential access only
 Low cost per megabyte
 Most tapes today are in the form of cartridge tapes
 Read from and written to via a tape drive
 Tape libraries contain multiple tape drives
 44

EVALUATING YOUR STORAGE ALTERNATIVES

 Factors to consider:
 Speed
 Compatibility
 Storage capacity
 Convenience
 Portability
 Most users require:
 Hard drive
 CD or DVD drive
 Flash memory card reader and USB port for
flash memory drive
 45

KEYBOARDS
 Keyboards are increasingly including alternate
input tools
 Touch pads
 Scroll wheels

 Some also include built-in display screens

 Portable PCs and mobile devices often use:

 Thumbpad

 Slide-out keyboard
 Pen or touch input

 Portable keyboard

 Virtual keyboard is an emerging possibility

 46

KEYBOARDS (CONTD…)
 47

POINTING DEVICES
 Pointing device: An input device that moves an
onscreen pointer (arrow or insertion point) to
allow the user to select objects on the screen
 Usually buttons on the device are used to
select objects
 Common types of pointing devices:
 Mouse

 Electronicpen
 Touch screen
 48

THE MOUSE
 Mouse: A pointing device
the user slides along a
flat surface to move a
pointer around the
screen and clicks its
buttons to make
selections
 Older mechanical
mice use a ball
 Newer optical or laser
mice track
movements with light
 Can be wireless
 49

THE ELECTRONIC PEN AND STYLUS

 Electronic pen: Device used to select objects, as
well as to draw or write electronically on the
screen
 Also called tablet pen, digital pen, stylus
 Commonly used with pen-based PCs
 Used to issue commands and input data
 If handwriting recognition is used, written text can be
converted to editable typed text
 50

HANDWRITING RECOGNITION
THE ELECTRONIC PEN AND STYLUS
51

(CONTD…)
 Also used with:
 Digital
writing systems
 Graphics tablets

 Signature capture devices

 52

TOUCH SCREENS
 Touch screen: Display device that is
touched with the finger to issue
commands or otherwise generate input to
the connected PC

 Used with:
 Desktop and portable PCs
 Mobile phones and mobile devices

 Interactive whiteboards

 Consumer kiosks
 53

TOUCH SCREENS (CONTD…)
