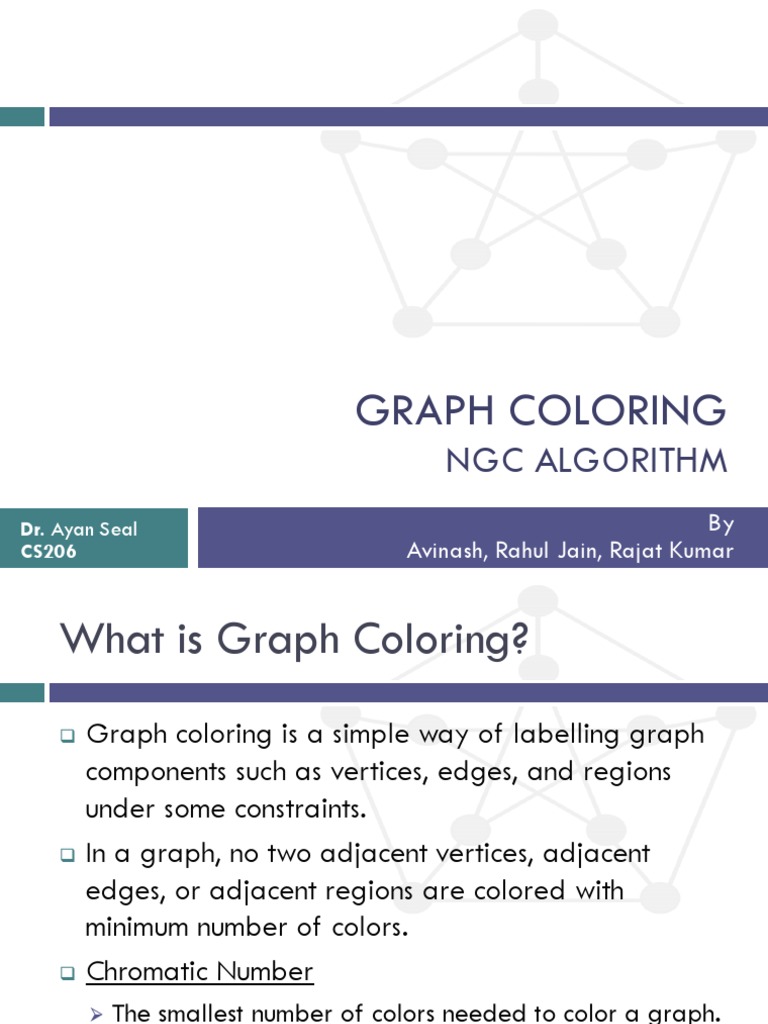

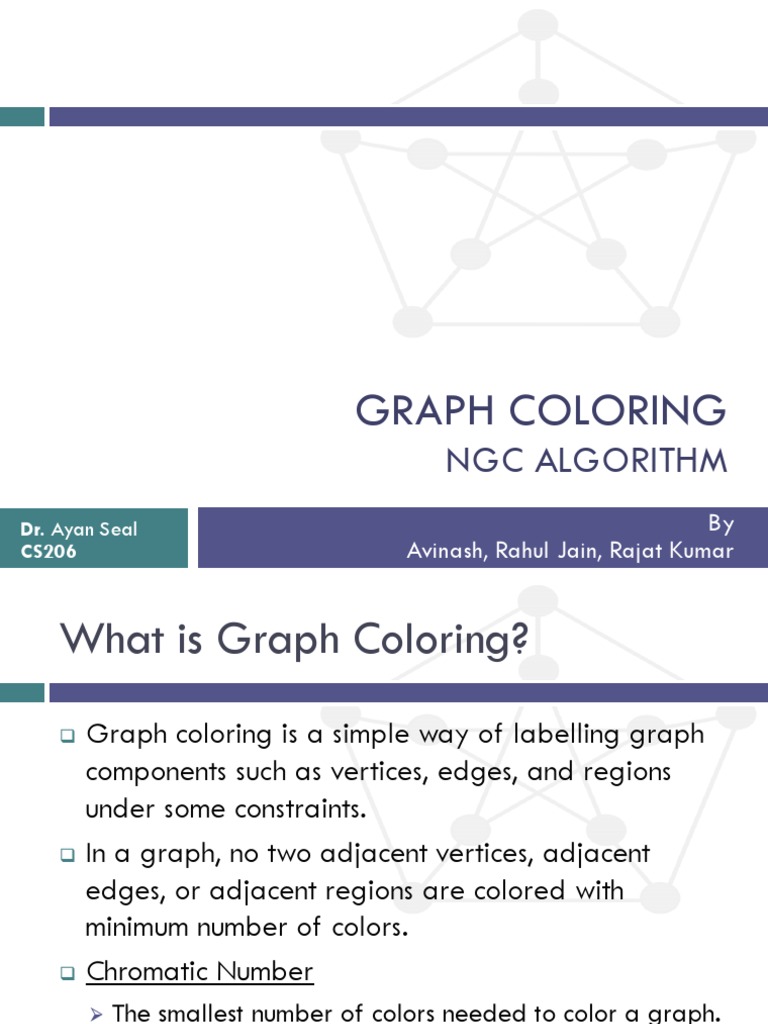

GRAPH COLORING

NGC ALGORITHM
Dr. Ayan Seal By
CS206 Avinash, Rahul Jain, Rajat Kumar
What is Graph Coloring?
 Graph coloring is a simple way of labelling graph
components such as vertices, edges, and regions
under some constraints.
 In a graph, no two adjacent vertices, adjacent
edges, or adjacent regions are colored with
minimum number of colors.
 Chromatic Number
 The smallest number of colors needed to color a graph.
 One of the Karp’s 21 NP-Complete Problem
Applications
 Data mining
 Image segmentation
 Time Table Scheduling
 Register Allocations
 Bipartite Graphs
 Networking
 Clustering
 Map Coloring
Our Application Area

Exam Time Table Scheduling

 Why?
 Problem we personally face more often
 Most common problem in Schools/Universities

 Boon For Time Table Management Department

 Problem
 Clash is the buzzword
 Research Paper
 A Novel Scheme for Graph Coloring - Vishal Donderia, Prasanta K. Jana
• C3IT 2012
• Department of Computer Science and Engineering
Indian School of Mines, Dhanbad-826 004, India
 Why this paper?
 Efficient with respect to
• Simplicity
• Robustness
• Computation Time
Problem
 Prepare an Exam Schedule for the students enrolled in the following courses
with minimum number of slots without any CLASH.
Vertex Course
1 CS203
2 CS204
3 CS205
4 CS206
5 EC203
6 EC204
7 EC205
8 EC206
9 ME203
10 ME204
11 ME205
12 ME206
13 ES205
14 MS201
Implementation(NGC Algorithm)

2 1 12 11

3 10
13

4 9

14

5 8

6 7
 Adjacency Matrix
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1 0 1 1 1 0 0 0 0 0 0 0 0 1 1
2 1 0 1 1 0 0 0 0 0 0 0 0 1 1
3 1 1 0 1 0 0 0 0 0 0 0 0 1 1
4 1 1 1 0 0 0 0 0 0 0 0 0 1 1
5 0 0 0 0 0 1 1 1 0 0 0 0 1 1
6 0 0 0 0 1 0 1 1 0 0 0 0 1 1
7 0 0 0 0 1 1 0 1 0 0 0 0 1 1
8 0 0 0 0 1 1 1 0 0 0 0 0 1 1
9 0 0 0 0 0 0 0 0 0 1 1 1 1 1
10 0 0 0 0 0 0 0 0 1 0 1 1 1 1
11 0 0 0 0 0 0 0 0 1 1 0 1 1 1
12 0 0 0 0 0 0 0 0 1 1 1 0 1 1
13 1 1 1 1 1 1 1 1 1 1 1 1 0 1
14 1 1 1 1 1 1 1 1 1 1 1 1 1 0
Implementation(NGC Algorithm)
 color[N]
• Colors to be assigned initially
• Array
 flag[N]
• 1  if Colored with respective color in Color Array
• 0  if Not colored with respective color
• Array
 color-assigned[N]
• Solution
• Color assigned to the vertex
• Array
Slots
Color Slot

1 Monday
2 Tuesday
3 Wednesday
4 Thursday
5 Friday
6 Saturday
Implementation(NGC Algo)
Step : 1
Vertex 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Color 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Flag 1 0 0 0 0 0 0 0 0 0 0 0 0 0

Color 1 0 0 0 0 0 0 0 0 0 0 0 0 0
assigned
Step : 2
Vertex 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Color 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Flag 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Color 1 0 0 0 0 0 0 0 0 0 0 0 0 0
assigned
Implementation(NGC Algo)
Step : 3
Vertex 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Color 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Flag 1 0 0 0 0 0 0 0 0 0 0 0 0 0

Color 1 0 0 0 0 0 0 0 0 0 0 0 0 0
assigned
Step : 4
Vertex 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Color 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Flag 1 0 0 0 0 0 0 0 0 0 0 0 0 0

Color 1 2 0 0 0 0 0 0 0 0 0 0 0 0
assigned
Implementation(NGC Algorithm)
Step : 5
Vertex 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Color 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Flag 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Color 1 2 0 0 0 0 0 0 0 0 0 0 0 0
assigned
Result

Time Complexity : O(n^3)

Final Solution

2 1 12 11

3 10
13

4 9

14

5 8

6 7
Suggestions

Error in the paper

C[2][k] = 0 instead of C[1][k]

 Limitation

Colors assigned initially is same as the number of vertices.

• Although we need less colors to color the graph
Conclusion
 Thank You!
