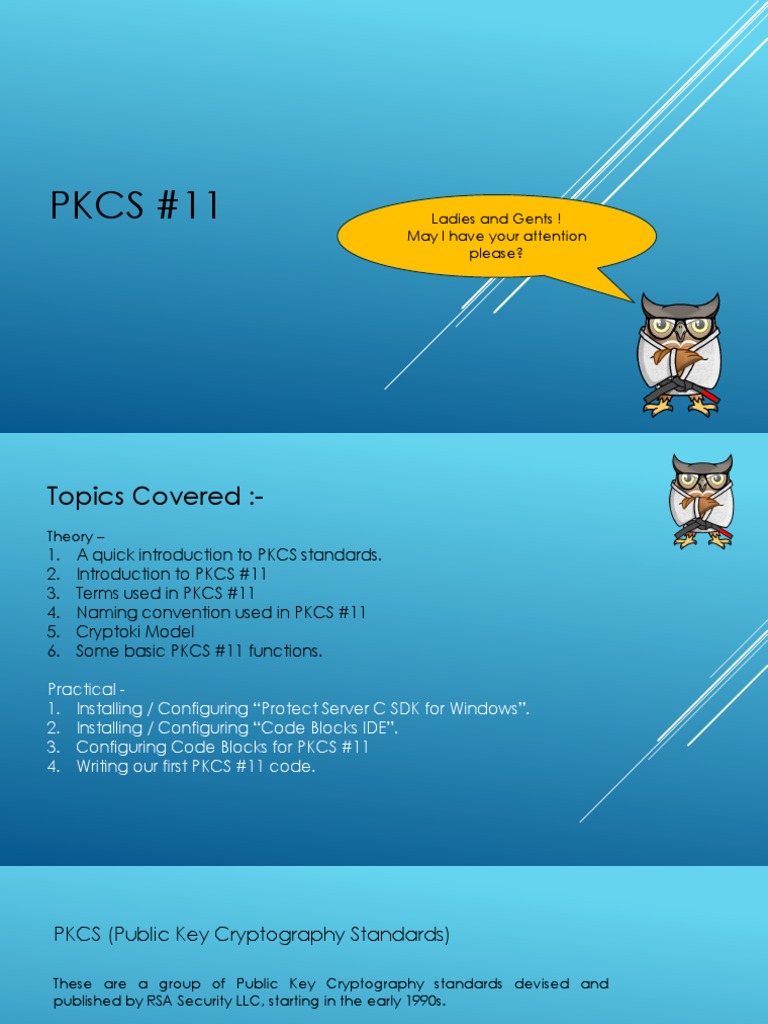

PKCS #11 Ladies and Gents !

May I have your attention

please?
Topics Covered :-
Theory –
1. A quick introduction to PKCS standards.
2. Introduction to PKCS #11
3. Terms used in PKCS #11
4. Naming convention used in PKCS #11
5. Cryptoki Model
6. Some basic PKCS #11 functions.

Practical -
1. Installing / Configuring “Protect Server C SDK for Windows”.
2. Installing / Configuring “Code Blocks IDE”.
3. Configuring Code Blocks for PKCS #11
4. Writing our first PKCS #11 code.
 PKCS (Public Key Cryptography Standards)

These are a group of Public Key Cryptography standards devised and

published by RSA Security LLC, starting in the early 1990s.

Some of the standards are PKCS #1, PKCS #3, PKCS #5, PKCS #8, PKCS
#10, PKCS #11 and PKCS #12.

Checkout the WiKi link

given below…

https://en.wikipedia.org/wiki/PKCS
Standard Purpose

PKCS #1 Properties for RSA keys that should be followed for Encryption, Signing including the
encoding scheme.
PKCS #3 Key Exchange (Diffie-Hellman)

PKCS #5 Password based Encryption.

PKCS #8 Transporting Private Key

PKCS #10 Certificate Request format.

PKCS #11 Also known as Cryptographic Token Interface or simply “cryptoki”. API meant for
Hardware tokens such has Smart Cards and HSMs.
PKCS #12 Storing Private Keys along with the associated certificates.
 PKCS #11

It is a platform independent standard API to manage and operate

hardware tokens such as Smart Cards and HSMs. This API has a wide
variety of functions used for performing crypto operations such as Key
Generation, Signing, Encryption, Hashing etc.

https://en.wikipedia.org/wiki/PKCS_11
 Terminology used in PKCS #11

SLOTS
SESSION

TOKEN LIBRARY

OBJECTS

DATA-TYPES
Wrapper
FUNCTIONS
Prefixes
MECHANISM
CRYPTOKI MODEL
PKCS #11 Prefixes and Naming convention

Prefix Meaning Example

C_ Function C_Initialize(), C_Finalize()
CK_ Data Type CK_BBOOL, CK_ULONG
CKA_ Attribute CKA_TOKEN, CKA_PRIVATE
CKD_ Key Derivation CKD_SHA1_KDF
CKF_ Flags CKF_SERIAL_SESSION
CKK_ Type of key CKK_AES, CKK_RSA
CKM_ Mechanism CKM_RSA_PKCS
CKO_ Object class CKO_PRIVATE_KEY
CKR_ Return value CKR_OK, CKR_DEVICE_ERROR
CKU_ User Type CKU_SO, CKU_USER
CKZ_ Parameter Source CKZ_SALT_SPECIFIED
Some Datatypes used in PKCS #11

Data Type Type Purpose

CK_SESSION_HANDLE Unsigned Long Stores Session handle
CK_OBJECT_HANDLE Unsigned Long Stores object handle
CK_SLOT_ID Unsigned Long Stores slot ID
CK_ULONG Unsigned Long Stores a long value
CK_BBOOL Boolean Stores True or False
CK_CHAR Signed 8 bit Stores character
CK_BYTE Unsigned 8 bit Stores byte data
CK_MECHANISM Unsigned 8 bit Stores mechanism info
CK_ATTRIBUTE Unsigned 8 bit Stores mechanism info.
Some basic functions used in PKCS #11

Function Purpose Prototype

C_Initialize Initialize memory space C_Initialize(Init_args)

C_Finalize Finalize memory space C_Finalize(NULL)

C_OpenSession Open a new session C_OpenSession(slot, flag, null,null,handle)

C_CloseSession Close a session C_CloseSession(handle)

C_Login Login to a token C_Login(hSession, user_type, password, password_len)

C_Logout Logout from a token C_Logout(hSession)

C_GetSlotList Get number of available slots C_GetSlotList(bool)

C_GetFunctionList Gets the list of available P11 functions C_GetFunctionList()

C_GetTokenInfo() Gets information about a token C_GetTokenInfo()

Please do read
PKCS #11 v2.20
manual for
more about
these
functions..
Practical Stuff
We’re going to use
PTK-C as it’s the best
Protect Server Toolkit way to hon your
PKCS #11 skills
• Install Protect Server Tool Kit for C. without needing an
actual hardware.
• Configure it for software mode.
• Create a new slot and initialize it.

Code Blocks

• Install TDM-GCC.
• Install Code Blocks IDE.
• Configuring Code Blocks IDE for PKCS #11 programming.
Protect Server Toolkit Installation
Select “1” for
Software only mode.
 Follow the arrows..
Installing TDM-GCC
Installing Code Blocks
Configuring Code Blocks for PKCS #11 Programming
Save the
configuration
Settings >> Compiler … with
whatever
name you
want.
Configuring Code Blocks for PKCS #11 Programming
Configuring Code Blocks for PKCS #11 Programming

C:\Program Files\SafeNet\Protect Toolkit 5\Protect Toolkit C SDK\bin\sw\cryptoki.dll

Configuring Code Blocks for PKCS #11 Programming

C:\Program Files\SafeNet\Protect Toolkit 5\Protect Toolkit C SDK\include

Configuring Code Blocks for PKCS #11 Programming

C:\Program Files\SafeNet\Protect Toolkit 5\Protect Toolkit C SDK\lib

Configuring Code Blocks for PKCS #11 Programming
Let’s create
a new
project and
jump right
into it.
Configuring Code Blocks for PKCS #11 Programming
That’s it for today folks !

In the next session, we will cover the following topics :-

• PKCS #11 return codes and what they mean.

• Using Key Attributes
• Generate Key / Key Pair
• Changing Key Attributes
And…special thanks to our Sensei..
Thank you Sensei… We couldn’t have done it without you 

Hehe.. I know..
Ganbatte !
