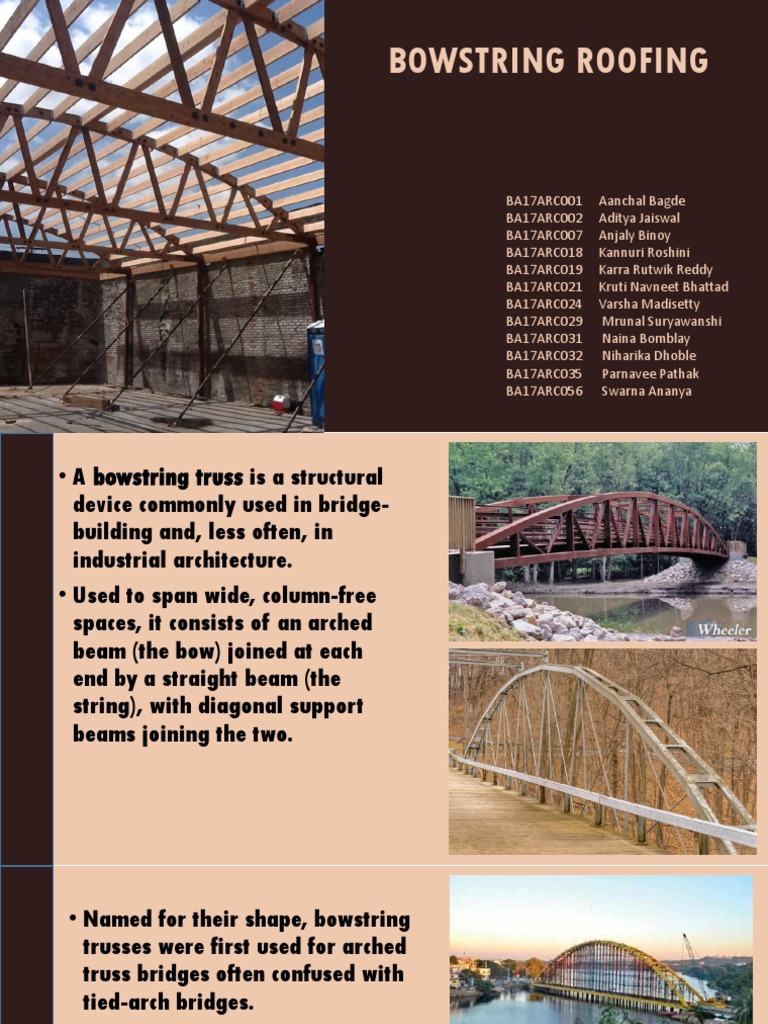

BA17ARC002 Aditya Jaiswal BA17ARC007 Anjaly Binoy BA17ARC018 Kannuri Roshini BA17ARC019 Karra Rutwik Reddy BA17ARC021 Kruti Navneet Bhattad BA17ARC024 Varsha Madisetty BA17ARC029 Mrunal Suryawanshi BA17ARC031 Naina Bomblay BA17ARC032 Niharika Dhoble BA17ARC035 Parnavee Pathak BA17ARC056 Swarna Ananya • A bowstring truss is a structural device commonly used in bridge- building and, less often, in industrial architecture. • Used to span wide, column-free spaces, it consists of an arched beam (the bow) joined at each end by a straight beam (the string), with diagonal support beams joining the two. • Named for their shape, bowstring trusses were first used for arched truss bridges often confused with tied-arch bridges. • A structural truss consisting of a curved top chord meeting a bottom chord at each end. • While similar in appearance to a tied-arch bridge, a bowstring truss has diagonal load-bearing members: TYPICAL TRUSS PROFILE FOR ARCH-RIB TRUSSES •Multi-Member Chords •Segmental Upper Chord •Inside Shoes at Heels in earliest trusses •Outside Shoes at Heels in Later Construction •Inside Shoes Tended to cause Splitting in Lower Chords at Heel Connection DESIGN OF A BOWSTRING TRUSS • Bowstring trusses typically feature a parabolically shaped top chord constructed of several wood elements (laminations) mechanically connected through the depth of the member. • The bottom chord is often constructed of straight timber members with bolted splices. • Both the top and bottom chords consist of two parallel members separated by a gap. • The gap accommodates connections to vertical and diagonal web members which frame in between the chord members. DESIGN OF A BOWSTRING TRUSS • The web elements are either discrete members or are a lattice system (continuous arrangement of web members). • The top and bottom chords are typically connected by a U-shaped steel strap that wraps around the end of the truss and is bolted to the chord members. • The ends of the truss bear on columns or are situated inside pockets within masonry walls. • The typical span for these trusses is between 50 to 100 feet and the typical height is between 10 to 12 feet. • . STRUCTURAL ANALYSIS • Bowstring trusses structurally behave as a tied arch. • The shape of the top chord (parabolic) results in generally uniform compressive stresses in top chord elements under uniform loads. • The thrust forces at the ends of the top chord are resisted by the bottom chord, which acts as a tie; these forces are transferred to the bottom chord through the U shaped steel straps at the ends of the truss. STRUCTURAL ANALYSIS • Due to this arch like behavior, stresses in web members are relatively small under uniform load. • These structures were developed (and designed) to withstand dead, live, snow, and wind loads, which general practice and most building codes in effect at the time of construction considered as uniformly distributed loads. • Generally, snow drift loads, non-uniform wind loads, point loads (e.g., due to mechanical units on the roof), and seismic loads were not considered at the time of original construction REASONS OF FAILURE OF BOWSTRING TRUSSES • Cross grain shrinkage of timber • Timber defects (Large knots) attached with steel side plates with multiple rows of bolts often causes the initial splitting. REASONS OF FAILURE OF BOWSTRING TRUSSES • Bolts in a row • Excess Loading • – Gravity • – Mechanical Equipment • – Multiple layers of roofing REASONS OF FAILURE OF BOWSTRING TRUSSES • Stability problems associated • Earthquake induced loads with upper chord TYPES OF FAILURES IN BOWSTRING TRUSSES
• Splitting of Lower Chord along Bolt Lines at Steel Splice Plates and Heel Plates TYPES OF FAILURES IN BOWSTRING TRUSSES
• Tension Failure in Lower Chord • Web Splitting and Web Pull-Out
