Common-mode coupling occurs when a noise signal is induced into both conductors of a two-wire cable in phase and with equal amplitude. This can be caused by radiated signals, ground potential differences, or noise induced into the cable. Differential-mode coupling is when a noise signal appears on the two lines of a closed loop with opposite current directions. Methods to reduce common-mode coupling include using differential amplifiers, inductors in bifilar winding configurations, and transformers, while differential-mode coupling can be reduced with inductors in series and capacitors across the lines. Proper grounding is also important to provide a low-impedance path and minimize inductance.
Common-mode coupling occurs when a noise signal is induced into both conductors of a two-wire cable in phase and with equal amplitude. This can be caused by radiated signals, ground potential differences, or noise induced into the cable. Differential-mode coupling is when a noise signal appears on the two lines of a closed loop with opposite current directions. Methods to reduce common-mode coupling include using differential amplifiers, inductors in bifilar winding configurations, and transformers, while differential-mode coupling can be reduced with inductors in series and capacitors across the lines. Proper grounding is also important to provide a low-impedance path and minimize inductance.
Common-mode coupling occurs when a noise signal is induced into both conductors of a two-wire cable in phase and with equal amplitude. This can be caused by radiated signals, ground potential differences, or noise induced into the cable. Differential-mode coupling is when a noise signal appears on the two lines of a closed loop with opposite current directions. Methods to reduce common-mode coupling include using differential amplifiers, inductors in bifilar winding configurations, and transformers, while differential-mode coupling can be reduced with inductors in series and capacitors across the lines. Proper grounding is also important to provide a low-impedance path and minimize inductance.

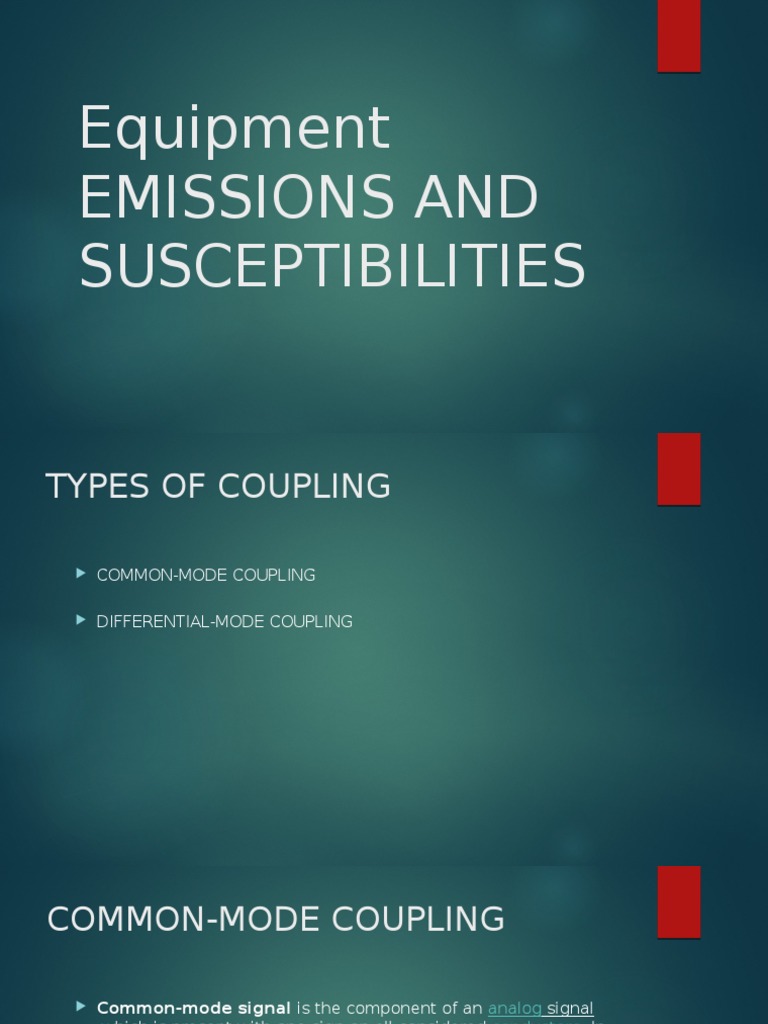

Common-mode signal is the component of an analog signal
which is present with one sign on all considered conductors. In telecommunication, common-mode signal on a transmission line is known as longitudinal voltage. In electronics where the signal is transferred by differential voltage, the common-mode signal is a half-sum of voltages Common-mode coupling impedence and reduction When referenced to the local common or ground, a common-mode signal appears on both lines of a two-wire cable, in-phase and with equal amplitudes. Technically, a common-mode voltage is one-half the vector sum of the voltages from each conductor of a balanced circuit to local ground or common. Such signals can arise from one or more of the following sources: Radiated signals coupled equally to both lines, An offset from signal common created in the driver circuit, or A ground differential between the transmitting and receiving locations. Noise induced into a cable, or transmitted from a cable usually occurs in the common mode; i.e. the same signal tends to be picked up by both conductors in a two wire cable. Likewise, RF noise transmitted from a cable tends to emanate from both conductors. Elimination of common mode signals on cables entering or leaving electronic equipment is important to ensure electromagnetic compatibility. Unless the intention is to transmit or receive radio signals, an electronic designer will generally design electronic circuits to minimise or eliminate common mode effects. Methods of eliminating common mode signals[edit] Differential amplifiers or receivers that respond only to voltage differences, e.g., those between the wires that constitute a pair. This method is particularly suited for instrumentation where signals are transmitted through DC bias. An inductor where a pair of signalling wires follow the same path through the inductor. E.g. in a bifilar winding configuration such as used in Ethernet magnetics.[1] Useful for AC and DC signals, but will filter only higher frequency common mode signals. A transformer, which is useful for AC signals only, and will filter any form of common mode noise, but may be used in combination with a bifilar wound coil to eliminate capacitive coupling of higher frequency common mode signals across the transformer. Used in twisted pair Ethernet. [2] Common-mode coupling impedence and reduction The goal of any grounding system is to provide a low impedance path for fault or transient currents to the earth. “Grounding” may be described as the process of making this electrical connection to the general mass of the earth. The characteristic primarily determining the effectiveness of a grounding system is the impedance this connection provides to the earth. The importance of ensuring that the system provides a low earth impedance, and not simply a low earth resistance, must be understood. A spectral study of the typical waveform associated with transient impulses such as those characteristic of lightning and switching surges, reveals both high frequency and low frequency components. The high frequency is associated with the extremely fast rising "front" of the transient while the lower frequency component resides in the long “tail” of the decaying impulse. A grounding system appears to such transient events as an impedance rather than simply a resistance. . A low impedance grounding system is only achieved by considering the roles played by each of resistance, capacitance and inductance within the system. The inductance of the ground system dominates during the rapid change of current with time as the current is injected into the earth. The voltage developed due to the inductive term is given by L di/dt. This may become dangerously large, creating the risk of a flash over, if attention is not paid to ensuring that inductance is minimized in the system. DIFFERENTIAL-MODE COUPLING
When identifying and controlling electromagnetic interference (EMI),
discussion of common-mode and differentialmode interference will likely dominate. Differential-mode interference is a signal that appears on two lines of a closed loop, but current flow is in opposite directions. This kind of interference essentially appears in series with the desired signal. The solution is an inductor in series with the high side (and/or low side) of the line and a shunt capacitor across the lines. A common-mode EMI signal appears on the two signal lines simultaneously in the same direction and phase. The signal on each line returns through a common ground. The solution, a common-mode choke, produces equal and opposite magnetic fields that cancel one another. A capacitor from each line to ground is also used.
