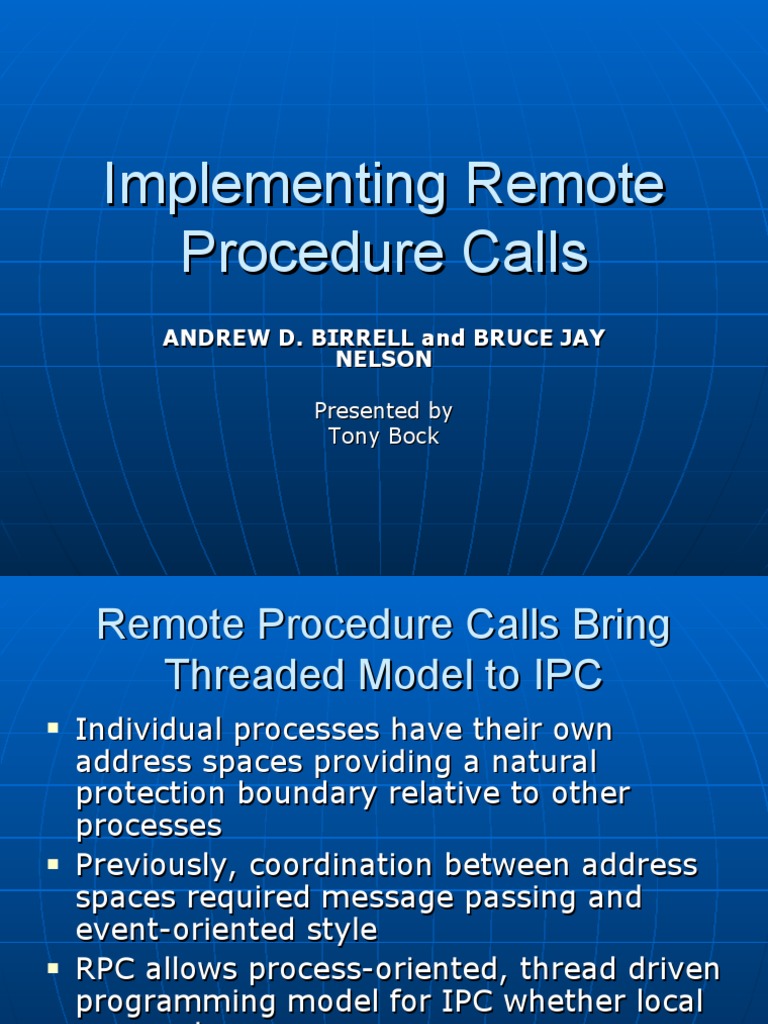

Implementing Remote

Procedure Calls
ANDREW D. BIRRELL and BRUCE JAY
NELSON

Presented by
Tony Bock
 Remote Procedure Calls Bring
Threaded Model to IPC
 Individual processes have their own
address spaces providing a natural
protection boundary relative to other
processes
 Previously, coordination between address
spaces required message passing and
event-oriented style
 RPC allows process-oriented, thread driven
programming model for IPC whether local
or remote
 Advantages of RPC
 Simple – Straightforward semantics
make it easier to build and maintain
correct distributed programs
 Efficient – Procedure call
mechanism appears simple enough
to enable rapid communication
 General – Procedures are the
common way to communicate
between portions of a program
 Challenges
 Linking functions in a separate address
space
 Discovering/specifying RPC target
 Calling/returning across processes
 Passing arguments by reference
 Unreliability of networks
• Retransmits must not lead to multiple calls
• Crashes can occur at either end at any time
 Deliver High Performance
Linking: Use Stubs to Import/Export
Interfaces
Interface Module Function
Application
bool Foo(int) Library
int Bar(char)
Client Stubs int Baz(int) Server Stubs
(Import) (Export)

RPC RPC
Runtime NETWORK
Runtime

 Application is linking against functions that reside in a different address space

 Server is returning results to separate address space
 Server and client link to programmatically generated stubs of a common interface
module at compile time
 RPC runtime manages communication between machines/processes
 User writes interface, client, and server code but doesn’t need to write any code for
communication mechanism
 Binding – Matching Callers to
Callees
Name
Address
Interface
Server ID Interface? Name
Address
Server ID

`
Interface Database
Server Function Offset Client
Server ID
Sequence Number

 Stubs are only place holders, client still needs to find the server
 Servers register their exported interfaces with secure database servers
• Register time-based unique server ID
 Clients can specify or select server from available list or bind statically by
network address
• Get server’s ID and network address
 Clients include server’s ID and unique sequence number with each call
 Crossing Process Boundaries
Interface Module
Application
Foo() bool Foo(int) Function
Client Stubs
int Bar(char) Library
(Import)
int Baz(int) Foo()
Index of Server Stubs
Foo() (Export)
RPC Index of
Runtime RPC Foo()
Runtime
*value?
Caller Callee
 Caller and Callee have separate address spaces
• Can’t dereference pointers directly
• Caller needs to call functions in separate process
• Callee needs to return to separate process
 RPC runtime layers on server & client coordinate communication
across network
• Client calls result in messages sent by RPC to server with index of
desired function from client stubs
• Server RPC uses index to find desired function in server stubs and
switches to server
• Server “calls home” to ask client for values when dereferencing
 Reliability
 RPC must overcome network’s inherent
unreliability
• Network can drop any packet
• Either machine can crash at any time
 Mustn’t crash others by so doing
 Need to discern crash vs. running slowly
 Each application issues at most one RPC to
a particular server/interface at time
• Each request includes a monotonically
increasing sequence number & the server ID
• Sequence ID includes “conversation ID”, a
unique time-based client identifier
 Reliability
 Server checks ID’s when receiving calls
and keeps track of current (highest)
sequence number
• If server ID doesn’t match, server has crashed
since client connected: drop
• Keeps track of current (highest) sequence
number
 < current, this is a retransmit of old request: drop
 = current, retransmit of current request: issue ACK if
requested, then drop
 > current, new request: client acknowledges receipt
of RPC result
• Conversation IDs ensure sequence numbers
don’t repeat if client restarts
Packet Protocol – Simple Case
Request

`
Result

 Existing protocols focused on one-way bulk data transfers

• Even substantial per-connection overhead is insignificant to data transmit time
 RPC generates many small packets in each direction so it uses a minimal
protocol
• RPC result implies acknowledgment of request – function has run exactly once
• Each RPC request implies acknowledgment of previous result – Each application
has at most one outstanding request
• Sender must resend until acknowledged, retransmits include request for ACK
 Advantages of RPC protocol
• Minimal per-connection setup and teardown costs
• Minimal state when connection is idle
 Server just keeps last sequence number
 Client has a list of server addresses & IDs
• Minimize delay between RPC request and response – no handshaking phase
• No idle time communication, i.e.: keep-alive packets
 Multi-Packet Requests
REQ A
ACK

REQ A+1
`
ACK

REQ A+2
RESULT

 Need to make sure all packets arrive in

order
• Ask for explicit ACK with each transmit except the
last
• Retransmits still ask for explicit ACK
• Return result still implies receipt of last packet
 Crashed or Slow?
Exception: You Yes.
Comm_Failed There?

 If server crashes, caller needs to move on

otherwise wait for slow server
 While waiting for response caller
periodically pings server
• If responses keep coming, server is just slow:
wait forever (just like local procedure call)
• If responses stop coming, server is crashed:
throw exception
 Performance
 Both machines maintain multiple idle server
processes ready to handle RPCs
• Reduces cost of process creation
• Process may be created/destroyed to adapt to traffic
 Each packet includes source and destination
process ID
• When expecting a packet, a process registers with the
Ethernet handler
• When the handler receives an expected packet, it
passes it directly to the waiting process with only one
context switch
• If no one’s waiting, packet passes to idle server process
for decision making
 Summary
 RPCs allow for procedure oriented
programming across process boundaries
• Programmatically generated stubs abstract
transition between processes
• RPC runtime translates calls to network
• User only writes application and server code
 Lightweight protocol minimizes per-client
server load, handshaking, and idle state
maintenance
 System of time-based ID’s along with active
state pinging enhances reliability and aids in
securing network
