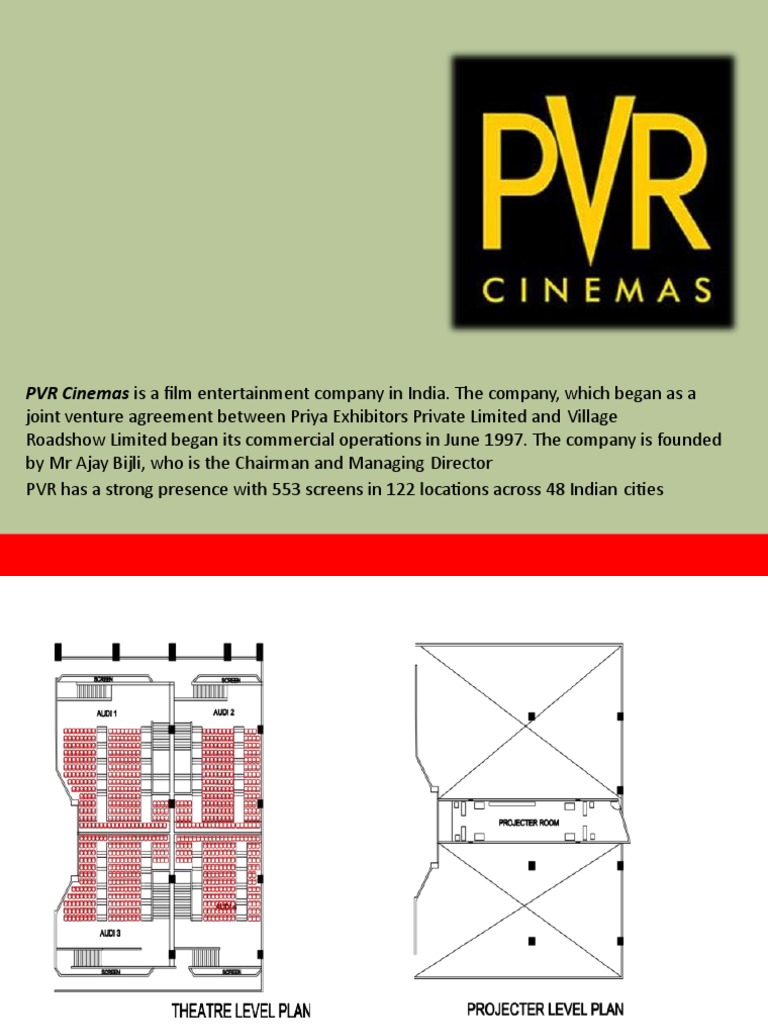

PVR Cinemas is a film entertainment company in India.

The company, which began as a

joint venture agreement between Priya Exhibitors Private Limited and Village
Roadshow Limited began its commercial operations in June 1997. The company is founded
by Mr Ajay Bijli, who is the Chairman and Managing Director
PVR has a strong presence with 553 screens in 122 locations across 48 Indian cities
SECTION
MAIN LOBBY
• The main lobby of the complex is
slightly inset and the counters face the
corridor bringing in notice of the people
in the main stream circulation.

• Ticket counter faces the

corridor space of the mall.
This prevents from giving long
queue tracks and waiting
spaces near that.

• There is no separate lobby near

the ticket counter
• Box office is along with the
counter outside the main lobby.
This space is also meant for
people to stand and watch the
movie trailers.

• The box office which face the

main corridor attracts the
people moving through the
mall.
 Main entry to the
lobby

• Glass with view towards the

corridor outside. Making it more
spacious.
• Seating is provided in the left side of
the main entry.

The waiting lounge area

•The waiting lounge is provide only
within the theatre lobby.
•Cinema posters clad the columns near the counters.

•Every vertical space is used to display posters or

screens showing movie trailers.

•The area near the food counter is lit up with warm

golden yellow lights and red.

•Seating is not provided near the counters. It is only

meant for quick take away .
 •The lighting in the foyer is again
warm with yellow and white.
•The doors to the screens are of
red with the respected number of
door laid in pattern on them.
•Each door is 2 m wide.

•The wall plaster itself forms the

main finish in the interior. To define
certain spaces, the lights there are
made to be Red against the yellow
back ground.

•There are only four screens inside the complex.

•Each of the screen is in a higher level than the main
entry level.
•The entries to the four screens which opens into stairs are
from the common foyer which further leads to the toilets
and washrooms.
•The main foyer after the entries to
the screen diverts into two
corridors leading to the washrooms
for ladies and gents respectively.
•so there is minimum circulation to
the washrooms without creating a
crowd in the foyer during peak hours. •The exits are common for theatres.
So the doors open to the external
corridor and moves to the back exit
through parking.
AUDITORIU
M
• No of screens = 4
• The 4 screens have different
layout of seating
arrangements.
• All four screen are having
silver screen
• 7.1.2 Dolby atmos
• Box type theatre
• 2k projector
• Led lighting

Box type theatre

A theatre in which the audience seating and

screen occupy the same architectural space

The screen is at one end and the audience

seated in front facing the screen

PVR CINEMAX OBERON MALL

SECTION
SEATING SIZE

SEATING MATERIALS
•Back moulded polyurethane seats

•Customized uphoistered , plywood or perforated

polypropylene and glass fibre moulded back
which is good for acoustics

•Legs are moulded aluminium epoxy finish for

aesthetic improvement as well as cleaning and
maintenance.
 SILVER
SCREEN

• A silver screen also known as a silver

ventricular screen, A type of projection
screen having highly reflective surface
• Made from a tightly woven fabric mainly
silk or synthetic fibre
• Provide narrower/horizontal/vertical
viewing angles
• Compare to their more modern
counterparts because their inability to
completely disperse light
• Used in 3-D projection

PICTUR E FORMAT
• Picture format is Cinemascope 2.35:1

PVR CINEMAX OBERON MALL

7.1 DOLBY ATMOS
•Dolby atmos adds two discrete channels of sound to
increase the realism of all types of movies.

•With two new channels of sound, Dolby® Surround 7.1

extends the creative palette for filmmakers and enables
movie sound that better matches the onscreen action.

•Dolby Surround 7.1 enhances audio definition,

so individual sounds are clearer and more distinct.

•Dolby Surround 7.1 improves the surround sound

experience across the entire theatre

[7] This refers to the number of traditional surround speakers (front, centre, surround).
[.1] The middle number refers to how many powered subwoofers you can connect to your receiver.
[.2] The final number refers to how many in-ceiling or upward-firing speakers are in your Dolby Atmos®
setup.
 2K RESOLUTION (2560X1440)
BEAM PROJECTOR.
• LCD and LCD HDMI board : 5.98 inch, 2560x1440
resolution
• Case (Housing) : black acryl with laser cut, and
one
• side is sanded beforehand
• Fresnel LENS : focal length 120 and 185, F120 is

• placed near LED and F182 is placed near the

projection lens
• Projection LENS : F190 or F200

LED light Conventional way :

150 watt LED
Condenser Lens : square-
shaped lens or conventional
round-shaped lens. The square
PVRversion shows
CINEMAX betterMALL
OBERON brightness
LIGHTING FIXTURES

Theatre Lights, having perfect make, high luminance and

long service life. These Theatre Lights have Aluminium
Channel and are coated with black powder.

STEP LIGHTS
• lighting a stairway
improves safety and In ground Lights are widely
adds an inviting glow used for indoor
to your space. applications.
• These lights guide
the audience to
recognize the steps
in the dark hall.
These Cinema Hall
Step Lights are
enclosed in sturdy
transparent
materials to provide
life long illumination.
 Wall mounted lights
wall lights provide a decorative
illumination to the interior, as
well as safely lighting
hallways, staircases and
exteriors.

WALL LIGHTS
•long life,
• energy efficient LEDs that allow for low
maintenance installations.
•easy and fast installations not requiring
exact field
•dimensions.
•provides a safe environment in low light-level
venue
•that require aisle, path, step, or
guide lighting for patrons.
•Low Voltage 12V
•Replaceable Individual LEDs
•Parallel Wiring
•LED Life up to 100,000 Hours
•Individually Replaceable LEDs

• ACOUSTIC PANELS
• Acoustic panels are used to
reduce noise and control
• sound absorbing wall panels
are fabric-wrapped, made
from a Class A fire rated
acoustic foam, or covered in
perforated metal.
• Polyester, polypropylene,
cotton and fiberglass wall
and ceiling mountable panels
are also used.
WALL CARPETS
Wall carpet is acoustically absorbent. it helps to
control sound reverberation.
FLOORING
Hard flooring is better for foyers and between seats in
auditoriums because it’s easier to clean and maintain.
carpets are hardwearing and can sustain heavy
footfall. Carpet also brings warmth to areas such as
corridors and aisles, as well as function rooms. it will
absorb sound – ideal for multi-screen cinemas and
multi-function spaces.
Wood finishing
Outer pores 3mm
PVR CINEMAX OBERON MALL
 SECTION
Audience seating area which is sloped, with it's
lowest part nearest the stage.

rake of 1:18, the corresponding angle is arc

tan(1/18) = 3.18°.

Seating is on a upwards slope away from the

stage, in order to give those at the back a
better view than if the seats were all of the
same level.

PVR CINEMAX OBERON MALL

PROJECTOR ROOM
•THE PRJECTOR ROOM IS IN THE FLOOR JUST ABOVE THE SCREEN ROOM, WHICH IS
ABOUT AT A HEIGHT OF 3.5 M.
• THE ACCESS TO THE ROOM IS FROM THE TERRACE.
• THE DIMENSION IS ABOUT 19X4 M sq.
• MAINTAINS A TEMPERATURE OF 20 degree Celsius.
• TO MAINTAIN THE TEMPERATURE THERMOCOL CEILING IS USED.
• THE MAIN ACTIVITY SPACES FOR A PROJECTOR ROOM:-
(1) PROJECTOR -2K (6) ENGINEER SEATING
(2) SERVER (7) SOUND SYSTEM- CD 750
(3) ELECTRICITY SOURCE (8) POWER GENERATOR
(4) AHU PIPES
(5) SEATING/COMPUTER
• DOLBY ATMOS OF 7.1 IS USED.
• AHU ROOM IS NEARBY.
• ARRANGED WRT TO THE THAETER ROOM.
• 840 KW ELECTRICITY PRODUCED IN A DAY.
• 40 MIN BACKUP.
 •THE EXHAUST PIPES HAVE CONNECTION
TOWARDS THE AHU, WHICH IS OUTSIDE THE
PROJECTOR ROOM.
•THE PIPES ARE SILVER COATED FOR.
•THE PROJECTOR ROOM CAN ONLY BE
ACCESSED AFTER PASSING THE SECURITY
CHECK WHICH IS INN THE NEXT FLOOR.
•THE AMBIENCE IS DARK INSIDE IT.

•THE OPENING FOR THE PROJECTOR COVERED

WITH GLASS IS OF DIMENSOIS 100 CM.
•THE OLD FILM PROJECTOR WAS LAST USED
ABOUT 2 YEARS AGO.
•PORT HOLES ARE ALSO GIVEN SO AS TO CHECK
THE SOUND QUALITY OR TO GIVE INSTRUCTIONS
TO THE PEOPLE INSIDE THE SCREEN ROOM.
• IT CONTROLS ALL THE LIGTING FACILITIES.
•THE GLASS INFRONT OF THE PROJECTOR MUST
BE TILTED IN ORDER TO REDUCE THE REFLECTION
OF FILM RAYS.
 The exclusive lobby before
the theatre entry diverts into
two aisles at the end near
the theatre entry.: toilets for
males and females.
Long dark corridor which
starts with a set of wash
basins in the wash room.

The tiles laid in horizontal strips

to define the corridor space.
The toilets are placed such that there is minimal
circulation to the entry to theatres. So people
need to move very less during the break
between film .
 S
E
A
T
I
N
G

A
R
R
A
N
G
Total capacity = 614 E
No of seats in Audi = 185
M
No of seats in Audi = 187
• polyurethane seats E
N
There is 1 entry and 3 exits,one exit is used in case of fire. • Push back seats T
S
The exit is towards the 4rd floor towards a fire exit
corridor

The fire extinguishers are kept in front of the screen

No of seats in Audi = 108
No of seats in Audi = 134
SECTION

8M
INTRODUCTION OF
ACOUSTICS
Acoustics is the interdisciplinary science that deals with the study
of all mechanical waves in gases, liquids, and solids including
topics such as vibration, sound, ultrasound and infrasound.
It may be defined as :-
(a) Science of sound, including its production, transmission, and
effects, including biological and psychological effects.
(b)Those qualities of a room that, together, determine its
character with respect to auditory effects.
IMPORTANCE OF
ACOUSTICS
Importance of Acoustics
Acoustics are fundamentally important to learning environments.
Learning is intrinsically linked with communication, and aural (sound)
communication is acoustics. Large specialized rooms like
auditoriums, gyms, and cinema theaters needs careful acoustical
engineering

Architectural acoustics
Architectural acoustics (also known as building acoustics) involves
the scientific understanding of how to achieve a good sound within a
building. It typically involves the study of speech intelligibility, speech
privacy and music quality in the built environment
INTERIOR
FINISHES
It comprises of :-
a) Flooring.
b) Wall finishes.
c) Ceiling.
d) Furniture.
FLOORING
# FARRAT ISOMAT ACOUSTIC FLOATING FLOORS are used to provide very high
isolation between noisy or quiet rooms and surroundings rooms.
# They can be built as box in box systems with the walls and ceiling build off the
floating floor.

USED GLOBALLY IN ALL KINDS OF BUILDINGS

^ Excellent Acoustics and vibration isolation performance.
^ Natural frequencies down to 6Hz.
^ Acoustics air gap between 25 and 200 mm.
^ Floating concrete slab thickness between 50 and 2000mm.
^ Load bearing capacity up to 900kN/m2.
^ Ease, speed and adaptability of installation with minimal waste.
 PRELUDE
WALL FABRICS
It offers a texture and feel which is unobtrusive, not
detracting from the appeal of other
design features around it.

-Flexibility in design, layout, acoustic and load

bearing performance.
- Flexibility in delivery.
-Supplied fully installed or as a kit for customer
installation.
- Economical.
- Use of high quality, long lifetime materials.
 WALL
FINISHES
Acoustic curtains are typically made of the heavy duty, flame retardant,
acoustically absorbent fabrics and can be used with various track systems to afford
Greater flexibility than fixed sound absorptive panels.

FLEXIBLE FABRIC SYSTEM TO ABSORB SOUND

^ Typically used for recording studios, sound sets, dance etc and in venues
ranging from schools to theaters.
^ Acoustic curtains can be used to cover windows areas , to divide spaces or
arranged to cover head or reflective surfaces which allows an element of
acoustic ‘tuning’ within the room.
^ Acoustic curtains are manufactured from either wool serge or velvet velour,
as
the heavier nature of these fabrics provide the best acoustic results.
^ Track selection is based on application, dependent on curtain size/weight and
arrangement .
^ Acoustic curtains are primarily intended for sound absorptive application, as
they offer minimal sound transmission loss.
 MAINTENANCE:
^ Acoustic curtain fabric can only be cleaned with a vacuum cleaner
or soft brush. Wet cleaning of flame retardant material will compromise the
fire resistance and must be avoided.
^ Acoustic wall curtains last in excess of 10-15 years with little maintenance. Although
Rarely required, they can be easily cleaned and repaired.
^ Acoustic wall curtains are easily the most cost effective option for a high quality,
Professional looking cinema value.
WOOL CINEMA WALL FABRICS
^ Cinema uses wool that is heavy- weight, opaque and extremely durable, in order to
Assemble the very best stage drapes, acoustic sound control curtain systems, and other
Wall curtains.
ACOUSTIC PANELS
^ Acoustic wall panels are a cost effective and attractive means of providing your venue
With the highest quality audio performance.
ACOUSTIC STRETCH FABRIC WALL
^ Covering cinema walls with acoustic stretch fabric is an alternative to the use of acoustic
Curtains to manage the sound and echo characteristics in the cinema auditorium.
CUSTOM WALL FINISHES
^ Specialty cinema can be design and install any sort of custom wall finish to give your cinem a
A state of the art appearance.
CEILINGS
Manufactured using optimum quality terracotta, these tiles offers resistance to
humidity, heat and superior acoustical performance.
Available in various shapes and sizes, these are readily used in
offices, multiplexes, recording studios and construction industry.

# Subtex Ebony, subtex pebble, subtex plane and subtex nubby walls and ceilings.
These products are widely used for furnishing offices, auditorium, retail outlets,
Multiplex.
# Its range is appreciated for its humidity tolerance, durability and easy access to
the plenum.
SPECIFICATIONS:
^ Surface provided with white surface finish for monolithic texture and black
surface for fully light absorption.
^ Large format – 1200mm X 1200mm.
^ Light weight - 1.5kg – 3.0kg without contributing to structural load of
building.
^ Fast track panels can be installed in T- grids after fit out (large size provide 4
tiles in 1 install).
^ High quality, high aesthetic, high NRC, ceiling tiles and panels.
FURNIT
URES
TYPES OF FURNITURE USED IN MULTIPLEX THEATRE
^ Theater seats come in a variety of widths, depending on the
IRWIN MARQUEE
age of the theater, the space available and the target audience.
^ High end theater may have luxury seating that is wider than
the cushions at your local multiplex.
^ Movie theaters may also differ from live theater spaces in
seat width.
^ Standard seat width varies between 18 and 22”,but older
theaters, such as historic movie houses from the 1940s and
IRWIN SPRINGFIELD
earlier, may have 15 -16” seat.

ACOUSTIC INNOVATION DESIGN

BASS FORUM THEATER SEAT
BLACK CANYON DESIGN
SITE
LITERATURE
• No site which would admit of storm water draining into it owing to its
level or location shall be used for the construction of the building unless
arrangements are made to prevent effectively the flooding of the site
either by draining into a storm watercourse, if one is available or by
raising the level of the site to as adequate height by the deposit of layers
of sound.

• No site wherein the soil and sub-soil would be so saturated with water
that dampness of the floor and walls of the building would be inevitable,
shall be used for the construction of the building unless a damp-proof
course is provided in the basement of the building not higher than the
level of the lowest floor and unless the flooring is made with a material
approved by the licensing authority which would effectively prevent the
dampness rising in the floor of the building.

• Every person who constructs, reconstructs, alters or adds to a building

shall wherever the site is within 15 meters of any lank, reservoir, water
course, river, fresh water channel or well carry out such measures as may
be necessary of as Licensing Authority may direct for the purpose of
preventing any contamination of or any risk of the drainage of building
passing into such tank, reservoir, water course, river, fresh water channel
or well.
EXITS
• Each auditorium of the building shall be provided with an
adequate number of clearly indicated exits position and so. In the
auditorium there shall be one exit from every tier, floor or gallery
for every 250 persons accommodated . Every exit from the
auditorium shall provide a clear opening space of not less than J .5
m in width.
• All exits from the auditorium shall be clearly indicated by the word
'EXIT' in block letters 1.75 mm high and shall be so displayed as to
be clearly visible in the light as well as in the dark.
• No door which is required as exit shall be less than 1.5 m in
clear width and not less than 2.1 m in clear height. The clear
width shall be measured between the frame of a door.
• All exit doors shall open outwards and shall flush with outside of
the walls or shall be so fitted that when open they do not obstruct
any gangway, passage, corridor, stairway or landing.
• At no point shall any such passage or corridor be less than 1.5 m
wide and it shall not diminish in width in the direction of the final
place of exit.
• Passage giving access to staircases- (a) Width of a passage
serving a single staircase shall not be less than the width of that
staircase.
• The treads shall be not less than 30 cm wide and risers not
more than 15 cm high.. The treads and risers of steps on each
flight shall be of uniform width and height.
• Each flight shall have not more than 15 or less than three steps. No
staircases shall have more than two flight of 15 steps without a turn
and the width of the landing between such flights shall be at least
the same as the width of the staircase. No staircase shall be less
than 1.5 m in width which shall/cater/suffice the requirements for
100 persons and for every 15 persons the width shall be increased
by 2.5 cm divided over the number of staircases provided.
• The farthest point in a cinema building from where the staircase
affords access, shall not be more than 20 m distant from such
staircase.
• The floors of all landings shall not be less than 15 cm thick.
• The minimum headway of a passage if used by public under the
landings shall be not less than 2.1 m at any point between the top of
the finished floor surface and the underside of the landing
immediately above it.
• Clear aisles not less than 1.2 mm width shall be formed at right
angles to the line of seating in such number and manner that no
seat shall be more than 3.8 m away from an aisle, measured in the
line of seating.
• Where possible, gradients or inclined planes shall be used instead
of
steps but no gradient or inclined plane shall be steeper than 1 in
10.
• The treads shall not be less than 30 cm. and risers not more than 15
cm.
• No landing lobby, corridor or passage not being an internal
passage between and or across rows of seats, intended for use as an
exit shall be less than 1.5 m wide and there shall be no recesses or
projections in the walls of such passages or corridors within 1.8 m of
the ground.
• The size of the auditorium shall be fixed in relation to the
number of audience to be seated. No part of the auditorium shall
provide accommodation exclusive of passages at a scale higher
than 0.45
C.M. per person.
• SEATING
• The width of seats should be between 45 and 56 cm.
• The back to back distance of chairs shall beat at
least 85cm.
• If extra comfort is required, higher spacing may
be provided which shall vary between 85 to 106cm.
95.
• In all cases there shall be an intervening space of at
least 35 cm between the back of one seat and the front
of the seat immediately behind measured between
perpendiculars.
• The minimum height of the auditorium shall be 6m.
The volume per person required to be provided should
be 3.5 to 4.5 m per person.
• There shall be a minimum distance of 4 meters from
the screen to the front edge of first row of seating.
• screen shall be fixed in such a way that its bottom shall
not be at a height of more than 2.1 meters above the
ground level of the front row of accommodation.
• The height between the soffit of any intermediate tier
• In the case of a permanent building
the number arrived at by calculating at
the rate of 20 persons per 9.5 square
meters of floor area in respect of such
portions as are provided with chairs
having backs and arms.
• There shall be sufficient means of
artificial ventilation with the help of
not less than one ceiling fan for every
fifty seats and one exhaust fan for
every fifty square meters of the
auditorium.
• Guards shall be provided for
ceiling fans with Jess than 2.5
meters clearance.
• Where cinema theatres are
licensed as Air Conditioned Theatres,
standby power supply of adequate
capacity to ensure the required
minimum level of thermal comfort
 Health and sanitation
• The licensee shall provide adequate
drinking water supply at such places as may
be prescribed by the Licensing Authority..
Notices for using such spittoons shall be
displayed in prominent parts of the cinema
premises.
• Licensees of permanent theatres shall
provide water closets at the rate of one for
every 250 persons and urinals at the rate of
one for every 50 persons.
• Licensees of temporary theatres shall
provide as many water closets and urinals
as may be specified by the Licensing
Authority.
CONCLUSION:
MERITS:
• PROJECTOR ROOM ON DIFFERENT FLOOR.
• EXIT CAN BE ON THE SAME FLOOR AS THAT OF THE SCREEN ROOM.
• DIRECT CONNECTION TO THE PARKING AREA.
• THERE ARE 2 EXITS.
• WHEELCHAIR VIEWERS PROVIDED WITH RAMPS AND LIFTS TO REACH THE SCREEN ROOM.
• THE PROJECTORS ARE MINIMUM OF 2K OR CAN ALSO BE 4K TYPES.
• THERE MUST BE A MINIMUM OF 5 CHANNELS.
• FIRE PROTECTION GIVEN IN THE SCREEN ROOM AS WELL.
• AHU ROOM IS PLACED NEAR THE PROJECTOR ROOM.
• MINIMUM OF 3 M DISTANCE BETWEEN FIRST ROW SEATING AND SCREEN.

DEMERITS:
• THE DISTANCE FROM THE SEATING TO THE SCREEN IS ABOUT 2.5 M WHICH IS A HINDRANCE TO THE
VIEWERS.
• THE TICKET COUNTER IS OUTSIDE THE CINEWORLD LOBBY AREA BEACAUSE OF WHICH IT SHARES THE
SAME SPACE AS THAT OF THE MALL SHOPS.
