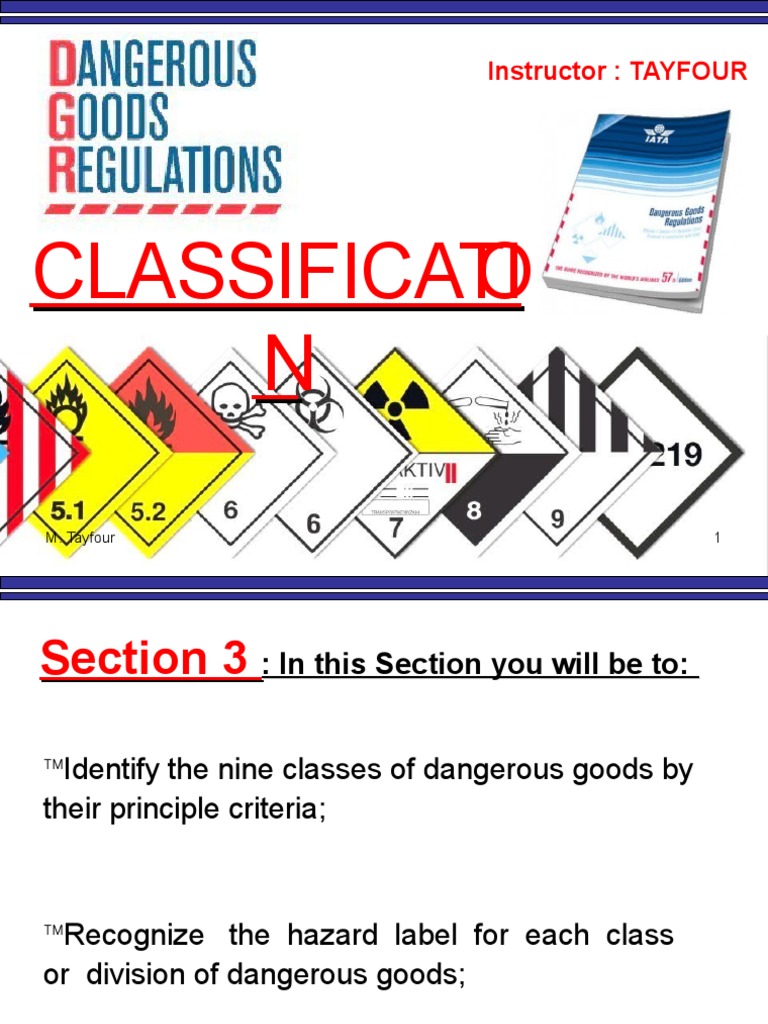

Instructor : TAYFOUR

CLASSIFICATI
O
N
M. Tayfour 1
Section 3 : In this Section you will be to:

Identify the nine classes of dangerous goods by

their principle criteria;

Recognize the hazard label for each class

or division of dangerous goods;

 Understand and apply the principles of Packing

M. Tayfour 2

Groups.
 DGR Classification System
The physical state and physical properties of the
dangerous goods will affect how easily and safety
the goods can be handled in transport, how they
should be packaged and what hazards they
present, especially if spilled.
Solid Liquid Gas

M. Tayfour 3
 DGR Classification System
The DGR also divides dangerous goods into :
Substances
Articles

M. Tayfour 4
• Dangerous Goods are divided into 9
hazard groups called classes .
– Classes 1, 2, 4, 5 and 6 are broken down into
“Divisions” due to hazard variation within
these classes.
• Classes are expressed by single-digit
numbers. (Example Class 7).
• Divisions are expressed by 2-digit
numbers. The first digit identifies the class
number and the second identifies the
division number within that class.
M. Tayfour 5
Example
Class 1, Division
1 would be expressed
as
Division 1.1
M. Tayfour 6
 Label Size
100 mm
Or
10 cm

100 mm
Or
10 cm

IATA DGR Section 7

 CLASSIFICATION

Hazard Label

M. Tayfour 8
M. Tayfour 9
 Class 1
Explosive
Division 1.1 Also assigned into
Division 1.2 13 compatibility
Division 1.3 groups
Division 1.4 A, B, C, D, E, F, G, H,
Division 1.5 J, K, L, N, S
Division 1.6

M. Tayfour 10
 Class 1
Explosive
Explosives which can be carried
only in cargo Aircraft

Division
1.3

Division 1.4
M. Tayfour 11
M. Tayfour 12
 Class 1
Explosive
Division
1.1
Cargo IMP Code
REX
IMP : Interline Message Procedures

M. Tayfour 14
M. Tayfour 15
M. Tayfour 16
 Class 1
Explosive
Division

1.2
Cargo IMP Code
REX
IMP : Interline Message Procedures

M. Tayfour 18
M. Tayfour 19
M. Tayfour 20
 Class 1
Explosive
Division

1.3
Cargo IMP Code
RCX
IMP : Interline Message Procedures

M. Tayfour 21
 Distress Flash

M. Tayfour 22
 Distress Flares

M. Tayfour 23
 Class 1
Explosive
Division
1.4
Group
B-C-D-E-G-S

Cargo IMP Code

RXB – RXC – RXD – RXE –
RXG – RXS
IMP : Interline Message Procedures
M. Tayfour 24
 Class 1
Explosive

Divisions 1.4
RXB RXC RXD RXE RXG RXS

M. Tayfour 25
 Class 1
Explosive
Divisions 1.4S
RXS
It is only one
Accepted to
transported in
Passenger Aircraft
M. Tayfour 26
M. Tayfour 27
 ClassClass 11

EExplosivxplosivee
 ClassClass 11

EExplosivxplosivee
M. Tayfour 30
 Class 1
Explosive

Division
1.5
Cargo IMP Code
REX
IMP : Interline Message Procedures

M. Tayfour 31
 Class 1
Explosive

Division
1.6
Cargo IMP Code
REX
IMP : Interline Message Procedures

M. Tayfour 32
 Class 2
Gase
s
Divisions
1. Flammable Gas
2. Non-Flammable , non-toxic Gas
3. Toxic Gas

M. Tayfour 33
M. Tayfour 34
 Class 2
Gases
Division
2.1
Flammable Gas
Cargo IMP Code
RFG

M. Tayfour 35
M. Tayfour 36
M. Tayfour 37
M. Tayfour 38
 Class 2
Gase
s
Division
2.2
Non-Flammable , non-toxic Gas

Cargo IMP Code

RNG
M. Tayfour 39
Aircraft Insecticide

M. Tayfour 40
M. Tayfour 41
M. Tayfour 42
M. Tayfour 43
 Class 2
Gases
Division
2.3
Toxic Gas
Cargo IMP Code
RPG

M. Tayfour 44
 Poison Gas Grenade

M. Tayfour 45
 Class 3
Flammable
Liquids
3
Flammable Liquids
Cargo IMP Code
RFL
Note : This class has no sub-divisions

M. Tayfour 46
 Fuel

M. Tayfour 47
M. Tayfour 48
 General Packing Requirements
• Packing Group I High Danger

• Packing Group II Medium Danger

• Packing Group III Low Danger

M. Tayfour 49
Flammable liquid are assigned to packing groups according
to the flash point and initial boiling point of the liquid

TABLE 3.3.A
class 3 – Packing Group Assignment (3.3.2.2)

Packing Group Flash Point (closed-cup) Initial Boiling

Point
I — ≤ 35°C

II. < 23°C

> 35°C
III. ≥ 23°C but ≤ 60°C

M. Tayfour 50
Example A
Base on a recognized laboratory test results, a
liquid is having a flash Point (closed-cup) of
22.9°C and as initial boiling point not exceeding
38°C. Identify the packing group of this
substance ?
Packing Group Flash Point (closed-cup) Initial Boiling
Point
I — ≤ 35°C

II. < 23°C

> 35°C
III. ≥ 23°C but ≤ 60°C

• Packing Group: II
Example B

Packing Group Flash Point (closed-cup) Initial Boiling

Point
I — ≤
35°C
II. < 23°C
> 35°C
III. ≥ 23°C but ≤ 60°C

• Flashpoint: 21°C Boiling Point: 37°C

• Packing Group: II
Example C

Packing Group Flash Point (closed-cup) Initial Boiling

Point
I — ≤
35°C
II. < 23°C
> 35°C
III. ≥ 23°C but ≤ 60°C

• Flashpoint: 40°C Boiling Point: 55°C

• Packing Group: III
Example D

Packing Group Flash Point (closed-cup) Initial Boiling

Point
I — ≤
35°C
II. < 23°C
> 35°C
III. ≥ 23°C but ≤ 60°C

• Flashpoint: 72°C Boiling Point:

37°C
• Packing Group:
Not regulated as flammable liquid
 Class 4
Flammable
Solid
Divisions
1. Flammable Solid
2. Spontaneously
Combustible
3. Dangerous when wet

M. Tayfour 55
 Class 4
Flammable Solid

Divisions
4.1
Flammable Solid
Cargo IMP Code
RFS
M. Tayfour 56
M. Tayfour 57
 Class 4
Flammable
Divisions Solid
4.2
Spontaneously
Combustible
Cargo IMP Code
RSC
M. Tayfour 58
M. Tayfour 59
 Class 4
Flammable
Solid
Divisions
4.3
Dangerous when wet
Cargo IMP Code
RFW
M. Tayfour 60
 Class 5
Oxidizin
g
Divisions
1. Oxidizing
2. Organic Peroxides

M. Tayfour 62
 Class 5
Oxidizin
g
Divisions
5.1
Oxidizer
Cargo IMP Code
ROX
M. Tayfour 63
M. Tayfour 64
 Class 5
Oxidizin
g
Divisions
5.2
Organic Peroxides
Cargo IMP Code
ROP
M. Tayfour 65
M. Tayfour 66
M. Tayfour 67
 Class 6
Toxic
Substances
Divisions
1. Toxic or Poison
2. Infectious Substances

M. Tayfour 68
 Class 6
Toxic
Substances
Divisions
6.1
Toxic or Poison
Cargo IMP Code
RPB
M. Tayfour 69
M. Tayfour 70
Packing Group Criteria for class 6.1

a) Packing Group I — Substances and preparations

presenting a very severe toxicity risk;
b) Packing Group II — Substances and preparations
presenting a serious toxicity risk;
c) Packing Group III — Substances and preparations
presenting a relatively low toxicity risk.
M. Tayfour 71
Packing Group Criteria for class 6.1
Table 3.6.A
Oral, Dermal and Dust/ Nist inhalation Hazards Division
6.1 packing group criteria (3.6..1.3)

Inhalation
Oral Toxicity LD 50 Dermal Toxicity Toxicity by
Packing Group LD 50 (mg/kg) Dusts and Mists
(mg/kg)
LC 50 (mg/L)

I ≤ 5.0 ≤ 50 ≤ 0.2

II > 5.0 but ≤ 50 > 50 but ≤ 200 > 0.2 but ≤ 2.0

III > 50 but ≤ 300 > 200 but ≤ 1,000 > 2.0 but ≤ 4.0

M. Tayfour 72
 Class 6.2
•

M. Tayfour 73
 Class 6.2
•

M. Tayfour 74
 Class 6.2
•
200-25 LD50 oralrat
•
LD50 rat 400-50
•
1-0.25 LC50 rat
•
2-0.25 LC50 rat

LD50 : Lethal Dose

M. Tayfour 75
LC50 : Lethal Concentration
 Class 6
Toxic
Substances
Divisions
6.2
Infectious Substances
Cargo IMP Code
RIS
M. Tayfour 76
M. Tayfour 77
M. Tayfour 78
TABLE 3.6.A
Class 6 — Packing Group
Assignment
Based on Toxicity
(3.6.3.1)
Packing Inhalation
Oral toxicity LD50 Dermal toxicity LD
Group 50
toxicity LC 50
PG I ≤5 ≤ 50 ≤ 0.2
PG II >5 and ≤ 50 > 50 and ≤ 200 > 0.2 and ≤2
PG III > 50 and ≤ 300 > 200 and ≤ 1000 > 2 and ≤ 4

LD50 : Lethal Dose

LC50 : Lethal Concentration
Example A
A solid substance is having toxicity LD50 of 750 mg/kg
which when in contact with the skin can cause death to
humans. What is the packing group assignment for this
substance?
Inhalation
Oral Toxicity LD 50 Dermal Toxicity Toxicity by
Packing Group LD 50 (mg/kg) Dusts and Mists
(mg/kg)
LC 50 (mg/L)

I ≤ 5.0 ≤ 50 ≤ 0.2

II > 5.0 but ≤ 50 > 50 but ≤ 200 > 0.2 but ≤ 2.0

III > 50 but ≤ 300 > 200 but ≤ 1,000 > 2.0 but ≤ 4.0

Packing Group: III

M. Tayfour 80
 Example B

Packing Inhalation
Oral toxicity LD50 Dermal toxicity LD
Group 50
toxicity LC 50
PG I ≤5 ≤ 50 ≤ 0.2
PG II >5 and ≤ 50 > 50 and ≤ 200 > 0.2 and ≤2
PG III > 50 and ≤ 300 > 200 and ≤ 1000 > 2 and ≤ 4

• Oral Toxicity LD50: 40

mg/kg
• Packing group: II
 Example C

Packing Inhalation
Oral toxicity LD Dermal toxicity LD50
Group 50
toxicity LC 50
PG I ≤5 ≤ 50 ≤ 0.2
PG II >5 and ≤ 50 > 50 and ≤ 200 > 0.2 and ≤2
PG III > 50 and ≤ 300 > 200 and ≤ 1000 > 2 and ≤ 4

• Dermal Toxicity LD 50 : 200

mg/kg
• Packing group: II
 Example D

Packing Inhalation
Oral toxicity LD50 Dermal toxicity LD
Group 50
toxicity LC 50
PG I ≤5 ≤ 50 ≤ 0.2
PG II >5 and ≤ 50 > 50 and ≤ 200 > 0.2 and ≤2
PG III > 50 and ≤ 300 > 200 and ≤ 1000 > 2 and ≤ 4

• Oral Toxicity LD50: 300

mg/kg
• Packing group: III
 Example D

Packing Inhalation
Oral toxicity LD50 Dermal toxicity LD50
Group toxicity LC50
PG I ≤5 ≤ 50 ≤ 0.2
PG II >5 and ≤ 50 > 50 and ≤ 200 > 0.2 and ≤2
PG > 50 and ≤ 300 > 200 and ≤ 1000 > 2 and ≤ 4
III

• Oral Toxicity LD : 50 40 mg/kg

• Dermal Toxicity LD 50 : 300

mg/kg
 Class 7
Radioactive Material
Category
I – White
II - Yellow
III – Yellow
Fissile – Criticality
Safety Index

M. Tayfour 85
M. Tayfour 86
M. Tayfour 87
M. Tayfour 88
M. Tayfour 89
 Class 7
Radioactive Material

Category
I – White
Cargo IMP Code
RRW

M. Tayfour 90
 Class 7
Radioactive Material

Category
II – Yellow
Cargo IMP Code
RRY

M. Tayfour 91
 Class 7
Radioactive Material

Category
III – Yellow
Cargo IMP Code
RRY

M. Tayfour 92
M. Tayfour 93
M. Tayfour 94
M. Tayfour 95
M. Tayfour 96
M. Tayfour 97
M. Tayfour 98
M. Tayfour 99
M. Tayfour 100
M. Tayfour 101
M. Tayfour 102
M. Tayfour 103
M. Tayfour 104
M. Tayfour 105
 Class 8
Corrosive Material

8
Corrosive
Material
Cargo IMP Code
RCM
Note : This class has no sub-divisions

M. Tayfour 107
M. Tayfour 108
 Class 8
Corrosive
Table 3.8.A
Class 8—Packing GroupMaterial
Assignment based on Corrosivity (3.8.3)
Packing Exposure Time Observation Effect Time
Group
≤ 60 min
Full thickness destruction of
I ≤ 3 min
intact
skin
≤ 14 d
Full thickness destruction of
II > 3 min ≤ 60 min
intact
skin
skin
III > 60 min ≤ 4 h ≤ 14 d
Full thickness destruction of
intact Corrosion rate on steel /aluminum
> 6.25 mm a year at a
III
test temperature of
55°C
Example A
A liquid is liable to damage a material when in contact with a full
thickness destruction within an exposure time of 180 minutes under an
observation time of 3 days. What is the packing group assignment of
this substance?
Packing Exposure Time O
Group b
s
e
r
v
a
t
i
o
n Corrosion rate on steel
/aluminum
III E > 6.25 mm a year at a
f test temperature of
f 55°C
e
Packing group: III c
t
 Class 9
Miscellaneous DG

9
Miscellaneou
s DG
Cargo IMP Code
RMD
M.Note : This class has no sub-
Tayfour 111
divisions
 Class 9
Miscellaneous DG

9
DRY ICE
Cargo IMP Code
ICE
Note : This class has no sub-
divisions

M. Tayfour 112
M. Tayfour 113
M. Tayfour 114
M. Tayfour 115
M. Tayfour 116
 Class 9
Miscellaneous DG

9
Magnetized Material
Cargo IMP Code
MAG
Note : This class has no sub-divisions Handling Label

M. Tayfour 117
 Handling Label

M. Tayfour 118
 Handling Label
Cargo Aircraft Only
Cargo IMP Code
CAO

Handling Label

M. Tayfour 119
 Handling Label
Cryogenic Liquid
Cargo IMP Code
RCL

Handling Label
M. Tayfour 120
M. Tayfour 121
 Handling Label

Package Orientation
(This Way Up)

Handling Label

M. Tayfour 122
M. Tayfour 123
 Handling Label

Keep away from heat

class 4.1 & 5.2

Handling Label
M. Tayfour 124
 Handling Label

Radioactive
Material , Excepted
Package

Handling Label

M. Tayfour 125
 Handling Label
Dangerous Goods in
Excepted Quantities

Cargo IMP Code

REQ
IMP : Interline Message Procedures

Handling Label
M. Tayfour 126
 Handling Label
Lithium ion Batteries
class 9
Cargo IMP Code
RLI
Lithium Mattel
Batteries
class 9
Cargo IMP Code
RLM Handling Label
M. Tayfour 127
M. Tayfour 128
M. Tayfour 129
M. Tayfour 130
M. Tayfour 131
 Handling Label
Time & Temperature
Sensitive

HHandandn
il lingg LabelLabel
M. Tayfour
132132
 Classify These Articles

M. Tayfour 133
 EXERCISES
1. Give the appropriate Class or Division number
and Cargo IMP codes for the following:

(a) Toxic substances …………….

(b) Corrosive ……………………...
(c) Radioactive material …………
(d) Carbon Dioxide, Solid (Dry Ice) ……………..
(e) Non-Flammable , non-toxic Gas ……………

M. Tayfour 134
Identify the appropriate Class or Division for
following labels:

M. Tayfour 135
 Summary
• Describe the nine hazard classes of dangerous
goods and their divisions
• Describe the physical properties of each hazard
class/div and give examples
• Identify packing groups
• Determine the hazard class, subsidiary risk,
and packing group of a given material
 Any Question…
MM. TTayayffourour
137137
