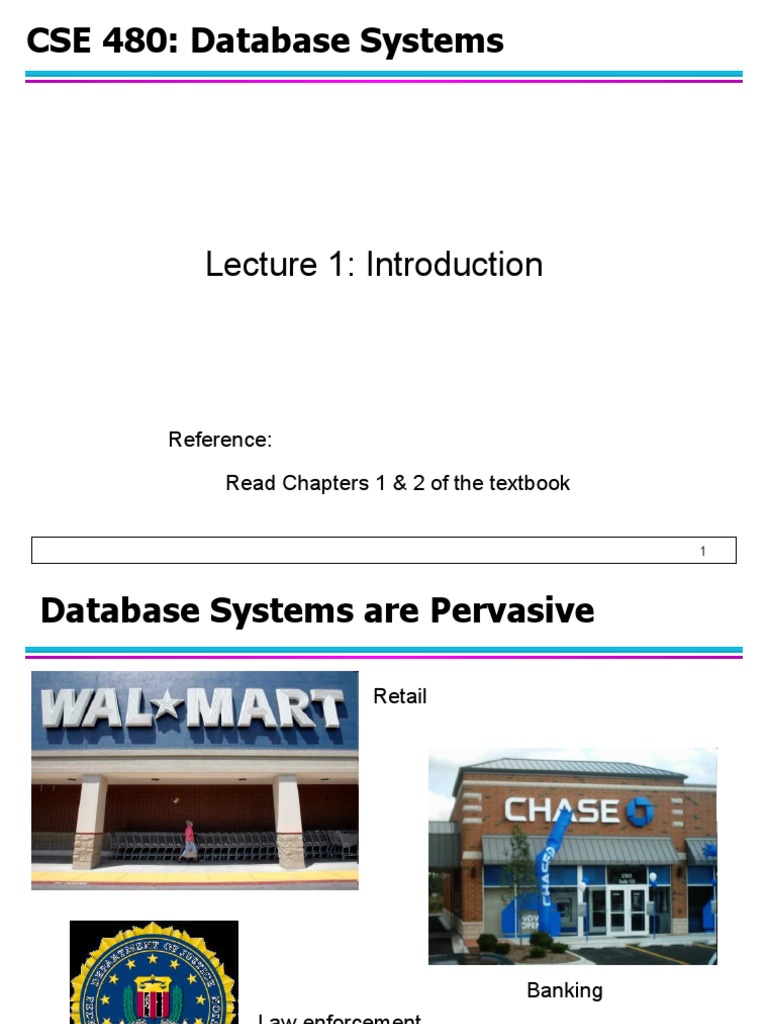

CSE 480: Database Systems

Lecture 1: Introduction

Reference:

Read Chapters 1 & 2 of the textbook

1
Database Systems are Pervasive

Retail

Banking
Law enforcement

2
Database-Driven Web Sites

3
What is a Database?

 Collection of related data central to a given enterprise

(mini-world or universe of discourse)
– Examples:
 Banking – savings/checking accounts, mortgage, etc
 Vehicle registration – car registration, year, make, etc
 Student registration – name, PID, GPA, last semester enrolled, etc
 Electronic Medical Records – name, SSN, date of birth, address,
symptoms, diseases, medication, test results, etc

4
Example of a Database

 Mini-world: UNIVERSITY environment

– What are the mini-world concepts that need to be captured by
the database?

 Entities:
– STUDENTs
– COURSEs
– SECTIONs
– DEPARTMENTs
– INSTRUCTORs

5
Example of a Database

 Relationships between entities of the mini-world:

– SECTIONs are for specific COURSEs
– STUDENTs take SECTIONs
– COURSEs have prerequisite COURSEs
– INSTRUCTORs teach SECTIONs
– COURSEs are offered by DEPARTMENTs
– STUDENTs major in DEPARTMENTs

6
Example of a Database

 Constraints on the entities and relationships

– Each course must have a unique course number
– GPA must be a real number between 0 and 4.0
– Each section has only one instructor but an instructor can teach
more than one section

 Database design (Lectures 2-4)

– Specifying the entities, relationships, and
constraints of a mini-world using the
Entity-Relationship and Enhanced
Entity Relationship models.

Database Architect
or Designer

7
Database Management System (DBMS)

 A collection of programs that enables users to create and

maintain a database

 Examples of DBMS
– MS Access, MS SQL Server, IBM DB2, Oracle, Sybase,
Postgres, mySQL, and many more

 Why do we need a DBMS?

8
File Server Architecture (no DBMS)

Thick client

Source:
Modern Database
Management. 6th Edition,
Jeffrey A. Hoffer, Mary B.
Prescott, Fred R.
McFadden

9
Client-Server DBMS Architecture

Thin client

Source:
Modern Database
DBMS running on database Management. 6th Edition,
server; performs all data Jeffrey A. Hoffer, Mary B.
Prescott, Fred R.
storage and access operations McFadden

10
Three-tier Architecture

Business rules stored on

application server

Source:
Modern Database
Management. 6th Edition,
Jeffrey A. Hoffer, Mary B.
Prescott, Fred R.
McFadden

11
Typical DBMS Functionalities

 Define a database
– Specify the structure of the data records

 Construct a database
– Store the data on some storage medium controlled by the DBMS

 Manipulate the database

– Query the database to retrieve specific data, update the database to
reflect changes, and generate reports

 Support concurrent processing and sharing by users and applications

– yet, keeping all the data valid and consistent

 Support protection/security measures to prevent unauthorized access

12
Characteristics of DBMS

 Self-Describing
 Provides insulation between programs and data
 Allows multiple views
 Allows multi-user transaction processing

13
Characteristics of DBMS

 Self-describing nature of a database management system

– DBMS contains not only the data but also complete description
of its structure and constraints
 Structure: Student ID is 10 characters long, GPA is a real number
 Constraints: GPA must be between 0 and 4.0 (non-negative)

– A DBMS catalog stores the description of the database

 The description is called meta-data

– This allows the DBMS software to work with any types of data
(banking, university, company, etc)

14
Example of DBMS Catalog

Information in DBMS
catalog are needed
for query processing
and optimization (to
be discussed more
in lectures 22-24)

15
Characteristics of DBMS

 Insulation between programs and data

– Program-data independence
 Allows changing data storage structures and operations without
changing the DBMS access programs

– Program-operation independence
 In OO and OR database systems, users can define operations
(methods) on data using an interface; implementation of the
operation (method) can be separately specified

16
Characteristics of DBMS

 Support multiple views of the data

– A database typically has many users, each of whom require
different perspective (view) of the database

– A common principle used by many organizations is that data

must be accessible on a need-to-know basis

– Example:
 Student database may contain information about student’s name,
SSN, courses taken and grades, salary, etc
 Users of the database include registrar office and payroll department
– Registrar doesn’t need to know what is student’s salary
– Payroll doesn’t need to know what is student’s GPA

17
Characteristics of DBMS

 Multi-user transaction processing

– Database stores information about current state of an enterprise
 Example: Bank database stores balance for each customer account
– When an event in the real world changes, a transaction is
executed to cause corresponding change in the database state
 A transaction is an executing program or process that includes one
or more database accesses, such as reading or updating database
records
 Each transaction is designed to maintain correctness of the
relationship between database state and real-world enterprise it is
modeling
– Example: When a customer deposits $50 in a bank, a deposit
transaction is executed to increase the account balance by $50
– Concurrency control of DBMS ensures correctness of the
database when multiple concurrent transactions are executed

18
Database System Concepts

 Data Models
 Database Schema vs Database Instances
 DBMS Languages

19
Abstraction

 Data is actually stored as bits, but it is difficult to work with

data at this level

 DBMS provides a level of abstraction by hiding the details

of data organization and storage
– A data model is used to hide storage details and present the
users with a conceptual view of the database

20
Data Model

User/Program

Data model DBMS

Student Course Department

(John, 21) (CSE480) (CSE, Engr)
(Mary, 19) (CSE331) (ECE, Engr)

Physical data
111000010010111
storage
011010111011011

21
Examples of Data Models

 Network Model
 Hierarchical Model
 Relational Model (most widely used)
 Object-Oriented Data Models
 Object-Relational Models

 More recently, NoSQL

– Google BigTable
– Amazon Dynamo
– Facebook Cassandra

22
Relational Data Model

 Proposed by Edgar Codd

– E. F. Codd: A Relational Model of Data for Large
Shared Data Banks. Commun. ACM 13(6): 377-387 (1970)

 Model the data as relations (tables)

– Advantages:
 Simple
 Mathematically based
 Has a set of powerful, high-level operators to analyze relational
expressions ( queries)

– Queries are transformed to equivalent expressions automatically

(query processing and optimization)
 Transformed expressions can be executed more efficiently

23
Database Schemas versus Instances

 In any data model, it is important to distinguish between

description of the database from the database itself

 Database Schema:
– The description of a database
 Includes descriptions of data elements, data types, and constraints
– Schema Diagram: An illustrative display of a database schema

 Database Instance (State/Snapshot):

– The actual data stored in the database at a particular moment
in time
– Valid State: A state that satisfies the structure and constraints of
the database

24
Example of a Database Schema

25
Example of a Database State

26
Database Schema vs. Database State

 Distinction
– The database schema changes very infrequently.
– The database state changes every time the database is
updated.

 Schema is also called intension

 State is also called extension

27
Three-Schema Architecture

External
schemas

Internal Schema

Physical storage for data about

students, courses, employment, etc

28
Internal Schema/Level

 Describes the details of how data is physically stored

– Specify how data is stored in files, tracks, cylinders.
– Specify the indices that support fast access to the rows of a table
– Specify the machine that has the data (Data may be distributed)

29
Conceptual Schema/Level

 Hides the details of physical data representation

– In the relational model, the conceptual schema presents data as
a set of tables (relations)

 DBMS maps from conceptual to internal schema

automatically

 Physical data independence

– Internal schema can be changed without changing the
conceptual schema

30
External Schema/Level

 External schema customizes the conceptual schema to

the needs of various users

External
schemas

 In the relational model, the external schema also presents

data as a set of relations

31
External Schema

 Application is written in terms of an external schema.

– Different external schemas can be provided to different
categories of users

 DBMS maps external to conceptual schema automatically

at run time

 Logical data independence

– Conceptual schema can be changed without changing external
schema and application programs

32
DBMS Languages

 Data Definition Language (DDL):

– Used to specify the conceptual schema of a database
 In many DBMSs, DDL is also used to define internal and external
schemas (views).
 In some DBMSs, separate storage definition language (SDL) and
view definition language (VDL) are used to define internal and
external schemas

CREATE TABLE DEPARTMENT (

DNAME VARCHAR(10) NOT NULL,
DNUMBER INTEGER NOT NULL,
MGRSSN CHAR(9),
MGRSTARTDATE CHAR(9)
);

33
DBMS Languages

 Data Manipulation Language (DML)

– Used to specify database retrievals and updates

INSERT INTO DEPARTMENT VALUES (

‘Payroll’, 154, ‘123-11-2344’, ‘2005-06-22’);

SELECT MgrSSN
FROM DEPARTMENT
WHERE DName = ‘Payroll’;

– Both DML and DDL can be embedded in a general-purpose

programming language, such as C, C++, Java or PHP

34
Example of SQL Embedded in Java

35
Database System Environment

36
MySQL Account

 Every registered student will have access to a MySQL

account on mysql-user.cse.msu.edu

 To log in, go to:

– http://www.cse.msu.edu/facility/phpMyAdmin/index.php
– Username is your CSE username
Password is your PID
Server Choice: mysql-user

 Send an email to manager@cse.msu.edu if you have

problems logging in

37
