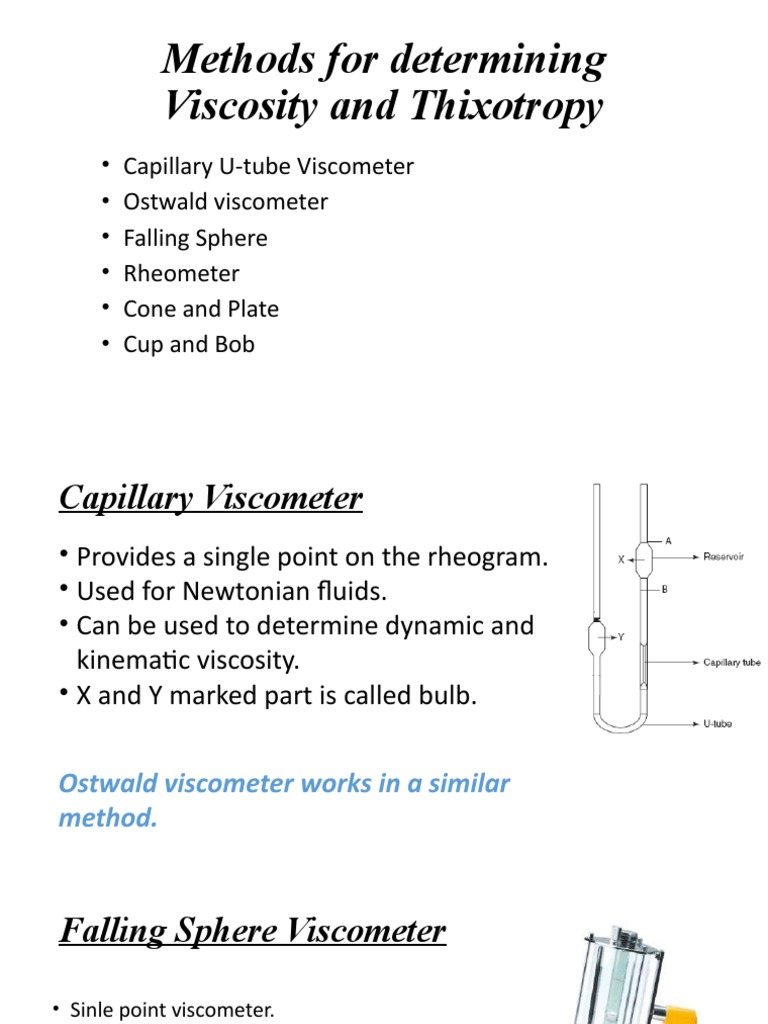

• Capillary U-tube Viscometer • Ostwald viscometer • Falling Sphere • Rheometer • Cone and Plate • Cup and Bob Capillary Viscometer • Provides a single point on the rheogram. • Used for Newtonian fluids. • Can be used to determine dynamic and kinematic viscosity. • X and Y marked part is called bulb.
Ostwald viscometer works in a similar
method. Falling Sphere Viscometer
• Sinle point viscometer.
• Composed of constant temperature jacket(uses water), sample tube, steel ball and stand body. • Constant temperature is maintained. • Sample tube is inversed and steel ball/sphere is allowed to fall from top to bottom. • Time to travel from mark A to mark B is noted. • Procedure repeated to maintain accuracy. Rheometer • It is used for non-Newtonian fluids. • It’s a multi-point instrument. • It is a rotational type of viscometer. • It can operate at various levels of shear. • This type of rheometer includes ‘Cone and Plate’ rheometer and ‘Cup and Bob’ rheometer. Cone and Plate Rheometer • Sample placed at the center of the plate under the cone. • Cone driven by a variable speed motor. • Sample is sheared in the narrow gap between stationary plate rotating cone. • Rate of shear adjusted by a selector dial. • Torque (shearing stress) produced read on the indicator scale. • A plot of rpm or rate of shear versus scale reading (shearing stress) may be plotted. Cup and Bob Rheometer • Fluid sample placed in the stationary cup. • Bob is dipped into the fluid and the drive shaft rotates the bob. • Torque set(spring or electronical sensor) measures torque(shearing stress) due to the viscous drag of the fluid. • Torque obtained from instrument used to calculate viscosity of sample.
