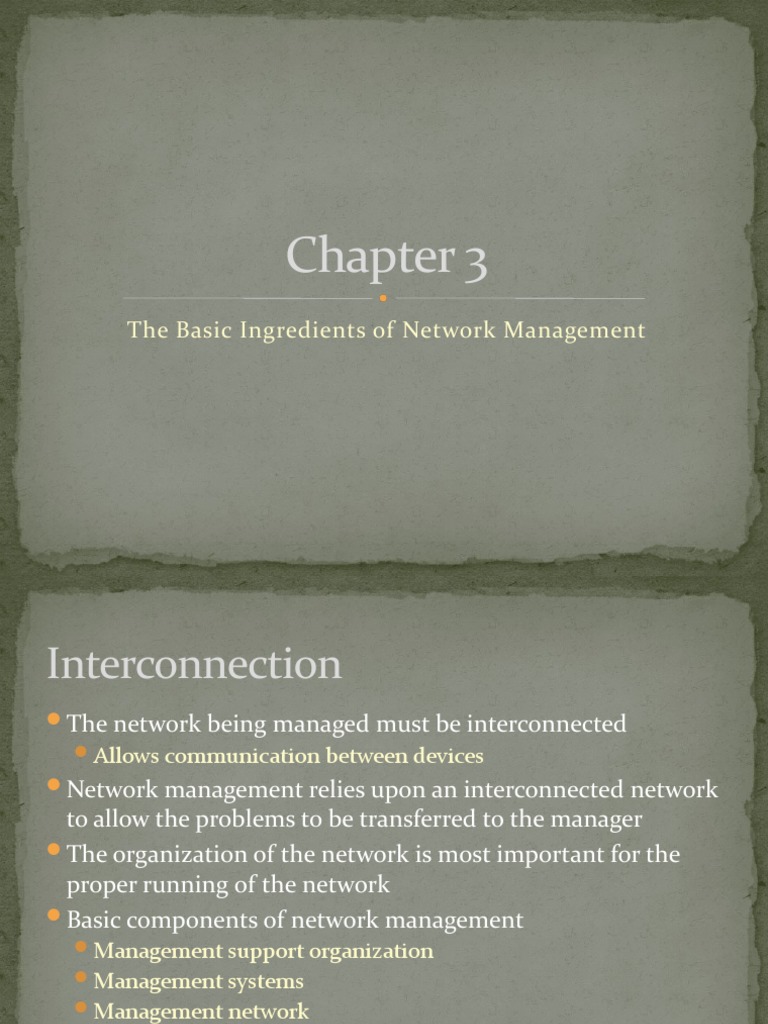

Interconnection The network being managed must be interconnected Allows communication between devices Network management relies upon an interconnected network to allow the problems to be transferred to the manager The organization of the network is most important for the proper running of the network Basic components of network management Management support organization Management systems Management network Network devices The Network Device The managed devices are called network elements (NE) Elements of the management process Management agent Management information Management Agent Must have a way for the network device to communicate with the managing system Management communication is asymmetrical Managing application is the “manager” (client) Network device is the “agent” (server) The software that connect these two together is the management agent The management agent consists of three parts Management interface handles communication Management information base holds data views Core agent logic translates between the interface, MIB, and actual device Management Information Many attributes of the network device is useful to the management of the network Software version needs to be known Use of ports must be assessed Environmental data helps with overheating Fans must be monitored Packet counters need to be monitored Protocol timeout patterns must be configured Firewall rules must be configured to define security policy Managed Objects (MOs) A real-world aspect of a network device Could be a fan, port, firewall rule, etc. MIB in SNMP Parameter in a CLI Any other method to define the object Not all parts (parameters) of the object are useful in a given situation Abstraction is used to determine the usable details Real Resources The underlying object that an MO represents Different uses for the real resource result in different abstractions for the resource (and different MOs) No matter what you call the real resource or how you collect data about it, it is always the same real resource Example no matter how you view it, a dog is still a dog Management Information Base MIBs are the collection of attributes (parameters) that are exposed to the network element’s managing systems Consists of all information that a management tool needs to know about a device Can be thought of as a conceptual store of information Translate this to the fields of a database Although this database can be queried, changed and deleted, it is connected to the real resource Some changes to the MIB for the real resource can change the way that the real resource works in the network Basic Management Ingredients II A successful network consists of three parts The management support organization The network (or the real world) The management technology that acts as a buffer between the two Management agents Management systems Management protocols that allow a conversation between the two The Management System Provide the tools to manage the network These tools were described in chapter 2 Management application = management system Management system is not the same as a host Can be spread over many hosts Scalability Robustness Manager Role A manager (role) is not a management system (application) One management system may play agent and manager One management system may be the agent for one function and the manager for another Data may be passed from one application to another To be effective, the management system must be able to “talk” to its network element(s) It is the consumer of the network element’s output Although the network element has its own MIB, often the management system has a database of network elements that it manages Manager Role (cont) Management agent is a proxy for the real device Management system is a proxy for the real world The two actually see their proxy systems as the real thing Management System’s Reason for Being Exists only for the purpose of network management The network can run fine without it Quality of service (Q0S) suffers however The Management Network Is a distributed application that runs over the network Management network provides the interconnection between the network management system and the network elements That is, the managers and agents Production network carries the traffic for the users Can be different physical networks or a combined network Management networks directly communicate with the network elements Production networks use the network elements The Management Network (cont) The Agents run on the network elements as apps E. g. Routing software SNMP Agents generally have their own port SNMP is 161 Networking for Management Network elements most often are connected to the management system through their port(s) Routers use the serial (console) interface This is called a craft terminal Connects to a laptop or Uses a terminal server Can connect using multiple ports to multiple network elements Most have an IP address and Ethernet interface allowing for connections through the network Creates a simple management network Biggest problem is keeping track of which network element is connected to which terminal server port Networking for Management Another connection method is to use an Ethernet port Creates an IP-addressed port for management purposes only Can also use a port that is shared with other traffic Called in-band management Pros/Cons of a Dedicated Mgmt Net Quickly creates a sophisticated network dedicated to network management Can be designed in two ways Management network is overlaid on the production network The two can be separate networks Which to use? It depends on the network, design, and devices Pros/Cons (cont) Advantages of using a dedicated management network Reliability Interference avoidance Ease of network planning Security Disadvantages Cost and overhead No reasonable alternative (no way to easily make a dedicated management network) Pros/Cons (cont) Will we need a management management network? Management network will provide management for its separate network elements as well as the production net Because cost is a big drawback, we can use a hybrid management system for some networks The Management Support Organization We need a support organization (people) to use the management system and technology associated with it Operational support system (OSS) The combination of the technical and the organizational aspects Managing the Management Tasks required of the organization Monitoring the network for failures Diagnosing failures and communications outages Planning for new services and user changes Keeping the network performance acceptable Planning network upgrades Planning network topology and future additions Managing the Management Structure the organizational support by Analyzing the tasks required of the staff Determine the workflows associated with each one Divide up this information into units and assign responsibility to staff for each Make sure that dependencies between different units are found and planned for One example of units Network planning Network operations Network administration The only group to physically interact with the network elements Customer management Managing the Management (cont) Network operator – generic staff member Various units are not entirely independent One feeds off the other’s output producing new output Telecom success relies upon efficiency which is derived from optimization of the organization Larger IT companies embrace a lot of the Telecom Smaller IT companies and departments have to farm out some or most of their requirements to 3rd parties Managing the Management (cont) Requirements to have a smooth-running network Good organizational structure Clear network management responsibilities Established processes and policies Includes necessary documentation Auditing and personnel auditing trails Network documentation Reliable backup/restore procedures Emphasis on keeping the structure secure Inside the Network Operations Center Location of the real resources is important for larger companies The NOC is the place from which large companies’ networks are run Houses the management systems Often has real resources Really large global companies use many NOCs Use the “follow the sun” methodology Sometimes NOCs are referred to as central offices (CO) Sometimes COs are terminals for the network Chapter Summary Network devices are agents, management systems are managers, MIBs (or similar) hold the conceptual data store and real resources are the managed objects The management network connects the manager to the managed objects It can be dedicated or run on the production network Dedicated management networks add significant cost Besides the physical part of the network, organizational segments (staff) are needed The organization is often divided up according to function The management center is called the NOC
