    1

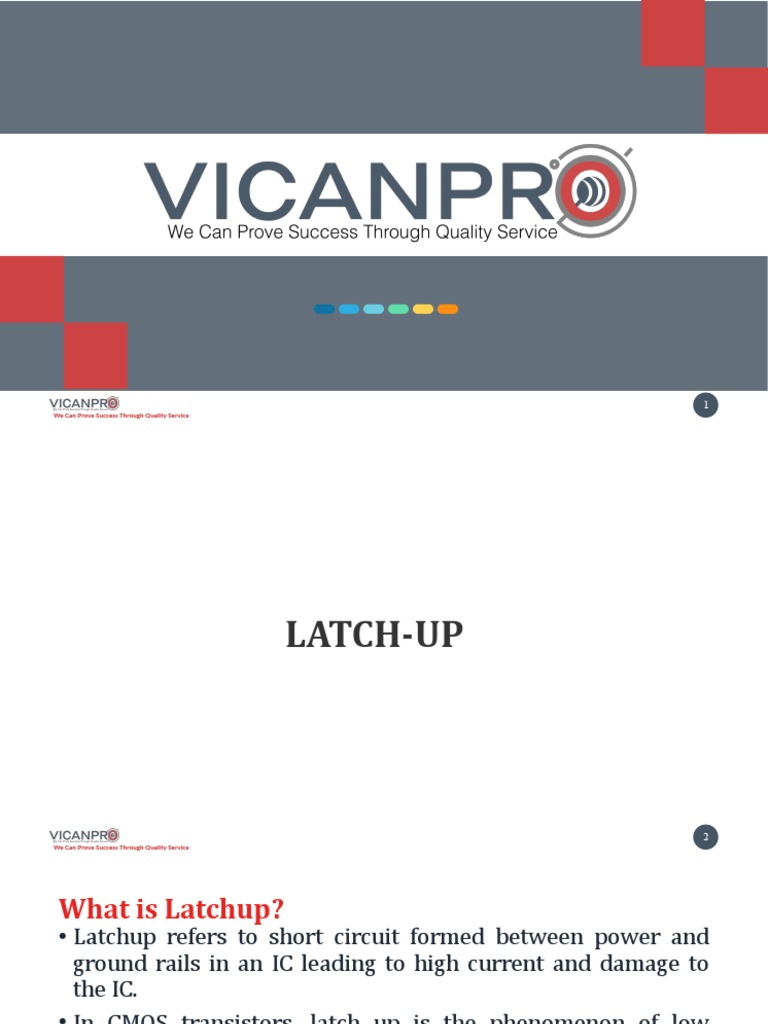

    We Can Prove Success Through Quality Service


    LATCH-UP

    2
    We Can Prove Success Through Quality Service
    What is Latchup?
    • Latchup refers to short circuit formed between power and
    ground rails in an IC leading to high current and damage to
    the IC.
    • In CMOS transistors, latch up is the phenomenon of low
    impedance path between power rail and ground rail due to
    interaction between parasitic pnp and npn transistors.
    • Why?
    • This causes excessive current flows and potential permanent
    damage to the devices.

    3 3
    We Can Prove Success Through Quality Service
    Latchup formation

    4 4
    We Can Prove Success Through Quality Service
    Latchup formation

    5 5
    We Can Prove Success Through Quality Service
    PNPN device

    6 6
    We Can Prove Success Through Quality Service
    Latchup
    SCR may triggered by various ways:
    1. Noise in Output voltage
    2. An Electrostatic Discharge event
    3. Ionizing radiations

    7 7
    We Can Prove Success Through Quality Service
    Latchup Prevention Techniques
    1. Guard ring
    2. Well tap cells
    3. Isolation trench
    4. Epitaxial layer
    5. Retrograde well doping
    6. Combination of Epi layer and Retrograde well doping
    7. FDSOI Technology
    8. ESD Protection Circuit

    8 8
    We Can Prove Success Through Quality Service
    Guard ring
    1. It provides a better way to collect the minority carriers
    2. Guard ring consist of a P+ ring on P substrate and N+ ring on Nwell all
    around the nMOS and pMOS
    3. These rings contains as many as contacts as per design rules
    4. N+ rings connected to VDD and P+ ring connected to GND
    5. These rings will collect the minority carriers and avoid the
    development of potential difference between body and source which
    activates the BJTS

    9 9
    We Can Prove Success Through Quality Service
    Guard ring

    10 10
    We Can Prove Success Through Quality Service
    Well Tap Cells

    11 11
    We Can Prove Success Through Quality Service
    Well Tap Cells Placement

    12 12
    We Can Prove Success Through Quality Service
    Oxide Trench Isolation
    • Isolate the nMOS and pMOS using oxide trench and buried
    oxide

    13 13
    We Can Prove Success Through Quality Service
    Epitaxial Layer

    14 14
    We Can Prove Success Through Quality Service
    SOI Technology

    15 15
    We Can Prove Success Through Quality Service
