METALLURGY DEPARTMENT

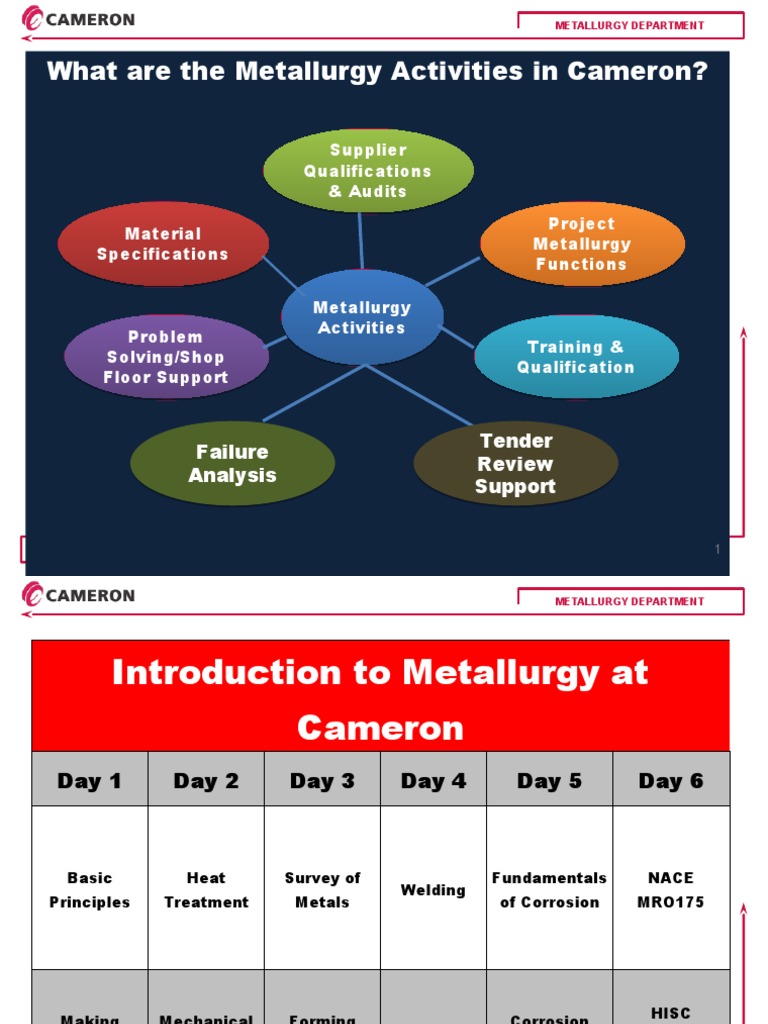

What are the Metallurgy Activities in Cameron?

Supplier
Qualifications
& Audits
Project
Material
Metallurgy
Specifications
Functions

Metallurgy
Activities
Problem
Training &
Solving/Shop
Qualification
Floor Support

Tender
Failure
Review
Analysis
Support

RAISING PERFORMANCE. TOGETHERTM 1

 METALLURGY DEPARTMENT

Introduction to Metallurgy at
Cameron
Day 1 Day 2 Day 3 Day 4 Day 5 Day 6

Basic Heat Survey of Fundamentals NACE

Welding
Principles Treatment Metals of Corrosion MRO175

HISC
Making Mechanical Forming Corrosion
NDE Coatings
Metals Properties Processes Mechanisms

RAISING PERFORMANCE. TOGETHERTM 2

 METALLURGY DEPARTMENT

Basics: Chapter 1

• Fundamentals

• Introduction to Metals

• Crystals

• Grain Size, Shape &

Orientation

• Cold work/Hot work

• Dislocations

• Strengthening mechanisms

RAISING PERFORMANCE. TOGETHERTM 3

 METALLURGY DEPARTMENT

Moseley had found that elements are different from one another
because their atoms have different number of protons

Hydrogen-Group 1

Now the periodic table could be

Initially organized (Mendeleev) by
considered an organization of elements
increasing atomic weight but there was
according to their atomic number or
a problem.
number of protons.

RAISING PERFORMANCE. TOGETHERTM 4

 METALLURGY DEPARTMENT

RAISING PERFORMANCE. TOGETHERTM 5

 METALLURGY DEPARTMENT

Atomic Size Decreases

Atomic
Atomic Size
Size Increases

RAISING PERFORMANCE. TOGETHERTM 6

 METALLURGY DEPARTMENT

• Rutherford shot alpha () particles at gold foil. Rutherford

Zinc sulfide screen Thin gold foil

Lead block

Radioactive
substance path of invisible -
particles

Most particles passed through. So, atoms

are mostly empty.
Some positive -particles deflected or
bounced back!
Thus, a “nucleus” is positive & holds most
of an atom’s mass.
RAISING PERFORMANCE. TOGETHERTM
 METALLURGY DEPARTMENT

How much of an atom is empty space?

If the nucleus
were the size
of a ping pong
ball?

Nucleus
How far is it from the
nucleus to the inner
electron cloud in
relative terms?

RAISING PERFORMANCE. TOGETHERTM 8

 METALLURGY DEPARTMENT

Periodic
There is aTable is aofreflection
third way of the
looking at the valence
organizing
electron
principle of the configuration of the elements
periodic table: electron configuration

Metals

RAISING PERFORMANCE. TOGETHERTM 9

 METALLURGY DEPARTMENT

Three types of electron cloud bonding

Covalent
Bond

Ionic Bond

Metallic Bond

RAISING PERFORMANCE. TOGETHERTM 10

 METALLURGY DEPARTMENT

Key Point #5: Ionic bonds are

weak and can be dissolved by
water.
RAISING PERFORMANCE. TOGETHERTM http://www.teachersdomain.org/resource/nvhe.sci.chemistry.alloy/ 11
 METALLURGY DEPARTMENT

RAISING PERFORMANCE. TOGETHERTM 12

 METALLURGY DEPARTMENT

Why does water dissolve salt &

other substances?
Na+ Cl-

Na+ Cl-
When salt wanders in the
Na+ is pulled by the oxygen
and the CL- is pulled by the
Hydrogen ripping the ionic
bond & dissolving the salt.

Na+ Cl- Two H+ ions

pull on the O-
ion exposing
Na+ Cl-
the backend

Na+ Cl-

RAISING PERFORMANCE. TOGETHERTM 13

 METALLURGY DEPARTMENT

Examples of Covalent Bonds

• Covalent bond is known as a strong
bond.

• Ceramics are typical materials that

have covalent bonds.

• Ceramics are very strong

but also very brittle
substances. (Key Point #6)

Kevlar Vest
RAISING PERFORMANCE. TOGETHERTM 14
 METALLURGY DEPARTMENT

What Makes Metallic Bonds?

• Metallic bonds have the
particularity that the electron
cloud is spread out along the
atoms likened to a “sea” of
electrons.

• This “sea” of electrons allow

greater ductility and conduction,
which are characteristics of
most metals. (Key point #7)

RAISING PERFORMANCE. TOGETHERTM 15

 METALLURGY DEPARTMENT

Modern Atomic Model

•The atom is mostly empty

space

• Protons & neutrons in

nucleus

• Same # of protons as
electrons

• Electrons in the form of a

cloud

RAISING PERFORMANCE. TOGETHERTM 16

 METALLURGY DEPARTMENT

Quantum Mechanics Atomic Model

2 * (the shell number   * the shell Maximum

Shell number) Number
Number = the maximum number of of Electrons
electrons in this shell.  in the Shell

1 2 x (1 x 1) = 2 2x1=2

2 2 x (2 x 2) = 8 2x4=8

3 2 x ( 3 x 3) = 18 2 x 9 = 18

4 2 x (4 x  4) = 32 2 x 16 = 32

5 2 x (5 x 5) = 50 2 x 25 = 50

RAISING PERFORMANCE. TOGETHERTM 17

 METALLURGY DEPARTMENT

Metals have the tendency to only have a minimum amount

of electrons in the outer shells; these have the tendency
to wander off creating the electron cloud.

Rather than filling the d-shell first, metals

start filling the d, but continue to the s-
orbital, allowing a few electrons to be on
the outer shell.

RAISING PERFORMANCE. TOGETHERTM 18


Scanning Tunneling Microscope (STM) Images of
Atoms & Electron Clouds
Note that Cu has one lonely electron
in the valence shell. This electron is
easily shared with the array of Cu
Atoms
RAISING PERFORMANCE. TOGETHERTM
METALLURGY DEPARTMENT
Image of the electron cloud
of Copper.
1. Can you see why metals are shiny?
2. Can you see why copper is a good electrical
conductor?
19
 METALLURGY DEPARTMENT

How were the elements formed in the

first place?
• Gravity is squishing/compressing the
hydrogen.

• The heat is an effect of the friction

generated as to atoms get squeezed
together.

• Hydrogen is fused to helium; helium is

fused to carbon and so on until the core
of the sun gets fused to a stable iron.

• All nuclear reactions cease at iron,

which starts the collapse of the star or
sun.

• As the sun supernovas, the other

elements are created.

RAISING PERFORMANCE. TOGETHERTM 20
