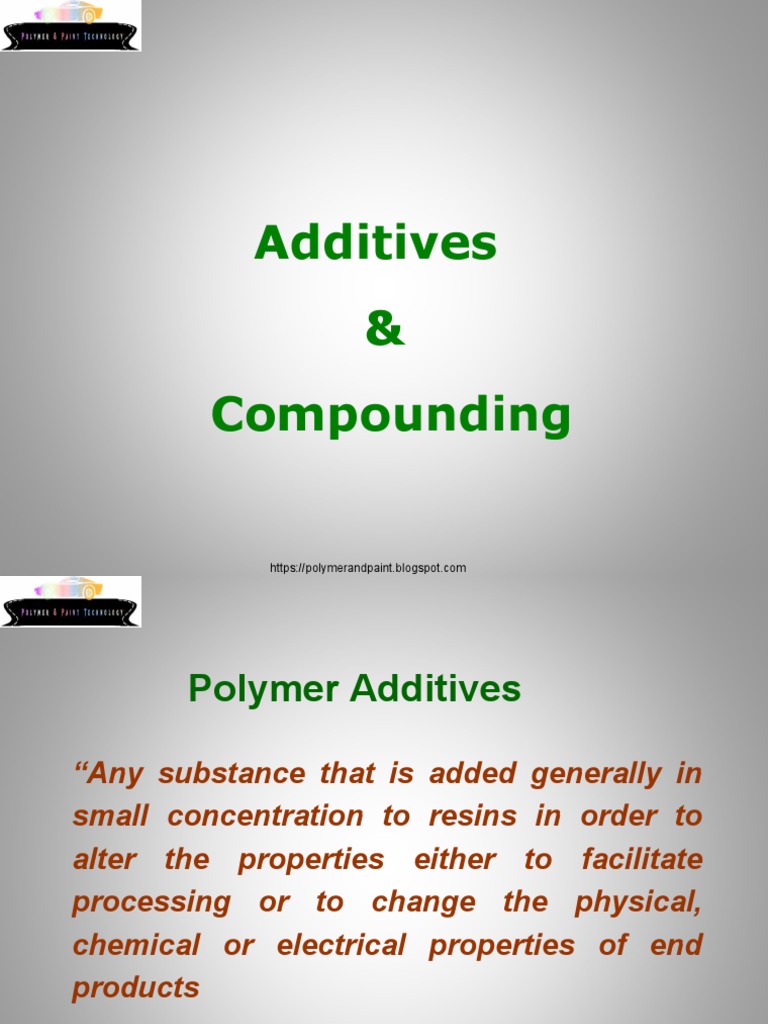

Additives and Compounding
&
Compounding
https://polymerandpaint.blogspot.com
Polymer Additives
https://polymerandpaint.blogspot.com
Requirements
https://polymerandpaint.blogspot.com
PVC/HDPE pipes
https://polymerandpaint.blogspot.com
PVC windows
https://polymerandpaint.blogspot.com
PVC power cable
https://polymerandpaint.blogspot.com
PE insulation cable
https://polymerandpaint.blogspot.com
PE halogen free flame retardant
building wire
• High oxygen index
• Low smoke density
https://polymerandpaint.blogspot.com
Additives=Performance+
property-preservation/retention
• All these examples clearly show:
* Performance
* Property retention/preservation/protection in severe
service environment/condition
• Performance
• Property protection
• Property preservation
https://polymerandpaint.blogspot.com
LLDPE thin film
https://polymerandpaint.blogspot.com
BOPP film for high speed
packaging
• High stiffness
• Easy machinability
• Faster packaging speed
https://polymerandpaint.blogspot.com
Plastic –wood composites
https://polymerandpaint.blogspot.com
Polymer additive can spoil
quality if care not taken properly
• Quality of additive quite difficult to convert into
plastic properties
• Chemical quality alone can not justify its use in
polymer
• Numerous suppliers
• Slow process of approval
• Select standard additive product from leading
suppliers and not go for cost saving
• Loss will be significantly high
https://polymerandpaint.blogspot.com
Functions of polymer additive
PERFORMANCE
POLYMER
ADDITIVES
PROPERTY PROCESSABILITY
RETENTION
PRESERVATION
https://polymerandpaint.blogspot.com
Additives classification
Property modifier
• Plasticizer
• Impact modifier
• Blowing agent
• Coupling agent
• Nucleating agent
• Organic peroxide
• Reinforcing agent
https://polymerandpaint.blogspot.com
Additive classification
Property extender
• Flame retardant
• Heat stabilizer
• Antioxidant
• Light stabilizer
• Antistatic agent
https://polymerandpaint.blogspot.com
Additive –classification
Processing aid
• Lubricant
• Mould release agent
• Anti block additive
• Slip additive
https://polymerandpaint.blogspot.com
Classifications of Additives
Plastic Additives
https://polymerandpaint.blogspot.com
Additives which assist processing
Additives are classified according to their specific function rather than on a chemical
basis:
https://polymerandpaint.blogspot.com
Additives which modify bulk properties
a) Plasticizer
b) Reinforcing Fillers
c) Toughening Agents
a) Fillers
b) Diluents and extenders
https://polymerandpaint.blogspot.com
Additives for surface modification
a) Anti-static agents
b) Slip additives
c) Adhesion promoters
d) Anti wear additives
a) Nucleating agents
b) Colorants
https://polymerandpaint.blogspot.com
Additives for anti aging properties
a) UV Absorber
b) Fungicides
a) Blowing agents
b) Flame retardant
c) Bio or photo degradable
d) Foaming agents
https://polymerandpaint.blogspot.com
Case Study I: Additive for chain extender
https://polymerandpaint.blogspot.com
Case Study I: Additive for chain extender
https://polymerandpaint.blogspot.com
Chain Extension Chemistry
https://polymerandpaint.blogspot.com
Case Study I: Additive for chain extender
https://polymerandpaint.blogspot.com
Advantages of chain extender additives
https://polymerandpaint.blogspot.com
Case Study I: Additive for chain extender
https://polymerandpaint.blogspot.com
Case Study I: Chain Extender for
PET Film (Performance)
https://polymerandpaint.blogspot.com
Case Study II: Additive for
Flow Promoters
Flow Mechanism
https://polymerandpaint.blogspot.com
Case Study II: Additive for
Flow Promoters
https://polymerandpaint.blogspot.com
Case Study II: Additive for
Flow Promoters
https://polymerandpaint.blogspot.com
Case Study II: Additive for
Flow Promoters
https://polymerandpaint.blogspot.com
Case Study II: Additive for
Flow Promoters
https://polymerandpaint.blogspot.com
Case Study I and II:Performance
https://polymerandpaint.blogspot.com
Plasticizer
or Softeners
• High boiling non-volatile solvents
• Polar with a high Molecular weight ester
type organic compounds
• Reduce internal friction between the
polymer chains
https://polymerandpaint.blogspot.com
Effect of Plasticizers
• Easy melt
• Improve flexibility
• Increase softness
• Improve processibility
• Alters softening point, Tensile strength,
Elongation at break & Impact
https://polymerandpaint.blogspot.com
Types of Plasticizers
https://polymerandpaint.blogspot.com
Types of Plasticizers
https://polymerandpaint.blogspot.com
Selection of Plasticizers
• Solvating power
• Efficiency
• Compatibility
• Flame Retardant
• Toxicity
• Low Temperature performance
• Cost
https://polymerandpaint.blogspot.com
Thixotropic Agents/Antisag Agents
https://polymerandpaint.blogspot.com
Extenders
• These are not used alone as plasticizers
• They have limited compatibility with the polymers
• In conjunction with true plasticisers it enhances
the efficiency of the plasticisers
• It replaces the plasticizers without any adverse
effect on the polymers
• Eg.
– Chlorinated paraffin wax
– oil extracts
https://polymerandpaint.blogspot.com
Lubricants or Flow Promoters
• Material Lubricants
• External lubricants
• Internal Lubricants
https://polymerandpaint.blogspot.com
Material Lubricants
https://polymerandpaint.blogspot.com
External Lubricants
• Prevent friction between polymer melts & metal
surface
• Prevents sticking to the metal parts
• Usually high molecular compounds & have non-
polar groups
• Have low compatibility with the polymer but high
affinity for the metal surface
• Forms a thin film between the polymer melt &
metal surface during processing
• Improves surface finish & gloss
• Reduces melt viscosity & gives high output rate
https://polymerandpaint.blogspot.com
External Lubricants
• Metal soaps
– Metal Stearates
– Zinc Stearates
– Calcium Stearates
– Magnesium Stearates
• Hydrocarbon waxes
• Stearic Acid & its Ca, Pb, Ba, Cd salt, Hydrocarbon & esters
https://polymerandpaint.blogspot.com
Internal Lubricants
• Promotes flow by reducing cohesive forces between
molecular interfaces within the resin
• Low molecular weight compounds having polar groups
https://polymerandpaint.blogspot.com
Internal Lubricants
• Amine Waxes
• Ester Derivatives
• Glyceryl monostearate
• Ethylene Bi stearamide
• Zinc Stearates
https://polymerandpaint.blogspot.com
Processing Aids
• Additives incorporated into plastics to improve
processibility
• Improvement in mechanical properties in thermoelastic
state
• Shortens fusion time
• Prevents sticking to the metal surface
• Prevents melt fracture
• Prevents frictional heat build up which can cause
degradation
• Improves gloss & surface finish
• E.g. Acrylates & Methacrylates
https://polymerandpaint.blogspot.com
Selection of Lubricants
https://polymerandpaint.blogspot.com
Processing Stabilizer
https://polymerandpaint.blogspot.com
Processing Stabilizer
https://polymerandpaint.blogspot.com
ANTIOXIDANT
https://polymerandpaint.blogspot.com
Effect of Oxidation on Polymer Properties
Propagation
Reaction of an oxygen molecules with free radicals corresponding
peroxy radicals
e.g. Alkyl radicals (P∙) transform rapidly to peroxy radicals (POO ∙)
in presence of oxygen
https://polymerandpaint.blogspot.com
Propagation and Chain Branching
https://polymerandpaint.blogspot.com
Propagation and Chain Branching
REACTION
https://polymerandpaint.blogspot.com
Auto-oxidation of Polypropylene
The radical formed in the initiation, propagation and chain branching steps are not only
able to fix oxygen and abstract hydrogen but subject to molecular decomposition
reactions.
e.g. Decomposition of alkoxy radicals (PO*)
REACTION
Such reaction leads to chain scission thus decreases molecular weight of polymer
https://polymerandpaint.blogspot.com
Auto-oxidation of Polypropylene
https://polymerandpaint.blogspot.com
Methods of oxidation stabilization
ANTIOXIDANT
https://polymerandpaint.blogspot.com
Classification of Antioxidant
Antioxidants are chemical entities, which retard oxidation and thus retard
the resulting aging of the polymer. Usually, they are effective at
concentration of a fraction of one percent. It is desirable to add the
antioxidant as early as possible in the life cycle of a polymer.
It is possible to use more than one antioxidant and this may give synergistic
effect more than 200%.
https://polymerandpaint.blogspot.com
Primary Antioxidant
https://polymerandpaint.blogspot.com
Heat Stabilizers
• Prevents Degradation
•Absorbs & Neutralizes HCl gas evolved
• Prevents oxidation reactions
• Prevents Discolouration
•Displaces active substituents with stable
substituents
https://polymerandpaint.blogspot.com
Heat Stabilizers
• Lead
• TBLS
• DBLS
• Basic Lead sulphate
• Dibasic Lead phosphite
•Organotin
•Dibutyl Tin Maleates
•Dibutyl Tin Mercaptides
• Cd/Ba/Zn
• Cd/Ba laurates
•Cd/Ba/Zn Complexes
https://polymerandpaint.blogspot.com
Synergistic Stabilizer systems
https://polymerandpaint.blogspot.com
Antistatic Agents
• Prevents electrostatic charges – mostly observed
in PE, PP, PS, PA, Polyesters, Urethanes,
Cellulosics, Acrylics & Acrylonitriles
https://polymerandpaint.blogspot.com
Slip & Antiblock Agents
• Reduces Coefficient of Friction
https://polymerandpaint.blogspot.com
Selection of Slip & Antiblock Agents
https://polymerandpaint.blogspot.com
Adhesion Promoters
https://polymerandpaint.blogspot.com
Nucleating Agents
https://polymerandpaint.blogspot.com
Optical Brighteners
https://polymerandpaint.blogspot.com
Colourants
https://polymerandpaint.blogspot.com
Selection of Colourants
• Heat Stability
• Dispersibilty
• Light Fastness
• Chemical Inertness
• Opacity or Transparency
https://polymerandpaint.blogspot.com
Anti-Ageing Additives
• Deterioration by Atmosphere
• Radiation
• Temperature
• Oxygen
• Water
• Microrganisms
• Gases
https://polymerandpaint.blogspot.com
Ultraviolet Light Absorbers
• Detected by
• Loss in Tensile Properties
• Discoloration
• Brittleness
• Eg:
• Black in any form: Carbon Black, Black dye,
Black paints
• Benzophenones- for PE, polyesters
• Benzotriazoles – for PS, Polyesters
https://polymerandpaint.blogspot.com
Impact Modifiers
https://polymerandpaint.blogspot.com
Flame Retardants
• Prevent Combustion by
• Insulate
• Creating endothermic cooling reaction
• Cooling the product
• Eg:
• Antimony oxides
• Zn Borate
• Halogen Compounds
• Phosphorous Esters
• Nitrogen Compounds
https://polymerandpaint.blogspot.com
Flame Retardants
• Flame retardant are required to incorporate into
organic high which are all combustible
• Techniques:
• Use flame retardant raw material for
manufacture of plastics: tetra bromo
bisphenol-A in place of Bisphenol-A with
epichlorohydrin
• Use flame retardant additives singly or in
combination e.g. halogen based, Sb based, Zn
based, Alumina hydrate
https://polymerandpaint.blogspot.com
Blowing agents--such as hydrazine, which
forms nitrogen gas on decomposition--are
used to produce porous plastics like these
polystyrene products.
https://polymerandpaint.blogspot.com
https://polymerandpaint.blogspot.com
Additives Can
o Change the properties of plastic materials
o Enlarge the field of application drastically
o Protect your plastic against alteration and degradation
o Help to meet the recycling requirements
o Extend the lifetime of product
o Differentiate with others
https://polymerandpaint.blogspot.com
Features of Additives
Should be efficient in their function.
Should be stable under processing and service
conditions.
Should not bleed or bloom.
Should be non-toxic and should not impart taste or
odour.
Should not adversely affect the properties of the
polymers.
Should be cheap.
https://polymerandpaint.blogspot.com
Features of Additives
Should be efficient in their function.
Should be stable under processing and service
conditions.
Should not bleed or bloom.
Should be non-toxic and should not impart taste or
odour.
Should not adversely affect the properties of the
polymers.
Should be cheap.
https://polymerandpaint.blogspot.com
Plastic Additives
https://polymerandpaint.blogspot.com
Segments Focused on
Plastics Additives
https://polymerandpaint.blogspot.com
Segments Focused on
Plastics Additives
https://polymerandpaint.blogspot.com
Plastics Industry
https://polymerandpaint.blogspot.com
Without Additives No Plastic
https://polymerandpaint.blogspot.com
New Application because of Additives
https://polymerandpaint.blogspot.com
Value Generation by Recyclo additives
https://polymerandpaint.blogspot.com
Processing of Polymer
Composites
https://polymerandpaint.blogspot.com
What are Composites
• Composites are often
classified by the type of
matrix: polymer, metal or
ceramic
• In addition, composites my
be classified by the type of
embedded material (a.k.a.,
reinforcement) fiber, particle,
whisker, flake, etc.
• Rule of mixtures says that
each constituent contributes
c f f (1 f ) m to the properties of the
composite in proportion to its
volume fraction
ME 355 W. Li
https://polymerandpaint.blogspot.com
Fibers dominate composite properties
ME 355 W. Li
https://polymerandpaint.blogspot.com
Components of
Polymer Composites
• Polymer Resin
– Usually a thermoset
• Epoxy
• Bismaleimide
• Polyimide
– Thermoplastics
• Polyester
• Vinylester
• Reinforcing fiber
– Fiberglass
– Graphite (Carbon)
https://polymerandpaint.blogspot.com
Structural RIM
• Fiber preform is placed into mold.
• Polyol and Isocyanate liquids are injected into a closed mold and
reacted to form a urethane.
https://polymerandpaint.blogspot.com
Glass Preform &Resin Transfer Molding
https://polymerandpaint.blogspot.com
3.3 Processing Techniques for
Thermoplastic-Composites
1. Prepreg Layup: ……..
2. Thermoplastic Pultrusion:
3. Compression Molding & Resin Transfer Molding
4. Diaphram Forming ….
5. Injection Molding
https://polymerandpaint.blogspot.com
Thermoplastic Manufacturing Processes
TP Prepreg Lay-up Process
Description
A very similar process
1) Laminate to TS prepreg lay-up,
Assembly 3) Matrix Melts, 5) De-moulding using similar tooling
Layup Consolidates
and machinery.
Typically a “hands
2) Applied Pressure 4) Matrix
on” process, relying
and Heat Solidifies on the operator’s
Significant effort has been made to automate these processes,skills.
resulting in several
methods for lay-up of prepreg tape (5 to 10 mm wide).
Automated TP
Tape Lay-up
TP Filament Winding
https://polymerandpaint.blogspot.com
TP Prepreg Lay-up Equipm
ent
Application to large
aerofoil skins:
TP Filament Winding
https://polymerandpaint.blogspot.com
TP Pultrusion Process
Description
https://polymerandpaint.blogspot.com
TP Pultrusion Equipm
ent
The process can be completed with matched metal tooling, or rubber can be
incorporated, reducing cost and the risk of wrinkling fabric reinforcements.
https://polymerandpaint.blogspot.com
TP Compression Moulding Process
Automation
https://polymerandpaint.blogspot.com
Diaphragm Forming Process
Description
1) Load Blank 5) De-moulding
into Diaphragms
3) Clamp into
Mould
https://polymerandpaint.blogspot.com
Diaphragm Forming Product
Example products, s
TPs reinforced with:
Carbon
Fibre
Glass Fibre
https://polymerandpaint.blogspot.com
Injection Moulding Process
Direct Mixing Description
Matrix
Fibre
Short Reinf
Fibres Pellets
• Raw materials are supplied premixed,
or are mixed in the injection moulder.
• Short fibre reinforced melt is injected
into a mould.
• Mould fills, final fibre orientation
heavily dependant on flow.
Section of product, showing orientation
• Part solidifies, and is ejected.
of fibres due to flow.
https://polymerandpaint.blogspot.com
Injection Moulding Equipm
ent
https://polymerandpaint.blogspot.com
Plastics and Composites Use in Automotives
• Exterior Composite Panels
– doors
• Sheet Molded Compound (SMC) with compression molding: Camaro,
Firebird and Corvette
• Polyester resin and glass mat preform with Resin Transfer Molding
(RTM): Viper
– hoods
• Polyester resin and glass mat preform with Resin Transfer Molding
(RTM): Viper, Heavy duty trucks)
– bumper beams
• Glass Mat Thermoplastic (GMT) with compression molding : Camaro,
Firebird, Venture, Transport,
• Interior floor pan
• Polyester resin and glass mat preform with Resin Transfer Molding
(RTM): Corvette
• Engine
– Sheet Molded Compound (SMC) with compression molding: valve covers,
intake manifolds, fluid containers, etc.
https://polymerandpaint.blogspot.com
Plastics and Composites Use in Automotives
https://polymerandpaint.blogspot.com
Plastics and Composites Use in Automotives
SMC
Sheet Molding
Compound
SMC
Sheet Molding
Compound
https://polymerandpaint.blogspot.com
Phase Transformations of Thermosets – (Gel and Vitrification)
• Thermoset resins may assume various physical forms, or phases during the
cure reaction, depending on the temperature history.
https://polymerandpaint.blogspot.com
https://polymerandpaint.blogspot.com
