Sullair ES-8 Air Compressor Operation, Maintenance, Troubleshooting

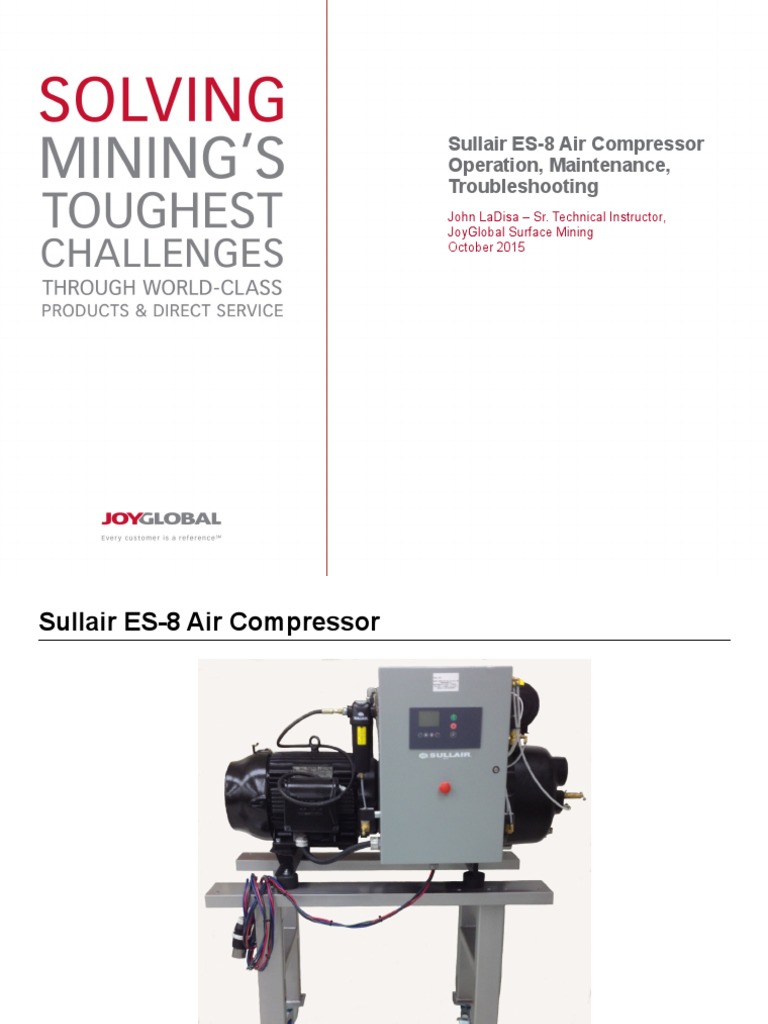

Sullair ES-8 Air Compressor
Operation, Maintenance,
Troubleshooting
John LaDisa – Sr. Technical Instructor,
JoyGlobal Surface Mining
October 2015
Surface Mining
2 │ August 2015 │ Sullair ES-8 Air Compressor
Description
 Positive displacement rotary screw compressor.
Surface Mining
Description
Male Rotor
(Driven)
Helical Screw
Rotors
Female Rotor
(Follower)
Surface Mining
Description
 Oil flooded; oil mixes directly with air during compression stage.
Surface Mining
Description
Air Air/Oil Oil
Surface Mining
Description
 Very tight clearances (approx. .003” - .005”) between rotors.
Surface Mining
Description
Male Rotor
(Driven)
Female Rotor
(Follower)
Surface Mining
Description
 Very tight clearances (approx. .003”- .005”) between rotors.

– Clearance maintained by oil film between the rotors.
– No metal to metal contact.
– Cannot tolerate reverse rotation.
(Rotation is CW when viewing Compressor from Motor end).
Surface Mining
Description
 Very tight clearances (approx. .003”- .005”) between rotors.

– Clearance maintained by oil film between the rotors.
– No metal to metal contact.
– Cannot tolerate reverse rotation.
(Rotation is CW when viewing Compressor from Motor end).
 Oil has three main functions:

– Controls air temperature rise associated with heat of compression.
– Seals the leakage paths between the rotors.
– Provides a lubricating film between the rotors; allows male rotor to
drive the female rotor.
Surface Mining
Specifications
 Model: ES8MD-60-460
 Voltage: 460
 Horsepower: 30
 Max. Full Load Operating

Pressure: 175 psig (12.1 bar)
 90.4 CPM
Typical Nameplate
Surface Mining
Specifications
 Voltage: 460
 Horsepower: 30

 90.4 CPM
Typical Nameplate
 Serial #: Provide when reporting
problems
Surface Mining
Specifications
 Voltage: 460
 Horsepower: 30

 90.4 CPM

problems
 Nameplate location
Surface Mining
Specifications
 Voltage: 460
 Horsepower: 30

 90.4 CPM

problems
 Nameplate location
Surface Mining
Assembly Components
Moisture
Oil Cooler Separator
Air Filter
Air Cooler
Motor
Air/Oil Separator
Air Inlet Control

Valve
Pressure
Relief Valve Fan
Oil Filter
Surface Mining
Assembly Components
Inlet Control, Seal/Drive Gear and Parts
Surface Mining
Assembly Components
Motor, Coupling, Fan and Parts
Surface Mining
Assembly Components
Inlet Filter, Compressor Housing/Sump and Parts
Surface Mining
Assembly Components
Compressor Cooler System and Parts
Surface Mining
Assembly Components
Control Box and Parts
Surface Mining
Assembly Components
Thermal Valve
 Oil Cooler bypass valve.
 Directs oil to the Oil Cooler

when discharge temperature
reaches the thermostat
temperature setting.
Surface Mining
Assembly Components
Thermal Valve
Surface Mining
Assembly Components
Minimum Pressure/Discharge
Check Valve
 Maintains a minimum sump

pressure of 60 psig to assure
adequate oil pressure.
 Pressure build-up above 60

psig flexes the piston spring,
raising the piston, allowing
airflow to the service line.
 Acts as a check valve to isolate

compressor from the service
line pressure during shutdown
or unloading.
Surface Mining
Assembly Components
Minimum Pressure
Discharge/Check
Valve
Surface Mining
Operation
Representative Piping and Instrumentation Diagram
Surface Mining
Operation
Representative Piping and Instrumentation Diagram
Sequencing/Full
Shuttle Valve Pressure Load Solenoid Valve
Regulator Valve
Shuttle Valve
Load/Unload
Solenoid Valve P1 Pressure
Transducer
Relief Valve
Air Filter P2 Pressure
Oil Separator
Assy Load/Unload Water Transducer
Motor Tank
Solenoid Valve Separator
Air inlet
Valve Oil Separator Min. Pressure/
Air Cooler
Element Check Valve
Compressor Unit
Oil Filter
Thermal Valve
Drain Solenoid
Valve
Oil Cooler
Surface Mining
Operation
Motor Rotation Check
Note: This compressor cannot tolerate reverse rotation, even for a

short duration. Therefore, after performing maintenance on the
compressor it is imperative to check the direction of motor rotation.
Pull out the E-Stop button and press once, quickly and in succession,
the “Start” and “Stop” buttons. This will bump-start the motor for a very
short time.
When viewing the compressor from the motor end, the coupling
should be turning in a clockwise direction. If reverse rotation is noted,
disconnect power to the starter and interchange any two of the three
power input leads and recheck rotation. A “Direction of Rotation” decal
is located on the cooler shroud to show proper motor/compressor
rotation.
Surface Mining
Operation
Start Mode – 0 to 60 psig

Sump pressure will quickly rise to 60 psig.
Surface Mining
Operation

Pressure Regulator and Solenoid Valve closed (energized).
Surface Mining
Operation
Pressure
Regulator
Valve
Surface Mining
Operation
Pressure Regulator Valve Components
Surface Mining
Operation
Solenoid
Valve
Surface Mining
Operation

Air Inlet Control Valve is fully open.
Surface Mining
Operation
Inlet
Control
Valve
Surface Mining
Operation
Inlet Control Valve Components
Surface Mining
Operation

Compressor pumps at full rated capacity.
Surface Mining
Operation

Compressor pumps at full rated capacity.
Compressor air pressure is isolated from service line by the Minimum

Pressure Check Valve which is set at 60 psig.
Surface Mining
Operation
Minimum Pressure Check Valve
0 – 60 psig 60 – 160 psig > 170 psig
Surface Mining
Operation
Minimum
Pressure
Check Valve
Surface Mining
Operation
Minimum
Pressure
Check Valve
Surface Mining
Operation
Surface Mining
Operation
Full Load Mode – 60 to 160 psig

Minimum Pressure Check Valve opens allowing compressed air to
flow into the service line.
Surface Mining
Operation
0 – 60 psig 60 – 160 psig ≥ 175 psig
Surface Mining
Operation

Pressure Regulator and Solenoid Valve remain closed (energized).
Surface Mining
Operation

Pressure Regulator and Solenoid Valve remain closed (energized).
Air Inlet Control Valve is fully open as long as Compressor is running

at 160 psig or less.
Surface Mining
Operation
Modulating Mode – 160 to 170 psig

If less than the rated capacity of compressed air is being used, service
line pressure will rise above 160 psig.
Surface Mining
Operation

Pressure Regulator Valve gradually opens, directing air pressure to

the Air Inlet Control Valve.
Surface Mining
Operation


This reduces air entering the Compressor until it matches the amount
of air being used.
Surface Mining
Operation


of air being used.
Continues to operate in this manner between 160 to 170 psig.
Surface Mining
Operation


of air being used.
Continues to operate in this manner between 160 to 170 psig.
Pressure Regulator Valve has an orifice which vents a small amount

of air to atmosphere when Pressure Regulator controls the Air Inlet
Control Valve.
Surface Mining
Operation
Pressure
Regulator
Valve
Orifice Vent
Hole
Surface Mining
Operation
Unload Mode – above 170 psig

When small amount or no air is being used, service line pressure
continues to rise.
Surface Mining
Operation

continues to rise.
When pressure reaches 175 psig, control system de-energizes the

Solenoid Valve (opens) allowing sump air pressure to be supplied
directly to close the Inlet Control Valve.
Surface Mining
Operation

continues to rise.

Simultaneously, the Solenoid Valve sends a pneumatic signal to the

Blowdown Valve which opens the sump to the atmosphere. This
reduces the sump pressure to approximately 20 to 30 psig.
Surface Mining
Operation
Surface Mining
Operation

continues to rise.

Simultaneously, the Solenoid Valve sends a pneumatic signal to the

Blowdown Valve which opens the sump to the atmosphere. This
reduces the sump pressure to approximately 20 to 30 psig.
Check valve in air service line prevents line pressure from returning to
the sump.
Surface Mining
Operation
Unload Mode – continued
Surface Mining
Operation

When line pressure drops to the low setting (cut-in pressure, 145 psig)
the control system energizes the Solenoid Valve (closes) and allows
the Blowdown Valve to close.
Surface Mining
Operation

Re-energized Solenoid Valve again prevents line pressure from

reaching the Inlet Control Valve.
Surface Mining
Operation

Re-energized Solenoid Valve again prevents line pressure from

reaching the Inlet Control Valve.
If pressure begins to rise, Pressure Regulator Valve will resume its
normal function as previously described.
Surface Mining
AirMaster Q1 Controller
 Provides compressor
monitoring and
control.
Q1
Controller
Surface Mining
 Provides compressor
monitoring and
control.
 Several levels of user

access for monitoring
and/or adjustment of
parameters depending
on level of access.
Surface Mining
 Touchpad Buttons
Button Name
Start
Stop
Reset
Enter
Up
Down
Escape
Surface Mining
Q1 Controller Display
Surface Mining
 To date, two versions

of Q1 software.
 Version E13 is most

recent. Version E10
was initial release.
 Software version can

be found in Parameter
P06.04: Software
Version.
Surface Mining
Maintenance
Air Filter
Inspect Air Filter element.
Check cleanliness.
Check for damage or holes in

filter element.
Typical replacement interval is

every 6 months in normal
operation. More frequently if
conditions require.
Refer to Maintenance Manual

for Air Filter element removal
procedure.
Surface Mining
Maintenance
Lubrication
Change oil and oil filter every

8000 hours or once a year.
Surface Mining
Maintenance
Lubrication
Oil drain cap.
Oil fill cap.
Sump Capacity:
2.5 gallons
(9.46 liters)
Surface Mining
Maintenance
Compressor Lubrication Guide
AMBIENT FLUID & FILTER CHANGE

TEMPERATURE LUBRICATION PERIOD (HRS.)
-10 °F to +90 °F Sullube 8000 (I)
(-23 °C to +32°) Sullair LLL-4-32 8000 (I)
SRF 1/4000 4000
(I) 8000 Hours or once a year
Surface Mining
Maintenance
Lubrication
Check that proper oil level is

visible in oil level sight glass.
Surface Mining
Maintenance
Lubrication
Check that proper oil level is

visible in oil level sight glass.
Check oil level before starting

compressor.
Surface Mining
Maintenance
Lubrication
Change Separator Element

once a year.
Surface Mining
Troubleshooting
Surface Mining
Troubleshooting
Surface Mining

Sullair ES-8 Air Compressor Operation, Maintenance, Troubleshooting

Uploaded by

Copyright:

Available Formats

You might also like

Sullair ES-8 Air Compressor Operation, Maintenance, Troubleshooting

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Sullair ES-8 Air Compressor Operation, Maintenance, Troubleshooting

Uploaded by

Copyright:

Available Formats

Sullair ES-8 Air Compressor

Air Air/Oil Oil

 Very tight clearances (approx. .003” - .005”) between rotors.

 Very tight clearances (approx. .003”- .005”) between rotors.

 Very tight clearances (approx. .003”- .005”) between rotors.

 Oil has three main functions:

 Max. Full Load Operating

 Max. Full Load Operating

 Max. Full Load Operating

 Serial #: Provide when reporting

 Max. Full Load Operating

 Serial #: Provide when reporting

Air Inlet Control

 Oil Cooler bypass valve.

 Directs oil to the Oil Cooler

 Maintains a minimum sump

 Pressure build-up above 60

 Acts as a check valve to isolate

Note: This compressor cannot tolerate reverse rotation, even for a

Start Mode – 0 to 60 psig

Start Mode – 0 to 60 psig

Pressure Regulator and Solenoid Valve closed (energized).

Start Mode – 0 to 60 psig

Pressure Regulator and Solenoid Valve closed (energized).

Air Inlet Control Valve is fully open.

Start Mode – 0 to 60 psig

Pressure Regulator and Solenoid Valve closed (energized).

Air Inlet Control Valve is fully open.

Compressor pumps at full rated capacity.

Start Mode – 0 to 60 psig

Pressure Regulator and Solenoid Valve closed (energized).

Air Inlet Control Valve is fully open.

Compressor pumps at full rated capacity.

Compressor air pressure is isolated from service line by the Minimum

Minimum Pressure Check Valve

0 – 60 psig 60 – 160 psig > 170 psig

Minimum Pressure Check Valve

Full Load Mode – 60 to 160 psig

Minimum Pressure Check Valve

0 – 60 psig 60 – 160 psig ≥ 175 psig

Full Load Mode – 60 to 160 psig

Pressure Regulator and Solenoid Valve remain closed (energized).

Full Load Mode – 60 to 160 psig

Pressure Regulator and Solenoid Valve remain closed (energized).

Air Inlet Control Valve is fully open as long as Compressor is running

Modulating Mode – 160 to 170 psig

Modulating Mode – 160 to 170 psig

Pressure Regulator Valve gradually opens, directing air pressure to

Modulating Mode – 160 to 170 psig

Pressure Regulator Valve gradually opens, directing air pressure to

Modulating Mode – 160 to 170 psig

Pressure Regulator Valve gradually opens, directing air pressure to

Continues to operate in this manner between 160 to 170 psig.

Modulating Mode – 160 to 170 psig

Pressure Regulator Valve gradually opens, directing air pressure to

Continues to operate in this manner between 160 to 170 psig.

Pressure Regulator Valve has an orifice which vents a small amount
