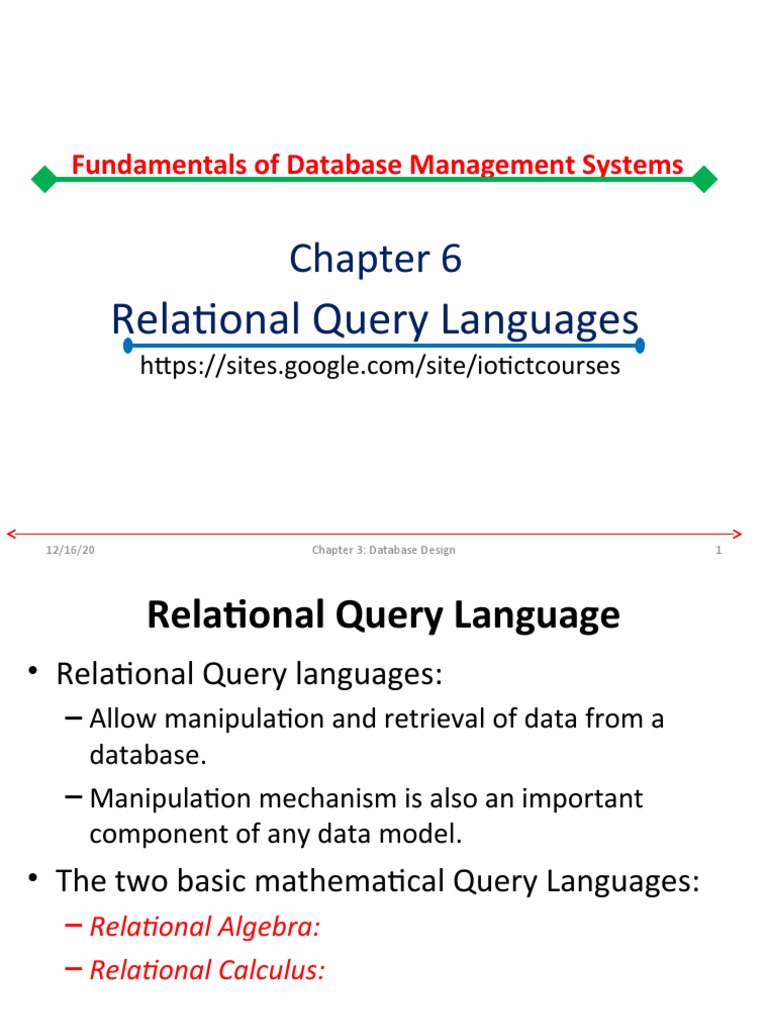

Fundamentals of Database Management Systems

Chapter 6
Relational Query Languages
https://sites.google.com/site/iotictcourses

12/16/20 Chapter 3: Database Design 1

 Relational Query Language
• Relational Query languages:
– Allow manipulation and retrieval of data from a
database.
– Manipulation mechanism is also an important
component of any data model.
• The two basic mathematical Query Languages:
– Relational Algebra:
– Relational Calculus:

2
 Relational Algebra
• Relational algebra is the basic set of operations that enables a
user to specify basic retrieval requests.
• The algebra operations produce new relations, which can be
further manipulated using operations of the same algebra.
• Sequence of relational algebra operations forms a relational
algebra expression  Represents a database query (retrieval
request).
• RA defines one or more new relations without changing the
original relation.
• The output from one operation can become the input to
another operation (nesting of RA operations)
3
• The basic type of Relational Algebra operations:
– Selection (  ) Selects a subset of rows from a relation.
– Projection (  ) Deletes unwanted columns from a relation.
– Renaming: assigning intermediate relation for a single
operation
– Cross-Product ( x ) Allows to concatenate(join or link) a
tuple from one relation with all the tuples from the other
relation.
– Set-Difference (-) Tuples in relation R1, but not in relation R2.
– Union ( ) Tuples in relation R1, or in relation R2.
– Intersection () Tuples in relation R1 and in relation R2
– Join Tuples joined from two relations based on a condition
• Join and intersection are derivable from the rest.
• Using these operations, we can build up sophisticated
database queries.
4
1. Selection operation:
– Selects subset of tuples/rows in a relation that satisfy
the selection condition.
– Schema of result identical to schema of (only) input
relation.
– Result relation can be the input for another relational
algebra operation! (Operator composition.) 5
• Notation:  <Selection Condition> <Relation Name>
• Example: Find all Employees with skill type of Database.
 < SkillType =”Database”> (Employee)

6
2. Projection
– Selects certain attributes while discarding the
other from the base relation.
– The PROJECT creates a vertical partitioning.
– Deletes attributes that are not in projection list.

7
8
3. Rename Operation
• Applies several relational algebra operations one
after the other.
• Two ways of expression:
1. A single algebraic expression:

2. Using an intermediate relation by the Rename

Operation:

9
4. Set Operations

10
I. Union Operation

II. Intersection Operation

11
5. Cartesian Product operation
– Combines tuples from two relations in a combinatorial
fashion.
– If R1 has n tuples & R2 has m tuples, then the resulting
relation will have n* m tuples.

12
• To extract employee information about Managers of
each department from the above result relation the
algebra query and the resulting relation will be:

13
6. Join Operation
• Select related tuples from two relations.
• In the JOIN operation:
– Cartesian & Selection Operations are used together.

14
Relational Calculus
• Relational calculus expressions creates a new relation
over:
– rows of the stored db relations (in tuple calculus) or
– columns of the stored relations (in domain calculus).
• In a RC, Unlike RA, there is no ordering of operations to
specify how to retrieve the query result.
• Relational calculus is nonprocedural or declarative
language. While Relational Algebra procedural or
sequential language.

15
• There are two types of Relational Calculus operations:
1. Tuple Relational Calculus
2. Domain Relational Calculus

Tuple Relational Calculus

• The tuple relational calculus is based on specifying a number of tuple
variables.
• A simple tuple relational calculus query is of the form
{t | COND(t)}
– where t is a tuple variable and COND (t) is a conditional expression
involving t.
– The result of such a query is the set of all tuples t that satisfy COND (t).

16
• Example: To find the first and last names of all employees
whose skill level is greater than 5, we can write the following
tuple calculus expression:

{t.FNAME, t.LNAME | EMPLOYEE(t) AND t.SKILLLEVEL>5}

• This is equivalent to:

(PROJECTION FNAME, LNAME) of each EMPLOYEE tuple t that
satisfies the condition
t.SKILLLEVEL>5 (SELECTION  SKILL_LEVEL>5) will be retrieved.

17
• Example2: Find all employees whose skill level is >= 8.
{E | Employee(E)  E.SkillLevel >= 8}

• To find only EmpId, FName, LName, Skill & School where

skill level >= 8, the resulting expression and relation will be:

18
Quantifiers in Relational Calculus
1. Existential quantifier  (‘there exists’)
– A rule should be true for at least one instance.
– Example: An employee with skill level >= 8 will be:
{E | Employee(E)  (E)(E.SkillLevel >= 8)}
– There exist at least one tuple of the relation employee where the value for the
SkillLevel >= 8.
2. Universal quantifier  (‘for all’)
– Implies every instance of a relation in the database:
– An employee with skill level >= 8 will be:
{E | Employee(E)  (E)(E.SkillLevel >= 8)}
– For all tuples in relation employee, the values for the SkillLevel are greater than or equal
to 8.

19
Domain Relational Calculus
• Domain calculus differs from tuple calculus in the type of
variables used in formulas:
– variables range over tuples in tuple calculus
– variables range over single values from domains of
attributes in Domain calculus
• Example:
– Query1: list Employee Name
{Fname, Lname| (Employee (EID,FName, LName)}

20
• Query2: Find the list of Employees who work in the
department of IS
– Domain relational Calculus expression for the query: {EID, Fname,
Lname|( DName, EDID, DID) (Employee(EID, FName, LName) 
Department(DID, DName, DMangID)  DID=EDID  DName=’IS’)},
Where DName, EDID, DID DName, EDID, DID
• Query3:List the names of employees that do not manage
any department.
– {Fname, Lname|(EID)(Employee(EID, Fname,Lname)
(~(DMangId)(Dept(DID, Dname, DMangId) (EID=DMangId))))}

21
