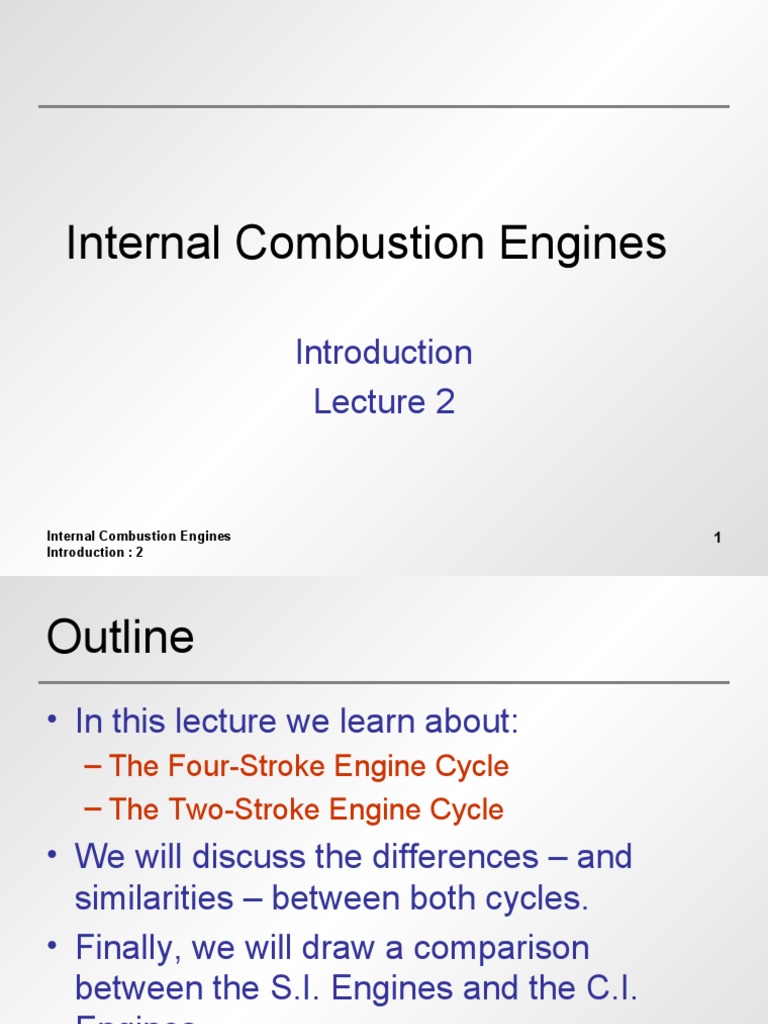

Introduction : 2 Outline • In this lecture we learn about: – The Four-Stroke Engine Cycle – The Two-Stroke Engine Cycle • We will discuss the differences – and similarities – between both cycles. • Finally, we will draw a comparison between the S.I. Engines and the C.I. Engines.
Internal Combustion Engines 2
Introduction : 2 Basic Engine Cycles • Basic definitions: – Top Dead Centre (TDC): position of the piston when it stops at the furthest point from the crankshaft. – Bottom Dead Centre (BDC): position of the piston when it stops at the nearest point to the crankshaft. – Stroke: distance travelled by piston between TDC and BDC or vice-versa.
Internal Combustion Engines 3
Introduction : 2 The Four Stroke Engine Cycle • First stroke: (Induction stroke) – Intake valve: open – Exhaust valve: closed – Piston travelling down from TDC to BDC – Volume of the combustion chamber increases causing the pressure to drop (0.7-0.9 bar). – This drives the flow of air charge into the cylinder (naturally aspirated engines) and can be assisted with a supercharger or a turbocharger. – In S.I. Engines fuel is introduced with the air charge by injectors or with the aid of a carburettor. – In C.I. Engines no fuel is added. Internal Combustion Engines 4 Introduction : 2 The Four Stroke Engine Cycle • Second stroke: (Compression stroke) – Intake valve: closed – Exhaust valve: closed – Piston travelling up from BDC to TDC – Volume of the combustion chamber decreases compressing the A/F mixture (air only in C.I. engines). – This increases the pressure and temperature inside the chamber (8-14 bar). – In S.I. Engines, the spark plug is fired towards the end of the stroke to start combustion. – In C.I. Engines, fuel is injected instead and self ignites after mixing with the compressed air. Pressures are much higher than those experienced in S.I. Engines.
Internal Combustion Engines 5
Introduction : 2 The Four Stroke Engine Cycle • Combustion: – In S.I. Engines, combustion starts just before reaching TDC and lasts for a very short time ending just after TDC. (i.e. combustion can be assumed to take place at constant volume). – In C.I. Engines, combustion takes place at a slightly longer time (i.e. constant pressure). – As a result of the combustion process, the temperature and pressure increase to peak values (up to 60 bar). Internal Combustion Engines 6 Introduction : 2 The Four Stroke Engine Cycle • Third stroke: (Expansion/Power stroke) – Intake valve: closed – Exhaust valve: closed (later opened) – Piston is pushed down from TDC to BDC. – Volume of the combustion chamber increases with the expansion of the gases, decreasing the pressure as a result (around 2-4 bar). – The exhaust valve is opened late during the stroke before reaching the BDC. – Due to the pressure difference, most of the exhaust gases escape through the exhaust valve (exhaust blowdown). Internal Combustion Engines 7 Introduction : 2 The Four Stroke Engine Cycle • Fourth stroke: (Exhaust stroke) – Intake valve: closed – Exhaust valve: opened – Piston is moving up from BDC to TDC. – The remaining exhaust gases at nearly atmospheric pressure are pushed out through the exhaust valve as a result. – Towards reaching the TDC, the intake valve starts opening and the cycle is repeated.
Internal Combustion Engines 8
Introduction : 2 The Four Stroke Engine Cycle
Internal Combustion Engines 9
Introduction : 2 The Four Stroke Engine Cycle
Internal Combustion Engines 10
Introduction : 2 The Four Stroke Engine Cycle
Internal Combustion Engines 11
Introduction : 2 The Two Stroke Engine Cycle • First stroke: (Compression stroke) – The piston moves up towards the TDC closing the exhaust and transfer ports and as a result compressing the trapped charge. – In S.I. Engines a spark is fired near the end of the stroke to start combustion. – In C.I. Engines fuel is instead injected to start combustion. – At the same time a fresh charge is being introduced through a non return inlet valve.
Internal Combustion Engines 12
Introduction : 2 The Two Stroke Engine Cycle
Internal Combustion Engines 13
Introduction : 2 The Two Stroke Engine Cycle • Second stroke: (Power stroke) – The piston is driven down towards BDC due to the high pressure resulting from combustion. – At about 75° before BDC, the exhaust port opens causing most of the exhaust gases to be blown down. – As the piston keeps moving towards the BDC, the transfer port is also uncovered. – The fresh charge pushes much of the remaining exhaust gases taking their place in the cylinder (scavenging).
Internal Combustion Engines 14
Introduction : 2 The Two Stroke Engine Cycle
Internal Combustion Engines 15
Introduction : 2 The Two Stroke Engine Cycle • Discussion: – The two stroke engine is usually smaller (1:1.7), lighter and therefore cheaper. – Simpler, containing less parts, and thus requires less maintenance. – Runs more smoothly and thus requires a smaller flywheel. – For a given size at a given speed, the two stroke engine is more powerful than the four stroke engine since it has twice as many power strokes per unit time. • (1 power cycle → 1 rev. → 2 strokes), in comparison with: • (1 power cycle → 2 rev. → 4 strokes).
Internal Combustion Engines 16
Introduction : 2 The Two Stroke Engine Cycle – The main disadvantage of it is that its efficiency is usually lower resulting in bad fuel economy. – The trick is to ensure that scavenging is efficient: • Adequate transfer of the fresh charge into the cylinder • Minimum residual exhaust gases remaining in the cylinder • Minimum direct loss of the fresh charge through escaping via the exhaust port.
Internal Combustion Engines 17
Introduction : 2 The Two Stroke Engine Cycle
Internal Combustion Engines 18
Introduction : 2 The Two Stroke Engine Cycle – One way of overcoming this problem is by using supercharging or turbocharging. – Increasing the charge air pressure ensures proper scavenging. – This is further enhanced with the introduction of direct injection instead of carburetion.
– Another disadvantage is the increased risk of
overheating and thermal failure.
Internal Combustion Engines 19
Introduction : 2 The Two Stroke Engine Cycle – The application of the two stroke cycle in passenger car automotive applications is very limited. – Two stroke engines are most common for small applications (<1000 cc) such as motorcycles where simplicity, light weight and high power are more important than fuel economy. – They are also common for very large applications (>100 litres) such as marine and stationary engines. As the engine size increases, the efficiency increases since cooling, clearances and auxiliary losses diminish. Internal Combustion Engines 20 Introduction : 2 (S.I. Engines) Vs. (C.I. Engines) • Fuel Economy: – C.I. engines are more economic due to the higher thermal efficiency (30-40% compared to 20-30 %) because of the higher compression ratios. • Power and torque: – S.I. engines are more powerful at higher speeds due to their shorter stroke and wider speed range. • Reliability: – C.I. engines are more robust, run cooler and generally have a longer life.
Internal Combustion Engines 21
Introduction : 2 (S.I. Engines) Vs. (C.I. Engines) • Safety: – Fire risk is less in C.I. engines since diesel (unlike petrol) is not flammable at normal operating temperatures. • Cost: – C.I. are more expensive due to their heavy construction and advanced injection equipment. • Pollution: – C.I. engines produce less CO and CO2 but more NOx and much more particulates (soot).
