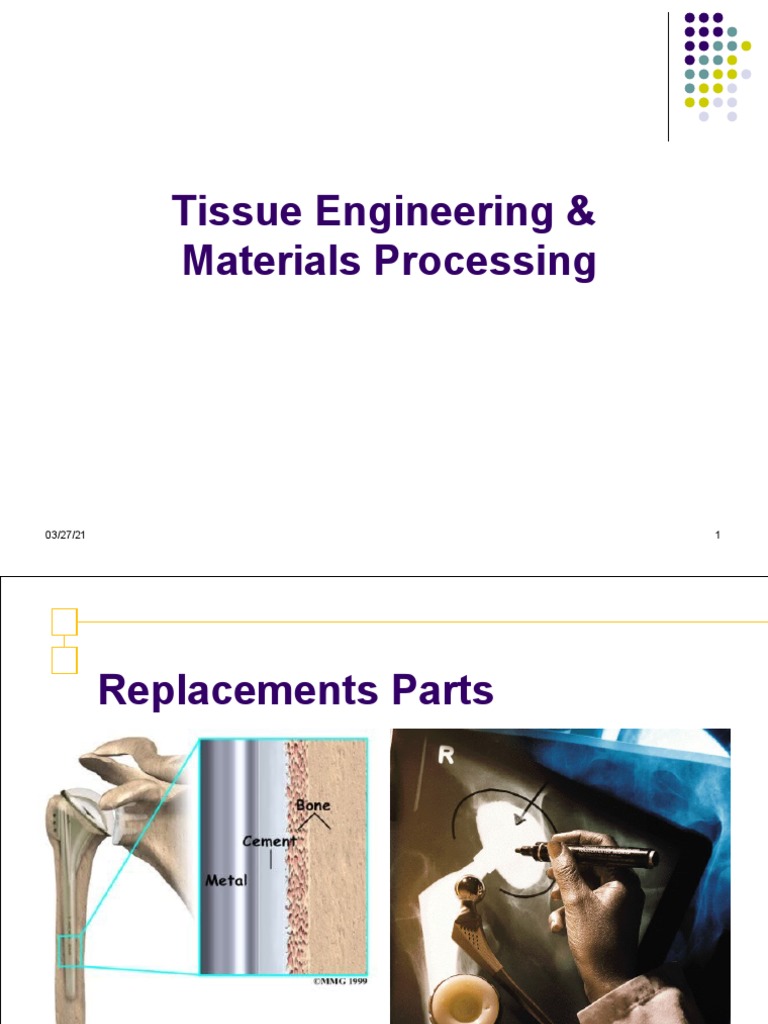

Tissue Engineering &

Materials Processing

03/27/21 1
 Replacements Parts

03/27/21 2
 Features of Soft Tissues
 Multi-cellular
 Three-dimensional structures
 Multi-functional
 Takes cues from the
environment
 Blend in with surroundings

03/27/21 3
 Tissue Engineering
Applies the principles of engineering and the life sciences
toward the development of biological substitutes that
restore, maintain, or improve tissue function.

03/27/21 4
 Engineered Heart Patches and
Blood Vessels

03/27/21 5
 Engineered
Engineered Skin
Skin

03/27/21 6
 Tissue Scaffold Approach:

03/27/21 7
03/27/21 8
 Scaffold Fabrication Methods

03/27/21 9
Solvent Casting (I)
 Procedure:
Polymer is dissolved in a suitable solvent;
Poured into a mold and frozen;
 Solvent is then removed, leaving the polymer set in the desired shape.
Polymer concentration: 10-30%
 Advantages
Ease of fabrication, without the need of specialized equipment; Simple;
Inexpensive; Room Temperature, no effect on degradation behavior.
 Limitations
Limited to simple shapes -can be stacked;
Possible retention of toxic solvent within scaffold/ Can be overcome by
allowing scaffold fully dry and using vacuum to further remove.
Use solvent can denature proteins and other incorporated molecules.

03/27/21 10
Solvent Casting (II)

 Flat Structures

 Tubular Conduits

03/27/21 11
Spin casting/coating(A sub-type of
solvent casting)

 Form Ultrathin films (<5m). Polymer

concentration 5-20%.
 Non-stick, smooth surfaces (Glass coverslips;
Centrifugal forces
silicon wafers)

 Rotation speed
Acceleration Thickness of Film
1-5000 rpm
Spinning time
Vacuum
Solution viscosity
Solution density
03/27/21 12
Leaching (I)—Particle
Leaching
Polymer solution Porogen(>70%): Salt, Sugar, Wax…..
Sieved Particles (Porogen)

Well mixed solution

Pour into Mold

Solvent Evaporation
Immerse into
03/27/21 solvent for particles 13
Leaching (II)—Ball Leaching

(Hexane)

03/27/21 14
Leaching (III)—Fiber Leaching

03/27/21 15
 Gas Foaming

 Route 1:
 Foam forming agent: Ammonium
Bicarbonate;
 Vacuum dry or immerse in water.
 Route 2:
 High pressure CO2 for long time
 Rapid decrease to atmospheric pressure
03/27/21 16
Emulsification/Freeze-drying
(I)
 Polymer is dissolved in
solvent, nonsolvent is
added to form an
emulsion, mixed well
 Mixture is cast into mold
 Quench using liquid
nitrogen/low temperature
 Freeze-dried (Removal
both solvent and non-
solvent)

03/27/21 17
Emulsification/Freeze-drying (II)
 Quenching condition (temperature)
 Polymer concentration;
 Solvent/Non-solvent ratio

Liqiud Nitrogen, 1% Polymer(PLGA) -15 oC, 1% Polymer(PLGA)

87/13 solvent(Dioxane)/nonsolvent(Water) 87/13 solvent(Dioxane)/nonsolvent(Water)

Liqiud Nitrogen, 10% Polymer(PLGA) -40 oC, 10% Polymer(PLGA) -15 oC, 10% Polymer(PLGA)
87/13 solvent(Dioxane)/nonsolvent(Water) 87/13 solvent(Dioxane)/nonsolvent(Water) 87/13 solvent(Dioxane)/nonsolvent(Water)

03/27/21 -15 oC, 10% Polymer(PLGA)18

Liqiud Nitrogen, 10% Polymer(PLGA) -40 oC, 10% Polymer(PLGA)
90/10 solvent(Dioxane)/nonsolvent(Water)
90/10 solvent(Dioxane)/nonsolvent(Water) 90/10 solvent(Dioxane)/nonsolvent(Water)
Melt Spinning

03/27/21 19
 Electrospinning

Polymer
Solution

Fibers
Power Supply

03/27/21 20
Fiber Bonding (I)
• Welding by Melt (High temperature)
• Spray using polymer solution: Thin spray and thick spray. (Toxic solvent removal)

03/27/21 21
Before fiber bonding and after fiber bonding
Fiber Bonding (II)

Tubular scaffold fabrication by thick spraying fiber bonding

03/27/21 22
Braid Techniques

03/27/21 23
3-D printing: Wafer Stacking System

03/27/21 24
Scaffold Assembly System (I)

03/27/21 25
