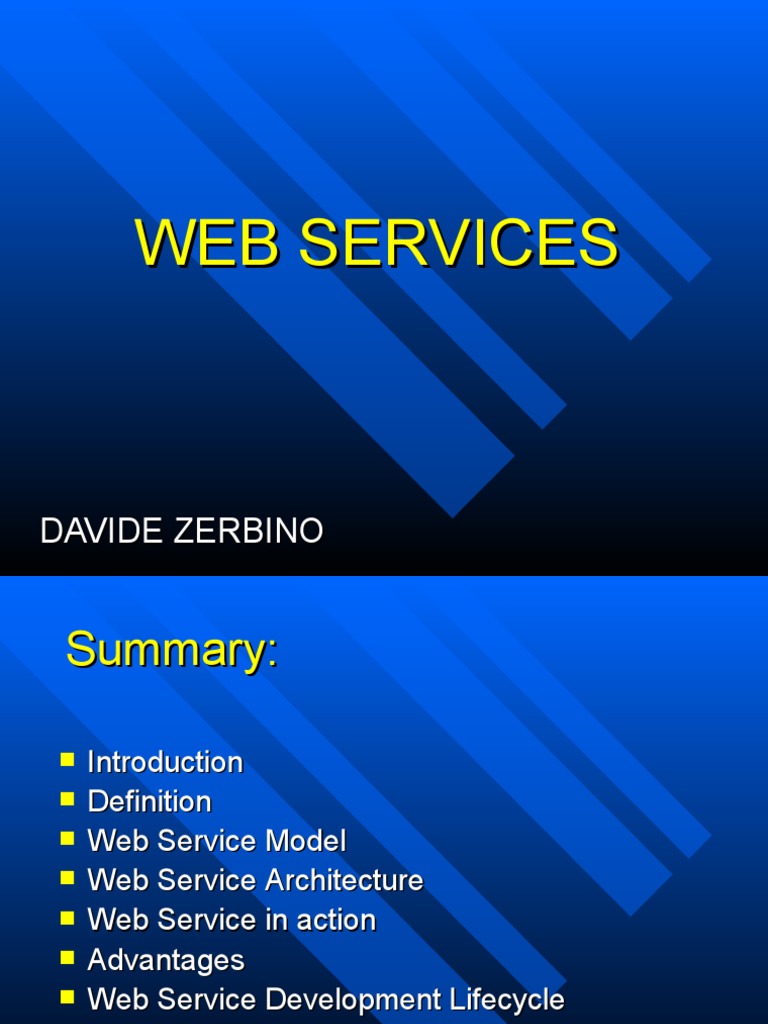

WEB SERVICES

DAVIDE ZERBINO
Summary:

 Introduction
 Definition
 Web Service Model
 Web Service Architecture
 Web Service in action
 Advantages
 Web Service Development Lifecycle
 Tools
 References
 Introduction
 A Software Service is a something that accepts
digital requests and returns digital responses e.g. C
function, a Java Object
 A computer application can be thought of
as a well-orchestrated set of services
 Web Services are a new breed of software component
that is a language, platform, and location indipendent
 Is accessible over the web
 Web services are an abbrevation for Web of Services

 Distributed applications will be assembled

from a web of software services
 Web Service
 Is registred and can be located through
a Web service registry.
 Communicate using XML message over
standard Web protocols.
 Support loosely-coupled connections
between systems.
 Definition of Web Service

“A Web service is an interface that

describes a collection of operations that
are network-accessibile through
standardized XML messaging.”

Heather Kreger
IBM Software Group
 The Web Services Model
 The Web service architecture is based upon the
interactions between three roles:

application that is looking for and invoking an interaction

Service
with a service Registry owner of the services

Service
searchable Service publish
registry where service provider
Requestor Provider
their service descriptions and where service find service
 The Web Services Model
 Others element are:
Service
Description
Service
Registry

Service
Description
Service Service
Requestor Provider
Service
 The Web Services Model
 Others element are:
Service
Description

Contains details of the interface and

implementation of the service

Service
Description

It is a software module deployed on the

network-accessible platforms provided by Service
the service provider
 The Web Services Model
 The interactions involve the publish, find and bind operation

Service
Registry

Find Publish

Service Bind Service

Requestor Provider
 The Web Service Stack
Standard Tecnologies Requirements

WSFL Service Flow

Service

Quality of services
UDDI
Discovery

Management
Service

Security
UDDI publication

WSDL Service Descrip

tion

SOAP XML-Based M
essaging
HTTP, FTP, email, MQ, etc Network
 The Network
Web services must be network-accessible

For its ubiquity

 HTTP is the standard network protocol for internet-

available Web Services
 Others network protocols are SMTP, FTP and for intranet
domain: MQSeries, CORBA
 XML-based Messaging
 Represent the use of XML as the basis for the messaging
protocol
 The current industry standard for XML messaging is
SOAP
 IBM, Microsoft, Sun and others submitted SOAP to the
W3C
 SOAP (Simple Object Access Protocol)
 Is a simple and lightweight XML-based mechanism for
exchanging structured data beetween network
applications
 SOAP

 Lightweight communication protocol

 For communication between applications
one-way, request/response, multicast, etc..
 Designed to communicate via HTTP
 Not tied to any component technology
 Not tied to any programming language
 Based on XML
 Simple and extensible
 SOAP

 SOAP consists of three parts:

 An envelope that defines a framework for describing
what is in a message
 A set of encoding rules for expressing istances of
application-defined data types
 A convention for representing remote procedure calls
and responses
 SOAP

Application
Application web service
1 4 3 2
SOAP SOAP
Network protocol Network protocol

Request/Response
 Service Description:
From XML to Web services
 Service provider comunicates all the specifications
through service description

 The service description combined with SOAP

infrastructure hides details as platform, programming
language from the service requestror’s application
and the service provider’s Web Service

 Web service uses WSDL for base-level service description

 WSDL
 WSDL: Web Service Definition Language
 is an XML-based language used to define Web
Services and describe how to access them
 Industry standard W3C

Service
Implementation
Service
Definition Port

Binding
Service
PortType
Interface
Definition Message
Type
 Discovery and Publication:
UDDI
 Stands for Universal Description, Discovery and
Integration

 Defines a way to publish and discover information

about web services

 Collaboration between Microsoft, IBM, Ariba that

resulted in the creation of web service registry

 Not standard
 UDDI
 Defines a data structure standard for representing
service description information in XML

 The core component of the UDDI project is the UDDI

business registration, an XML file used to describe a
business entity and its Web services
 UDDI

 The UDDI Business Registry can be used at a business

level
– To check whether a given partner has particular Web
service interfaces.
– To find companies in a given industry with a given
type of services.
– To locate information about how a partner or
intended partner has exposed a Web service in order
to learn the technical details required to interact with
that service
 WSFL Overview

 Web Service Flow Language (WSFL) is an XML language

for the description of Web Services Composition
 It is possible to produce web services by composing web
services
 Intra-enterprise web services might collaborate to
present a single Web Service Interface to the public
 Web services from different eneterprises might
collaborate to perform business to business transactions
 Service Flow described how service-to-service
communications, collaborations and flows are performed.
Web Service in Action: B2B
Customer

Supplier Credit Bureau

Warehouse Check validity

Account Service
Service
 Advantages
 Interoperability:
 Any web services can interact with any other web
service
 Ubiquity:
 Web services communicate using HTTP and XML.

 Low Barrier to Entry:

 The concepts behind web services are easy to
understand and toolkits are frely available from
many vendors
 Industry Support:
 All the major vendor are supporting SOAP and the
surrounding web services standards
 Web Services Development
Lifecycle
 The development lifecycle can have four phase:
– BUILD :
» development and testing of the web service implementation
» definition of the services interface description
» definition of the service implementation description
– DEPLOY :
» publication of the services interface and service implementation
– RUN :
» The web service is available for invocation
» The web service is fully deployed, operational and network-
accessible from the services provider
» Now the service requestor can perform the find and bind
operations
– MANAGE :
» Covers ongoing management and administration of the web
services application
 Tools
 Microsoft SOAP Toolkit 2.0

 Microsoft Visual Studio .NET and .NET Framework

 Apache SOAP Toolkit and AXIS

 IBM Web Services Toolkit

 SUN JavaTM 2 Platform, Enterprise Edition (J2EE)

 Example:
Airport Weather Service
Interface:
getLocation()
getWind()
getTemperature()
Airport Weather getSky()
getPressure()
getHumidity()
getSummary()

More informations:
Web Interface:
http://live.capescience.com/AirportWeather/index.html
 References
 About SOAP :
http://www.w3c.org/TR/soap
 About WSDL :
http://www.w3c.org/TR/wsdl
 About UDDI :
http://www.uddi.org
 About WSFL :
http://www.ibm.com/software/webservices
 Other Papers
 About Web service Architecture:
 Web Services Conceptual Architecture (WSCA
1.0) -Heather Kreger - IBM SW Group
 About Web service development lifecycle:
 Web Services Development Concepts (WSDC
1.0) -Peter Brittenham- IBM SW Group
 About Web service model:
 Web Services : Building Blocks for Distributed
System -Graham Glass -
The End
Web Server in Action (2/2)

Application

WSDL

SOAP Interoperability

HTTP
 XML
 XML: eXtensible Markup Languages

 A version of HTML that allows any kind of data to be

represented in a simple and portable way

<giocatore id = 212>
<nome> Davide <\nome>
<cognome> Zerbino <\cognome>
<\giocatore>
