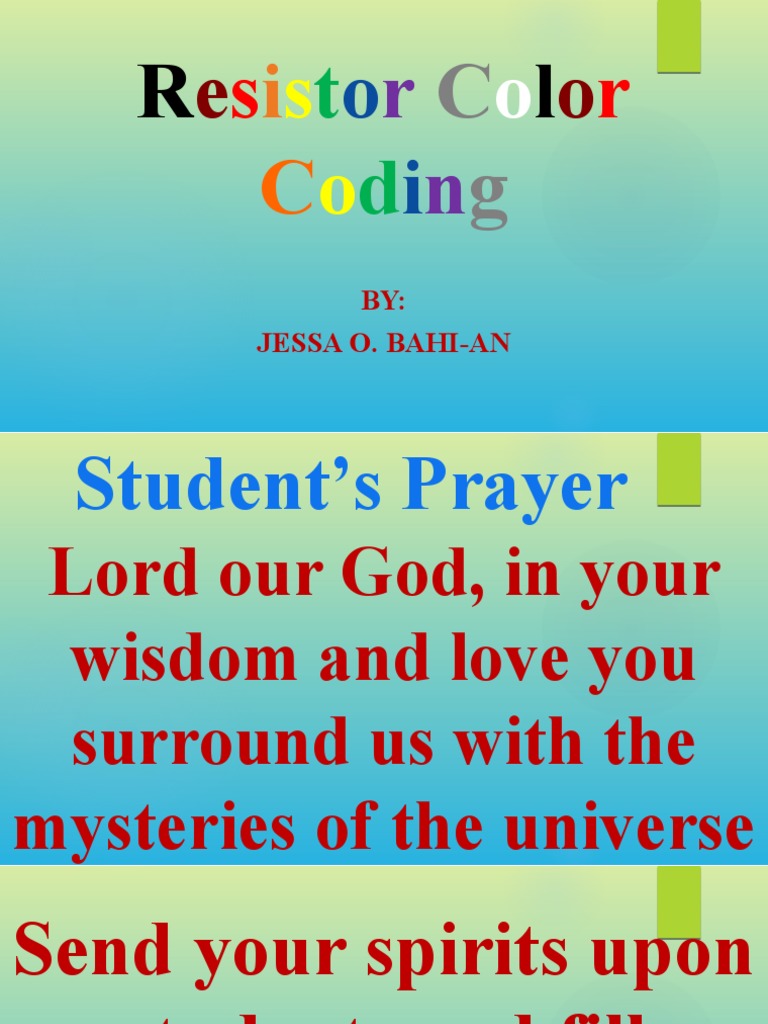

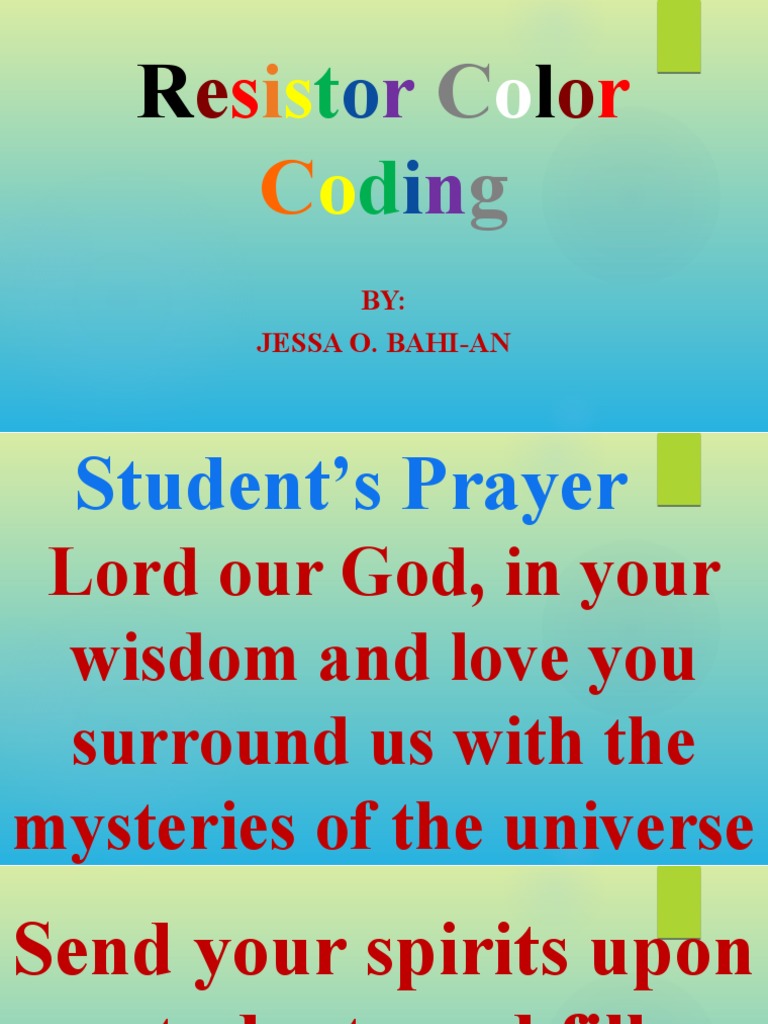

Resistor Color

Coding
BY:
JESSA O. BAHI-AN
 Student’s Prayer
Lord our God, in your
wisdom and love you
surround us with the
mysteries of the universe
Send your spirits upon
us students and fill us
with your wisdom and
blessings.
 Grant that we may
devote ourselves to our
studies and draw ever
closer to you the source
of all knowledge.
We ask this through
Christ our Lord,
Amen.
 Objective Setting
1. Define what is a resistor.
2. Determine the correct value of
each color band in finding
resistor’s resistance value and
tolerance
3. Calculate the resistance value
of a resistor through color
coding and
4. Develop a good attitude in
determining the resistance
value and tolerance of a resistor
through color coding.
 What is Resistor?
It is a circuit component that
resist (limits) the flow of
electrons in an electrical
circuit.
 What is Resistor?
The unit of measure for
resistance is the ohm, which is
represented by the Greek
letter Ω.
 Different types of a Resistor
 wire wound resistor,
 carbon composition resistor,
 carbon film resistor,
 variable resistor,
 metal oxide resistor and
 metal film resistor.
Color Codes (1 st
– 3 digit & multiplier)
rd

Better – Be – Right – Or –
Your – Great– Big –
Venture – Goes - Wrong
Color Codes (1 st
– 3 digit & multiplier)
rd

0.Better – 1.Be – 2.Right –

3.Or – 4.Your – 5.Great–
6.Big – 7.Venture – 8.Goes
– 9.Wrong
Color Codes (1 , 2
st
, 3rd Digit)
nd

Colors Corresponding number value

Black 0
Brown 1
Red 2
Orange 3
Yellow 4
Green 5
Blue 6
Violet 7
Gray 8
White 9
 Color Codes (Multiplier)
colors Number of zeros or Multiply by:
Black 0 1
Brown 1 10
Red 2 100
Orange 3 1,000
Yellow 4 10,000
Green 5 100,000
Blue 6 1,000,000
Violet 7 10,000,000
Gray 8 100,000,000
White 9 1,000,000,000
 Color Codes (Tolerance)
 Gold - ±5%
 Silver - ±10%
 No Color - ±20%
Example
 Activity Rubrics
Criteria Points

Group Cooperation 15 pts.

Correct Color from Riddles 15 pts.

Presentation/Discussion 20 pts.

Total: 50 pts.
 Quiz

Get ½ crosswise and

answer the following.
A. Determine the resistance value of a
resistor with the following set of
colors.
1. orange, green, yellow, silver
2. Red, white, green, black, gold
3. Violet, black, yellow, gold
4. Blue, green, brown, blue, silver
A. Answer the ff. questions with the
correct answer.
1. What is the numeric value of
silver?
2. What is the color of a numeric
value of green?
3. What is the unit of measure of a
A. Answer the ff. questions with the
correct answer.
1. What is the numeric value of
violet?
2. It is a circuit component that
resist (limits) the flow of
electrons in an electrical circuit.
 Assignment
Make a research on the
different electrical symbols
and write it on a bond
paper.
