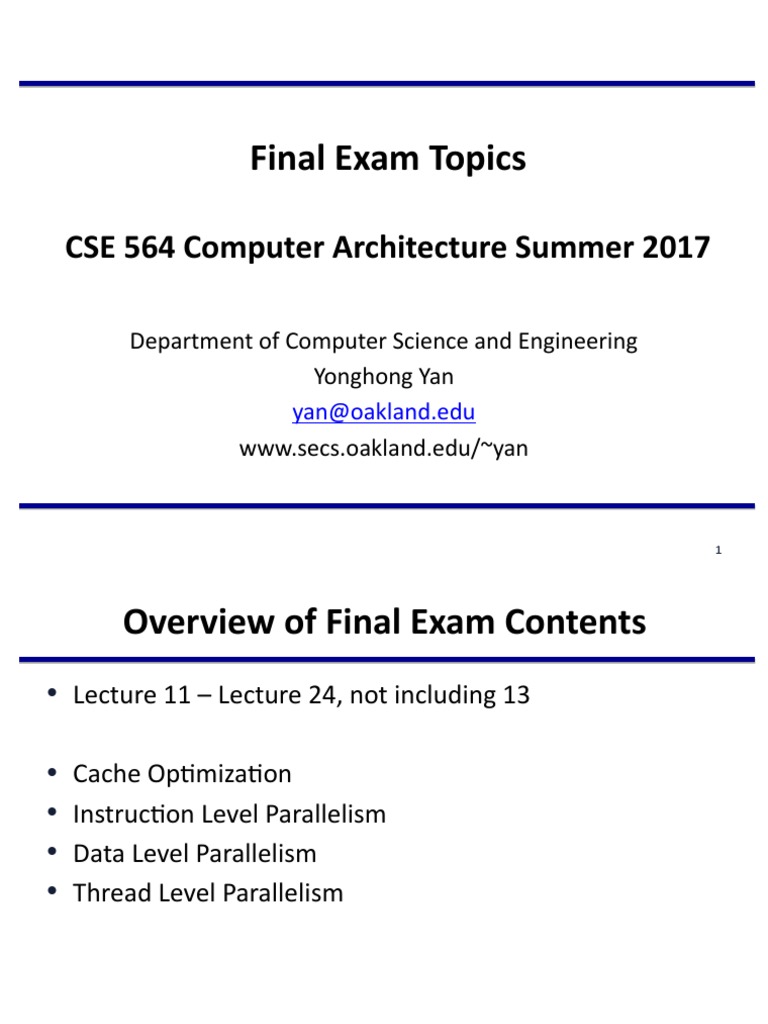

Final Exam Topics

CSE 564 Computer Architecture Summer 2017

Department of Computer Science and Engineering

Yonghong Yan
yan@oakland.edu
www.secs.oakland.edu/~yan

1
 Overview of Final Exam Contents
• Lecture 11 – Lecture 24, not including 13

• Cache Optimization
• Instruction Level Parallelism
• Data Level Parallelism
• Thread Level Parallelism

• 1 page letter note sheet

– For printing, >= 11 point Times New Rom
2
 Amdahl’s Law
 Fractionenhanced 
ExTimenew  
 ExTimeold   1  Fractionenhanced  
 Speedup enhanced 

ExTimeold 1
Speedupoverall  
ExTimenew Fractionenhanced
 1  Fractionenhanced  
Speedupenhanced

Best you could ever hope to do:

1
Speedupmaximum 
 1 - Fractionenhanced 

3
Using Amdahl’s Law

4
 Cache Performance
• Memory Stall Cycles: the number of cycles during which the processor is
stalled waiting for a memory access.
• Rewriting the CPU performance time
CPU execution time  (CPU clock cycles  Memory stall cycles)  Clock cycle time

Memory Accesses
CPU Time  IC * (CPI Execution   Miss Rate  Miss Penalty )  Clock Cycle Time
Instructio n
• The number of memory stall cycles depends on both the number of misses
and the cost per miss, which is called the miss penalty:

Memory stall cycles  Number of misses  Miss penalty

Misses
 IC   Miss Penalty
Instrution
Memory accesses
 IC   Miss rate  Miss Penalty
Instrution
 Impact on Performance
• Suppose a processor executes at Ideal CPI 1.1
– Clock Rate = 200 MHz (5 ns per cycle)
Data Miss 1.5
– CPI = 1.1
– 50% arith/logic, 30% ld/st, 20% control Inst Miss 0.5
• Suppose that 10% of memory
operations get 50 cycle miss penalty
• Suppose that 1% of instructions get same miss penalty

• CPI = ideal CPI + average stalls per instruction

= 1.1(cycles/ins)
+ [ 0.30 (DataMops/ins) x 0.10 (miss/DataMop) x 50 (cycle/miss)]
+ [ 1 (InstMop/ins) x 0.01 (miss/InstMop) x 50 (cycle/miss)]
= (1.1 + 1.5 + .5) cycle/ins = 3.1

• 2/3.1 (64.5%) of the time the proc is stalled waiting for memory!
 Memory Hierarchy Performance
• Two indirect performance measures have waylaid many a
computer designer.
– Instruction count is independent of the hardware;
– Miss rate is independent of the hardware.

Memory Accesses
CPU Time  IC * (CPI Execution   Miss Rate  Miss Penalty )  Clock Cycle Time
Instructio n
• A better measure of memory hierarchy performance is the
Average Memory Access Time (AMAT) per instructions

AMAT =Hit time + Miss rate ´ Miss penalty

 Improving Cache Performance

Average Memory Access Time =Hit Time + Miss Rate * Miss Penalty

Goals Basic Approaches

Reducing Miss Rate Larger block size, larger cache size and higher
associativity
Reducing Miss Penalty Multilevel caches, and higher read priority over
writes
Reducing Hit Time Avoid address translation when indexing the cache

8
Summary of the 10 Advanced Cache Optimization Techniques

9
 A Summary on Sources of Cache Misses
• Compulsory (cold start or process migration, first reference): first access
to a block
– “Cold” fact of life: not a whole lot you can do about it
– Note: If you are going to run “billions” of instruction, Compulsory Misses are
insignificant
• Conflict (collision):
– Multiple memory locations mapped
to the same cache location
– Solution 1: increase cache size
– Solution 2: increase associativity
• Capacity:
– Cache cannot contain all blocks access by the program
– Solution: increase cache size

• Coherence (Invalidation): other process (e.g., I/O) updates memory

 8. Reducing Misses by Compiler Optimizations
Software-only Approach

• McFarling [1989] reduced misses by 75% in software on 8KB

direct-mapped cache, 4 byte blocks
• Instructions
– Reorder procedures in memory to reduce conflict misses
– Profiling to look at conflicts (using tools they developed)
• Data
– Loop interchange: Change nesting of loops to access data in memory
order
– Blocking: Improve temporal locality by accessing blocks of data
repeatedly vs. going down whole columns or rows
– Merging arrays: Improve spatial locality by single array of compound
elements vs. 2 arrays
– Loop fusion: Combine 2 independent loops that have same looping
and some variable overlap
11
 0 1 2 3 4 5 6… 99

Loop Interchange Example 0

1
















2
3
4
5
/* Before */ …
for (k = 0; k < 100; k = k+1) 4999

for (j = 0; j < 100; j = j+1) Sequence of access:

for (i = 0; i < 5000; i = i+1)X[0][0], X[1][0], X[2][0], …
x[i][j] = 2 * x[i][j];

/* After */
for (k = 0; k < 100; k = k+1)
for (i = 0; i < 5000; i = i+1) Sequence of access:
for (j = 0; j < 100; j = j+1) X[0][0], X[0][1], X[1][2], …
x[i][j] = 2 * x[i][j];
Sequential accesses instead of striding through memory every 100 words; improved
spatial locality
12
 Design Guideline for Caches
• Cache block size: 32 or 64 bytes
– Fixed size across cache levels
• Cache sizes (per core):
– L1: Small and fastest for low hit time, 2K to 62K each for D$ and
I$ separated
– L2: Large and faster for low miss rate, 256K – 512K for combined
D$ and I$ combined
– L3: Large and fast for low miss rate: 1MB – 8MB for combined
D$ and I$ combined
• Associativity
– L1: directed, 2/4 way
– L2: 4/8 way
• Banked, pipelined and no-blocking access
13
 Topics for Instruction Level Parallelism
• ILP Introduction, Compiler Techniques and Branch
Prediction
– 3.1, 3.2, 3.3
• Dynamic Scheduling (OOO)
– 3.4, 3.5 and C.5, C.6 and C.7 (FP pipeline and scoreboard)
• Hardware Speculation and Static Superscalar/VLIW
– 3.6, 3.7
• Dynamic Scheduling, Multiple Issue and Speculation
– 3.8, 3.9
• ILP Limitations and SMT
– 3.10, 3.11, 3.12
 Data Dependences and Hazards
• Three data dependence: data dependences (true data
dependences), name dependences, and control dependences.
1. Instruction i produces a result that may be used by instruction j (i
→ j), or
2. Instruction j is data dependent on instruction k, and instruction k
is data dependent on instruction i (i → k → j, dependence chain).
• For example, a code sequence
Loop: L.D F0, 0(x1) ;F0=array element
ADD.D F4, F0, F2 ;add scalar in
S.D F4, 0(x1) ;store result
DADDUI x1, x1, #-8 ;decrement pointer 8 bytes
BNE x1, x2, Loop ;branch x1!=x2

15
 Data Dependence
• Floating-point data part
Loop: L.D F0, 0(x1) ;F0=array element
ADD.D F4, F0, F2 ;add scalar in
S.D F4, 0(x1) ;store result

• Integer data part

DADDUI x1, x1, #-8 ;decrement pointer
;8 bytes (per DW)
BNE x1, x2, Loop ;branch x1!=x2

† This type is called a Read After Write (RAW) dependency.

16
 Name Dependence #1: Anti-dependence
• Name dependence: when 2 instructions use same register or memory
location, called a name, but no flow of data between the instructions
associated with that name;
• 2 versions of name dependence (WAR and WAW).
• InstrJ writes operand before InstrI reads it
I: sub r4,r1,r3
J: add r1,r2,r3
K: mul r6,r1,r7

– Called an “anti-dependence” by compiler writers. This results from reuse of

the name “r1”.
• If anti-dependence caused a hazard in the pipeline, called a Write After
Read (WAR) hazard.
17
 Name Dependence #2: Output dependence

• InstrJ writes operand before InstrI writes it.

I: sub r1,r4,r3
J: add r1,r2,r3
K: mul r6,r1,r7

• Called an “output dependence” by compiler writers. This also

results from the reuse of name “r1”
• If anti-dependence caused a hazard in the pipeline, called a Write
After Write (WAW) hazard.
• Instructions involved in a name dependence can execute
simultaneously if name used in instructions is changed so
instructions do not conflict.
– Register renaming resolves name dependence for regs;
– Either by compiler or by HW. 18
 3.2 Basic Compiler Techniques for Exposing ILP

• This code, add a scalar to a vector

for (i=1000; i>0; i=i–1)
x[i] = x[i] + s;
• Assume following latencies for all examples
– Ignore delayed branch in these examples
Instruction producing result Instruction using result Latency in cycles
FP ALU op Another FP ALU op 3
FP ALU op Store double 2
Load double FP ALU op 1
Load double Store double 0

Figure 3.2 Latencies of FP operations used in this chapter.

19
 FP Loop: Where are the Hazards?
• First translate into MIPS code
– To simplify, assume 8 is lowest address
– R1 stores the address of X[999] when the loop starts

Loop: L.D F0,0(R1) ;F0=vector element

ADD.D F4,F0,F2 ;add scalar from F2
S.D 0(R1),F4 ;store result
DADDUI R1,R1,-8 ;decrement pointer 8B (DW)
BNEZ R1,Loop ;branch R1!=zero

20
 FP Loop Showing Stalls: V1
• Example 3-1 (p.158): Show how the loop would look on MIPS, both
scheduled and unscheduled including any stalls or idle clock cycles. Schedule
for delays from floating-point operations, but remember that we are ignoring
delayed branches.
• Answer

† 9 clock cycles, 6
for useful work
Rewrite code to
minimize stalls?

21
 Revised FP Loop Minimizing Stalls: V2

• Swap DADDUI and S.D by changing address of S.D

† 7 clock cycles
† 3 for execution (L.D, ADD.D,S.D)
† 4 for loop overhead; How make faster?
22
 Unroll Loop Four Times: V3
1. Loop: L.D F0,0(R1)
3. ADD.D F4,F0,F2
6. S.D 0(R1),F4 ;drop DSUBUI & BNEZ
7. L.D F6,-8(R1)
9. ADD.D F8,F6,F2
12. S.D -8(R1),F8 ;drop DSUBUI & BNEZ
13. L.D F10,-16(R1)
15. ADD.D F12,F10,F2
18. S.D -16(R1),F12 ;drop DSUBUI & BNEZ
19. L.D F14,-24(R1)
21. ADD.D F16,F14,F2
24. S.D -24(R1),F16
25. DADDUI R1,R1,#-32 ;alter to 4*8
26. BNEZ R1,LOOP

• 27 clock cycles (6*4+3), or 6.75 per iteration (Assumes R1

is multiple of 4) compared with 9 for unrolled/unscheduled
23
 Unroll Loop Four Times
• 27 clock cycles (6*4+3), or 6.75 per iteration (Assumes R1
is multiple of 4) compared with 9 for unrolled/unscheduled
– Reducing instrs for branch and loop bound calculation
• Reduce branch stall
• Code size increases
– 5 instructions to 14 instructions

24
Unrolled Loop That Minimizes Stalls: V4
1. Loop: L.D F0, 0(R1)
2. L.D F6, -8(R1)
3. L.D F10, -16(R1)
4. L.D F14, -24(R1)
5. ADD.D F4 ,F0, F2
6. ADD.D F8, F6, F2
7. ADD.D F12, F10, F2
8. ADD.D F16, F14, F2
9. S.D 0(R1), F4
10. S.D -8(R1), F8
11. S.D -16(R1), F12
12. DSUBUI R1, R1, #32
13. S.D 8(R1), F16 ; 8-32
= -24
14. BNEZ R1, LOOP
† 14 clock cycles
25
 Four Versions Compared

Total Cycles (1000 Iterations) Cycles Per Iterations Code Sizes

V1: Original
V2: Scheduled
V3: Unrolled
V4: Scheduled and
Unrolled

26
 Latency and Interval
• Latency
– The number of intervening cycles between an instruction that
produces a result and an instruction that uses the result.
– Usually the number of stages after EX that an instruction
produces a result
• ALU Integer 0, Load latency 1
• Initiation or repeat interval
– the number of cycles that must elapse between issuing two
operations of a given type.
Data Hazards: An Example
I1 FDIV.D f6, f6, f4

I2 FLD f2, 45(x3)

I3 FMUL.D f0, f2, f4

I4 FDIV.D f8, f6, f2

I5 FSUB.D f10, f0, f6

I6 FADD.D f6, f8, f2

RAW Hazards
WAR Hazards
WAW Hazards
 Instruction Scheduling
I1 FDIV.D f6, f6, f4
I1
I2 FLD f2, 45(x3)

I3 FMULT.D f0, f2, f4 I2

I4 FDIV.D f8, f6, f2

I3
I5 FSUB.D f10, f0, f6

I6 FADD.D f6, f8, f2

I4

Valid orderings:
I5
in-order I1 I2 I3 I4 I5 I6
I2 I1 I3 I4 I5 I6
out-of-order I6
I1 I2 I3 I5 I4 I6
out-of-order
 Dynamic Scheduling
• Rearrange order of instructions to reduce stalls while
maintaining data flow
– Minimize RAW Hazards
– Minimize WAW and WAR hazards via Register Renaming
– Between registers and memory hazards

• Advantages:
– Compiler doesn’t need to have knowledge of microarchitecture
– Handles cases where dependencies are unknown at compile time

• Disadvantage:
– Substantial increase in hardware complexity
– Complicates exceptions
 Dynamic Scheduling
• Dynamic scheduling implies:
– Out-of-order execution
– Out-of-order completion

• Creates more possibility for WAR and WAW hazards

• Scoreboard: C.6
– CDC6600 in 1963

• Tomasulo’s Approach
– Tracks when operands are available
– Introduces register renaming in hardware
• Minimizes WAW and WAR hazards
 Register Renaming
• Example:

DIV.D F0,F2,F4
ADD.D F6,F0,F8 Anti-dependence on F8
S.D F6,0(R1)
Output dependence on F6
SUB.D F8,F10,F14
MUL.D F6,F10,F8

+ name dependence with F6

 Register Renaming
DIV.D F0,F2,F4
• Example: ADD.D F6,F0,F8
S.D F6,0(R1)
SUB.D F8,F10,F14
DIV.D F0,F2,F4 MUL.D F6,F10,F8
ADD.D F6,F0,F8
S.D S,0(R1)
SUB.D T,F10,F14
MUL.D T,F10,TT

• Now only RAW hazards remain, which can be strictly ordered

 Organizations of Tomasulo’s Algorithm
• Load/Store buffer
• Reservation station
• Common data bus

v
 Register Renaming
• Register renaming by reservation stations (RS)
– Each entry contains:
• The instruction
• Buffered operand values (when available)
• Reservation station number of instruction providing the
operand values
– RS fetches and buffers an operand as soon as it becomes available (not
necessarily involving register file)
– Pending instructions designate the RS to which they will send their output
• Result values broadcast on the common data bus (CDB)
– Only the last output updates the register file
– As instructions are issued, the register specifiers are renamed with the
reservation station
– May be more reservation stations than registers
 Tomasulo Example Cycle 4
Instruction status: Exec Write
Instruction j k Issue Comp Result Busy Address
LD F6 34+ R2 1 3 4 Load1 No
LD F2 45+ R3 2 4 Load2 Yes 45+R3
MULTD F0 F2 F4 3 Load3 No
SUBD F8 F6 F2 4
DIVD F10 F0 F6
ADDD F6 F8 F2 Waiting for data from
Reservation Stations: memory by the instruction
S1 S2 RS RS
Time Name Busy Op Vj Vk Qj Qk
originally in Load1
Add1 Yes SUBD M(A1) Load2
Add2 No
Add3 No
Mult1 Yes MULTD R(F4) Load2
Mult2 No

Register result status:

Clock F0 F2 F4 F6 F8 F10 F12 ... F30
4 FU Mult1 Load2 M(A1) Add1

• Load2 completing; what is waiting for Load2?

 Tomasulo Example Cycle 5
Instruction status: Exec Write
Instruction j k Issue Comp Result Busy Address
LD F6 34+ R2 1 3 4 Load1 No
LD F2 45+ R3 2 4 5 Load2 No
MULTD F0 F2 F4 3 Load3 No
SUBD F8 F6 F2 4
DIVD F10 F0 F6 5
ADDD F6 F8 F2 Waiting for data from
Reservation Stations: S1 S2 RS RS memory by the instruction
Time Name Busy Op Vj Vk Qj Qk originally in Load2
2 Add1 Yes SUBD M(A1) M(A2)
Add2 No
Add3 No
10 Mult1 Yes MULTD M(A2) R(F4)
Mult2 Yes DIVD M(A1) Mult1

Register result status:

Clock F0 F2 F4 F6 F8 F10 F12 ... F30
5 FU Mult1 M(A2) M(A1) Add1 Mult2
 Hardware Speculation in Tomasulo Algorithm

• + Reorder Buffer
• - Store Buffer
– Integrated in ROF
 Four Steps of Speculative Tomasulo
1. Issue—get instruction from FP Op Queue
If reservation station and reorder buffer slot free, issue instr & send
operands & reorder buffer no. for destination (this stage sometimes called
“dispatch”)
2. Execution—operate on operands (EX)
When both operands ready then execute; if not ready, watch CDB for result;
when both in reservation station, execute; checks RAW (sometimes called
“issue”)
3. Write result—finish execution (WB)
Write on Common Data Bus to all awaiting FUs
& reorder buffer; mark reservation station available.
4. Commit—update register with reorder result
When instr. at head of reorder buffer & result present, update register with
result (or store to memory) and remove instr from reorder buffer.
Mispredicted branch flushes reorder buffer (sometimes called “graduation”)
 Instruction In-order Commit
• Also called completion or graduation
• In-order commit
– In-order issue
– Out-of-order execution
– Out-of-order completion
• Three cases when an instr reaches the head of ROB
– Normal commit: when an instruction reaches the head of the ROB and its result
is present in the buffer
• The processor updates the register with the result and removes the instruction
from the ROB.
– Committing a store:
• is similar except that memory is updated rather than a result register.
– A branch with incorrect prediction
• indicates that the speculation was wrong.
• The ROB is flushed and execution is restarted at the correct successor of the
branch.
Example with ROB and Reservation (Dynamic Scheduling and Speculation)

• MUL.D is ready to commit

After SUB.D completes execution, if

exception happens by MUL.D ….
In-order Commit
with Branch

FLUSHED
IF Misprediction
Lecture 17: Instruction Level Parallelism
-- Hardware Speculation
and VLIW (Static Superscalar)

CSE 564 Computer Architecture Fall 2016

Department of Computer Science and Engineering

Yonghong Yan
yan@oakland.edu
www.secs.oakland.edu/~yan
 Topics for Instruction Level Parallelism
• Static Superscalar/VLIW
– 3.6, 3.7
• Dynamic Scheduling, Multiple Issue and Speculation
– 3.8, 3.9
• ILP Limitations and SMT
– 3.10, 3.11, 3.12
Recall: Unrolled Loop that Minimizes Stalls for Scalar

1 Loop: L.D F0,0(R1) L.D to ADD.D: 1 Cycle

2 L.D F6,-8(R1) ADD.D to S.D: 2 Cycles
3 L.D F10,-16(R1)
4 L.D F14,-24(R1)
5 ADD.D F4,F0,F2
6 ADD.D F8,F6,F2
7 ADD.D F12,F10,F2
8 ADD.D F16,F14,F2
9 S.D 0(R1),F4
10 S.D -8(R1),F8
11 S.D -16(R1),F12
12 DSUBUI R1,R1,#32
13 BNEZ R1,LOOP
14 S.D 8(R1),F16 ; 8-32 = -24

14 clock cycles, or 3.5 per iteration

 Loop Unrolling in VLIW
Unrolled 7 times to avoid delays
7 results in 9 clocks, or 1.3 clocks per iteration (1.8X)
Average: 2.5 ops per clock, 50% efficiency
Note: Need more registers in VLIW (15 vs. 6 in SS)
 Loop Unrolling in VLIW
• Unroll 8 times
– Enough registers
8 results in 9 clocks, or 1.125 clocks per iteration
Average: 2.89 (26/9) ops per clock, 58% efficiency (26/45)

L.D

ADD.D

S.D
 Loop Unrolling in VLIW
• Unroll 10 times
– Enough registers
10 results in 10 clocks, or 1 clock per iteration
Average: 3.2 ops per clock (32/10), 64% efficiency (32/50)

L.D
L.D L.D
ADD.D
ADD.D ADD.D

S.D
S.D S.D
 Very Important Terms
• Dynamic Scheduling  Out-of-order Execution
• Speculation  In-order Commit
• Superscalar  Multiple Issue
Techniques Goals Implementation Addressing Approaches
Dynamic Out-of-order Reservation Stations, Data hazards Register
Scheduling execution Load/Store Buffer and (RAW, WAW, renaming
CDB WAR)
Speculation In-order Branch Prediction Control hazards Prediction and
commit (BHT/BTB) and Reorder (branch, func, misprediction
Buffer exception) recovery
Superscalar/V Multiple Software and Hardware To Increase CPI By compiler or
LIW issue hardware
Lecture 18: Instruction Level Parallelism
-- Dynamic Scheduling, Multiple
Issue, and Speculation

CSE 564 Computer Architecture Fall 2016

Department of Computer Science and Engineering

Yonghong Yan
yan@oakland.edu
www.secs.oakland.edu/~yan
 Multithreaded Categories
Simultaneous
Multiprocessing
Time (processor cycle)

Superscalar Fine-Grained Coarse-Grained Multithreading

Thread 1 Thread 3 Thread 5

Thread 2 Thread 4 Idle slot
51
 Course-Grained Multithreading
• Switches threads only on costly stalls, such as L2
cache misses
• Advantages
– Relieves need to have very fast thread-switching
– Doesn’t slow down thread, since instructions from other threads
issued only when the thread encounters a costly stall
• Disadvantage is hard to overcome throughput losses
from shorter stalls, due to pipeline start-up costs
– Since CPU issues instructions from 1 thread, when a stall occurs,
the pipeline must be emptied or frozen
– New thread must fill pipeline before instructions can complete

• Because of this start-up overhead, coarse-grained

multithreading is better for reducing penalty of high
cost stalls, where pipeline refill << stall time
• Used in IBM AS/400, Sparcle (for Alewife)
 Fine-Grained Multithreading
• Switches between threads on each instruction,
causing the execution of multiples threads to be
interleaved
– Usually done in a round-robin fashion, skipping any
stalled threads
– CPU must be able to switch threads every clock
• Advantage:
– can hide both short and long stalls, since instructions
from other threads executed when one thread stalls
• Disadvantage:
– slows down execution of individual threads, since a
thread ready to execute without stalls will be delayed by
instructions from other threads
• Used on Oracle SPARC processor (Niagra from Sun),
several research multiprocessors, Tera
 Simultaneous Multithreading (SMT):
Do both ILP and TLP

• TLP and ILP exploit two different kinds of parallel

structure in a program
• Could a processor oriented at ILP to exploit TLP?
– functional units are often idle in data path designed for ILP because
of either stalls or dependences in the code
• Could the TLP be used as a source of independent
instructions that might keep the processor busy
during stalls?
• Could TLP be used to employ the functional units
that would otherwise lie idle when insufficient ILP
exists?
 Lecture 20, 21, and 22
Topics for Data Level Parallelism (DLP)

• Parallelism (centered around … )

– Instruction Level Parallelism
– Data Level Parallelism
– Thread Level Parallelism

• DLP Introduction and Vector Architecture

– 4.1, 4.2
• SIMD Instruction Set Extensions for Multimedia
– 4.3
• Graphical Processing Units (GPU)
– 4.4
• GPU and Loop-Level Parallelism and Others
– 4.4, 4.5, 4.6, 4.7

Finish in three sessions

 Flynn’s Classification (1966)
Broad classification of parallel computing systems
– based upon the number of concurrent Instruction
(or control) streams and Data streams
Michael J. Flynn:
http://arith.stanford.edu/~flynn/
• SISD: Single Instruction, Single Data
– conventional uniprocessor
• SIMD: Single Instruction, Multiple Data
– one instruction stream, multiple data paths
– distributed memory SIMD (MPP, DAP, CM-1&2, Maspar)
– shared memory SIMD (STARAN, vector computers)
• MIMD: Multiple Instruction, Multiple Data
– message passing machines (Transputers, nCube, CM-5)
– non-cache-coherent shared memory machines (BBN Butterfly, T3D)
– cache-coherent shared memory machines (Sequent, Sun Starfire, SGI Origin)
• MISD: Multiple Instruction, Single Data
– Not a practical configuration
 SIMD: Single Instruction, Multiple Data (Data Level Paralleism)

• SIMD architectures can exploit

significant data-level parallelism for:
– matrix-oriented scientific computing
– media-oriented image and sound processors
• SIMD is more energy efficient than MIMD
– Only needs to fetch one instruction per data operation
processing multiple data elements
– Makes SIMD attractive for personal mobile devices

• SIMD allows programmer to continue to think

sequentially
 Vector Programming Model
Scalar Registers Vector Registers
r15 v15

r0 v0
[0] [1] [2] [VLRMAX-1]
Vector Length Register VLR
v1
Vector Arithmetic v2
Instructions + + + + + +
ADDV v3, v1, v2
v3
[0] [1] [VLR-1]

Vector Load and Vector Register

v1
Store Instructions
LV v1, (r1, r2)

Memory
Base, r1 Stride in r2
 VMIPS Vector Instructions
• Suffix
– VV suffix
– VS suffix
• Load/Store
– LV/SV
– LVWS/SVWS
• Registers
– VLR (vector
length
register)
– VM (vector
mask)
 AXPY (64 elements) (Y = a * X + Y) in MIPS and VMIPS
for (i=0; i<64; i++) The starting addresses of X and Y are in Rx and
Y[i] = a* X[i] + Y[i];
Ry, respectively

• # instrs:
– 6 vs ~600
• Pipeline stalls
– 64x higher by MIPS
• Vector chaining
(forwarding)
– V1, V2, V3 and V4
Vector Instruction Execution with Pipelined Functional Units
ADDV C,A,B

Execution using
Execution using four
one pipelined
pipelined functional units
functional unit

A[6] B[6] A[24] B[24] A[25] B[25] A[26] B[26] A[27] B[27]
A[5] B[5] A[20] B[20] A[21] B[21] A[22] B[22] A[23] B[23]
A[4] B[4] A[16] B[16] A[17] B[17] A[18] B[18] A[19] B[19]
A[3] B[3] A[12] B[12] A[13] B[13] A[14] B[14] A[15] B[15]

C[2] C[8] C[9] C[10] C[11]

C[1] C[4] C[5] C[6] C[7]

C[0] Lane C[0] C[1] C[2] C[3]

 Vector Length Register
• Vector length not known at compile time?
• Use Vector Length Register (VLR)
• Use strip mining for vectors over the maximum length (serialized
version before vectorization by compiler)
low = 0;
VL = (n % MVL); /*find odd-size piece using modulo op % */
for (j = 0; j <= (n/MVL); j=j+1) { /*outer loop*/
for (i = low; i < (low+VL); i=i+1) /*runs for length VL*/
Y[i] = a * X[i] + Y[i] ; /*main operation*/
low = low + VL; /*start of next vector*/
VL = MVL; /*reset the length to maximum vector length*/
}
 CUDA Thread Hierarchy:
• Allows flexibility and
efficiency in
processing 1D, 2-D,
and 3-D data on GPU.
Can be 1, 2 or 3
• Linked to internal dimensions
organization

• Threads in one block

execute together.

63
 GPU Multi-Threading (SIMD)
• NVIDIA calls it Single-Instruction, Multiple-Thread (SIMT)
– Many threads execute the same instructions in lock-step
• A warp (32 threads)
• Each thread ≈ vector lane; 32 lanes lock step
– Implicit synchronization after every instruction (think vector
parallelism)

SIMT

64
 Execution Many Threads (e.g. 8000) on GPU

• GPUs can execute multiple SIMT groups on each SM

– For example: on NVIDIA GPUs a SIMT group is 32 threads, each
Kepler SM has 192 CUDA cores  simultaneous execution of 6
SIMT groups on an SM
• Textbook:
– Core = SIMD lane
– SIMD thread = warp

65
 GPU Multi-Threading
• In SIMT, all threads share instructions but operate on their
own private registers, allowing threads to store thread-local
state

SIMT

66
 GPU Multi-Threading
• GPUs execute many groups of SIMT threads in parallel
– Each executes instructions independent of the others

SIMT Group (Warp) 0

SIMT Group (Warp) 1

67
 Warp Switching
SMs can support more concurrent SIMT groups
than core count would suggest  Coarse grained
multiwarpping (the term I coined)

• Each thread persistently stores its own state in a

private register set
– Enable very efficient context switching between
warps
• SIMT warps block on I/O, not actively computing
– Swapped out for other worrying about losing state
• Keeping blocked SIMT groups scheduled on an
SM would waste cores
68
 Lecture 23
Topics for Thread Level Parallelism (TLP)

• Parallelism (centered around … )

– Instruction Level Parallelism
– Data Level Parallelism
– Thread Level Parallelism

• TLP Introduction
– 5.1
• SMP and Snooping Cache Coherence Protocol
– 5.2
• Distributed Shared-Memory and Directory-Based Coherence
– 5.4
• Synchronization Basics and Memory Consistency Model
– 5.5, 5.6
• Others
 Examples of MIMD Machines
P P P P
• Symmetric Shared-Memory Multiprocessor
(SMP) Bus
– Multiple processors in box with shared
memory communication Memory
– Current Multicore chips like this
– Every processor runs copy of OS P/M P/M P/M P/M
• Distributed/Non-uniform Shared-Memory
Multiprocessor P/M P/M P/M P/M Host
– Multiple processors
• Each with local memory P/M P/M P/M P/M
• general scalable network
– Extremely light “OS” on node provides simple P/M P/M P/M P/M
services
• Scheduling/synchronization
– Network-accessible host for I/O
• Cluster
– Many independent machine connected with
general network
– Communication through messages
Network
 Caches and Cache Coherence
• Caches play key role in all cases
– Reduce average data access time
– Reduce bandwidth demands placed on shared interconnect

• Private processor caches create a problem

– Copies of a variable can be present in multiple caches
– A write by one processor may not become visible to others
• They’ll keep accessing stale value in their caches
 Cache coherence problem

• What do we do about it?

– Organize the mem hierarchy to make it go away
– Detect and take actions to eliminate the problem
 Example Cache Coherence Problem
int count = 5;
int * u= &count; P1 P2 P3
…. u =?
u =? 3
4
a1 = *u; $ $ 5 $

a3 = *u; u :5 u :5 u = 7

*u = 7;
b1 = *u I/O devices
1
2
a2 = *u u :5
Memory

Things to note:
Processors see different values for u after event 3
With write back caches, value written back to memory depends on happenstance of
which cache flushes or writes back value and when
Processes accessing main memory may see very stale value
Unacceptable to programs, and frequent!
 Cache Coherence Protocols
• Snooping Protocols
– Send all requests for data to all processors
– Processors snoop a bus to see if they have a copy and respond accordingly
– Requires broadcast, since caching information is at processors
– Works well with bus (natural broadcast medium)
– Dominates for centralized shared memory machines
• Directory-Based Protocols
– Keep track of what is being shared in centralized location
– Distributed memory => distributed directory for scalability
(avoids bottlenecks)
– Send point-to-point requests to processors via network
– Scales better than Snooping
– Commonly used for distributed shared memory machines
 Implementation of Cache Coherence Protocol -- 1
Me mo ry

Cac he Cac he
Written by CPU 0
Invalidated by CPU 0
CPU 0 CPU 1

• When data are coherent, the cache block is shared

– “Memory” could be the last level shared cache, e.g. shared L3
1. When there is a write by CPU 0, Invalidate the shared copies in the cache of other
processors/cores
– Copy in CPU 0’s cache is exclusive/unshared,
– CPU 0 is the owner of the block
– For write-through cache, data is also written to the memory
• Memory has the latest
– For write-back cache: data in memory is obsoleted
– For snooping protocol, invalidate signals are broadcasted by CPU 0
• CPU 0 broadcasts; and CPU 1 snoops, compares and invalidates
 Implementation of Cache Coherence Protocol -- 2
Me mo ry

Cac he Cac he
Owned by CPU 0
Read/write miss
CPU 0 CPU 1

• CPU 0 owned the block (exclusive or unshared)

2. When there is a read/write by CPU 1 or others  Miss since already
invalidated
– For write-through cache: read from memory
– For write-back cache: supply from CPU 0 and abort memory access
– For snooping: CPU 1 broadcasts mem request because of a miss; CPU 0 snoops,
compares and provides cache block (aborts the memory request)
 Basic Snoopy Protocols
• Write Invalidate Protocol:
– Multiple readers, single writer
– Write to shared data: an invalidate is sent to all caches which
snoop and invalidate any copies
– Read Miss:
• Write-through: memory is always up-to-date
• Write-back: snoop in caches to find most recent copy

• Write Update Protocol (typically write through):

– Write to shared data: broadcast on bus, processors snoop, and
update any copies
– Read miss: memory is always up-to-date

• Write serialization: bus serializes requests!

– Bus is single point of arbitration
 Example: Write Invalidate

P1 P2 P3
u =?
u =?
3
4 5 $
$ $

u :5 u :7 u :5 u = 7

1 I/O devices
2
u :5
u Memory
=7
 Write-Update (Broadcast)
• Update all the cached copies of a data item when that item
is written.
– Even a processor may not need the updated copy in the future
• Consumes considerably more bandwidth
• Recent multiprocessors have opted to implement a write
invalidate protocol
P1 P2 P3
u =?
u =?
3
4 5 $
$ $

u :5 u=7 u :5 u = 7

I/O devices
1
2
u :5
u Memory
=7
