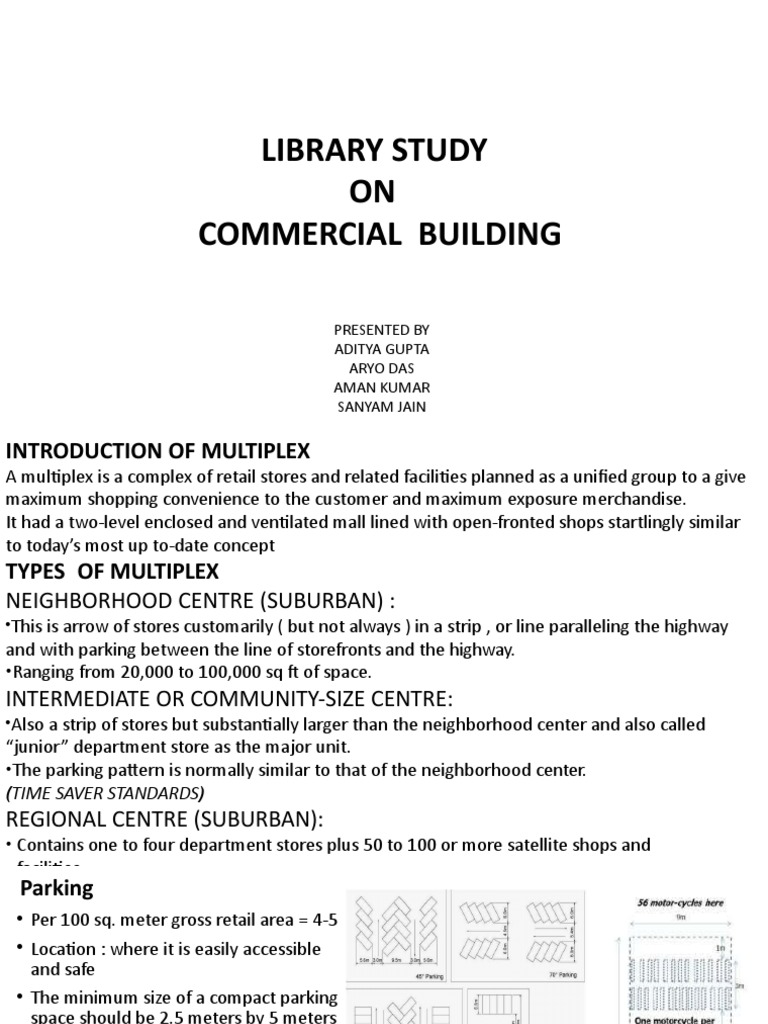

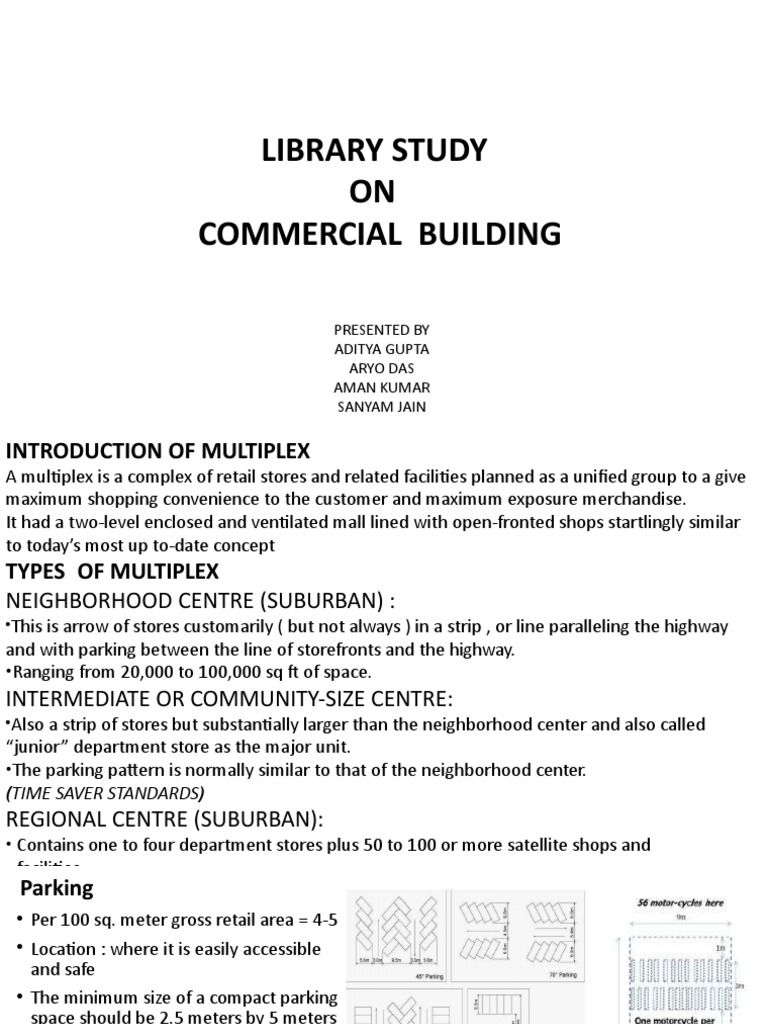

LIBRARY STUDY

ON
COMMERCIAL BUILDING

PRESENTED BY
ADITYA GUPTA
ARYO DAS
AMAN KUMAR
SANYAM JAIN
INTRODUCTION OF MULTIPLEX
A multiplex is a complex of retail stores and related facilities planned as a unified group to a give
maximum shopping convenience to the customer and maximum exposure merchandise.
It had a two-level enclosed and ventilated mall lined with open-fronted shops startlingly similar
to today’s most up to-date concept
TYPES OF MULTIPLEX
NEIGHBORHOOD CENTRE (SUBURBAN) :
•This is arrow of stores customarily ( but not always ) in a strip , or line paralleling the highway
and with parking between the line of storefronts and the highway.
•Ranging from 20,000 to 100,000 sq ft of space.
INTERMEDIATE OR COMMUNITY-SIZE CENTRE:
•Also a strip of stores but substantially larger than the neighborhood center and also called
“junior” department store as the major unit.
•The parking pattern is normally similar to that of the neighborhood center.
(TIME SAVER STANDARDS)
REGIONAL CENTRE (SUBURBAN):
• Contains one to four department stores plus 50 to 100 or more satellite shops and
Parking
• Per 100 sq. meter gross retail area = 4-5
• Location : where it is easily accessible
and safe
• The minimum size of a compact parking
space should be 2.5 meters by 5 meters
for cars.
• Most common types of parking are
angle parking, perpendicular parking
and parallel parking.
• Turning radius for car: 3.5 meter and 6
meter inner and outer radius
respectively.
• Turning radius for motorcycle: 2.6
meter.
Basement Parking
• The maximum practical grade for driveways
varies between 8–14 percent for low-volume
driveways and five percent for high-volume
driveways.
• At least two ramps of minimum 3.6 meter
width or one ramp of minimum 5.4
meter width and adequate slope should
be provided.
• Up to 10% of cellar may be used for you
utilities and non-habitation purpose like is the
A/C plant room, generator room and such
other similar utilities.
Parking for Differently Abled
• At least 5% of all car parking bays must be
reserved for differently abled visitors.
• They must be clearly identified, both on the
bay surface and with a vertical sign
immediately adjacent to the bay.
Landscape
Hard Landscape: Soft Landscape
• Roads • Planting
• Steps • Shrubs
• Walls • Hedges
Materials: • Trees
• Turf
RECREATIONAL SPACE

• Recreation is an activity of leisure,

being discretionary time.
• Recreational activities are often done
for enjoyment, amusement, or
pleasure and are considered to be
"fun”.
• Types of recreation
• sports zone
• hike
• Green space
• music zone
• gym zone
• cafeteria
• water bodies
Lift

Panoramic Lifts:
• Available in variety of cabin shapes.
• Consists of carrying capacity of 400-1500 kg(5-20
passengers).
• Construction materials used are glass and steel
polished, brushed, or with high gloss finish-
brass and bronze.
Escalator
Stair Width
Minimum stair width:

Artificial Ventilation ducting:

• Should be sized for a minimum of4.
• flow of 60m^3/h is adequate for bathrooms with a toilet
• flow of 30m^3/h is adequate for one toilet.
• Every internally sited room to be ventilated must have a non- closable ventilation opening.
• The size of area through which air flows must be 100mm^2 for every m^3 of room volume.
• Gaps around the door=250mm^2.
• cross-section of the ventilation shaft for single duct systems without mechanical extract,
in bathrooms and WCs without open windows( up to 8 storeys) =1500mm^2 per room.
Emergency Services:
No. of people in the No. of exits required
• The maximum number of lifts in one row for a lift area
bank = 4 . 500 2
• A wall of 2h fire rating shall separate individual 1000 3
shafts in a bank.
2000 4
• Collapsible gates shall not be permitted for the lifts
4000+ 5-6
and shall have solid doors with fire resistance of at
least 1h.
• Lifts shafts shall have a vent at the top of area not No. of people Width of escapes
routes
less than 0.2mts.
50 800mm
Horizontal Escape Routes:
110 900mm
•18m in one direction and 45m in other.
Maximum number of steps= 15 steps 220 1100mm

Minimum =3 steps access of the theatre in the upper 220+ Extra 5mm/ person
storey should have at least two independent stairs of
fire- proof construction.
Shops
General size of the shops are:
• 12’-19’ wide minimum
• 23’-30’ wide maximum
• floor height:
• 8’-9’ in case of the basement
• 12’ in case of the ground floor
• If there is a mezzanine, at leas t
7’-6’’ above floor level is
required.
Design Standard for Differently Abled

Lift dimension for disable

Slope- 1:12
Width of entry and exit- 1.8m-2m
Width of ramp- 1.8m
• It is desirable that there is no level difference .If a difference is unavoidable , limit it to 20mm
or less

Side view of ramp with handrail

Requirement to turn the wheelchair

Lighting
Daylighting
Things to be considered:
• Controlling glare
• Stable and uniform levels of lighting
• Heat gain
• Local cooling.

Toilet
RESTURANTS
Food courts are most common amenities provided in any of the multiplexes or malls.
Interior spaces of a food court can be divided into 3 major areas:
• Dining area
• Kitchen
• Pantry and storage area
• Dinning constitutes major area in the food court and kitchen should be 50% of
dining area.
Functional area Space allowed
•Food storage 20% DINNING AREA HEIGHT OF THE ROOM
• preparation 14%
<50 m^2 2.50m
• cooking 8%
• baking 10% >50m^2 2.75m
• ware washing 5% >100m^2 3.00mm
•Traffic aisles 18% Above or below galleries >2.5m
• trash storage 5%
• employee facilities
•Miscellaneous 15% 2%
Types of restaurants Space required per person(m2/person)
Snack bar services 1.5-2.2
Café services 0.83-1.5
Coffee bars 1.2-1.4
Self-service 1.4-1.7
Kitchen for restaurants 0.3*no. of covers
 Dinning floor areas Walkways width
up to 100m2 ≥1.10m
Up to 250m2 ≥1.30m
Up to 500 m2 ≥1.65m
Up to 1000m2 ≥1.80m
Over 1000m2 ≥2.10m

Tables Seats Waiter Self

service(m2/seat) service(m2/seat)
Square 4 1.25 1.25
Rectangular 4 1.10 1.10
Rectangular 6 1.05 1.10
Rectangular 8 1.05 1.05

Table space requirements for dining room: 1.4-1.6m2/place

Children Play Area
• Play area must be varied, changing and changeable.
• They must meet children’s need.

Requirements of play areas:

• Traffic safety
• No pollution
• Adequate sunshine
Ground water level not to high

Guidelines for planning playgrounds:

• Age group
• Usable space per person
• Play area size
• Distance from dwellings ecetra.
Age groups Area(m2)

0-6 0.6
6 -12 0.5
12 - 18 0.9
Gaming
Arcade
• Arcade is a game machine typically found in public places like
malls, restaurants and amusement arcades, and is usually coin
operated.
• Arcade games are usually video games, pinball machines or
electromechanical games.

2000
1500
2000 2000
Cinema Theatre
The design of the modern cinema seek to find a successful balance between the
•Existing site condition
•Individual theatre size
•Ranking of seats to provide an unobstructed view
•Good sound and picture quality for the customer
•Food courts, fun zone etc. are to be provide in the theatre block or portion

Shapes of Theatre Space Management

 Ticket Counter

Chair dimension

Other spaces in Theatre

 Refreshing kiosk
 Forthcoming movie adv.
 Information on current screening
 Ticket counter
Servicing facilities:
Projection rooms ( Traditionally) were divided into :
• Rewinding and projecting film
• Dimmer room or sound and light control room- 2mx3.5m.
• Battery room
• Spotlight room-3.9mx7.5m.
• Workshop
• Store room-each forming a 6-10 meter square
Automated systems include:
• projection areas with rewinding benches, sound equipment, dimmer, and switch facilities.
To cater for future trends,
• minimum area of screen= 5.5x4.0 meter per screen
• minimum ceiling height =2.6 meter
Additional accommodation :
• Other requirements for theatre or cinema hall include:
• Plant room
• Staff room and facilities
• Cleaner’s store
• Manager’s office
• Film store
• Kiosk stock room
• Refrigeration for ice creams
• Projection booths
• A treasury cash room
Public areas surrounding the theatre zone:
• Payment booths
• Advance booking facilities
• Ticket machines
• Refreshment kiosks
• Merchandising stalls
• Forthcoming film advertising
• Information on current screenings
• sufficient room for queuing comfortably
• clear signage to public toilets, theatre entrances etc.
• Suitable access, toilets and lifts are required for visitors with disabilities.
Minimum sizes of projection rooms are:
• Minimum equipment, 3.9-4m.
• With effects lantern and spotlight, 3.9-7.5m.
• Typical commercial cinema,6.6-7.3m.
• Floor to ceiling height should be not less than 6.4m.
Sound systems:
• Typically, five speakers are used, one for bass sounds, and often with a sixth as an theatre
speaker.
• Very wide screens and side sound sources cause acoustics problems.
• For cinemas ,maximum reflected sound path=15m
Air conditioning:
• Recommended working temperature of the projection room = 18degree celsius.
• location of AHU(air handling units)=3 broad areas- adjacent to the screen.
Acoustics:
• Fan shaped seating with racked chairs for viewing and hearing.
• Projection screen and the loud speakers behind it placed at a height enough to
cover entire audience.
• Back side of the screen and surroundings of the screen be “Black and
absorptive” to prevent light reflections.
• Projection- booth and noise should not enter audience section, hence inside of
the booth be made highly absorbent and window- glasses be properly sealed.
• With stereophonic sound system, adjusted to sound track of the film; the side –
walls, flat ceiling and the surface around the screen kept more absorptive and
dispersive.
OFFICE SPACE
MEETING ROOM
PER PERSON AREA = 25 SQ FT

Area per person = 20 sq ft

Banks

Custom
Archive
offices room
meeting
room

Lobby Staff
Vaults
of bank room

Vault plan- Vault plan –C (8’Wx14’Dx8’H

Waiting Executive
Area Teller suite A(8’Wx14’Dx8’H Inside) Inside)
s •112sq.ft inside floor area •112 sq.ft. inside floor area
•20 lin.ft. for s.a. boxes •10 lin.ft for s.d. boxes
•8 lin ft. for lockers •8 lin. Ft. for lockers
Circulatio
n Building

Parking

Recreational space

Pedestrian Entry

Road
Vertical Zoning
Multi purpose, Living space

Cinema

Cinema, Retail

Kid’s zone, Food courts

Kid’s zone, Accessories

Retail ( Clothing)

Retail ( Clothing)

Restaurant and Retail

Basement parking

Basement parking
 No of bikes –1200 (
BASEMENT PARKING 1 No of car -500 (
No of security – 32
Generator room
-75’ by 25’

GE

NE

RA
UP
TO
R
DOWN

ENTRANCE
W
A
T
E
R

UP

DOWN
