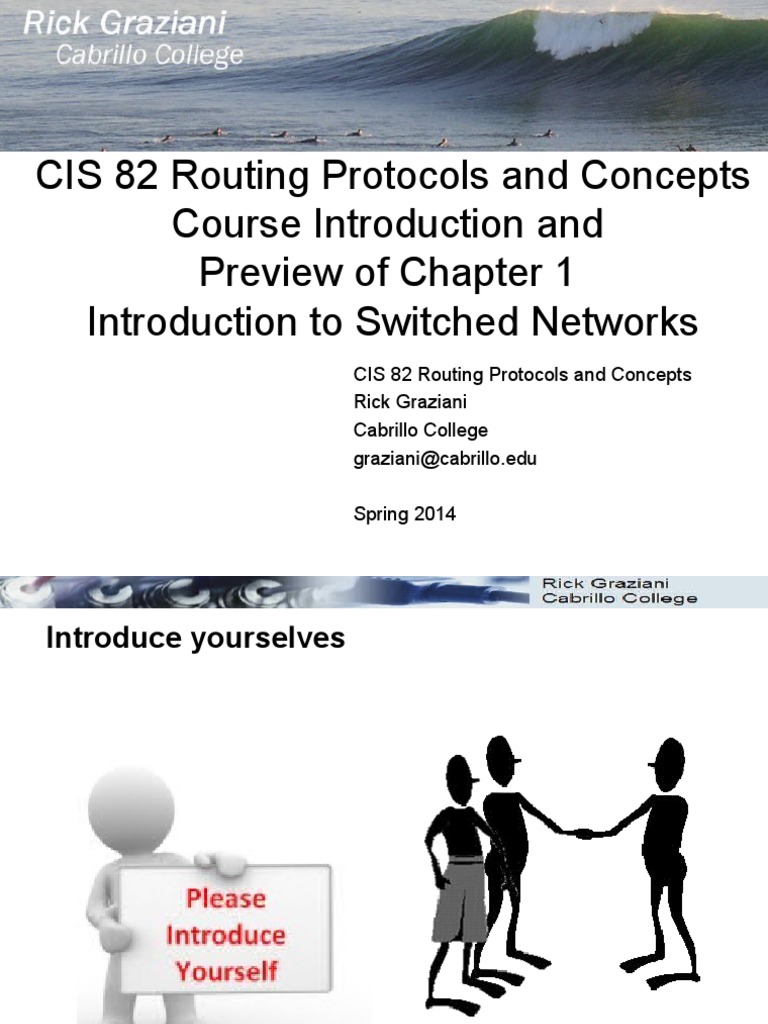

CIS 82 Routing Protocols and Concepts

Course Introduction and

Preview of Chapter 1
Introduction to Switched Networks
CIS 82 Routing Protocols and Concepts
Rick Graziani
Cabrillo College
graziani@cabrillo.edu

Spring 2014
Introduce yourselves

2
3
Attending CIS 82

 In-class
 Live online using CCCConfer
 View the archive using CCCConfer at your convenience

 Or any combination of the three, but….

4
Slippery slope
 By far the greatest success rates are in-
person students.
 Easy to go from in-person to online to
archive and over the edge…
 Online students more difficult
 Find a quiet space
 Do not multitask like reading email
 Turn-off the TV, stereo, etc.
 Take notes on paper or in your book
 Responsible for more of your learning
environment and figuring things out
 Online students viewing recorded
archives:
 Scheduled a time each week which is
as early as possible after the class is
recorded.
5
 ROUTE:
Implementing IP
Cisco Networking Academy Routing
Curricula Portfolio SWITCH:
Implementing IP
CIS 82 now Switched Networks
Network Fundamentals CCNA
contains Security TSHOOT:
most Routing and Switching
Essentials (Routing
Troubleshooting and
Maintaining IP
Routing Protocols)
Networks
Protocols Scaling Networks (LAN
Switching)
Network AND some
Professional Switching Accessing the WAN

(VLANs) CCNP
IT Essentials:
PC Hardware and CCNP
Network Software
Specialist CIS 83 now
contains Security
Network advanced
Associate switching CCNA Version 5
and a one
Network chapter on
Technician routing.
IT Essentials
IT Technician Packet Tracer

Student Networking Knowledge and Skills

6
Changes in
CCNA Courses

 Previous CIS 83 students

 There will be some overlap of CIS 83 material.
 You will still be required to do the homework assignments but
you have the option choosing which lab (more later).
 This class will prepare you for CIS 185 CCNP ROUTE next
semester.
 CCNP – Separates you from the rest of the CCNA group
 CCNP – A great way to prepare for the CCNA exam 7
 Succeeding in CIS 82 and …
 Preparation and organization
 Pen/pencil, Notebook
 Taking notes
 Print slides
 Read book/online information
 Research
 Grades
 Not the only deciding factor
 Soft skills
 Motivation
 Initiative
 Enthusiasm
 Professionalism/Organization skills
 Communication skills and working with
others
8
Reading the chapter:
Are you reading chapters in a timely manner?
Are you reading the chapters before AND after class?
Lectures:
Are you making sure you understand the material covered in class?
Are you taking notes during class AND during your reading?
Chapter exams:
Are you doing the chapter exams in a timely manner or are you waiting weeks later
when they are due?
Are you doing the chapter exams multiple times AND understanding what you missed?
Labs:
Are you waiting weeks later to do the lab and then not sure what to do?
Are you just “going through the motions” or are you understanding the concepts taught
in the labs?
Are you taking the opportunity to do the labs more than once?
Are you using Packet Tracer at home?
Are you taking notes and organizing IOS/OS commands?
Other:
How often are you studying and is it in a timely manner?

9
 My background
Currently
 Computer Science/Networking Instructor, Cabrillo College
 CCNA and CCNP courses
 Networking Consultant
 Cisco Networking Academy Curriculum Development Team
 One of the authors for CCNA 5
 Work for Cisco Systems in writing networking curriculum and various other
projects.
 Work for Cisco Press and other publishers as an author and technical
reviewer.
 Currently working on IoE, Data Center, CCNP and IPv6
 Disclaimer…

Other Previous Work Experience

 Technical Training Manager/Instructor: Santa Cruz Operation (SCO)
 Systems Analyst: Tandem Computers
 Programmer/Analyst: Lockheed Corporation
 Programmer/Communications Officer: U.S. Coast Guard
10
Usernames and Passwords
 Email: graziani@cabrillo.edu
 www.cabrillo.edu/~rgraziani
 Materials on my web site and online curriculum
 Username = cisco
 Password = perlman

11
NetSpace: www.netacad.com

Username and password emailed to you.

12
Online Course

13
NetSpace and Chapter Exams (Homework)

14
CIS 82 Labs

 Labs
 NetLab (remote access)
 Packet Tracer

 NetLab
 Username: WebAdvisor
username
First two digits of first name +
First four digits of last name +
Last four digits of Student ID

 Default Password: perlman

15
 Office hours
 I am here to help!
 To best help you and enable you to succeed:
 Bring your notes so I can see what we need to work on.
 Come with specific questions – show me what you are having trouble
with.
 Office hours are not for repeating lectures or tutoring.
 Work with fellow students.

16
Now, on to the web sites…

17
 Preview of Chapter 1
Introduction to Switched Networks
 Ethernet

Destination Address Source Address Type DATA FCS

(MAC) (MAC) (Data?) (IP, etc.) (Errors?)

Ethernet
Layer 2 – Data Link Layer
NIC (Source MAC address) to NIC (Destination
MAC address) communications in the same
network
Source MAC address – Address of the
sender’s NIC
Destination MAC address
 Unicast: MAC address of destination NIC
on the same network
 Broadcast: All 1 bits (F’s)
19
Hubs versus Switches
 Ethernet Hubs (almost obsolete)
 Layer 1 device – Examine only the
bits.
 What ever comes in one interface
is forwarded out all other interfaces
(except the one it came in on).
 Half-duplex interfaces – Only one
device can send or we have a
collision.
 Ethernet Switches
 Layer 2 device – Examine Ethernet frames
 Mac Address Tables – Filter or flood Ethernet frames
 Flood – Ethernet broadcasts and unknown unicasts
 Unknown unicast is when the Destination MAC address is not
in the switches MAC address table.
 Full-duplex interfaces – Can both send and receive at the
20
same time - NO collisions.
 Mac Address Table
1.Learn – Examine Source MAC
Forwarding Frames address
In table: Reset 5 min timer
Unicast Not in table: Add Source MAC
address and port # to table
BBBB AAAA
2.Forward – Examine
Destination MAC address
In table: Forward out that port.
Mac Address Table Not in table: Flood out all ports
Port MAC Address except incoming port.
1 AAAA

Unknown Unicast

1 2

AAAA BBBB
21
 Mac Address Table
1.Learn – Examine Source MAC
Forwarding Frames address
In table: Reset 5 min timer
Unicast Not in table: Add Source MAC
address and port # to table
AAAA BBBB
2.Forward – Examine
Destination MAC address
In table: Forward out that port.
Mac Address Table Not in table: Flood out all ports
Port MAC Address except incoming port.
1 AAAA
2 BBBB

1 2

AAAA BBBB
22
 Mac Address Table
1.Learn – Examine Source MAC
Forwarding Frames address
In table: Reset 5 min timer
Unicast Not in table: Add Source MAC
address and port # to table
BBBB AAAA
2.Forward – Examine
Destination MAC address
In table: Forward out that port.
Mac Address Table Not in table: Flood out all ports
Port MAC Address except incoming port.
1 AAAA
2 BBBB

1 2

AAAA BBBB
23
 Mac Address Table
1.Learn – Examine Source MAC
Forwarding Frames address
In table: Reset 5 min timer
Broadcast Not in table: Add Source MAC
address and port # to table
FFFF AAAA
2.Forward – Examine
Destination MAC address
In table: Forward out that port.
Mac Address Table Not in table: Flood out all ports
Port MAC Address except incoming port.
1 AAAA
2 BBBB

Broadcast
Domain
1 2

AAAA BBBB
24
 A: Collision Domain? Broadcast Domain?

Unicast or
Broadcast

Group exercise!
Collision Domain: Destination MAC = Unicast
Broadcast Domain: Destination MAC = Broadcast

25
 Collision Domain?

Unicast

26
 Broadcast Domain?

Broadcast

27
B: Collision Domain? Broadcast Domain?

28
 Collision Domain?

Unicast

29
 Broadcast Domain?

Broadcast

30
C: Collision Domain? Broadcast Domain?

31
 Collision Domain?
These are full duplex
Unicast connections so there
are NO collisions.

32
 Broadcast Domain?

Broadcast

33
D: Collision Domain? Broadcast Domain?

34
 Collision Domain?

Unicast

These are full duplex

connections so there
are NO collisions.

35
 Broadcast Domain?

Broadcast

36
Collision Domain? Broadcast Domain?

37
E: Collision Domain? Broadcast Domain?

38
 Collision Domain?

Unicast

These are full duplex

connections so there
39
are NO collisions.
 Broadcast Domain?

Broadcast

40
F: Collision Domain? Broadcast Domain?

41
 Collision Domain?

Unicast

These are full duplex

connections so there
42
are NO collisions.
 Broadcast Domain?

Broadcast

43
CIS 82 Routing Protocols and Concepts
Course Introduction and
Preview of Chapter 1
Introduction to Switched Networks
CIS 82 Routing Protocols and Concepts
Rick Graziani
Cabrillo College
graziani@cabrillo.edu

Spring 2014
