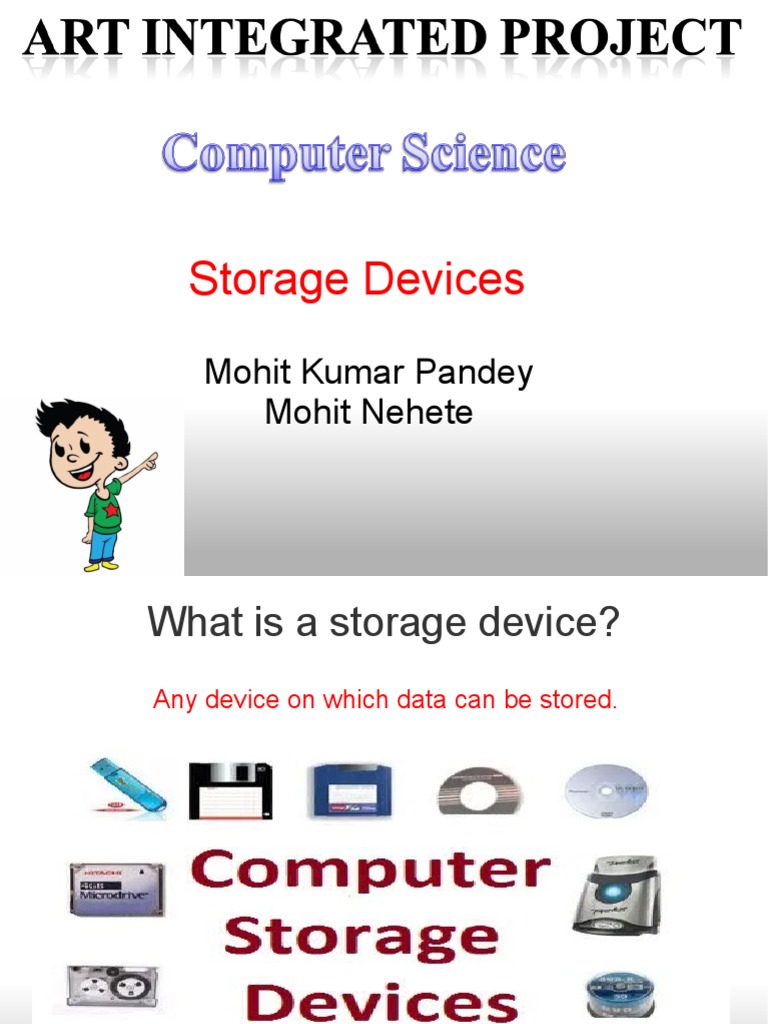

Storage Devices

Mohit Kumar Pandey

Mohit Nehete
What is a storage device?
Any device on which data can be stored.
 Common Types of Storage Devices

FDD
HDD
Solid State vs. Magnetic
Optical Drives
CD/DVD/RW Blu-Ray
Removable Storage
Tape Drive
Solid State
External CD-RW
Hot Swappable &non hot swappable
Hard Disk Drive (HDD)

•Invented by Reynold Johnson in 1956

•Used in the IBM 305 RAMAC accounting computer
•Actuator saves data to the platters magnetically
•Most HDDs are connected to the motherboard using a 1 meter
SATA-device cable


http://www.youtube.com/watch?v=t6wTZhsffEE
Hard Disk Drive (HDD)
Solid State Drive (SSD)

•SSD technology has been around

since 1978
•Flash based SSD introduced by M-
Systems in 1995
•Uses non-volatile flash memory to
store data
•Volatile SSDs that use DRAM are also
available
HDD vs. SSD
 HDD vs. SSD
•HDD- •SSD-
–Cheaper –Faster data access
–Higher capacity (2-3 TB) –Less noise
–Faster write time  –Less power consumption
  –More reliable

http://www.youtube.com/watch?
v=eOoW8v9UyTA
HDD vs. SSD

•HDDs have slower data access times due to the data

being fragmented on the hard disk
•Defragmenting data increases data access time
•Data saved on SSDs does not need to be read
sequentially so there is no need for defragmenting

http://www.youtube.com/watch?v=iE__2gBxL9Y
 Floppy Disks
• Term “floppy disk” first used to refer to the 8” medium used
with mini-computers and mainframes
• Then was used to refer to the PC floppy diskette which used
a 5.25” platter – also called the minifloppy diskette.
• Now refers to the 3 1/2" floppy diskette – aka microfloppy
diskette.  This is the version that is used in computers today
if any floppy technology is used at all.

 Floppy Disks (cont.)

Floppy Drive Size    Tracks/Side    Sectors/Track    Capacity

5 1/4" DD                            40                        9               360KB
5 1/4" HD                            80                       15              1.2MB
3 1/2" DD                            80                        9               720KB
3 1/2" HD                            80                       18              1.44MB
3 1/2" ED                            80                       36
2.88MB


DD = Double Density
HD = High Density
ED = Extended Density
Floppy Disks (cont.)
• Floppy disk: magnetic storage
medium that uses a thin,
flexible plastic diskette
enclosed in a hard plastic
casing
• Before the advent of thumb
drives, enabled information to
be transported easily from
one computer to another.
• Too small for today’s
information needs, was
replaced by CD-ROMs and
DVD-ROMs, then by solid
state storage.
 Floppy Diskette Drives (FDD)

• Floppy diskette drive (FDD) is used to read and write

information from floppy disks.

• Pro: Allow portability of data
• Con:  Limited storage capacity.

• Even though the physical form factor is similar to hard
drives, the technology is incompatible and floppy disks can
only store one or two mbps of data

• http://www.youtube.com/watch?v=cxhU0wXsKEM

Optical Drives

• Enables a computer to read different types of media discs

• Some drive can only read discs, but recent drives are both
reader and recorders
How Does an Optical Drive Work?

• Three layers: the plastic disc part on the bottom, a reflective

surface in the middle, and the top part of the disc, in which
protects the data itself.



Continued
• A laser focuses a beam of
light on the reflective layer
on the optical disc
• The beam focused on pits
is scattered, whereas on
lands it is reflected back
with higher intensity and is
stored in photo diode array
• Burning a CD, it involves
use of a mold to stamp
press the data in pits on
the reflective layer in the
disc
http://www.youtube.com/watch?
v=ESpL4a08kVE&feature=related
CD-Media

• CD-ROM
• CD-R was introduced in the mid-1990s
• Early CD-R drives requires that the entire disc be burned in
one session, which are called single-session drives
• Modern CD-R allow users to go back and burn additional
data until it is full, which are called multisession drives
• Once the data is burned onto the CD-R disc, the data
cannot be erased or altered
• have two speeds that matter: record speed & read speed
o Ex: 8x24x
• Two types of CD-R disc:
o 74-minute disc that holds approximately 650 MB
o 80-minute disc that holds approximately 700 MB
DVD-Media

• Develop by a large consortium of electronics and

entertainment films during the early 1990s and released in
1995
• Lowest capacity- 4.37 GB of data or two hours of video
• Highest capacity-16 GB of data or more than eight hours of
video
• Uses smaller pits than CD-Media and packs them more
densely
• Comes in single-sided (SS) and double-sided (DS) format
• Comes in single-layer (SL) and dual-layer (DL) format
DVD Media Continued

• DVD-ROM
• Standard recordable DVD-Media
o DVD-R
o DVD-RW
o DVD+R
o DVD+RW
Blu-ray Media

• Developed by Sony
• Disc Capacity:
o Single-layer- 25 GB
o Dual-layer- 50 GB
• Types:
o Standard disc- 12cm
o Mini disc- 8cm
• BD-ROM
• BD-R
• BD-RE
 Tape Backup Devices
• Hard drives will fail - data
must be backed up onto
another storage medium Backup Tape Formats
• Older type of removable
storage Quarter Inch Cartridge (QIC)
• Can store large amounts Digital Linear Tape (DLT)
of data Eight Millimeter (Exabyte)
• Can be installed internally Digital Data Storage (DDS)
or externally Linear Tape-Open (LTO)
• Use tape magnetic tape
medium for storage
instead of disks
• Slow - used more for
archival storage
 External Disk Drives

USB-Attached
• Commonly manufactured
in their own chassis
• Have detachable
connectivity for
USB/FireWire
• If power requirement high
enough, may also have
power connection - if not,
USB connection provides
necessary power
• Speed is limited to approx.
50-60 MBps
eSATA-Attached
• eSATA = external SATA
• Extends the SATA bus to
external devices at full
speed
• Connectors are different
from internal SATA to
avoid confusion
Flash Memory

Who?
Dr. Fujio Masuoka

When?
1984

Why it's important?
Flash Memory is usually
better than traditional memory
because it uses less power
and is more reliable
SD Memory

Who?
 SanDisk, Matsushita, and
Toshiba

When?
1999

Why it's important?
SD technology is used by
more than 400 brands across
dozens of product categories
and in more than 8,000
models.
SD Memory

•  MultiMediaCard Upgrade
• Card's electrical contacts are recessed beneath the surface
of the card
• SDSC, SDHC, SDXC
•  All SD card families have the same physical shape
•  Basic cards transfer data up to six times the data rate of the
standard CD-ROM speed (7.2 Mb/s vs 1.2 Mb/s).
•  Form factor has changed from SD, Mini SD, Micro SD
•  SD cards typically have transfer rates in the range of 80–
160 Mb/s
•  Other Flash Cards include: Compact Flash, Smart Media,
Memory Stick, xD Picture Cards

Various USB Designs
What's USB used for?

• Personal Data Transport

• Secure storage of data, application and software files
• System administration
• Application carriers
• Booting operating systems
• Brand and product promotion
• Backup
• Flash drives also store data densely compared to many
removable media
