Egomotion Estimation Using Visual Odometry

FG Neuroinformatik &
Kognitive Robotik

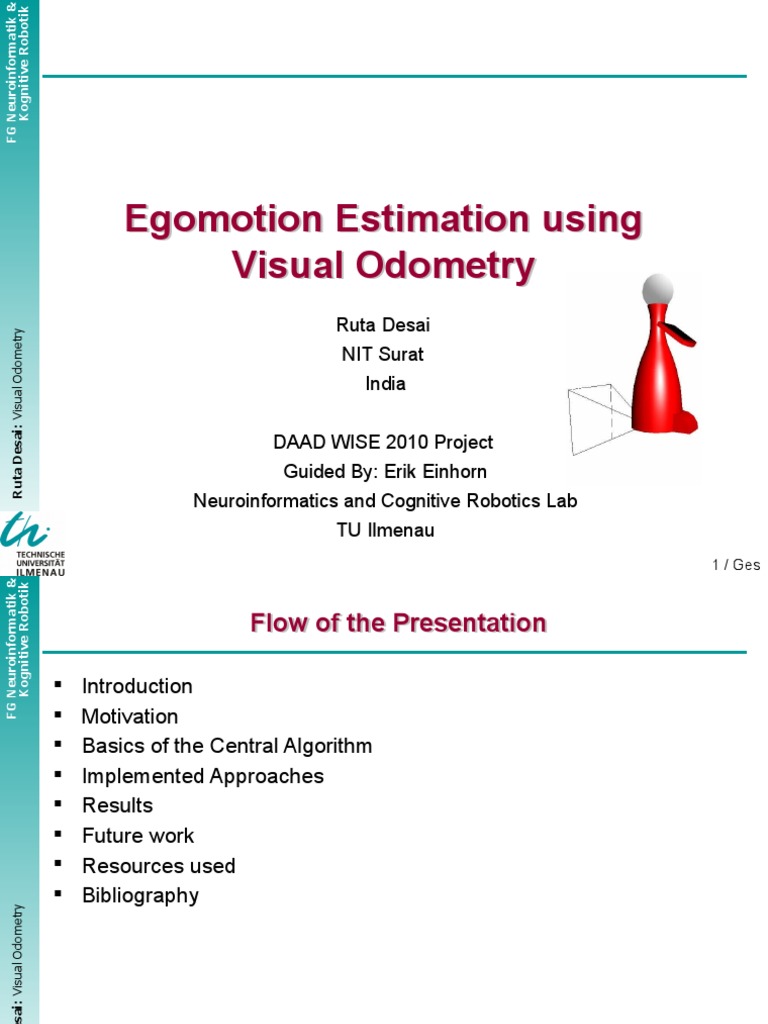

Egomotion Estimation using

Visual Odometry
Ruta Desai
Ruta Desai: Visual Odometry
NIT Surat
India
DAAD WISE 2010 Project

Guided By: Erik Einhorn
Neuroinformatics and Cognitive Robotics Lab
TU Ilmenau
1 / Ges
Kognitive Robotik
Flow of the Presentation
 Introduction
 Motivation
 Basics of the Central Algorithm
 Implemented Approaches
 Results
 Future work
 Resources used
 Bibliography
2 / Ges
Kognitive Robotik
Introduction: Visual Odometry & Egomotion Estimation
 Visual Odometry:
The process of determining the position and orientation of a robot by
analyzing the associated camera images.
Egomotion:
 Egomotion refers to estimating a camera's motion relative to a rigid
scene.
 Visual odometry techniques are used on a sequence of images
captured by the moving camera.
3 / Ges
Kognitive Robotik
Motivation
 Structure from motion refers to the process of finding the three-

dimensional structure by analyzing the motion of an object over time.
4 / Ges
Ruta Desai: Visual Odometry FG Neuroinformatik &
Kognitive Robotik
Motivation: The Big Picture..
5 / Ges
Kognitive Robotik
Various Approaches Implemented
 EKF and 1 point RANSAC with inlier rescue.

 Rotation Estimation using Homography.
 Rotation Estimation using Epipolar Geometry Constraint.
 Rotation Estimation using Projective Reconstruction Constraint.
6 / Ges
Kognitive Robotik
..Basics:Kalman Filter and Extended Kalman Filter..

 Provides an efficient
computational (recursive)
means to estimate the state
of a process.
 But, Kalman filter assumes

process to be linear.
 This limitation is overcome in

EKF, which is similar to

Kalman Filter except that a
Taylor series expansion is
used to linearise.
7 / Ges
Kognitive Robotik
..Basics: RANSAC..
 Used for robust estimation

from a data set that may
contain outliers.
 An outlying observation, or
outlier, is one that appears to
deviate markedly from other
members of the sample in
which it occurs.
log(1  p)
 How it works: N
log(1  (1   ) s )
8 / Ges
Kognitive Robotik
RANSAC without EKF
Consider a simple case of 2D line estimation from a set of points

contaminated with spurious data.
9 / Ges
Kognitive Robotik
The Central Algortihm:1 Point RANSAC with EKF
 The algorithm assumes that an a priori probability distribution over

the model parameters is known in advance. This prior knowledge
allows us to compute the random hypotheses using only 1 data point,
hence reducing the number of hypotheses and the computational
cost.
10 / Ges
Kognitive Robotik
Approach 1 (Inliers Rescue):The Flow
Reference:
Civera, J., Grasa,
O. G., Davison, A.
J., and Montiel, J.
M. M. (2010) 1-
Point RANSAC for
EKF Filtering.
Application to
Real-Time
Structure from
Motion and Visual
Odometry.
11 / Ges
Kognitive Robotik
State Model
 State vector of camera is obtained from odometry (for the first time)
or the last estimated state ( from camera extrinsic object)
 X-Y Position θ and Ф are also updated using motion model.
 Motion model error is also added.
 State Vector: bt = (xi , yi , Ф, θ)

 bt 1 = bt +(Rz( Δx, Δy), ΔФ*error, θ)
 Sigma+=R;
where Sigma=initial covariance

R=model noise
Rz=Rotation about Z axis
12 / Ges
Kognitive Robotik
RANSAC
 A feature is randomly
selected from the 3D feature
set.
 Measurement update is done
using this feature.
 After this measurement
update,all measurements are
predicted again using the
projection matrix
 If the original feature and the  This is done for nhyp(no of

new one(measurement) have iterations needed by RANSAC
difference below a algorithm) times till the biggest
threshold(Euclidean inliers set.
distance), the feature is  Final Meaurement update of
classified as inlier or LOW the state can be done using
INNOVATION inliers and thus this inliers set.
a set of inliers is constructed.
13 / Ges
Kognitive Robotik
Measurement Update
 Map 3D feature into image space using projection matrix.
 This is the homogeneous measurement and so it is converted to

Euclidean space.
 x' 
 y '    x' / w'
   y ' / w'
 w'  
 Jacobian of this measurement w.r.t camera state is calculated.
 Using Jacobian innovation and Kalman Gain is then calculated.
 Once innovation and Kalman Gain are obtained, mean and
covariance update is done.
14 / Ges
Kognitive Robotik
Inliers Rescue
 We assume that certain features that could be inliers are

misclassified as outliers.
 So, in order to obtain them we assume that the estimated camera
pose is correct and try to map covariance of features in image space
for which we obtain Jacobian of feature w.r.t feature and find
innovation.
 Then based on Mahalanobis distance threshold we obtain features
lying in 99% probability region.
 These are called HIGH INNOVATION inliers.
 Later update of state is done using these inliers.
15 / Ges
Kognitive Robotik
Modifications in Approach 1: Selection of Features
 Sorting of features based on difference from original Measurements.

 Use of Far Features.
16 / Ges
Kognitive Robotik
Results (With Inliers Rescue)
 Without Error:  With added Error:

Blue=estimated
Red=Ground truth
17 / Ges
Kognitive Robotik
Results (Without Inliers Rescue)
 Without Error:  With added Error:

Blue=estimated
Red=Ground truth
18 / Ges
Kognitive Robotik
Algorithm : The Big Picture..
19 / Ges
Kognitive Robotik
Motivation for further Approaches..
 The combination of EKF and 1 point RANSAC worked well for the
correction of angular orientation of camera pose.
 Moreover, correction of angular orientation was more important for

our problem statement.
 So, we decided to estimate and correct just the rotation of Camera

using this algorithm.
20 / Ges
Kognitive Robotik
Approach 2: Rotation Estimate using Homography
 State Vector: bt = (Ф, θ)

 State vector is updated using EKF.
 Position Vector is updated using Motion Model where velocity is
obtained from the odometry
Reference: R. Hartley and A.
c  x y h Zisserman. Multiple View
c t 1  c t  R  v Geometry in Computer Vision.
Cambridge University Press
v  o t 1  o t
where R=Rotation matrix, oi=odometry at time i, c=camera centre,

v=velocity
 If we use 3D feature mapping for measurement model, the error in
estimated 3D position would result in an error in the feature
measurement too.
 So, in order to obtain corresponding image pairs, Homography
between image planes was used in this approach.
21 / Ges
Kognitive Robotik
Here lies Homography! : The Big Picture Again..
22 / Ges
Kognitive Robotik
Homography
x=PX
X(λ)=P+x+ λC
X  = P+x (λ=0)
x’=P’ X 
x’=P’ P+x
x’=Hx
where H=homography
matrix
The homography transfers points from

one view to another.
23 / Ges
Kognitive Robotik
Results
Without With Odometry:

Odometry:
Blue=estimated
Red=Ground truth
24 / Ges
Kognitive Robotik
Approach 3: Epipolar Geometry Constraint
 It is the intrinsic projective geometry between two images. It depends

only on camera ‘s internal parameters and relative pose.
 Fundamental matrix( F) encapsulates this intrinsic geometry.
 The Fundamental matrix is the relation between any 2 images of
same scene that constraints where the projection of scene can occur
in both images.
 Given the projection of a scene point in one of the images , the
corresponding point in the other image is constrained to a line.
 With homogeneous image coordinates x and x’ of corresponding
points in image pairs; Fx describes the line (epipolar line) on which

corresponding point x’ on other image will lie.
Reference:B.Williams and I.Reid. On

Combining Visual SLAM and Visual
Odometry.
25 / Ges
Kognitive Robotik
Here lies Epipolar Constraint! :The Big Picture Again..
26 / Ges
Kognitive Robotik
Calculation of Innovation
x'T Fx=0 (Since x’ should lie on epipolar line l ' = Fx)

27 / Ges
Kognitive Robotik
Approach 4: Projective Reconstruction Constraint

 Once P1 : Projection matrix, has been set ; each 3D point is
constrained to lie on the ray back projected from the optical centre.
 Once P2 : Projection matrix for different pose is also set; 3D point is
then constrained to lie at the intersection point of the pair of back
projected ray.
 Back projected rays may be skew due to noise in the image
measurements.
 When camera position is updated correctly, the rays will intersect and
hence the perpendicular distance between them will be zero. Thus,
the perpendicular distance between skew rays can be used as

innovation for EKF update.
Reference:
P.A. Beardsley, A.
Zisserman and D.W.
Murray. Sequential
Updating of Projective and
Affine Structure from
Motion 28 / Ges
Kognitive Robotik
Here lies the Projective Constraint!...
29 / Ges
Kognitive Robotik
Calculation of Innovation
 l = P1+ x1
 m = P2+ x2

(C2C1) (l m)
 perpendicular distance between the skew rays=
(l m)
where Ci= camera centre

l, m
=direction cosines of the backprojected rays
30 / Ges
Kognitive Robotik
Resources used
 Eclipse C++
 Maple
 Monocular vision and Eigen
C++ library
31 / Ges
Kognitive Robotik
The Growth of the Idea..
●
Literature Survey and Building the Basics.
Getting acquainted with Eclipse and C++
MAY
●
●
Understanding the Problem Statement, and Coding for
Inliers Rescue approach
●
Modifications in Inliers Rescue approach
JUNE
●
Coding for Homography based Rotation Estimate.
Coding For Epipolar Geometry based Rotation Estimate.
●
LY
●
Use of Maple for Jacobian Calculation.
U
J
●
Coding for Projective Reconstruction Constraint based Rotation Estimate.
●
Final presentation and compilation into paper.
●
Implementation on robot.
32 / Ges
Kognitive Robotik
My Contribution
 Imbibing the problem

statement and understanding
the basics for the same.
 Implementing various
approaches for correction of
camera pose for effective
working of 3D structure
reconstruction on the
framework made by Erik.
 Out of the various

approaches implemented,
Rotation Estimate using
Homography can be readily
integrated into the SFM
algorithm.
33 / Ges
Kognitive Robotik
Future Work
 First and foremost, to make Projective Reconstruction approach

work.
 Implementation of Rotation Estimate using Homography on the robot.
 Use of Adaptive Sigma and Noise matrices.
 Moving Obstacle Avoidance using EKF and 1 point RANSAC

algorithm.
 Comparison of results and Compilation into a Paper.
34 / Ges
Kognitive Robotik
Bibliography
 Civera, J., Grasa, O. G., Davison, A. J., and Montiel, J. M. M.1-Point
RANSAC for EKF Filtering. Application to Real-Time Structure from
Motion and Visual Odometry, ICRA 2010.
 R. Hartley and A. Zisserman. Multiple View Geometry in Computer

Vision. Cambridge University Press, Page number:239-247 and 270.
 E. Einhorn, Ch. Schröter,and H.-M. Gross. Monocular Scene

Reconstruction for Reliable Obstacle Detection and Robot
Navigation, Proc. 4th European Conference on Mobile Robots

(ECMR) 2009.
 J. Civera, A.J. Davison, and J. Montiel. Inverse Depth

Parametrization for Monocular SLAM,IEEE Transactions on Robotics,
24(5):932–945, October 2008.
35 / Ges
Kognitive Robotik
Bibliography
 D.Scaramuzza, F.Fraundorfer, and R. Siegwart .Real-Time Monocular

Visual Odometry for On-Road Vehicles with 1-Point RANSAC,ICRA
2009.
 P.A. Beardsley, A. Zisserman and D.W. Murray. Sequential Updating

of Projective and Affine Structure from Motion, International Journal
of Computer Vision 23(3), 235–259 (1997).
 B.Williams and I.Reid. On Combining Visual SLAM and Visual

Odometry.
 S.Thrun,W.Burgurd and D.Fox.Probabilistic Robotics.MIT Press,

Page number:39-44 and 54-57.
 www.wikipedia.org
36 / Ges
Kognitive Robotik
Acknowledgements
 First and foremost, I would like to thank Erik Einhorn for his guidance,
help and patience. 
 Professor Gross for giving me an opportunity to come to this lab and

always encouraging me. 
 Sandra and Christoph for answering my doubts and for all the super
discussions about Germany: from Soccer to weather 
 Heike for being so friendly and helpful and always being around
when I needed her 
 And all others who welcomed me so heartily into this family and
helped me mingle into it like family’s own child.
37 / Ges
Kognitive Robotik
Questions??..
Thank you…
38 / Ges
Kognitive Robotik
Fundamental Matrix and Epipolar line
 x=PX
 X(λ)=P1+x+ λC
 x’(λ)=P2P1+x+ P2 λC
 x'
=P2P1+x (  0)
 x’=P2 C (  )

l'
 =P2 C X P2P1+x
= Fx
where F=Fundamental Matrix
 P’=KR’[I | -C] and P+=RTK-1
39 / Ges
Kognitive Robotik
Epipolar Geometry : Calculation of Innovation
n ( x 'T  l ' )
d  2
n
where n = normal of epipolar line l’

d =measurement as well as innovation for the EKF update
||.||=norm
40 / Ges

Egomotion Estimation Using Visual Odometry

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Egomotion Estimation Using Visual Odometry

Uploaded by

Copyright:

Available Formats

FG Neuroinformatik &

Egomotion Estimation using

DAAD WISE 2010 Project

Flow of the Presentation

 Structure from motion refers to the process of finding the three-

Motivation: The Big Picture..

Various Approaches Implemented

 EKF and 1 point RANSAC with inlier rescue.

..Basics:Kalman Filter and Extended Kalman Filter..

 But, Kalman filter assumes

 This limitation is overcome in

EKF, which is similar to

 Used for robust estimation

RANSAC without EKF

Consider a simple case of 2D line estimation from a set of points

The Central Algortihm:1 Point RANSAC with EKF

 The algorithm assumes that an a priori probability distribution over

Approach 1 (Inliers Rescue):The Flow

 State Vector: bt = (xi , yi , Ф, θ)

where Sigma=initial covariance

 If the original feature and the  This is done for nhyp(no of

 This is the homogeneous measurement and so it is converted to

 We assume that certain features that could be inliers are

 Later update of state is done using these inliers.

Modifications in Approach 1: Selection of Features

 Sorting of features based on difference from original Measurements.

Results (With Inliers Rescue)

 Without Error:  With added Error:

Results (Without Inliers Rescue)

 Without Error:  With added Error:

Algorithm : The Big Picture..

Motivation for further Approaches..

 Moreover, correction of angular orientation was more important for

 So, we decided to estimate and correct just the rotation of Camera

Approach 2: Rotation Estimate using Homography

 State Vector: bt = (Ф, θ)

where R=Rotation matrix, oi=odometry at time i, c=camera centre,

Here lies Homography! : The Big Picture Again..

The homography transfers points from

Without With Odometry:

Approach 3: Epipolar Geometry Constraint

 It is the intrinsic projective geometry between two images. It depends

points in image pairs; Fx describes the line (epipolar line) on which

Reference:B.Williams and I.Reid. On

Here lies Epipolar Constraint! :The Big Picture Again..

x'T Fx=0 (Since x’ should lie on epipolar line l ' = Fx)

Approach 4: Projective Reconstruction Constraint

the perpendicular distance between skew rays can be used as

Here lies the Projective Constraint!...

where Ci= camera centre

The Growth of the Idea..

 Imbibing the problem

framework made by Erik.

 Out of the various

 First and foremost, to make Projective Reconstruction approach

 Implementation of Rotation Estimate using Homography on the robot.

 Use of Adaptive Sigma and Noise matrices.

 Moving Obstacle Avoidance using EKF and 1 point RANSAC

 Comparison of results and Compilation into a Paper.

 R. Hartley and A. Zisserman. Multiple View Geometry in Computer

 E. Einhorn, Ch. Schröter,and H.-M. Gross. Monocular Scene

Navigation, Proc. 4th European Conference on Mobile Robots
