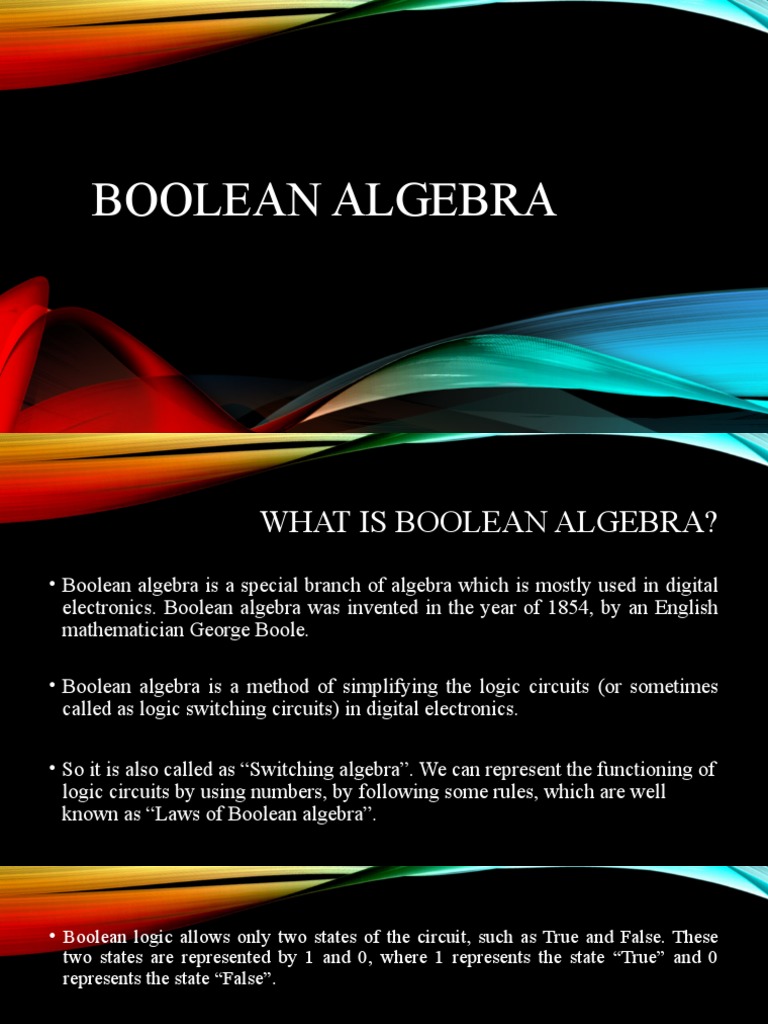

BOOLEAN ALGEBRA

WHAT IS BOOLEAN ALGEBRA?

• Boolean algebra is a special branch of algebra which is mostly used in digital
electronics. Boolean algebra was invented in the year of 1854, by an English
mathematician George Boole.

• Boolean algebra is a method of simplifying the logic circuits (or sometimes

called as logic switching circuits) in digital electronics.

• So it is also called as “Switching algebra”. We can represent the functioning of

logic circuits by using numbers, by following some rules, which are well
known as “Laws of Boolean algebra”.
• Boolean logic allows only two states of the circuit, such as True and False. These
two states are represented by 1 and 0, where 1 represents the state “True” and 0
represents the state “False”.

• The most important thing to remember in Boolean algebra is that it is very much
different than regular mathematical algebra and its methods.

• The logic synthesis of the modern electronic automation tools is efficiently

represented by using Boolean functions known as “Binary Decision Diagrams”.

• Boolean algebra allows only two states of a logic circuit, as True and False or High
and Low or Yes and No or Open and Close or 0 and 1.
 BOOLEAN LOGICAL OPERATIONS
• In general mathematics, we represent the mathematical operations between algebraic
variables by using mathematical operators like +, -, *, /. Similarly, in Boolean algebra, we
represent the Boolean operations by using logical operators like AND, OR, NOT operations.

• The basic Boolean arithmetic operations are of 3 types. They are AND operation, OR
operation and NOT operation. Always, we represent the Boolean operation in capital letters.

• Representing the operations in lower case letters is a wrong way.

 BOOLEAN EXPRESSIONS
• These are similar to that of the mathematical expression. The Boolean expressions are
formed by combining the logical variables by using the logical operators. For example

X+Y
X + Y + X Z’
X’ + Y’
 COMPLEMENT (NOT FUNCTION)
• Complement means ‘The reversal or inverse or opposite value’. Boolean algebra supports
the complementation law. For example, if the variable is 1, then its complement will be 0.

• Similarly, if the variable is 0, then its complement will be 1. The complement variable is
represented by a ‘bar’ on the variable.

• The complement operation is also known as NOT operation. NOT gate performs the
Boolean complement operation.
If X = 1, then X ̅ = 0
If X = 0, then X ̅ = 1
• The complemented output X ̅ can be read as X – bar or X – not. We also represent the
complimented variable by a ‘prime’ symbol (’) like X’.

• The logic symbol for the NOT gate is shown below

 ADDITION (OR FUNCTION)
• OR functioning means the Boolean addition of binary numbers. It produces the sum of the
two binary numbers such as
0+0=0
0+1=1
1+0=1
1 + 1 =1

• The important thing to remember in Boolean algebra is that there is no direct mechanism for
adding the negative numbers. This means there is no possibility for the direct subtraction in
Boolean algebra. Subtraction is nothing but the “Compounded Addition”. For example, 4 – 2
is same as the 4 + (-2).
• Boolean OR operation is explained by using the OR gate and parallel switch contacts.
 MULTIPLICATION (AND
FUNCTION)
• AND functioning means the Boolean multiplication of binary numbers. It produces the
product of the two binary numbers such as
0.0=0
0.1=0
1.0=0
1.1=1

• It is an important thing to remember in Boolean algebra is that there is no direct mechanism

for the division of two numbers. Division is nothing but the “Compounded multiplication”.
• Boolean AND operation is explained by using the AND gate and series switch contacts.
 POSTULATES OF BOOLEAN
ALGEBRA
• There are some basic laws and rules that the Boolean algebraic system must follow. They are
known as “Laws of Boolean algebra”.

• Properties of 1 and 0
0+X=X
1+X=1
0.X=0
1.X=X
• Identity law
X+0=X
X.1=X
• Idompotent Law
X+X=X
X.X=X
• Dominance Laws or Annulment Law
X.0 = 0
X+1=1
• Complementary Law
X + X’ = 1
X . X’ = 0
• Commutative Law
X+Y=Y+X
X.Y=Y.X
• Distributive Law
X. (Y + Z) = X.Y + X.Z
X + (Y.Z) = (X + Y).(X + Z)
• Associative Law
X + (Y + Z) = (X + Y) + Z (OR Associative)
X .(Y.Z) = (X . Y) Z (AND Associative)
• Absorption Laws
X + X.Y = X (OR Absorptive)
X .(X + Y) = X (AND Absorptive)
• Redundancy Laws
X + X’.Y = X + Y
X.(X’ + Y) = X.Y
• Combining Law
X . Y + X . Y’= X
(X + Y) (X +Y’) = X
• Involution law
(X’)’ = X
• Consensus Laws
X.Y + X’.Z + YZ = X.Y + X’.Z
(X + Y).(X’ + Z).(Y + Z) = (X + Y).(X’ + Z)
 SIMPLIFICATION OF BOOLEAN FUNCTIONS
• By using the Boolean theorems and Boolean laws, we can simplify the Boolean expressions,
by which we can reduce the required number of logic gates to be implemented. We can
simplify the Boolean function by using two methods,
1.The algebraic method – by using identities (Boolean laws).
2.The graphical method – by using Karnaugh Map method

• The K-map method is very easy to simplify a function than using identities. If n is the
number of variables, then the K- map consists of 2n cells and there will be no similar value
for any of the two adjacent rows of columns.
 REFERENCE
https://www.electronicshub.org/boolean-algebra/
