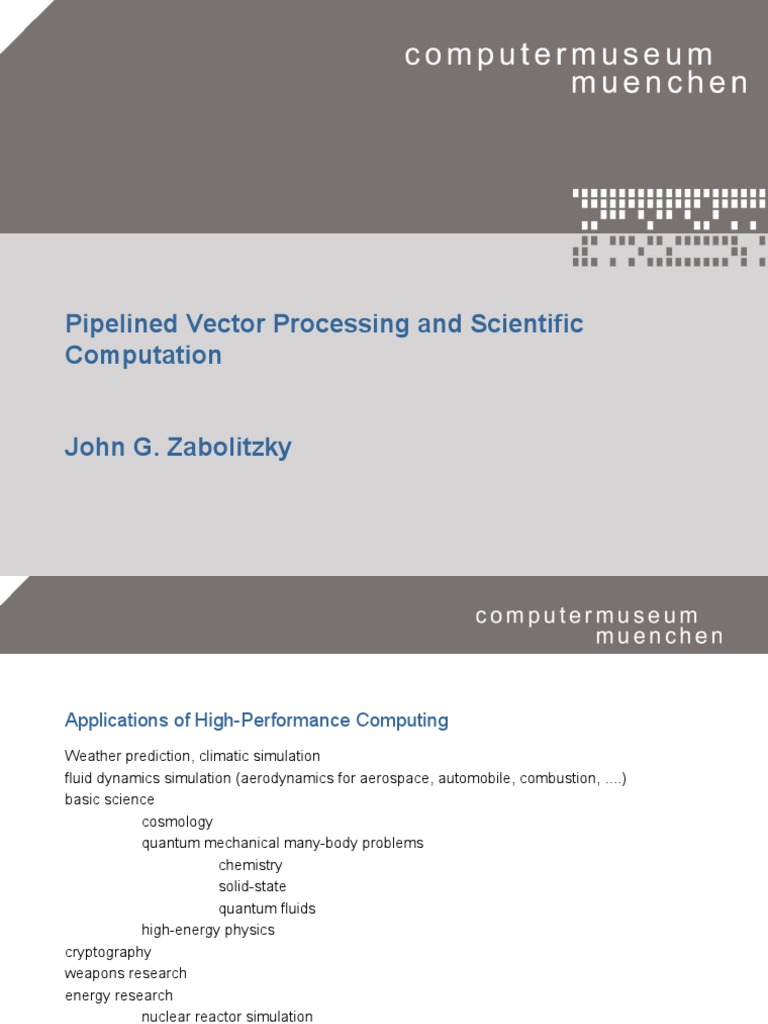

Pipelined Vector Processing and Scientific

Computation

John G. Zabolitzky

1 Eine Zeitreise in die Welt der Computer.

Applications of High-Performance Computing
Weather prediction, climatic simulation
fluid dynamics simulation (aerodynamics for aerospace, automobile, combustion, ....)
basic science
cosmology
quantum mechanical many-body problems
chemistry
solid-state
quantum fluids
high-energy physics
cryptography
weapons research
energy research
nuclear reactor simulation
fusion research
many many more

2 Eine Zeitreise in die Welt der Computer.

Terminal State of Scalar Computing: CDC 7600, 1968
Maximum RISC performance of 1 operation/cycle achieved
No further improvement possible without change of paradigm
36 MHz => 36 MIPS => 5 MFLOPS real

The CDC 7600 (designed by Seymour Cray) was

the most powerful of all computers from 1968 to
1976 when the Cray-1 achieved > 10 times its
performance

3 Eine Zeitreise in die Welt der Computer.

 Pipelined Scalar Execution

time ====>
instruction 1 2 3 4 5 6 7
1 fetch decode execute
2 fetch decode execute
3 fetch decode execute
4 fetch decode execute
5 fetch decode execute
6 fetch decode
7 fetch
Pipelined execution on parallel functional units
4 Eine Zeitreise in die Welt der Computer.
5 Eine Zeitreise in die Welt der Computer.
Scalar Code Example

DO i=1,100 a(i)=b(i)*c(i)
load b, inc addesss
load c, inc address
multiply
store a, inc address
decrement count, loop?
5 instructions = cycles (optimum) for one multiply
pipelined multiply: could start one multiply each and every cycle => only 20%
efficient use
expensive multiplier sits idle most of the time

6 Eine Zeitreise in die Welt der Computer.

Architectural Alternatives
* Pipelined Scalar (RISC) as outlined before

* Pipelined Vector (this presentation further down)

* SIMD (Single Instruction Multiple Data) parallel arithmetic (e.g., ILLIAC IV)
too expensive, inefficient: larger number of lightly used multipliers

* Superscalar = multiple issue in one cycle

all modern single-chip CPUs (Intel to TI); keep all functions busy

* VLIW (Very Long Instruction Word) = Variant of Superscalar

* MIMD (Multiple Instruction Multiple Data) true parallel streams, e.g. Cray T3E, IBM
Blue Gene, IBM Cell: may be superimposed on top of ANY CPU architecture

7 Eine Zeitreise in die Welt der Computer.

Vector Computation

Scientific codes have high percentage in looping over simple data structures

DO i=1,100 a(i) = b*c(i) + d(i)

simple logical structure ==>

set up such that one multiply/cycle

one instruction for entire loop

MFLOP rate = cycle rate or multiple thereof

specialized for scientific/engineering tasks

8 Eine Zeitreise in die Welt der Computer.

Vector Pipeline c(i)=a(i)*b(i)
fetch a(i++)
multip. 1 multip. 2
fetch b(i++)
i=1
2 1
3 2
4 3
5 4
6 5
7 6
8 7
Inventor: Henry Ford
9 Eine Zeitreise in die Welt der Computer.
multip. 3 multip. 4 store c(i++)
time
|
|
1 |
2 1 |
3 2 1 V
4 3 2 1
5 4 3 2
6 5 4 3
Need to Vectorize; some automatic, high quality requires hand-optimization

Naive scalar code for matrix multiply

» s=0.0
» do j=1,n
» s=s+a(i,j)*b(j,k)
Recursive on s => adder pipeline blocked
vector code for matrix multiply
» do i=1,n
» c(i,k) = c(i,k) + a(i,j)*b(j,k)
Independent vector elements, but 1.5x bandwidth
Frequently good idea: exchange inner/outer loop

10 Eine Zeitreise in die Welt der Computer.

First Vector Computers

Control Data Corporation (CDC) STAR-100 [STring ARray 100 MFLOPS]

memory-to-memory architecture
therefore long startup times (~n00 cycles)
very slow scalar unit (~2 MFLOPS)
overall disappointing performance
contracted 1967, announced 1972, delivered 1974
total of 4 machines, 2 Lawrence Livermore Lab
Thornton (CDC) and Fernbach (LLL) loose their jobs

11 Eine Zeitreise in die Welt der Computer.

 CDC STAR-100

Photograph courtesy of
Charles Babbage
Institute, University of
Minnesota, Minneapolis

12 Eine Zeitreise in die Welt der Computer.

Texas Instruments ASC

Advanced Scientific Computer, early 1970s

architecturally similar to CDC STAR-100

7 units sold

TI dropped out of mainframe computer manufacturing after this machine

13 Eine Zeitreise in die Welt der Computer.

Vector Performance I

MFLOP rate (MFLOPS) as function of vector length n

scalar: ~constant (only some loop overhead, then n * loop time)
vector: (n = length of vector)
# cycles = startup + n / nflop_per_cycle
rate/clock = #ops / #cycles ~ n / (startup + n)
half rate at vectorlength n ~ startup
full rate needs n >> startup => “Long Vector Machine”

14 Eine Zeitreise in die Welt der Computer.

 Performance vs. Startup, Length

4
3.5
3 s10_r1
ops/clock

2.5 s100_r1
2 s10_r4
1.5 s100_r4
1 scalar_0.2
0.5
0
0 100 200 300 400 500
vector length
15 Eine Zeitreise in die Welt der Computer.
Vector Performance II

Vector/Scalar Subsections

ALL codes have some scalar (non-vectorizable) sections

total time = (scalar fraction)/(scalar rate) + (vector fraction)/(vector rate)

example: 10% / 1 MFLOPS + 90% / 100 MFLOPS =

100 / (0.1 * 100 + 0.9 * 1) = 9.2 MFLOPS !!!

16 Eine Zeitreise in die Welt der Computer.

 Vector Version of Amdahl’s Law

1.2

1
r5
0.8
performance

r10
0.6 r20
r50
0.4
r100
0.2

0
0 0.2 0.4 0.6 0.8 1 1.2

17 scalar fraction Eine Zeitreise in die Welt der Computer.

Vector Computer Design Guide

Must have SHORT vector startup => can work with short vectors

Must have FASTEST POSSIBLE scalar unit => can afford scalar sections

irregular data structures ==> need gather, scatter, merge operations (and a few
more)
x(i) = a(index(i)) * b(i)
y(index(i)) = c(i) + d(i)
where (a(i) > b(i)) c(i) = d(i)

18 Eine Zeitreise in die Welt der Computer.

Cray Research, Inc.

Founded by Seymour Cray (father of CDC 6600/7600) in 1972 (STAR-100 known)

first Cray-1 delivered in 1976 to Los Alamos Scientific Laboratory (LASL)

8 vector registers of 64 elements each

Vector load/store instructions

fastest scalar computer of its time

160 MFLOPS peak rate ( 2 ops/cycle @ 80 MHz), few cycles startup

19 Eine Zeitreise in die Welt der Computer.

 Seymour Cray

Cray-1
1976
Single Processor
80 MFLOPS
1 Mword = 8 Mbyte

Photograph courtesy of
Charles Babbage
Institute, University of
Minnesota,
Minneapolis

20 Eine Zeitreise in die Welt der Computer.

Block Diagram Cray YMP-EL, only one of four identical CPUs shown, simplified

8 vector registers, 64 elements, 64 bit 4 vector execution units, 33 MHz

Shared

Vi
Large working set:
Main - 8 vector registers, 64
8 scalar registers, 64 bit scalar functional units
words
Memory - 8 scalar registers
64 word
Tjk
- 8 address registers
Buffer memory Si
128 MW
- large instruction buffer

64 bit 8 address registers, 32 bit address functional units

Performance Features:
64 word
1 Gbyte Bjk
- vector processing: one
4 ports/
proc
buffer memory
Ai
operation affects 64
4x 4 x
vector elements, streamed
33 MHz
= 8 instruction buffers, 32 words each
through functional unit
4.2 Gby
/sec Y1 channel - small vector startup
instruction issue 40 Mbyte/sec
time
- chaining between vector
48
shared 21 ops
Eine Zeitreise in die Welt der Computer.
registers
IOS
- large, fast
Cray Research, Inc. cnt’d

1982 Cray-XMP (Steve Chen improvements, up to 4 processors, shared memory)

1985 Cray-2, 256 Mword memory, 4 processors, immersion cooled
1988 Cray-YMP (last Chen machine)
1991 Cray C90 (up to 16 vector CPUs, shared memory)
1993 Cray T3D (massively parallel Alpha)
one and only Cray-3 delivered to NCAR (Cray Comp Corp)
1994 Cray J90 (up to 32 vector CPUs, shared memory), air cooled
1995 Cray T3E (most successful MPP machine), Cray T90 (parallel vector, immersion cooled)

Cray-4 abandoned (Cray Computer Corporation ch. 11)

1996 acquired by Silicon Graphics
1998 Cray SV1 (parallel vector, air cooled)
1999 acquired by Teradata => Cray, Inc.
2002 Cray X1, parallel vector, immersion spray cooled
2004 Cray X1e, enhanced version of X1
Cray XT3, AMD based 3D Torus massively parallel machine
22 Eine Zeitreise in die Welt der Computer.
CDC Cyber 200 Family

- 1980, enhanced version of STAR-100

- reduced startup time, ~ 50 cycles
- fast scalar unit
- rich instruction repertoire
- still memory-to-memory, 400 MFLOPS peak
- Cyber 203, Cyber 205, ETA-10 [10 GFLOPS]
- vector FORTRAN language extensions provided
- terminated in 1989 since unprofitable
- around 40 Cyber 200, 34 ETA-10 sold

23 Eine Zeitreise in die Welt der Computer.

 Minnesota Supercomputer
Center
Minneapolis, 1986
Cray-2, CDC Cyber 205

24 Eine Zeitreise in die Welt der Computer.

NEC Japan

- 1983 SX-1 single processor vector 650 MFLOPS

- 1985 SX-2 single processor vector 1300 MFLOPS
- 1990 SX-3 four processors at ~ 5 GFLOPS each, 4 Gbyte = 0.5 Gword memory
- 1995 SX-4 32 processors at ~ 2 GFLOPS each (CMOS; all previous ECL)
- 1998 SX-5 upto 512 processors 8 GFLOPS each
- 2002 SX-6 upto 1024 processors 8 GFLOPS each
- 2004 SX-7 upto 2048 processors 8.8 GFLOPS each
- 2004 SX-8 upto 4096 processors 16 GFLOPS each

25 Eine Zeitreise in die Welt der Computer.

 IBM - Sony - Toshiba CELL processor

- 8 vector CPUs + GPU on single chip

- 256 kbyte = 32 kword local storage
(very small !!)
- 12 word/cycle internal interconnect
= 386 Gbyte/sec
- 24 Gbyte/sec = 3 Gword/sec main
memory
- 76 Gbyte/sec = 9.5 Gword/sec
communication
- @ 4 GHz clock 256 GFLOPS (32 bit)
peak
- 26
GFLOPS (64 bit) peak
- max 4.5 Gbyte addressable, 512 Mbyte
implemented
26 Eine Zeitreise in die Welt der Computer.
- system interconnect ?
 IBM - Sony - Toshiba CELL processor

- 90 nm SOI, 8 layers Cu interconnect

- 234 M Transistors
- 221 mm² die size

- significant potential in future

revisions
- but: 80W @ 1.1V 4.0 GHz is too much
- 180W @ 1.4V 5.6 GHz is much too
much
- work needed in power reduction
- larger internal memory
- 64 bit arithmetic improved

27 Eine Zeitreise in die Welt der Computer.

 IBM - Sony - Toshiba CELL processor

From: S. Williams et. al., Lawrence

Berkeley Laboratory
- single Cell chip performance
- compared with Cray X1E single vector
processor and several commodity
microprocessors (AMD, Intel)
- already current version shows
impressive speedup, at cost of
significant programming complexity
(explicit storage moves as opposed to
caching)
- slightly enhanced Cell (Cell+)
simulation provides very significant
additional speedup (more efficient DP)
- current version insufficient for
major impact
28 Eine Zeitreise in die Welt der Computer.
- future versions may change that,
great potential
