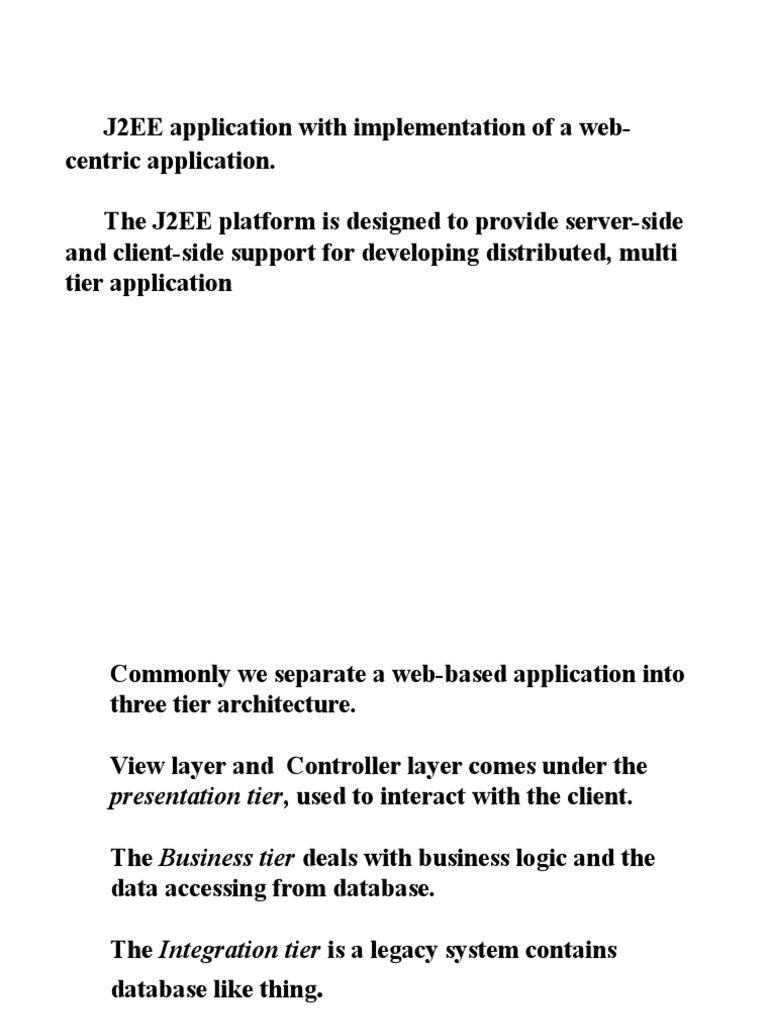

    J2EE application with implementation of a web-


    centric application.

    The J2EE platform is designed to provide server-side


    and client-side support for developing distributed, multi
    tier application
    Commonly we separate a web-based application into
    three tier architecture.

    View layer and Controller layer comes under the


    presentation tier, used to interact with the client.

    The Business tier deals with business logic and the


    data accessing from database.

    The Integration tier is a legacy system contains


    database like thing.
    1. Model-View-Controller (MVC)

    Model-View-Controller architecture is used for interactive web-applications.


    This model minimizes the coupling between business logic and data
    presentation to web user. This model divides the web based application into
    three layers:
    2. Model: Model domain contains the business logics and functions that
    manipulate the business data. It provides updated information to view
    domain and also gives response to query. And the controller can access the
    functionality which is encapsulated in the model.

    2. View: View is responsible for presentation aspect of application according


    to the model data and also responsible to forward query response to the
    controller.

    3. Controller: Controller accepts and intercepts user requests and controls the
    business objects to fulfill these requests. An application has one controller for
    related functionality. Controller can also be depends on the type of clients.
    MAPPING MVC ARCHITECTURE TO J2EE

    CLIENT TIER USER INTERFACE HTML/JAVA /APPLET

    WEB TIER SERVER SIDE PRESENTATION LAOGIC SERVLET/JSP


    HANDLE MAINTAIN STATE BUILD
    PAGES

    EJB TIER BUSINESS LOGIC EJB


    BUSINESS OBJECT AND THEIR RULES

    DATA TIER DATA RDMS DIRECTORY


    PERSISTENCE BUSINESS OBJECTS
    ADVANTAGES OF MVC
    1)Support multiple user: there can be different view rendering with
    out changing the controller or model implementation

    2)Replacement of an MVC component with out rewriting the entire


    application

    3)Allows for the selection of the best solution for each MVC
    component
    SIMPLE APPLICATION IMPLEMENTING JAVA SERVLETS AND
    JAVASERVER PAGES FROM JAVA EE:

    Model
    The model is a collection of Java classes that form a software application intended
    to store, and optionally separate, data. A single front end class that can communicate
    with any user interface (for example: a console, a graphical user interface, or a
    web application).

    View
    The view is represented by a JavaServer Page, with data being transported to the
    page in the HttpServletRequest or HttpSession.

    Controller
    The Controller servlet communicates with the front end of the model and loads the
    HttpServletRequest or HttpSession with appropriate data, before forwarding the
    HttpServletRequest and Response to the JSP using a RequestDispatcher.
    N-Tier Architectures

    • Data Tier – manages the data

    • Presentation Tier – controls what a user sees and can do with


    the system
    – We will build several applications within this tier later on

    • Business Tier (middle tier) – controls everything else (the


    business logic)
    BUSINESS TIER

    • The business tier contains the core functionality of our


    system
    – Business rules

    – Work flows

    • It provides controlled access to data

    • It enables validation and processing of data input


    Business Tier

    • The business tier will be defined using


    Classes

    • The collection (library) of classes


    representing our business tier will be
    deployed as a component
    Components

    • Our component will consist of a collection


    of classes developed to fulfill a certain specification

    • It can be re-used

    • It should encapsulate all its behavior

    • It must provide an interface to allow it to


    be accessed by a client (could even be another component)
    DAOs
    • Data Access Objects provide abstract interfaces
    to data sources

    • DAOs provide a clear separation between our


    business and persistence logic

    • We want to write robust code and achieve lowcoupling


    between our business classes and the
    database
    – No need to clutter our business logic with SQL code
    – No need to rewrite all our business classes if there is
    a change in the database
