Embedded Systems With 8051 Micro-Controller Using Embedded C

EDUCATION

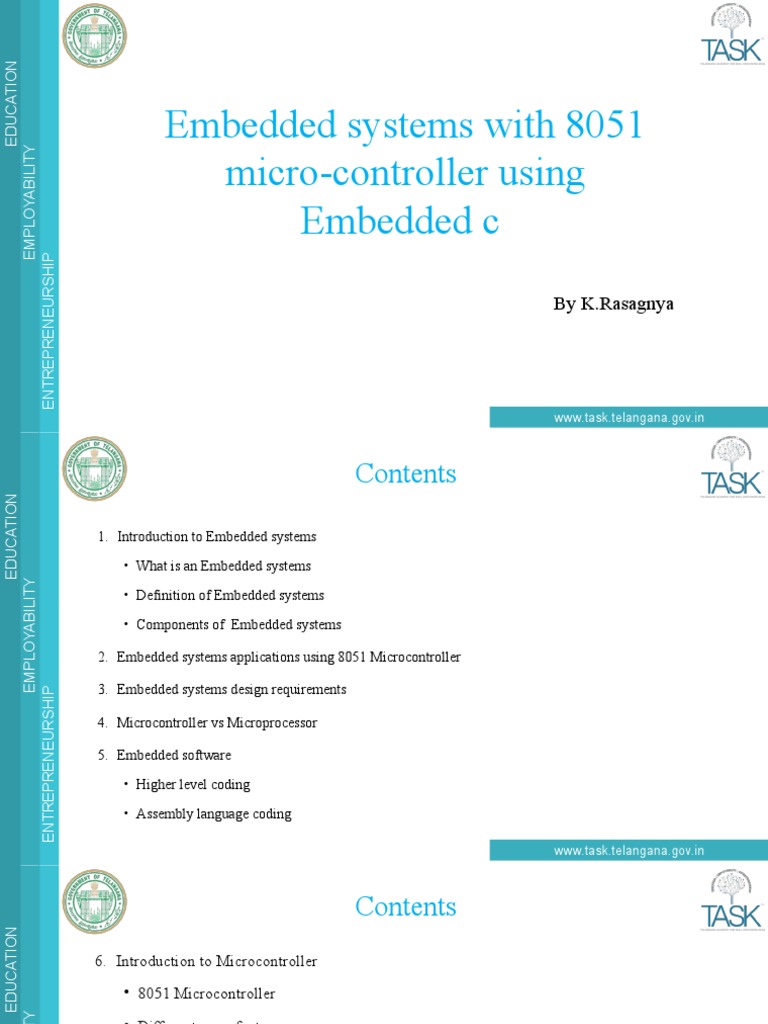

Embedded systems with 8051

EMPLOYABILITY
micro-controller using
Embedded c
ENTREPRENEURSHIP
By K.Rasagnya
www.task.telangana.gov.in
Contents
EDUCATION
1. Introduction to Embedded systems

• What is an Embedded systems
EMPLOYABILITY
• Definition of Embedded systems
• Components of Embedded systems
2. Embedded systems applications using 8051 Microcontroller
3. Embedded systems design requirements

ENTREPRENEURSHIP
4. Microcontroller vs Microprocessor
5. Embedded software
• Higher level coding
• Assembly language coding
Contents
EDUCATION
6. Introduction to Microcontroller
• 8051 Microcontroller
EMPLOYABILITY
• Different manufacturers
• Choosing a Microcontroller
• Block diagram and Pin description

ENTREPRENEURSHIP
7. C programming for Microcontroller
8. Keil microvision
• Uses
• Installation of Keil C51 compiler
• Steps for first project creation on Keil

Contents
EDUCATION
9. Installation of Proteus ISIS
10. Concepts and project on LED

EMPLOYABILITY
• LED blink
• 1 LED blink
• LED alternate on off

ENTREPRENEURSHIP
• LED blinking (4 LED ON & 4 LED OFF )
11. Switch interfacing with 8051
12. Relay interfacing with 8051
13. DC motor interfacing with 8051

Contents
EDUCATION
14. LCD interfacing with 8051
15. Stepper motor with 8051

EMPLOYABILITY
16. 7 segment display with 8051
17. Timers
ENTREPRENEURSHIP
Introduction to Embedded systems
EDUCATION
• A system is a group of units, joined together to work in a specific routine and perform
some fixed operation.
EMPLOYABILITY
• An embedded system is that system which has computer hardware with software
embedded in it.
• It has a programmable element inside it, which is developed to perform one dedicated
ENTREPRENEURSHIP
task (EX: MP3 player, which can be used for playing audio).
• An embedded system product is controlled by an internal microprocessor

or microcontroller instead of some external control unit.
Components of Embedded System
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Components of Embedded System
EDUCATION
• An Embedded System consists of four main components. They are the Processor
EMPLOYABILITY
(Microprocessor or Microcontroller), Memory (RAM and ROM), Peripherals (Input and

Output) and Software (main program).
Processor :
ENTREPRENEURSHIP
• The heart of an Embedded System is the Processor.
• Based on the functionality of the system, the processor can be anything like a General Purpose
Processor, a single purpose processor, an Application Specific Processor, a microcontroller or
an FPGA.
EDUCATION
Memory :
• Memory is another important part of an embedded system.

EMPLOYABILITY
• It is divided in to RAM and ROM. Memory in an Embedded System (ROM to be specific) stores the
main program and RAM stores the program variables and temporary data.
Peripherals :
ENTREPRENEURSHIP
• In order to communicate with the outside world or control the external devices, an Embedded System
must have Input and Output Peripherals.
• Some of these peripherals include Input / Output Ports, Communication Interfaces, Timers and
Counters, etc.
EDUCATION
Software :
• All the hardware work according to the software (main program) written. Software
EMPLOYABILITY
part of an Embedded System includes initialization of the system, controlling inputs

and outputs, error handling etc.
 Many Embedded Systems, usually small to medium scaled systems, generally

ENTREPRENEURSHIP
consists of a Microcontroller as the main processor. With the help of a

Microcontroller, the processor, memory and few peripherals will be integrated in to a
single device.
Applications of Embedded systems
EDUCATION
• Even with the development of many advanced and superior Microcontrollers, 8051
EMPLOYABILITY
Microcontroller is still being used in many embedded system and applications.
1. Communication :
• Mobile Phones
ENTREPRENEURSHIP
• Satellite systems
• Telephone systems
• ATM machines
EDUCATION
2. Automotive : 3. Consumer Electronics :

EMPLOYABILITY
• Automatic Breaking system • Washing machines
• Noise cancellation • Games and toys ,
• Locator • LCD TV, DVD, Music systems

ENTREPRENEURSHIP
• Sensors • Clocks
• Microwave oven
• Exercise Equipment's
EDUCATION
4. Medical : 5. Industrial :
EMPLOYABILITY
• Monitors for detection of • Traffic control systems

Heart system ( ECG ) • Robot systems
Kidney • Radio remote controls
ENTREPRENEURSHIP
Temperature • Bar code reader and writer

• Blood analysis
• Automatic sprinklers to control
• Drug delivery the wetness of the soil
• Cancer treatments
• Dialysis machine
EDUCATION
6. Defense : 7. Automobiles :
EMPLOYABILITY
• Sonar • Air Bags
• Rader system • Engine Control
• Missile guidance systems • Transmission Control

ENTREPRENEURSHIP
• Automated firing weapons • Temperature Control
• Navigation systems • Keyless Entry
• Wireless control of weapons • Door control unit
EDUCATION
Embedded systems Design Requirement

EMPLOYABILITY
• Selection of central processing unit
• Selection of Embedded Operating Systems

ENTREPRENEURSHIP
• Selection of Peripherals ( depends on application )
Microcontroller Vs Microprocessor
EDUCATION
• Microprocessor :
1. Microprocessor acts as a heart of computer system.
EMPLOYABILITY
2. CPU is stand-alone. It is a processor in which memory(RAM &ROM) and I/O component is connected
externally.
3. Designer can decide the amount of RAM, ROM & I/O ports.
4. A processor is installed or mounted on Mother Board and Microprocessor on its own does not do anything.
ENTREPRENEURSHIP
5. In order to function this Microprocessor, we need a Mother Board with number of different chips on board.
6. Expensive and mainly used in personal computers.
Microcontroller Vs Microprocessor
EDUCATION
• Microcontroller :
1. Microcontroller acts as a heart of embedded system.
EMPLOYABILITY
2. A Microcontroller is a single chip system( on a single integrated circuit) which has many
other components on it ( peripherals embedded on to a single chip ).
3. Fixed amount of on chip ROM, RAM, I/O ports .

ENTREPRENEURSHIP
4. It is a controlling device in which memory and I/O component is present internally. Due this
the circuit will be small.
5. Cost of the entire system will be less.
6. Used mainly in Washing machines, MP3 players etc.
Embedded Software
EDUCATION
• Embedded Software is the software that controls an embedded system.

EMPLOYABILITY
• All embedded systems need some software for their functioning.
• It is the software which we write for the chosen microcontroller.
• Embedded software or program is loaded in the microcontroller which then takes

ENTREPRENEURSHIP
care of all the operations that are running.
• It is generally 2 types
1. Higher level coding
2. Assembly language coding
Embedded Software
EDUCATION
• Assembly language coding :

EMPLOYABILITY
1. Every microcontroller manufacturer gives us some instruction sets.
2. The program written using that instructions is called Assembly language

programming.
ENTREPRENEURSHIP
3. The issue is it takes lot of time to study the entire assembly instruction set of a
particular microcontroller.
4. No portability and debugging is difficult.
5. Good for small level projects
Embedded Software
EDUCATION
• Higher level language :

EMPLOYABILITY
1. In higher level language, program is written using higher level languages such as c, c+
+, java etc.
2. While there are many embedded languages available, C is most popular of them all.
ENTREPRENEURSHIP
3. It is portable and Good efficiency
4. Compilers available for all microcontroller.
5. Good for small to large projects.
Microcontroller
EDUCATION
• Microcontroller or microprocessor is the very important part of embedded system. So

EMPLOYABILITY
the thing that you should know is your microcontroller.
• Microcontroller is a single chip system, which has all the peripherals on that chip. It
has RAM, ROM and some other peripherals such as timers, counters etc.
ENTREPRENEURSHIP
• A microcontroller will act as a CPU of your embedded system.
• Most commonly used microcontrollers are Arduino, PIC Microcontroller or 8051

Microcontroller etc.
8051 Microcontroller
EDUCATION
• The 8051 Microcontroller is one of the most popular and most commonly used
microcontrollers in various fields like embedded systems, consumer electronics,
EMPLOYABILITY
automobiles, etc.
• 8051 is the microcontroller architecture developed by Intel in the year 1980.
• 8051 Microcontroller has many features like Serial Communication, Timers, Interrupts, etc.
ENTREPRENEURSHIP
• Because of their low power consumption, smaller size and simple architecture, 8051 IP
Cores (Intellectual Property Cores) are used in FPGAs (Field Programmable Gate Array)
and SoCs (System on Chip) instead of Advanced ARM Architecture based MCUs.
EDUCATION
Different manufacturers of Microcontroller

EMPLOYABILITY
• Atmel • Infineon
• Renesas Semiconductors • Siemens
• Freescale Semiconductors • Silicon Labs

ENTREPRENEURSHIP
• Phillips • NXP
• ST Microelectronics
Choosing a Microcontroller
EDUCATION
• Depending upon the application, first choose a microcontroller. It depends on the hardware that you
want to connect with. Also the software requirements should be kept in kind while choosing
EMPLOYABILITY
microcontroller.
1. Speed grade in MHz
2. Amount of RAM and ROM

ENTREPRENEURSHIP
3. Task at hand ( based on it we choose (8/16/32 bit )
4. Number of I/O pins ( depending upon number of peripherals we have to interface ).
5. How easy to upgrade to high performance or low power version.
6. Power consumption.
Microcontroller Architecture
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Microcontroller pin diagram
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Important features of 8051
EDUCATION
1. 4K bytes ROM
EMPLOYABILITY
2. 128 bytes RAM
3. Four 8 bit I/O ports (P0, P1, P2, P3). All I/O ports are bidirectional.
4. Serial ports with 2 lines (TXD & RXD)

ENTREPRENEURSHIP
5. Two 16 bit timers T0, T1 (can be used as timers as well as counters)
6. There is a CPU along with interrupts control unit( INT0, INT1) and an on chip
oscillator (Although the oscillator is on chip, we need to connect crystal externally).
Important features of 8051
EDUCATION
7. RST (reset) needs a positive signal whenever the microcontroller gets powered ON that’s
why it is a power-on reset. So, on applying a high pulse to RST, the microcontroller will
EMPLOYABILITY
reset and all values in register will be lost.
8. EA (External Access and initially it is active low). For 8051, EA pin is connected to Vcc.
9. PSEN ( Program Store Enable) is an output pin and used for external ROM. It is used
ENTREPRENEURSHIP
when you are download the program externally.
10. ALE ( Address Latch Enable) is an output pin and is active high. It is used for
demultiplexing the address and data.
8051 Microcontroller Basic Circuit
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Proteus ISIS
EDUCATION
• We have to design a lot of electronics or embedded circuits and its always a

EMPLOYABILITY
best approach to simulate these circuits first on some simulation software

before assembling them on actual hardware.
• Proteus is a simulation and design software tool developed by Labcenter

ENTREPRENEURSHIP
Electronics for Electrical and Electronics circuit design.
• Proteus software is very easy for simulation.
Proteus ISIS
EDUCATION
• Proteus ISIS is the software used to draw schematics and simulate the
EMPLOYABILITY
circuits in real time.
• It has wide range of components in its library. It has discrete components

like resistors, capacitors, inductors, transformers, digital and analog
ENTREPRENEURSHIP
Integrated circuits, semi-conductor switches, relays, microcontrollers,

processors, motors etc.
Installation of Proteus ISIS
EDUCATION
• Download the software from given below link

EMPLOYABILITY
https://drive.google.com/u/0/uc?id=14ERAQzsyKfj6eJUtcmXHZRN3exYGVBSn&export=download
• Go to downloads and extract proteus software in any drive (E drive).
• Go to E drive and open proteus folder, then right click on pro-setup77 and click on
ENTREPRENEURSHIP
Run as administrator.
• It will ask you to install, click on yes, next click on ok, click on next.
EDUCATION
• Next it will ask for licence key.

EMPLOYABILITY
• Select locally installed licence key and click on next.
• It will show “no license key is selected”, click on next and select Browse for
ENTREPRENEURSHIP
Key File
• Go to drive ( E drive ) where proteus software is present open it then open crack
and select the license key and click on open .
EDUCATION
• Click on install next click on yes and then close that window.
EMPLOYABILITY
• Click on next(see destination properly), next, next, next.
• It will take some time to install and then click on finish.

ENTREPRENEURSHIP
• Go to drive(E drive), open proteus software folder and open crack.
• You will have LXK proteus 7.7 SP2 ENG v1.0.0 , right click on it and select
Run as administrator.
EDUCATION
• It will show the license for proteus, click on browse and select computer, next
EMPLOYABILITY
select c drive, next select Program Files(x86), next select Labcenter

electronics, next select Proteus 7 Professional and click on ok and click on
update.
ENTREPRENEURSHIP
• You will get “update installed successfully”, click on ok .
• It is done and ready to use.
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Proteus ISIS
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP Proteus ISIS
Keil microvision
EDUCATION
• It is the most popular software used for programming of 8051.

EMPLOYABILITY
1. Freeware available on keil website.
2. Easy to use
3. Provides Real time simulation.

ENTREPRENEURSHIP
4. Easy to debug
5. Supports external libraries
Installation of Keil microvision
EDUCATION
• Open http://www.keil.com/c51/
EMPLOYABILITY
• Go to download, then click on Product Downloads.
• Next click on c51
• It will show a form, fill that form ( device used is at89c51 ).

ENTREPRENEURSHIP
• After filling, click on submit and you will have .EXE, click on it, then click on
start download.
• It will download the file and click on open folder.
Installation of Keil microvision
EDUCATION
• Then double click on first file ( C55v939.exe ) .

EMPLOYABILITY
• Click on next, we have to give our information and click on next.
• It will take a minute to finish and select the given 2 options and click on finish.
• Search Keil microvision and open it.

ENTREPRENEURSHIP
• Go to project and close project.
• To start a new project, go to project and select new project.
C Programming for Microcontroller
EDUCATION
• The ‘c’ programming language was developed for UNIX operating system, by
EMPLOYABILITY
Dennis Ritchie in 1971.
• C is a middle-level computer language it has efficiency to create application and

machine oriented programs.
ENTREPRENEURSHIP
• C code is easy to understand.
• Strong library support in c ( stdio.h ) for embedded c we use reg51.h
• Easily switch on other processor/controller.
Example :
EDUCATION
if syntax : int a, b ;
Scanf(“%d%d”, &a, &b)
EMPLOYABILITY
if(condition) if(a>b)
{ {
do this ; printf(“a is greater”);
} }
ENTREPRENEURSHIP
if(b>a)
{
printf(“b is greater”);
}
Example :
EDUCATION
if else syntax : int a, b ;

Scanf(“%d%d”, &a, &b)
EMPLOYABILITY
if(condition) if(a>b)
{ {
do this ; printf(“a is greater”);
} }
ENTREPRENEURSHIP
else else
{ {
do this ; printf(“b is greater”);
} }
Example :
EDUCATION
While loop syntax : main()

{
EMPLOYABILITY
while(condition) int a ;
{ a=1;
do this ; while(a<=10)
increment ; {
ENTREPRENEURSHIP
} printf(“hello”);
a++;
}
}
Example :
EDUCATION
for loop syntax : main()

{
EMPLOYABILITY
for( initial; condition; increment ) int a ;
{ for(a=1;a<=10;a++)
do this ; {
} printf(“hello”);
ENTREPRENEURSHIP
}
}
switch syntax : Example :
EDUCATION
main()
switch( integer expression)
{
{
EMPLOYABILITY
int a=1 ;
case 1 :
switch(a)
Do this ;
case 1 :
case 2 :
printf( “one”) ;
Do this ;
case 2 :
ENTREPRENEURSHIP
default :
printf( “two”) ;
Do this ;
default :
}
printf( “default”) ;
}
EDUCATION
• Infinite loops :
EMPLOYABILITY
For embedded systems, infinite loops are always required for MCU based
applications.
Ex: while(1)
ENTREPRENEURSHIP
Interfacing of LED with 8051 micro-controller
EDUCATION
• Basics of LED :
EMPLOYABILITY
• LED’s are (Light Emitting Diode) components which can emit a specific light.
• It can be RED, GREEN, BLUE or YELLOW.
• LED’s are bidirectional devices and are required to be connected in a specific

ENTREPRENEURSHIP
direction only in a circuit.
• The LED’s are having two leads, they are called as Anode and Cathode.
EDUCATION
• Basics of LED :
EMPLOYABILITY
• In cross sectional view, the bigger substrate is

cathode and the smaller substrate is anode.
• Whenever we are interfacing LED with any

ENTREPRENEURSHIP
microcontroller, connect anode to microcontroller

pin and cathode to resistor then connect other pin
of resistor to ground.
EDUCATION
Applications of Light Emitting Diode :

EMPLOYABILITY
LEDs find applications in various fields, including optical communication, alarm and

security systems, remote-controlled operations, robotics, etc.
• LED is used as a bulb in the homes and industries

ENTREPRENEURSHIP
• The light-emitting diodes are used in motorcycles and cars
• These are used in mobile phones to display the message
• At the traffic light signals led’s are used
EDUCATION
Programs :
EMPLOYABILITY
1. LED Blink
2. Last 4 LED ON and OFF, first 4 LED ON and OFF
3. Alternate LED on and off

ENTREPRENEURSHIP
4. Only 1st LED on and off
EDUCATION
Basic program for LED using delay routine :

#include<reg51.h> void main()
// for 11.0592MHz Crystal {
void delay(unsigned int count) P2 = 0x00;
EMPLOYABILITY
{ while(1)
unsigned int i; {
while(count) P2 = 0xFF;
{ delay(1000);
i = 115; P2 = 0x00;
while(i > 0) delay(1000);
ENTREPRENEURSHIP
i--; }
count--; }
}
}
EDUCATION
• Basic program for 1 LED :

Basic program for 4 LED using delay
routine :
sbit led1 = P2^0;
void main()
void main() {
EMPLOYABILITY
P2 = 0x00;
{ while(1)
P2 = 0x00; {
while(1) P2 = 0xF0;
delay(1000);
{
P2 = 0x0F;
ENTREPRENEURSHIP
led1 = 0; delay(1000);
delay(500); }
led1 = 1; }
delay(500);
}
}
EDUCATION
• Basic program for LED loop(alt on off) :

void main()
{
EMPLOYABILITY
P2 = 0x00;
while(1)
{
P2 = 0xAA;
delay(1000);
ENTREPRENEURSHIP
P2 = 0x55;
delay(1000);
}
}
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Interfacing of switch with 8051 micro-controller
EDUCATION
• Basics of Switch :
• Switch is basically any kind of button.

EMPLOYABILITY
• It has only 2 conditions

• Open
• Close
ENTREPRENEURSHIP
• It is the process of connecting 2 pins together with a

button that is giving user the control to give the input or
not.
EDUCATION
• Basics of Switch :
• One point of Switch is connected to microcontroller and other point of

EMPLOYABILITY
switch is connected to ground or Vcc

ENTREPRENEURSHIP
EDUCATION
Application of Switch :
EMPLOYABILITY
• Switch is a electronic device that is used to make or break an electrical circuit.
• The primary application of switch is to ON-OFF any circuit.
• The different types of switches which are widely used across industries such as
ENTREPRENEURSHIP
Telecommunication, Industry control equipment, Commercial equipment, and

Home appliances.
EDUCATION
Push Button :
EMPLOYABILITY
• Push buttons can be widely seen in calculators, telephones, vending

machines, keypads, kitchen appliances and electronic kits. It is used most
commonly in industrial control panels.
ENTREPRENEURSHIP
• The circuit is powered up with battery. When the push button is pressed,
a current will flow through the LED and LED will glow.
EDUCATION
Push Button :
EMPLOYABILITY
ENTREPRENEURSHIP
EDUCATION
Programs :
EMPLOYABILITY
1. 1 switch and 1 LED
2. 2 switch and 1 LED (sw1 pressed led on, sw2 pressed led off)
3. 2 switch and 1 LED (sw1 sw2 pressed led on)

ENTREPRENEURSHIP
4. 2 switch and 2 LED (sw1 pressed both led on, sw2 pressed both led off)
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Interfacing of relay
EDUCATION
• Basics of Relay :
EMPLOYABILITY
1. It is an electromechanical device that can be used to switch on/off power

circuits (under control of microcontroller) .
2. We need Relay to switch on and off power appliances.

ENTREPRENEURSHIP
3. Because the logic output is only 5v from a microcontroller. So this 5v can

only turn on or off a small circuits. To turn on or off something that takes
large amount of current we need relay.
EDUCATION
• Basics of Relay :
1. The electrical part in relay is coil.

EMPLOYABILITY
2. When the coil is energized it becomes

magnet and the magnet is used to
attract the contact(C & NO will
connect).
ENTREPRENEURSHIP
• C is Common or Vo
3. When the coil is not energized NC & C
• NC is Normally Closed
will connect.
• NO is Normally Open
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
1. By default NC is connected to Vo ( not
EDUCATION
energised /no supply).
2. When supply is given (Vs) to the coil

EMPLOYABILITY
terminals, the electromagnet gets charged

and because of the electric charge in the
coil it gets magnetized.
ENTREPRENEURSHIP
3. Because of this magnetism, the common

• Vs is Relay Switching Voltage (5/9/12/18/24)
point residing on NC gets shifts to NO. • Vg is ground Relay Switching Voltage
• Vo Common terminal
EDUCATION
EMPLOYABILITY
• So the connection between

common and NO can switch on
and off any kind of device .
• In this circuit connect AC load
ENTREPRENEURSHIP
(LAMP) and AC Supply
EDUCATION
• Microcontroller gives only 5V on its output pin.

• But relay requires 12V to turn on.
EMPLOYABILITY
• So at the output of Microcontroller we need to connect a transistor to turn on the relay.

Then relay turn on the device.
• When we logic 1 onto the port(P2.0) , it will turn on the transistor. Transistor will turn
ENTREPRENEURSHIP
on relay coil and it gets magnetized and then common(C) connects to Normally
Opened( NO ).
• Resistor(330 to 1K ohm) in series with transistor used to have safe on and off of
transistor.
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
ULN2803
EDUCATION
EMPLOYABILITY
Power = +12V
Microcontroller port 2 relays

ENTREPRENEURSHIP
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Interfacing of DC motor using L293D with
EDUCATION
8051 micro-controller
• DC motor :
EMPLOYABILITY
1. It is a electrical machines that convert direct current electrical power into

mechanical power.
2. The function of DC motor is to accept DC voltage on its pins and provide

ENTREPRENEURSHIP
movement or motion.
EDUCATION
• DC motor connection :
EMPLOYABILITY
ENTREPRENEURSHIP
EDUCATION
• Components for a DC motor circuit (Proteus):

EMPLOYABILITY
1. Battery DC voltage Source(12v)
2. MOTOR (Active simple DC motor model)
3. SW-SPST
ENTREPRENEURSHIP
EDUCATION
• Simple DC motor circuit:

EMPLOYABILITY
ENTREPRENEURSHIP
DC Motor Clockwise Rotation DC Motor Anti Clockwise Rotation
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
• H Bridge :
EDUCATION
Basics of L293D :
• It is capable of driving two DC motors at the same time

EMPLOYABILITY
(clockwise or anticlockwise).
• It takes a very low voltage signal from microcontroller.

ENTREPRENEURSHIP
• It is based on H bridge driver circuits.
• It needs no external components.
Interfacing diagram of DC Motor
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Interfacing of LCD with 8051
micro-controller
EDUCATION
• Basics of LCD :
EMPLOYABILITY
1. LCD( Liquid Crystal Display ) screen is an electronic display module and is

used in wide range of applications.
2. A 16X2 LCD (text LCD) display is popular.

ENTREPRENEURSHIP
3. A 16X2 LCD means it can display 16 characters per line and there are 2 such
lines. So for 16X2 LCD, it can display 32 characters at a time.
4. In this LCD each character is displayed in 5X7 pixel matrix.
EDUCATION
5. This LCD has 2 registers, namely

• Command
EMPLOYABILITY
• Data
6. The command register stores the command instructions given to the LCD.
ENTREPRENEURSHIP
7. The data register stores the data to be displayed on the LCD.
8. 16X2 LCD is the most widely used LCD and it is very popular because of its
simplicity.
EDUCATION
Applications of LCD :
• Mobile Phones
EMPLOYABILITY
• Billing machines
• Calculators
• TV set
ENTREPRENEURSHIP
• Ticket Machine
Interfacing of LCD with 8051 micro-controller
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Functions for 8051 Interfacing
EDUCATION
sbit rs = P1^0; sbit rs = P1^0;

EMPLOYABILITY
sbit en = P1^1; sbit en = P1^1;

void lcd_cmd(unsigned char data) void lcd_data(unsigned char data)
{ {
rs = 0; rs = 1;
P2 = data; P2 = data;
ENTREPRENEURSHIP
en = 1; en = 1;
delay(500); delay(500);
en = 0; en = 0;
} }
Interfacing diagram of LCD
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
EDUCATION
Commands of LCD :
• 38 : use 2 lines & 5*7 matrix
EMPLOYABILITY
• 01 : clear display
• 02 : return home
• 04 : Decrement Cursor ( data will be printed left side )

ENTREPRENEURSHIP
• 06 : Increment Cursor ( data will be printed right side )
• 0E : Display the cursor
• 80 (80-87) : Force cursor to the beginning of 1st line
• C0 (C0-C7) : Force cursor to the beginning of 2nd line
Interfacing of Stepper motor using with
EDUCATION
8051 micro-controller
• Stepper motor :
EMPLOYABILITY
• A stepper motor is an electromechanical device it converts electrical power into

mechanical power. Stepper motor is a kind of brushless motor in which there are
primarily 4 coils arranged.
ENTREPRENEURSHIP
• The magnetism of these 4 coils are varied in such a way that the shaft rotate either
in clockwise or anticlockwise direction.
EDUCATION
• Stepper motors can be used in various areas of your microcontroller projects such as making
robots, robotic arm, automatic door lock system, medical scanners,blood analysis machinery,
cameras for automatic digital camera focus and zoom functions etc.
EMPLOYABILITY
ENTREPRENEURSHIP
EDUCATION
• Types of Stepper motor :
There are basic two types of stepper motors available

EMPLOYABILITY
1. Unipolar stepper motor :
• The unipolar stepper motor has five or six wires and four coils (actually two coils
ENTREPRENEURSHIP
divided by center connections on each coil).
• The center connections of the coils are tied together and used as the power
connection. They are called unipolar steppers because power always comes in on
this one pole.
Unipolar stepper motor
EDUCATION
• "Unipolar stepper motors" which is most common type of stepper motor available
in the market.
EMPLOYABILITY
• A simple example of 6 lead step motor(A,B,C,D and 2 common points) is given

below and the common points are joined together to make 1 wire as common and it
is connected to power supply.
ENTREPRENEURSHIP
EDUCATION
2. Bipolar stepper motor :
• The bipolar stepper motor usually has four wires coming out of it. Unlike unipolar
EMPLOYABILITY
steppers, bipolar steppers have no common center connection. They have two
independent sets of coils instead.
• Working of Stepper Motor :

ENTREPRENEURSHIP
1. When we energize a coil of stepper motor, The shaft of stepper motor (which is
actually a permanent magnet) align itself according to poles of energized coil.
2. So when motor coils are energized in a particular sequence, motor shaft tend to
align itself according to pole of coils and hence rotates.
EDUCATION
• Step Sequence :
Stepper motors can be driven in two different patterns or sequences. namely,

EMPLOYABILITY
1. Full Step Sequence
2. Half Step Sequence
• Full Step Sequence :

ENTREPRENEURSHIP
• There are two types of full step excitation modes.
• In one-phase - full step, Fig1, the motor is operated with only one phase energized at a
time. This mode requires the least amount of power from the driver of any of the
excitation modes.
EDUCATION
• In two-phase - full step, Fig2, the motor is operated with both phases energized at
the same time. This mode provides improved torque and speed performance.
EMPLOYABILITY
ENTREPRENEURSHIP
Fig 1 : one phase – full step Fig 2 : two phase – full step
Full Step Sequence Table
EDUCATION
Step A B C D
EMPLOYABILITY
0(0x0C) 1 1 0 0
1(0x06) 0 1 1 0
2(0x03) 0 0 1 1
ENTREPRENEURSHIP
3(0x09) 1 0 0 1
EDUCATION
• Half step sequence :
• Half step excitation mode is a combination of one phase on and two phase on
EMPLOYABILITY
full step modes. This results in half the basic step angle. This smaller step angle
provides smoother operation due the increased resolution of the angle.
ENTREPRENEURSHIP
Interfacing diagram of Stepper Motor
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Interfacing diagram of 7 segment display
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Timer
EDUCATION
Timer :
EMPLOYABILITY
1. It is used as a time delay generator.
2. Timing is done on the internal crystal frequency.
3. The concept of timer is nothing but it counts time.

ENTREPRENEURSHIP
4. But the microcontroller does not have any clock to see the time, so it basically
counts the pulses given to the timer module.
Timer
EDUCATION
Registers used in Timer :

EMPLOYABILITY
• TH0, TL0 : for timer 0
• TH1, TL1 : for timer 1
• TMOD(Time Mode Register) : for mode Selection

ENTREPRENEURSHIP
• TCON (Timer Count Register) : for controlling
Interfacing diagram of Timer
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Interfacing diagram of Timer : output
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
EDUCATION
EMPLOYABILITY
ENTREPRENEURSHIP
Thank you

Embedded Systems With 8051 Micro-Controller Using Embedded C

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Embedded Systems With 8051 Micro-Controller Using Embedded C

Uploaded by

Copyright:

Available Formats

EDUCATION

Embedded systems with 8051

1. Introduction to Embedded systems

• Definition of Embedded systems

• Components of Embedded systems

2. Embedded systems applications using 8051 Microcontroller

3. Embedded systems design requirements

• Assembly language coding

• Block diagram and Pin description

7. C programming for Microcontroller

• Installation of Keil C51 compiler

• Steps for first project creation on Keil

9. Installation of Proteus ISIS

10. Concepts and project on LED

• LED alternate on off

• LED blinking (4 LED ON & 4 LED OFF )

11. Switch interfacing with 8051

12. Relay interfacing with 8051

13. DC motor interfacing with 8051

14. LCD interfacing with 8051

15. Stepper motor with 8051

16. 7 segment display with 8051

• An embedded system product is controlled by an internal microprocessor

(Microprocessor or Microcontroller), Memory (RAM and ROM), Peripherals (Input and

• The heart of an Embedded System is the Processor.

• Memory is another important part of an embedded system.

part of an Embedded System includes initialization of the system, controlling inputs

 Many Embedded Systems, usually small to medium scaled systems, generally

consists of a Microcontroller as the main processor. With the help of a

Microcontroller is still being used in many embedded system and applications.

2. Automotive : 3. Consumer Electronics :

• Automatic Breaking system • Washing machines

• Noise cancellation • Games and toys ,

• Locator • LCD TV, DVD, Music systems

• Monitors for detection of • Traffic control systems

Temperature • Bar code reader and writer

• Sonar • Air Bags

• Rader system • Engine Control

• Missile guidance systems • Transmission Control

• Automated firing weapons • Temperature Control

• Navigation systems • Keyless Entry

• Wireless control of weapons • Door control unit

Embedded systems Design Requirement

• Selection of central processing unit

• Selection of Embedded Operating Systems

• Selection of Peripherals ( depends on application )

6. Expensive and mainly used in personal computers.

3. Fixed amount of on chip ROM, RAM, I/O ports .

5. Cost of the entire system will be less.

6. Used mainly in Washing machines, MP3 players etc.

• Embedded Software is the software that controls an embedded system.

• All embedded systems need some software for their functioning.

• It is the software which we write for the chosen microcontroller.

• Embedded software or program is loaded in the microcontroller which then takes

care of all the operations that are running.

1. Higher level coding

2. Assembly language coding

• Assembly language coding :

1. Every microcontroller manufacturer gives us some instruction sets.

2. The program written using that instructions is called Assembly language

4. No portability and debugging is difficult.

5. Good for small level projects
