Final Colorimeter Spectrophotometer
Final Colorimeter Spectrophotometer

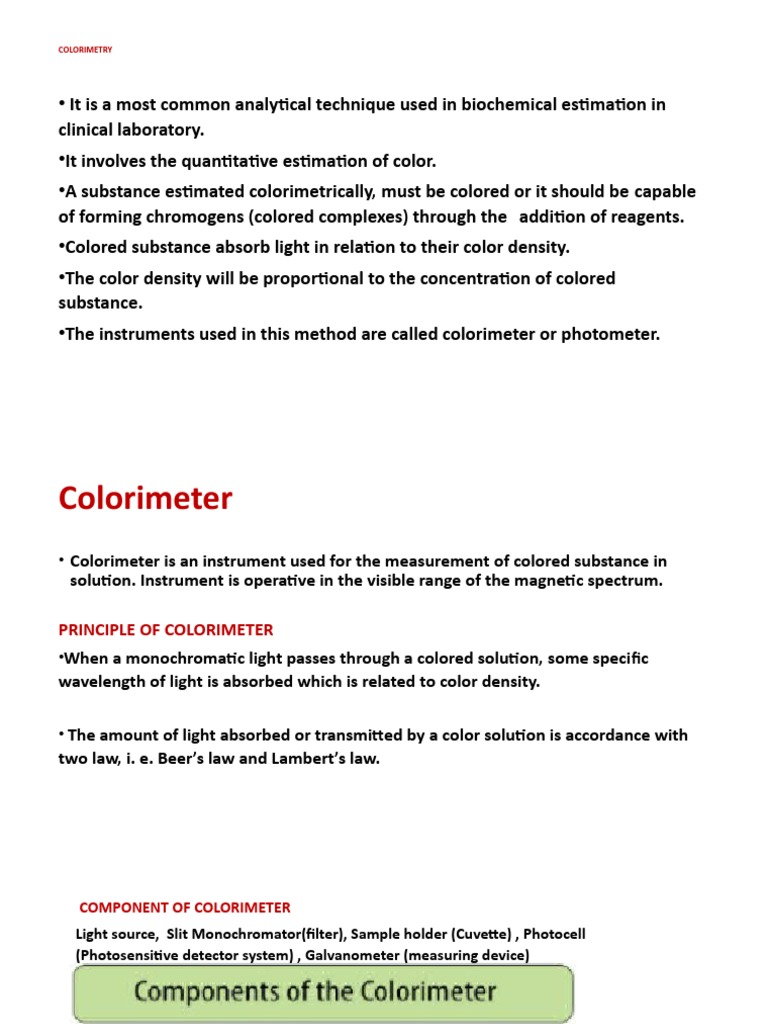

PRINCIPLE OF COLORIMETER
•When a monochromatic light passes through a colored solution, some specific
wavelength of light is absorbed which is related to color density.
GRATINGS :
• GRAPHITE
• Light (Tungsten light) is reflected on graphite. This graft separate light in
different wavelength. By rotation of slit, desirable wave length of light come out
from slit. And Beam of that wave length is generated.
• Desired wavelength selected by the adjustment of an exit slit.
CUVETTE (Sample cell ):
A container that contains a sample is usually called cell or cuvette.
Rectangular, square cell or circular
Dimension of cuvette is 1 cm/ 1 cm diameter.
THREE TYPES OF CELL:
• Glass
340 nm wavelength of light absorbed in glass cell, cheap
• Quartz
It allows passage of both type of light, ultraviolet & visible ranges
(used for measurement of both ranges), costly
• Plastic cuvette
Shorter Life Span , Easily get Scratches , Low Cost
PHOTOCELL (PHOTODETECTOR)
• These are the devices to measure the intensity of light by converting light
energy in to electric energy.
• They are made up of light sensitive material such as selenium.
GALVANOMETER
• Readout device.
• A galvanometer is used to detect and measure electrical current produced by
the photodetector.
ADVANTAGE:
• It is very easy to operate.
• It is inexpensive
DISADVANTAGES:
• Less sensitive.
• It does not work in UV (Cannot be used for colorless compounds )and
IR range
• Limited range of filters are available.
• If the light source is not stable, there is a possibility of errors due to a
change from the initial light intensity during a measurement.
• The manual operation are limited.
Spectrophotometry
• Spectrophotometry is a standard and inexpensive technique to measure light
absorption or the amount of chemicals in a solution.
• It uses a light beam which passes through the sample, and each compound in
the solution absorbs or transmits light over a certain wavelength.
The different types of spectrophotometers available are all different from one
another, based on their application and desired functionality.
1. In the spectrophotometer, a prism (or) grating is used to split the incident beam into
different wavelengths.
2. By suitable mechanisms, waves of specific wavelengths can be manipulated to fall on the
test solution. The range of the wavelengths of the incident light can be as low as 1 to 2nm.
The working of colorimeter & Spectrometers is based on Beer's & Lambert's law.
Beer's Law: It states that the optical density of a solution is directly proportional to
the concentration of the solution.
Lambert's law: It states that the optical density of a colored solution is directly
proportional to the path of light.
According to Beer's & Lambert's law where,
T=10 -kc. L,
T=transmittance
K=Constant characteristic of the solution
C=concentration of the colored solution
L=Path of light through the colored solution
O. D. =2 – log T%
As per lambert – beer's law path length is fixed to 1 cm.
Differences between Colorimeter & Spectrophotometer
Colorimeter Spectrophotometer
Limited for the visible portion of Ultra violet , visible & infrared region
spectrum (visible light)
Cheap Very costly
Two digit reading after desimal point. Four digits reading after desimal point.
Less sensitive More sensitive
Glass are used Prisms are used
Glass cuvette or test tube is used for Quartz cuvette is used which does not
reading which absorb 340 nm light absorb 340 nm light
Can’t use specific filter Can use specific filter
Tungsten lamps are used Halogen lamps are used
