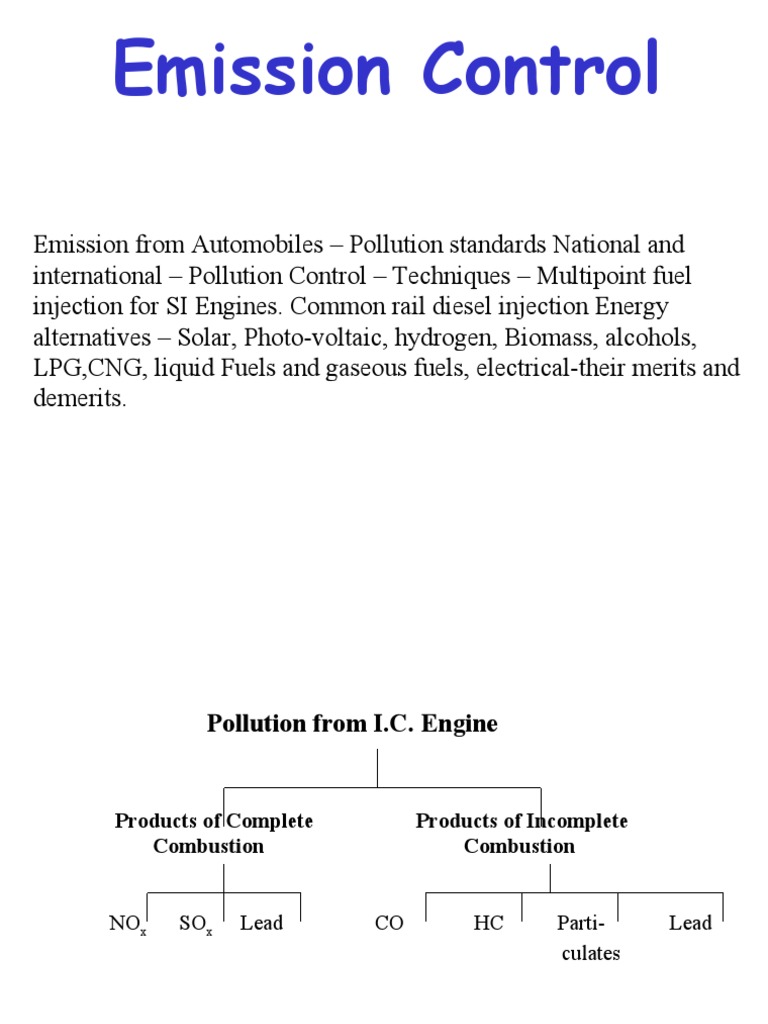

Emission Control

Emission from Automobiles – Pollution standards National and


international – Pollution Control – Techniques – Multipoint fuel
injection for SI Engines. Common rail diesel injection Energy
alternatives – Solar, Photo-voltaic, hydrogen, Biomass, alcohols,
LPG,CNG, liquid Fuels and gaseous fuels, electrical-their merits and
demerits.

Pollution from I.C. Engine


Products of Complete Products of Incomplete


Combustion Combustion

NOx SOx Lead CO HC Parti- Lead


culates
I.C. Engine & Environment

COx HC NOx Lead SOx Particulates


CO CO2 CH4 Others N2O NO NO2 SO2 SO3 Particles Smoke
Poison Aerosols Soot

Poison GHG GHG Carcinogens GHG P C Smog P C Smog Visibility Acid Rain Acid Rain
P C Smog OD GHG Acid Rain

Visibility
Irritation
I.C ENGINE EMISSIONS



EVAPORATIVE CRANKCASE EXHAUST

FUEL CARB. CO, HC, NOX, PART.


TANK FLOAT BOWL

UBHC UBHC

FOR THE S.I. ENGINE WITH CARBURETOR:



EVAPORATIVE EMISSIONS ACCOUNT FOR APPROXIMATELY 20%

CRANKCASE EMISSIONS ACCOUNT FOR APPROXIMATELY 20%

EXHAUST EMISSIONS ACCOUNT FOR THE BALANCE 60%
Vehicular Emissions
The Internal Combustion Engine and Atmospheric Pollution

Type of Pollution Principal Sources Relevance of the I.C. Engine

Lead Anti-knock compounds A (for the SI Engine)

Carcinogens Diesel exhaust A

Acid Rain Sulfur dioxide B (for the CI Engine)


Oxides of nitrogen A
Unburned hydrocarbons A (for the SI Engine)
Carbon monoxide A (for the SI Engine)

Global warming CFCs B (for car with A/c)


(or else not involved)
Carbon dioxide B (may be even A)
Methane B (may be A if CNG used)

Photochemical smog Carbon monoxide A (for the SI Engine)


Unburned hydrocarbons A (for the SI Engine)
Sulfur dioxide B (for the CI Engine)
Oxides of nitrogen A

Ozone depletion CFCs B (for car with A/c)


(or else not involved)
Unburned hydrocarbons A (for the SI Engine)
Oxides of nitrogen A

A: Major contributor
B: Secondary influence
Evaporative Emission Control:

1. Positive Crankcase Ventilation (PCV) System


(for crankcase emissions)
CRANK CASE VENTILLATION
Lubricating oil is liable to get
contaminated or diluted with water or
petrol vapours or burnt gases escaping
past the piston into the crank case and
then get rejected.
Water vapour in the crank case air is
liable to get condensed under stopping
and the crank case gets cooled.
Most of the water vapour is by product of
the combustion that is leaked through
piston rings into the crank case.
Petrol also settles down into crank case
by blowby when carburetor is being
chocked for cold starting conditions, here
this will form sulphuric acid and will
corrode the Crank case metal.
• The renewal process that
heats up the engine
enough to vaporize the
liquid water and gasoline
and then circulating air
around them.
• The Positive Crankcase
Ventilation System
(PCV) provides a
continuous flow of fresh
air through the crankcase
to relieve any pressure
and prevent the
formation of corrosive
contaminants.
Exhaust Emissions:

1. CO

1. NO

1. HC
CO Formation

• Primarily dependent on the equivalence ratio.

• Levels of CO observed are lower than the maximum values
measured within the combustion chamber

• but are significantly higher than equilibrium values


for the exhaust conditions

•The rate of re-conversion from CO to CO2 is slower than


the rate of cooling.

• This explains why CO is formed even with


stoichiometric and lean mixtures.
NO Formation:
• There is a temperature distribution across the chamber due to passage

of flame.

• Mixture that burns early is compressed to higher temperatures after
combustion, as the cylinder pressure continues to rise.

• Mixture that burns later is compressed primarily as unburned mixture
and ends up after combustion at a lower burned gas temperature.

• Using the NO formation kinetic model based on the extended


Zeldovich mechanism:

  O + N2  NO + N

N + O2  NO + O

N + OH  NO + H
• Assuming equilibrium concentrations for O, O2, N2, OH and H
corresponding to the equivalence ratio and burned gas fraction of the
mixture we obtain the rate-limited concentration profile. The NO
concentration corresponding to chemical equilibrium can also be
obtained.

Depending on details of engine operating conditions, the rate limited
concentrations may or may not come close to equilibrium levels at
peak cylinder pressure and gas temperature.

• The amount of decomposition from peak NO levels, which occurs
during expansion depends on engine conditions as well as whether
the mixture element burned early or late.

• The earlier burning fractions of the charge contribute much more to
the exhausted NO than do later burning fractions of the charge.
• Frozen NO concentrations in these early-burning
elements can be an order of magnitude higher
than concentrations in late burning elements.

• In the absence of vigorous bulk gas motion, the
highest NO concentrations occur nearest the
spark plug.

• These descriptions of NO formation in the SI
engine have been confirmed by experimental
observations.
Among the major engine variables that affect
NO emissions are

1. Equivalence Ratio
2. Burned gas fraction (Residual gas plus EGR
if any)
3. Excess air
4. Spark Timing
HC Formation:
The sequence of processes involved in the engine out HC emissions is:

1. Storage
2. In-cylinder post-flame oxidation
3. Residual gas retention
4. Exhaust oxidation

HC Sources

1. Quench Layers

• Quenching contributes to only about 5-10% of total HC. However, bulk


quenching or misfire due to operation under dilute or lean conditions
can lead to high HC.

• Quench layer thickness has been measured and found to be in the range
of 0.05 to 0.4 mm (thinnest at high load) when using propane as fuel.
• Diffusion of HC from the quench layer into the burned gas and
subsequent oxidation occurs, especially with smooth clean combustion
chamber walls.
2. Crevices

• These are narrow volumes present around the surface of the combustion
chamber, having high surface-to-volume ratio into which flame will not
propagate.

• They are present between the piston crown and cylinder liner, along the
gasket joints between cylinder head and block, along the seats of the intake
and exhaust valves, space around the plug center electrode and between spark
plug threads.

• During compression and combustion, these crevice volumes are filled with
unburned charge. During expansion, a part of the UBHC-air mixture leaves
the crevices and is oxidized by the hot burned gas mixture.

• The final contribution of each crevice to the overall HC emissions depends


on its volume and location relative to the spark plug and exhaust valve.
3. Lubricant Oil Layer

• The presence of lubricating oil in the fuel or on the walls of the combustion
chamber is known to result in an increase in exhaust HC levels.

• The exhaust HC was primarily unreacted fuel and not oil or oil-derived compounds.

• It has been proposed that fuel vapor absorption into and desorption from
oil layers on the walls of the combustion chamber could explain
the presence of HC in the exhaust.

4. Deposits

• Deposit buildup on the combustion chamber walls (which occurs in vehicles
over several thousand kilometers) is known to increase UBHC emissions.

• Deposit buildup rates depend on fuel and operating conditions.

• Olefinic and aromatic compounds tend to have faster buildup


than do paraffinic compounds.
5.        Liquid Fuel and Mixture Preparation – Cold Start

• The largest contribution (>90%) to HC emissions from the SI engine during


a standard test occurs during the first minute of operation.

This is due to the following reasons:

• The catalytic converter is not yet warmed up

• A substantially larger amount of fuel is injected than the stoichiometric


proportion in order to guarantee prompt vaporization and starting

6. Poor Combustion Quality

Flame extinction in the bulk gas before the flame front reaches the wall is a
source of HC emissions under certain engine operating conditions.
Exhaust Emission Control:

Four basic methods are used to control engine emissions:

1. Engineering of the combustion process


2. Optimizing the choice of the operating parameters and
3. Using after-treatment devices in the exhaust system.
4. Using reformulated fuels, for example, oxygenated gasoline in
winter to reduce CO and low volatility gasoline in summer to reduce
evaporative HC.

This requires advances in,



              1. Fuel injector design
.                2. Oxygen sensors
3. on-board computers
Two NOx control measures have been used since the 1970s, namely,

            1. Spark retard and
         2. Exhaust gas recirculation (EGR).

        Both methods reduce peak temperatures and hence NOx
emissions.

        If EGR is used, spark timing has to be advanced to maintain
optimal thermal efficiency.

        EGR fraction increases with engine load up to the lean limit –
about 15-20% of the fuel-air mixture.

Currently, the most important after-treatment device is the Three-


way catalyst (TWC), which was first installed in the US in 1975.
 Three-way catalyst consists of:
Rhodium – the principal metal used to remove NO
Platinum – the principal metal used to remove HC and CO

NO reacts with CO, HC and H2 via reduction reactions on the
surface of the catalyst.

Remaining CO and HC are removed through an oxidation
reaction
forming CO2 and H2O in the products.

Light-off temperature: The temperature at which the catalytic


converter becomes 50% efficient.
It is approximately 270oC for oxidation of HC and about 220oC
for oxidation of CO.
Conversion efficiency at fully warmed up condition is 98-99%
for CO and 95% for HC, depending on the HC components.
Catalytic Converter:
• Consists of an active catalytic material in a
specially designed metal casing, which directs the
exhaust gas through the catalyst bed

• Active material (noble metals like platinum,


palladium and rhodium or base metals like
copper and chromium)
Two types of configurations are commonly used,

• Ceramic honeycomb or matrix structure-


also called monolith

• A bed of spherical ceramic pellets


Oxidation Catalysts:

The oxidation catalyst oxidizes CO and HC to CO2 and H2O.

Sufficient oxygen must be present to oxidize CO and HC.

Because of their higher intrinsic (inherent) activity, noble metals are


most suitable as catalytic material.

A mixture of platinum (Pt) and palladium (Pd) is most commonly
used.

For oxidation of CO, olefins, and methane: specific activity of Pd is
higher than that of Pt.

For oxidation of aromatics: Pt and Pd have similar activity.

For oxidation of paraffins (molecular weight greater than C3): Pt
is more active than Pd.
Three-way Catalysts
• If the engine is operated at all times with an air-fuel ratio at or close to
stoichiometric then both NO reduction and HC/CO oxidation can be done in a
single catalyst bed.

• The catalyst effectively brings the exhaust gas composition to a near-equilibrium
state at their exhaust conditions, that is, a composition of CO2, H2O and N2.

• Enough reducing gases will be present to reduce NO and enough oxygen to oxidize
CO and HC. Such a catalyst is called a Three Way Catalyst (TWC).

• It requires an electronic carburetor or a fuel injection system (FIS)

• An oxygen sensor in the exhaust is used to indicate whether the engine is


operating rich or in the lean side of stoichiometric and provide a signal for
adjusting the fuel system to achieve the desired A/F.
• Commercial TWC contain Pt & Rh (Pt/Rh = 2 to 17), with some alumina,
NiO and CeO2. Alumina is the preferred support material.

• Catalyst must be quickly warmed up (20–30s) - current system takes 2 min.

• Catalytic reactors must have low thermal inertia, that is, it must be
constructed of material, which have low specific heat but high thermal
conductivity. Hence warm up time to operating temperature will be less.

• Methods for decreasing warm up time are:



  1. Use of an after burner
 2. Locating the converter or use of a start up converter closer to the
exhaust valve/manifold.
 3. Electric heating - Additional cost plus a major drain in the battery;
required for starting the engine. Up to 1.5 kW for short period may be
required.
4. Absorb the UBHC during cold start and release it after warming up.
Muffler
Low efficiency
Chance of developing
back pressure due to which
some power is lost

You might also like
