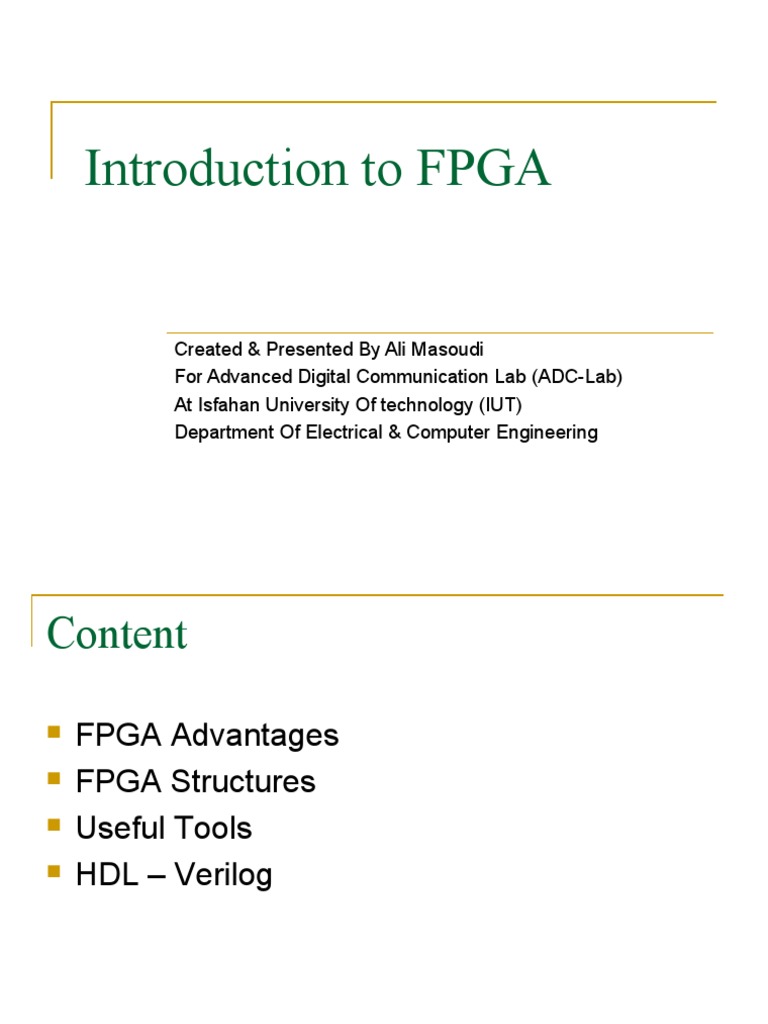

Introduction to FPGA

Created & Presented By Ali Masoudi

For Advanced Digital Communication Lab (ADC-Lab)
At Isfahan University Of technology (IUT)
Department Of Electrical & Computer Engineering
Content

 FPGA Advantages
 FPGA Structures
 Useful Tools
 HDL – Verilog
FPGA Advantages
 Designing with FPGA: Faster, Cheaper
 Ideal for customized designs
 Product differentiation in a fast-changing market

 Offer the advantages of high integration

 High complexity, density, reliability

 Low cost, power consumption, small physical size

 Avoid the problems of ASICs

 high NRE cost, long delay in design and testing

 increasingly demanding electrical issues

FPGA Advantages
 Very fast custom logic
 massively parallel operation

 Faster than microcontrollers and microprocessors

 much faster than DSP engines

 More flexible than dedicated chipsets

 allows unlimited product differentiation

 More affordable and less risky than ASICs

 no NRE, minimum order size, or inventory risk

 Reprogrammable at any time

 in design, in manufacturing, after installation
User Expectations
 Logic capacity at reasonable cost
 100,000 to a several million gates

 On-chip fast RAM

 Clock speed
 150 MHz and above, global clocks, clock management

 Versatile I/O
 To accommodate a variety of standards

 Design effort and time

 synthesis, fast compile times, tested and proven cores

 Power consumption
 must stay within reasonable limits
Field Programmable Device
 Basic Section of FPD:
 Logical Block

 Routing (Switch Matrix)

 Input Output Block

 More Advanced FPD Contains:

 On-chip Memory

 Embedded Processor

 Clock Management

 High-Speed Transceiver
FPGA Structures
 Basic Lookup Table
(LUT)
FPGA Structures
 Synchronous Look-UP
FPGA Structures
 Routing
 Local ( Local connections )
 CLB to CLB
 CLB to IOB
 Global ( Span all section of chip )
 Global Set/Reset
 Global Tri-Sate
 Clock
FPGA Structures
FPGA Structures
 Configurable Logic Block (CLB)
 Two identical slices in each CLB
 Two LUT in each slice
 RAM Blocks
 Xilinx core generator
 Synplify ( Best Synthesizer in the world )
 CLK - Delay Locked Loop (DLL)
CLB Slice
CLK - DLL

In dealing with a DDR-RAM , CLK-

DLL can multiply frequency of CLK
by factor 2 , by generating the
same signal with 180 degree shift in
phase .
Global Clock Distribution
Spartan-II FPGA Family
Spartan-II FPGA Family
Design Flow

 Simulation
 a) Functional
 b) Timing
 c) Gate Level
Design Flow

 Synthesis
 HDL Code to Netlist conversion
 Mapping
 Digital Circuit Element to Technology Element
Mapping
 Place & Route
 Sitting place for each element of circuit?
Design Constraints
Combinational: PAD to PAD
Sequential
 Basic Sequential
Paths:
 PAD to clock/Register
 Register to Register
 Clock/Register to PAD
ISE Implementation Flow
Translate: ngdbuild

 Putting all thing together, so that we need all

part of project
 Inputs:
 Project synthesized EDIF file
 UCF constraints file
 Core’s .ednfile
 Output: Native Generic Database (internal
format)
 Complete hierarchy .ngdfile
Map

 MAP Operation:
 Map the generic form to device
 Make necessary optimization, eliminate
unnecessary logic
 Estimate resource usage, just % (110%!)
 Check the connection
 Input: .ngdfile
 Output: .map file
PAR (Place & Route)

 PAR Operation:
 Place and Route all the logics
 Some of placing process done in previous steps
 Overused area give error in this section
 Input: Unrouted.ncd
 Output: Routed.ncd
Bit File Generation & Device
Programming
Recommended
Directory Structure
Recommended Tool Set

 Design Entry
 HDL Designer / Active HDL / Text Pad
 Simulation
 ModelSim / Active HDL / NC Sim
 Synthesis
 XST / Amplify / Synplify
 Place & Route
 ISE
HDL – Verilog
 Verilog Syntax is almost similar to language C , so that
learning & understanding of Verilog is very simple .

 It’s Module-based like C that is Function-based .

For more information on Verilog , look at

1) Verilog VHDL Golden Reference Guide
2) Verilog Quick Start
