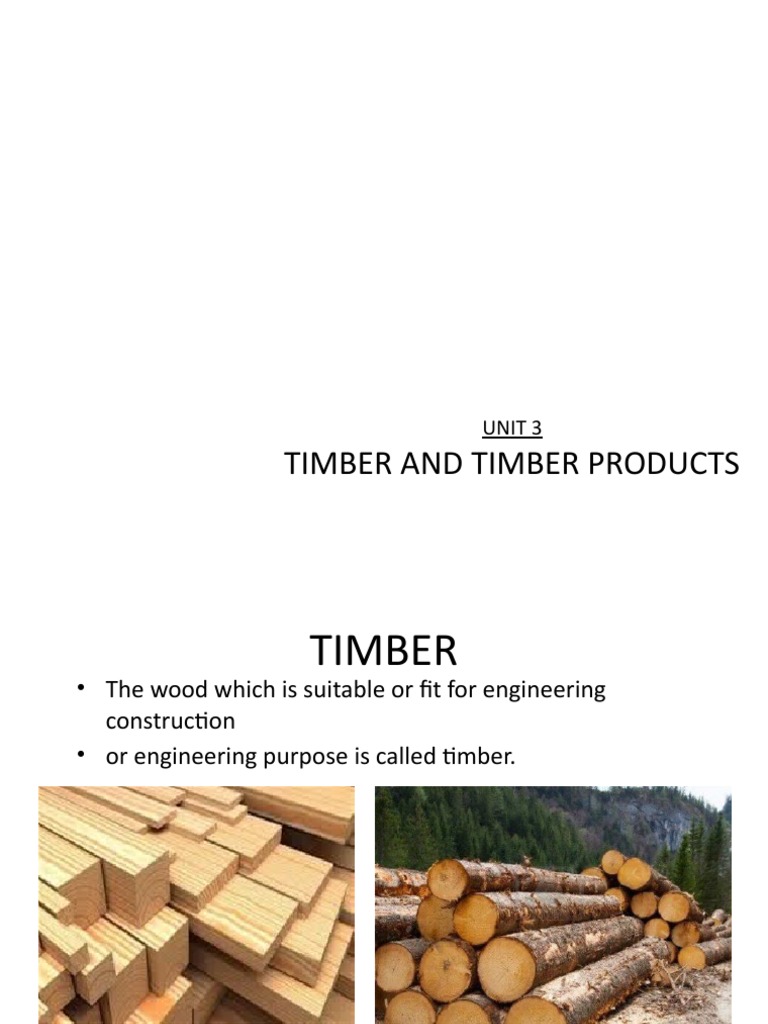

Unit 3
Unit 3
Unit 3
• Endogenous trees:
• The trees which grow
• in longitudinal
• fibrous mass are called
• endogenous trees.
CLASSIFICATION
• Exogenous tress :
• The trees which grow
•out wards across
•vertical section of stem
•are called exogenous trees.
• These trees are only fit
•for engineering
•construction.
• Exogenous trees are
•again subdivided into
•two types.
CrOSS SECTION of an exogenous tree
CLASSIFICATION
• Exogenous tress :
• Conifers or Evergreen:
Examples:
•Deodar
•Pine
•Chir
•Kail,etc
CLASSIFICATION
• Exogenous tress :
• Deciduous: Examples:
•Teak
• These have hard wood. •Sal
• These have broad leaves. •Shisham, etc.
CHARACTERISTICS
• Appearance: A freshly cut surface of timber should exhibit
• hard and of shining appearance.
• Color: A color should preferably be dark
• Defects: A good timber should be free from series defects
• such as knots, flaws, shakes etc
• Durability: A good timber should be durable and capable of
• resisting the action of fungi, insects, chemicals, physical
• agencies, and mechanical agencies.
• Elasticity: The timber returns to its original shape when load
• causing its deformation is removed.
• Fire resistance: A dense wood offers good resistance to fire.
CHARACTERISTICS
• Hardness: A good timber should be hard.
• Mechanical wear: A good timber should not deteriorate
easily
• due to mechanical wear or abrasion.
• Shape: A good timber should be capable of retaining its
shape
• during conversion or seasoning
• Smell: A good timber should have sweet smell. Unpleasant
• smell indicates decayed timber
• Sound: A good timber should give a clear ringing sound when
• struck
• Toughness: A good timber should be tough (i.e.) capable of
• offering resistance to shocks due to vibration.
CHARACTERISTICS
• Strength: A good timber should be sufficiently strong for
• working as structural member such as joist, beam, rafter etc.
• Structure: The structure should be uniform.
• Water permeability: A good timber should have low water
• permeability, which is measured by the quantity of water
• filtered through unit surface area of specimen of wood.
• Weight: The timber with heavy weight is considered to be
• sound and strong.
• Working conditions: Timber should be easily workable. It
• should not clog the teeth of saw.
DEFECTS - Knots
• As a tree grows, lower branches often die, and their bases
may become overgrown and enclosed by subsequent layers
of trunk wood, forming a type of imperfection known as a
knot.
• Knots affect the technical properties of the wood, usually
reducing the local strength and increasing the tendency for
splitting along the wood grain.
DEFECTS
• Heart Shakes:
• These are splits occurring in the centre of the tree and
•running from the pith (inner most part) to wards the sap wood
•from the medullary (vascular tissues) rays.
• In some timbers, these splits are hardly visible and in some
•timbers these are quite permanent.
• Heart shakes are caused due to
•shrinkage of interior parts due to
•age. A heart shake straight across
•the trunk is not a serious defect.
DEFECTS
• Star Shakes:
• These are splits which radiate from the centre of the timber
or
• from the bark (outer side), running in the planes of medullary
• rays. These occur due to severe frost or scorching heat of the
• sun.
DEFECTS
• Cup Shakes:
• These are curved splits which separate the whole or part of
• one annual ring from an other. These are caused due to the
• unequal growth of the timber.
• Rind Galls:
• These are typical enlarged swellings and occur due to
• branches cut-off.
DEFECTS
• Radial Shakes:
• These are similar to the star shakes and occur in felled timber
• when exposed to the sun during seasoning. Radial shakes are
• generally irregular, fine and numerous. In this many splits are
• appeared.
• Dead Wood:
• It is the deficient in strength and weight and is the result of
• trees being felled after maturity.
DEFECTS
• Wind Cracks:
• These are shakes or splits on the sides of a bark of timber
• due to shrinkage of exterior surface exposed to atmospheric
• influence.
•
CONVERSION
The process of sawing and cutting of timber into suitable sections is
• known as the conversion of timber. Following are types of sawing
• 1.Tar
• 2.Paints
• 3.Chemical salt
• 4.Creosote
• 5.ASCU
• Tar Treatment:
PRESERVATION
• Hot coal tar is applied to timber with brush. The coating of tar
• protects the timber from the attack of fungi and insects. It is a
• cheapest way of protecting timber.
• Disadvantage
• Appearance is not good after tar is applied.
• Paints Treatment:
• Two to three coats of oil paints are applied on clean surface of
• wood. The paint protects the timber from moisture. The paint is to
• be applied from time to time. Paint improves the appearance of
the
• timber.
• •Solignum paint is a special paint which protects the timber.
•
PRESERVATION
Chemical salt Treatment:
• These are the preservatives made by dissolving salts in water. The
• salts used are copper sulphate, masonry chloride, zinc chloride
• and sodium fluoride. After treating the timber with these chemical
• salt paints and varnishes can be applied to get good appearance.
• Board :
• It is a plank having parallel sides. Its thickness is less than 50mm
• and width exceeds 150 mm.
• Plank :
• It is just like board. Its thickness is less than 50 mm and width
• exceeds 50mm.
• Pole :
MARKET FORMS
• It is also known as spar. It is a square long log whose diameter
• does not exceed 200mm.
• Log :
• It is the trunk of tree obtained after removal of branches.
• Scantling :
• Its breadth and thickness exceed 50mm, but are less than 200mm
• in length. These are pieces of miscellaneous sizes of timber sawn
• out of a log.
MARKET FORMS
PLYWOOD
• Panels comprising of at least three layers of thin wood
bonded together with an adhesive.
•• Each ply is usually orientated at a right angle to the
• adjacent layer in order to improve strength and reduce the
• probability of shrinkage.
•• It is one of the mostly used wood products.
PLYWOOD
• Manufacturing process:
• Firstly log is selected and wood chips are removed and layers
are stacked.
• • Then face and core are alternatively glued with the help of
phenolic resin and urea.
• • They are pressed at 1200 ⁰ c .
• Properties :
PLYWOOD
• has face veneers of a higher grade.
• where the bending stresses are higher, thus there is an
increase in the panel's resistance to bending
• thicker panels can span greater distances under the same
loads
• Application:
PLYWOOD
• Regular grade plywood
• Used for temporary use
• Structural Plywood
• Suitable for construction applications where structural stability is
required
• Commercial plywood
• Also known as Interior grade or MR (Moisture resistant) grade plywood
• Used for making furniture that is unlikely to get wet
• Water proof plywood
• Also know as Exterior grade or BWR (Boiling water resistant) grade
plywood.
• e.g. Kitchen furniture
• Application:
PLYWOOD
• Marine Plywood
• Superior quality and also costs a lot more
• Used for making furniture or products that are subjected to prolonged
water exposure
• Used mainly for industrial purposes and boat building
• Flexible Plywood
• Can easily be rolled up
• Used for creating round and curved shaped furniture
• FR grade: Fire Retardant
• Used in places where fire risks have to be reduced
• Surface is treated with fire resisting chemicals
PARTICLE BOARD
• made from very small particles of wood (sawdust and small
wood flakes)
• wood particles are mixed with glue (Urea formaldehyde
resin)
• mixture is firmly pressed together using a hot-press machine
• Properties
PARTICLE BOARD
• Age usually not more than 5yrs
• Very sensitive to water and even moisture
• Very light weight
• Eco-friendly as it is made up to waste wood particles
• The Indian Standards quality specification:
• IS:3087 and IS:12823
• Uses
• Used to make ready-made furniture, kitchen cabinets,
• false ceiling, wall panels, and partitions
PARTICLE BOARD
• Classification:
• Uses :
• For making long book shelves
• For making tables and benches
• Blockboard Doors and Solid core flush doors
• Single and double beds, and Settees (Diwan) for sitting.
• Lengthy wall panels
FIBRE BOARD
• Fibreboard is an engineered wood wallboard mainly used in
the construction industry and for making furniture and
cabinets.
• Applications :
• Frame partitions (trimming)
• Facing of columns, cross-beams
• Outer frame walls (trimmings)
• Sheet-backing coat for plane roof
• Attic floor
• Basement for floors
• Window sill slab
CEMENT
• Properties :
BONDED PARTICLE BOARD
• FIRE SAFETY
• Cement-bonded particle board is referred to the group of substances
which are difficult to ignite and do not spread fire. Being exposed to fire
the boards do not emit toxic gases and vapour.
• RELIABILITY
• a constructional material that gives hardness to frame constructions.
•MOISTURE RESISTANCE
• The plates not only enhance wooden frames with additional stiffness,
but also serve as defense from atmospheric actions.
