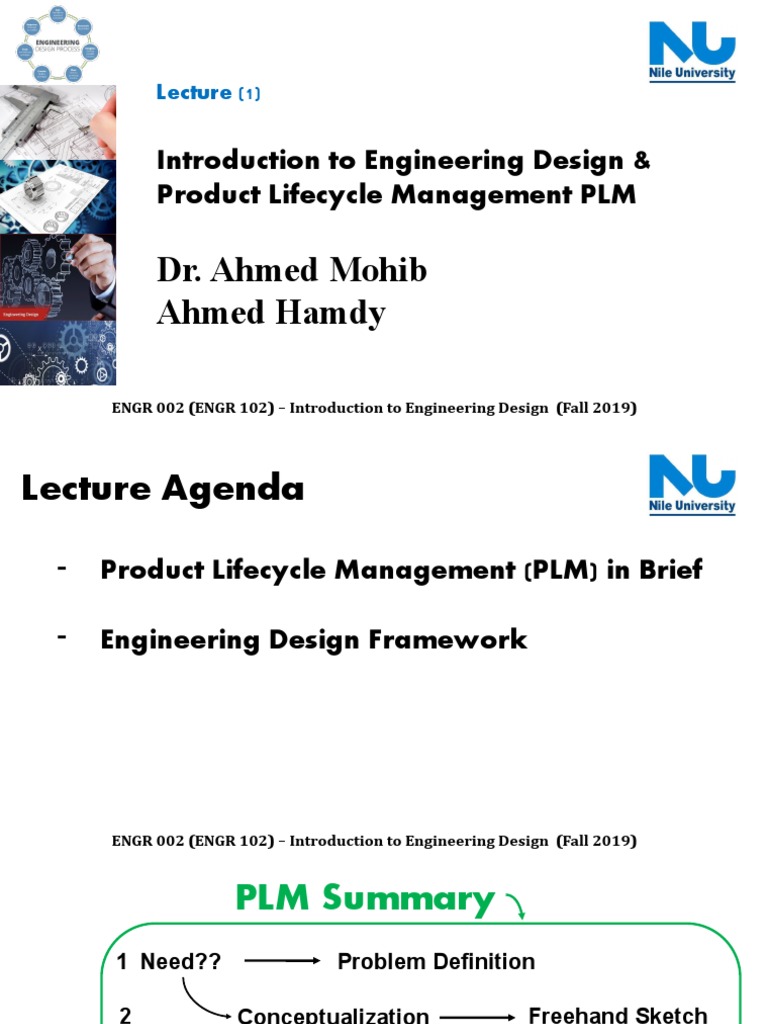

    Lecture (1)

    Introduction to Engineering Design &


    Product Lifecycle Management PLM

    Dr. Ahmed Mohib


    Ahmed Hamdy

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Lecture Agenda
    - Product Lifecycle Management (PLM) in Brief

    - Engineering Design Framework

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    PLM Summary
    1 Need?? Problem Definition

    2 Conceptualization Freehand Sketch

    ENGR 002 3 Detailed Engineering Design

    4 Prototyping
    5 Manufacturing
    6 R&D
    Engineering Design

    Modeling Analysis

    ?
    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)
    Modeling

    3D Modeling 2D Modeling
    - Wireframe Modeling
    - Surface Modeling
    - Solid Modeling
    MENG 202
    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)
    2D Modeling

    Freehand Drawing Technical


    Engineering
    (Conceptualization) Drawing

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Technical Engineering Drawing

    Working (Detailed) Assembly


    Drawing Drawing

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Technical Engineering Drawing
    Working (Detailed) Drawing

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Technical Engineering Drawing
    Working (Detailed) Drawing Tips

    • Single Part.
    • All Dimensions.
    • All Tolerances.
    • Multi views.
    • Surface Finish.
    • GD&T.
    • All Information, Instructions & Details. (Title Block)
    • Notes, Scale, Units, Designer Name & Details.
    • Revision Table.
    • Drawing Sheet number
    • Method of Projection.

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Technical Engineering Drawing
    Working (Detailed) Drawing Example

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Technical Engineering Drawing
    Assembly Drawing

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Technical Engineering Drawing
    Assembly Drawing (Exploded View)

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Technical Engineering Drawing
    Assembly Drawing Tips

    • Bill of Materials (BOM). ….. Part Number, Part Name, Quantity, Materials, other notes.
    • ONLY 3 Major Dimensions (Full Width & Length & Height).
    • Balloons (Leaders).
    • Sectional Front View of the Assembly.
    • Outer Top or Side view of the Assembly.
    • Different Hatch Pattern for each component even the component is repeated.

    ENGR 002 (ENGR 102) – Introduction to Engineering Design (Fall 2019)


    Questions???
