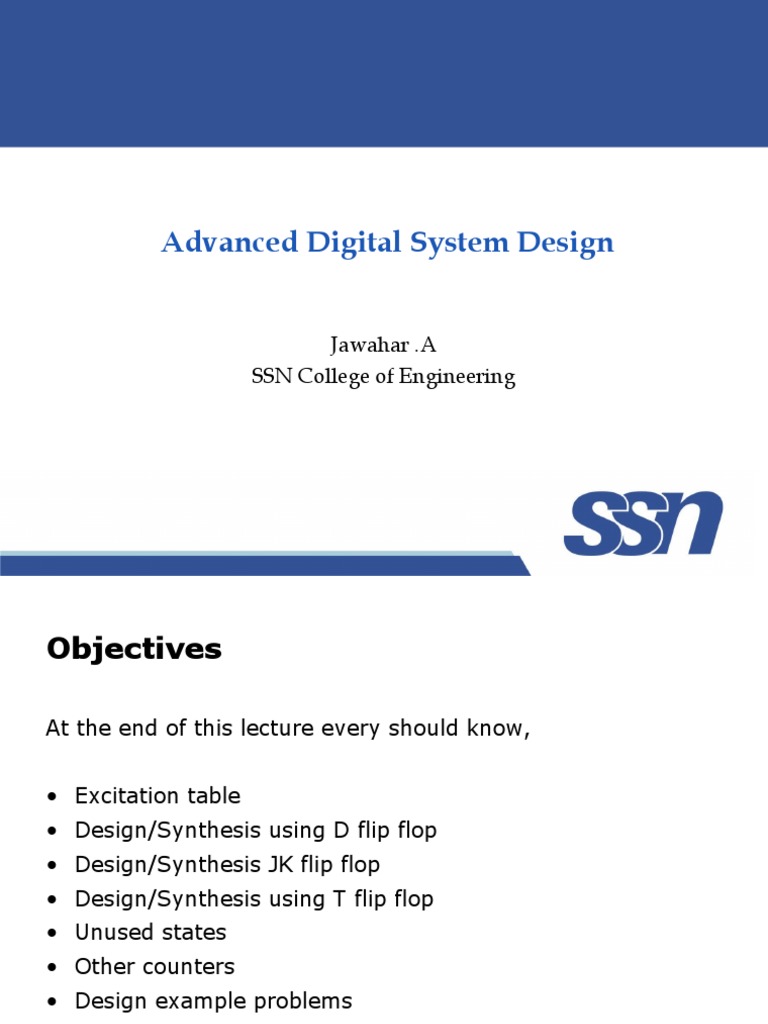

Advanced Digital System Design

Jawahar .A
SSN College of Engineering
Objectives

At the end of this lecture every should know,

• Excitation table
• Design/Synthesis using D flip flop
• Design/Synthesis JK flip flop
• Design/Synthesis using T flip flop
• Unused states
• Other counters
• Design example problems
Design Procedure:

 the word description of the circuit behavior (a state diagram)

 state reduction if necessary
 assign binary values to the states
 obtain the binary-coded state table
 choose the type of flip-flops
 derive the simplified flip-flop input equations and output
equations
 draw the logic diagram
Excitation tables

• A state diagram  flip-flop input functions

– straightforward for D flip-flops
– we need excitation tables for JK and T flip-flops

JK Flip-flop T Flip-flop
Q Q (t + 1) J K Q Q (t + 1) T
0 0 0 X 0 0 0
0 1 1 X 0 1 1
1 0 X 1 1 0 1
1 1 X 0 1 1 0
Flip-Flop Excitation Tables

Q Q+ J K S R T D

0 0 0 X 0 X 0 0
0 1 1 X 1 0 1 1
1 0 X 1 0 1 1 0
1 1 X 0 X 0 0 1

You can use any FF type for your implementation

FF types can be mixed; I.e. in vending machine

you could use a JK FF for Q1 and a T FF for Q0
Design of 3-bit counter (Synthesis using T flip-flops)
• A n-bit binary counter
– the state diagram

– no inputs (except for the clock input)

• The state table and the flip-flop inputs

Present State Next State Flip-flop Inputs

A2 A1 A0 A2 A1 A0 TA2 TA1 TA0
0 0 0 0 0 1 0 0 1
0 0 1 0 1 0 0 1 1
0 1 0 0 1 1 0 0 1
0 1 1 1 0 0 1 1 1
1 0 0 1 0 1 0 0 1
1 0 1 1 1 0 0 1 1
1 1 0 1 1 1 0 0 1
1 1 1 0 0 0 1 1 1
Other counters:

• Divide-by-N counter (modulo-N counter)

 a counter that goes through a repeated sequence of N states.
 The sequence may follow the binary count or may be any
other arbitrary sequence.
• n flip-flops  2n binary states
• Unused states
 states that are not used in specifying the sequential circuit.
 may be treated as don’t-care conditions or may be assigned
specific next states
• Self-correcting counter
 Ensure that when a circuit enter one of its unused states, it
eventually goes into one of the valid states after one or more
clock pulses so it can resume normal operation.
 Analyze the circuit to determine the next state from an
unused state after it is designed.
Ex: Design a counter to have the sequence as follows: 000, 001, 010, 100,
101, 110, 000… using JK flip-flop.
Here the given sequence has 3 bits in each state so the counter
requires 3 flip-flops. The state table is written for the given sequence
and the flip-flop inputs are found using the excitation table.
JA = B KA = B

JB = C KB = 1

JC = B’ KC = 1
In the given sequence there are two unused states: 011 & 111.
The simplified flip-flop input equations are:
JA = B, KA = B ;
JB = C, KB = 1 ;
JC = B, KC = 1

Figure. Logic diagram Figure. State diagram

Here the counter is a self-correcting one. Even if goes to some unused
states it returns back to an used state and goes through the sequence.
Design Examples for practice:

(1)Design a mod-6 counter using T-FFs. (Hint: Count seq- 000 to 101)

(2)Design a mod-12 counter using JK-FFs.

(3)Design a counter which has the sequence as follows: 0000, 1000,

1100, 1110, 1111, 0111, 0011, 0001, 0000… using T-FFs.

(4)Design a 3-bit synchronous down counter.

(5)Design a synchronous BCD counter using JK-FFs & D-FFs. (using

T-FFs already discussed). Compare the designs to determine which
one is more efficient.
Summary

• Excitation table
• Design/Synthesis using D flip flop
• Design/Synthesis JK flip flop
• Design/Synthesis using T flip flop
• Unused states
• Other counters
• Design example problems
