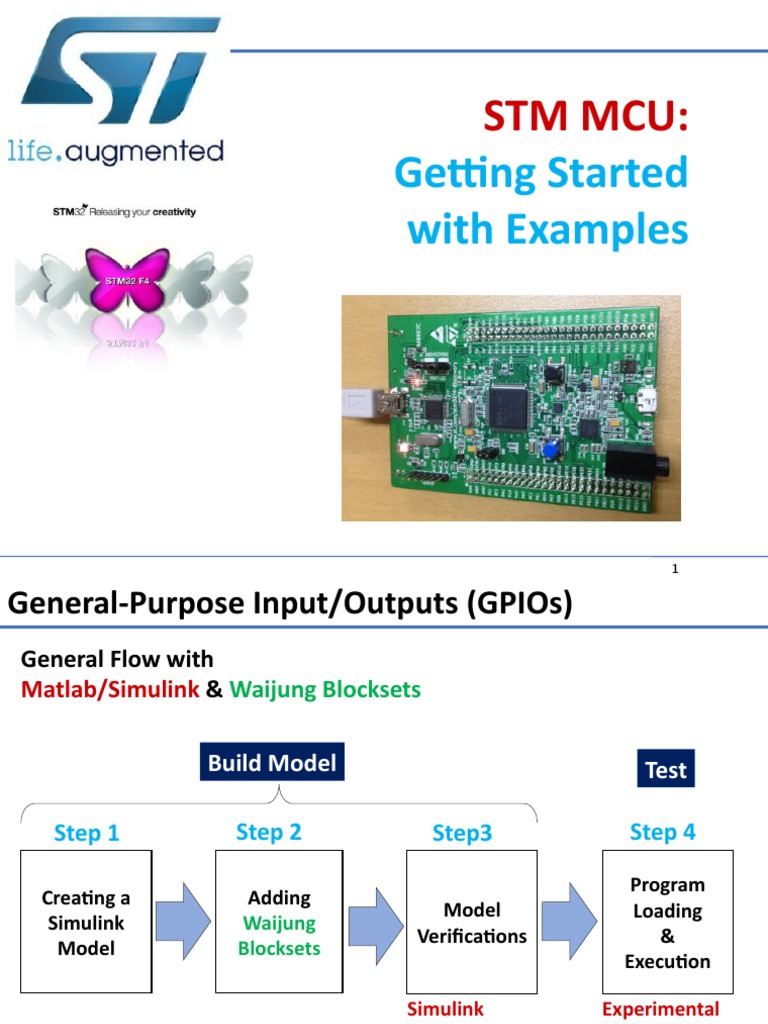

STM MCU:

Getting Started
with Examples

1
General-Purpose Input/Outputs (GPIOs)
General Flow with
Matlab/Simulink & Waijung Blocksets

Build Model Test

Step 1 Step 2 Step3 Step 4

Program
Creating a Adding
Model Loading
Simulink Waijung
Verifications &
Model Blocksets
Execution

Simulink Experimental
Verification Verification

2
General-Purpose Input/Outputs (GPIOs)
General Flow with
Matlab/Simulink & Waijung Blocksets

Build Model Test

Step 1 Step 2 Step3 Step 4

Program
Creating a Adding
Model Loading
Simulink Waijung
Verifications &
Model Blocksets
Execution

Simulink Experimental
Verification Verification

3
Launch the Matlab Tool
One way: Select Start > All Program > matlab 2015a

4
Creating a Simulink Model
Step 1

Step 2

5
Target Setup Block with Waijung Blocks

Add Target
Setup Block

6
Setup Blocks
Target MCU: STM32F4

Initial Status of a Target Setup Block

Double clicking to Set the status
for the Target MCU

7
8
Check

9
Example 1: GPIO

10
Setup for GPIOs

11
Initial Status of
a Digital Input Block

12
Port(A,B,C,D,E,H)
• Only ports and pins that
are available on the
selected target MCU are
shown/enabled

13
Check

14
15
Initial Status of a Digital
Output Block

16
 Port(A,B,C,D,E,H)
• Only ports and pins that are available on the
selected target MCU are shown/enabled.

Pin Type(Push-Pull, Open-Drain)

Pin(1,2,3,…)
• Only ports and pins that are available on the
selected target MCU are shown/enabled.

17
Connect

18
Save your
design

Check

19
Connect STM32F407VG to Computer

Power

20
Build, Load, & Test the Design

Build
Model

21
Successive Operations (Compiling & Loading)

22
Experimental Test

Press the Blue

button, then
the LEDs bright.

23
Example 2: Counter

24
Adding & Setup: Counter Limited Block

25
Setup Counter
Limited

26
Adding Compare To Constant Block

27
Setup Compare
To Constant

28
29
Check

30
Adding Digital Output Block

31
Check

32
Connection

33
Save Simulink model

34
Build
Model

35
Confirm file

36
Connect STM32F407VG to Computer

Power

37
38
4 LEDs one by
one bright !!!

39
Example 3: UART Communication

40
 Adding
UART Setup

You can find the UART as follows:

‘Waijung Blockset’
 ’STM32F4 Target’
 ‘On-Chip-Peripherals’
 ’UART’

41
Setup UART Setup Block

Setup
UART Setup

42
UART Module 1|2|3|4|5|6
Select UART module for the configuration.
Baud rate communication speed
Ex: 9600, 115200 or 1000000
Pin configuration (remap) for transmit (Tx)
Via this pin, UART Tx signal will be transmitted to other device.
Pin configuration for Receive pin (Rx)
Via this pin, UART Rx signal will be received from other device.

43
Adding and Setup: UART Rx Block

Adding
UART Rx

44
Setup
UART Rx

45
UART Module 1|2|3|4|5|6
Select Transfer mode Ex: Blocking, Non-Blocking
Packet selection
Binary | Binary Vector | Ascii | String Buffer | Raw Buffer
Ascii format pattern for scanf Example: "Value=%d”
Terminator
LF | CR | CRLF

46
Adding & Setup: Enabled Subsystem Block

47
Setup Enabled
Subsystem

48
Delete
Out1

Check

49
Adding & Setup: Digital Output Block

50
 Double Click
Digital Output

51
Port(A,B,C,…)
• Only ports and pins that are available on the selected
target MCU are shown/enabled.

Pin Type(Push-Pull, Open-Drain)

Pin(1,2,3,…)
• Only ports and pins that are available on the selected
target MCU are shown/enabled.

52
Adding & Setup: Compare To Constant Block

53
Setup : Compare To Constant

54
55
Connection
In1, Compare To Constant, Digital Output

56
Connection
UART Rx to Enable Subsystem

57
Save Simulink Model

Check
file

58
Connect STM32F407VG, UART to Computer

Tx:C10
Rx:C11 Tx:C11
Rx:C10

59
Build Model and Test Design

Build Model

60
61
 Right Click
Select Properties

Check Port

62
63
Open Matlab Command Windows

64
Type
s=serial(‘com7’)

Port information

65
Match Port’s
BaudRate to
UART’s(115200)

See
UART’s Setup

66
Open Port

67
Send data to STM32F4 with the format
(value=%d\r). For example, if we send ‘1’
then you can see PD12 LED light bright.

68
69
