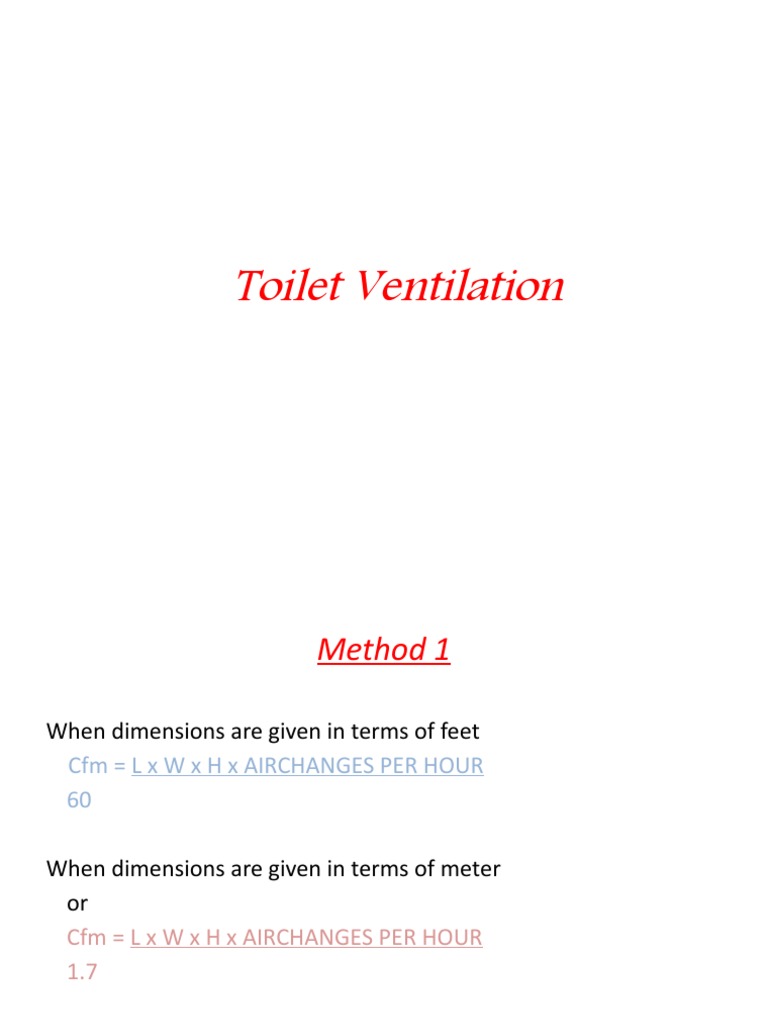

Toilet Ventilation

Method 1

When dimensions are given in terms of feet

Cfm = L x W x H x AIRCHANGES PER HOUR
60

When dimensions are given in terms of meter

or
Cfm = L x W x H x AIRCHANGES PER HOUR
1.7

ACH= AIRCHANGES PER HOUR= 6 TO 8 FOR TOILET VENTILATION

ASHRAE 62.1 2001 DATA.
 Method 2:


• PRIVATE TOILET- 25/50 CFM PER UNIT.

• PUBLIC TOILET – 50/70 CFM PER UNIT.

• ASHRAE 62.1 2004 HAND BOOK
 FRESH AIR QUANTITY:
• FRESH AIR IS TAKEN AS 80 TO 85 % OF THE
EXHAUST AIR, TO MAINTAIN NEGATIVE
PRESSURE IN SIDE THE ROOM.
• GENERALLY FRESH AIR QUANTITY IS GIVEN BY
WINDOW OPENINGS
IF THE WINDOW OPENINGS ARE NOT PRESENT.

• DOOR UNDER CUT: BUT UPTO 100 CFM ONLY, WHICH IS

GIVEN FROM ADJACENT ROOM. (MAX UNDER CUT
HEIGHT 1 INCH)

• DOOR GRILL: A GRILL CONNECTED TO THE DOOR
GENERALLY AT THE BOTTOM PART OF THE DOOR, THE
FRESH AIR IS TAKEN FROM THE ADJACENT ROOM.

• FRESH AIR DUCT: FRESH AIR IS TAKEN FROM THE
ATMOSPHERE VIA FRESH AIR FILTERS TO THE TOILET.
 19

DISC VALVE CFM

4” 15-100
6” 30-180
8” 40-240

FLY FAN:- Increases the suction

Pressure of roof mounted Fan & It
should Be connected in Line.
