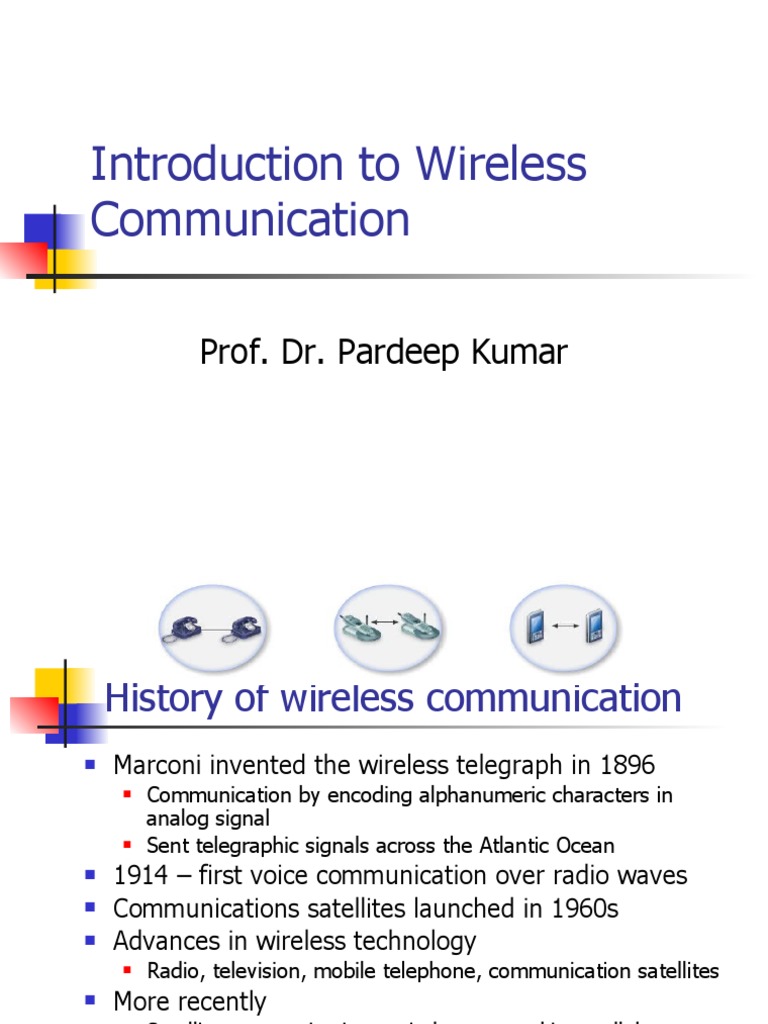

History of wireless communication Marconi invented the wireless telegraph in 1896 Communication by encoding alphanumeric characters in analog signal Sent telegraphic signals across the Atlantic Ocean 1914 – first voice communication over radio waves Communications satellites launched in 1960s Advances in wireless technology Radio, television, mobile telephone, communication satellites More recently Satellite communications, wireless networking, cellular technology, personal area networking The Evolution The Evolution The Evolution The Evolution The Evolution The Evolution What is Wireless Communication ? Transmitting voice and data using electromagnetic waves in open space (atmosphere) Electromagnetic waves Travel at speed of light (c = 3x108 m/s) Has a frequency (f) and wavelength (l) c=fxl Higher frequency means higher energy photons The higher the energy photon the more penetrating is the radiation Radiation Penetrating Types of wireless communication
celullar wireless computer network radio service
Electromagnetic Spectrum Electromagnetic Spectrum Electromagnetic Spectrum Radio Spectrum Radio Spectrum Wavelength of Some Technologies GSM Phones: frequency ~= 900 Mhz wavelength ~= 33cm PCS Phones frequency ~= 1.8 Ghz wavelength ~= 17.5 cm Bluetooth: frequency ~= 2.4Gz wavelength ~= 12.5cm Types of electromagnetic carriers when the distance between the sender and receiver is short (e.g. TV box and a remote control) infrared waves are used for long range distances between sender and receiver (e.g. TV broadcasting and cellular service) both microwaves and radio waves are used radio waves are ideal when large areas need to be coverd and obstacles exist in the transmission path microwaves are good when large areas need to be coverd and no obstacles exist in the transmission path Wireless applications (services) Wireless Milestones Advantages and disadvantages of wireless communication advantages: mobility a wireless communication network is a solution in areas where cables are impossible to install (e.g. hazardous areas, long distances etc.) easier to maintain disadvantages: has security vulnerabilities high costs for setting the infrastructure unlike wired comm., wireless comm. is influenced by physical obstructions, climatic conditions, interference from other wireless devices Frequency Carries/Channels The information from sender to receiver is carrier over a well-defined frequency band. This is called a channel Each channel has a fixed frequency bandwidth (in KHz) and Capacity (bit-rate) Different frequency bands (channels) can be used to transmit information in parallel and independently. Example Assume a spectrum of 90KHz is allocated over a base frequency b Assume there are 3 channels, each channel occupies 30KHz. Each channel is simplex (Transmission occurs in one way) For full duplex communication: Use two different channels (front and reverse channels) Use time division in a channel
Channel 1 (b - b+30)
Station A Channel 2 (b+30 - b+60) Station B
Channel 3 (b+60 - b+90)
Radio waves generation when a high-frequency alternating current (AC) passes through a copper conductor it generates radio waves which are propagated into the air using an antenna Radio propagation Radio propagation radio waves are generated by an antenna and they propagate in all directions as a straight line radio waves travel at a velocity of 186.000 miles per second They become weaker as they travel a long distance Radio propagation there are 3 modes of propagation: surface mode – for low frequency waves direct mode – for high frequency waves ionospheric mode – long distance high frequency waves Radio propagation Diffraction Diffraction is when waves bend around the corner of an obstacle. Radio waves with l of kilometers diffract over hills so you can easily get reception. But microwaves with l of centimeters tend to go straight. Layers of Earth's Atmosphere Layers of Earth's Atmosphere The troposphere contains half of the Earth's atmosphere. Weather occurs in this layer. Many jet aircrafts fly in the stratosphere because it is very stable. Also, the ozone layer absorbs harmful rays from the Sun. Meteors or rock fragments burn up in the mesosphere. The thermosphere is a layer with auroras. It is also where the space shuttle orbits. The atmosphere merges into space in the extremely thin exosphere. This is the upper limit of our atmosphere. Atmospheric Layers Aurora Modulation Signals are transmitted between a transmitter over some form of transmission medium. But normally signals are not in the form that is suitable for transmission and need to be transformed Bandwidth requirement Signals multiplexing Complexity of transmission system Preventing noise, interference, attenuation Modulation is a scheme under which the signal is first modified to suitable form and mixed with the carrier for transmission. A process of impressing (applying) a low frequency information signals to onto a relatively high frequency carrier signal Modulation Why Modulation is necessary? To transfer the message signal from one site another site over a long distance without any interference and loss Low frequency signals can't be transmitted for long distance. That's why we are modulating the information signals to increase their range Need of bandwidth: suppose many people are talking at the same time, we just can't make out the difference who is talking what, so bandwidth is provided to each wave and it is done over high frequency to save the quality of signal Multiplexing is possible with modulation It improves the quality of reception Why Modulation is necessary? Height of antenna: when we want to transmit electrical signal over an antenna, through free space, it must be converted into electro-magnetic waves. For better transmission, the height of antenna should be quarter half of the wavelength of wave to be transmitted. For an electric signal of 3 kHz (voice frequency)to be transmitted over an antenna, we need height of antenna equal to 100 km! This is practically impossible! Frequency Modulation (FM). Amplitude Modulation (AM) Modulation Methods Radio frequency interference Radio signal attenuation (path loss)
