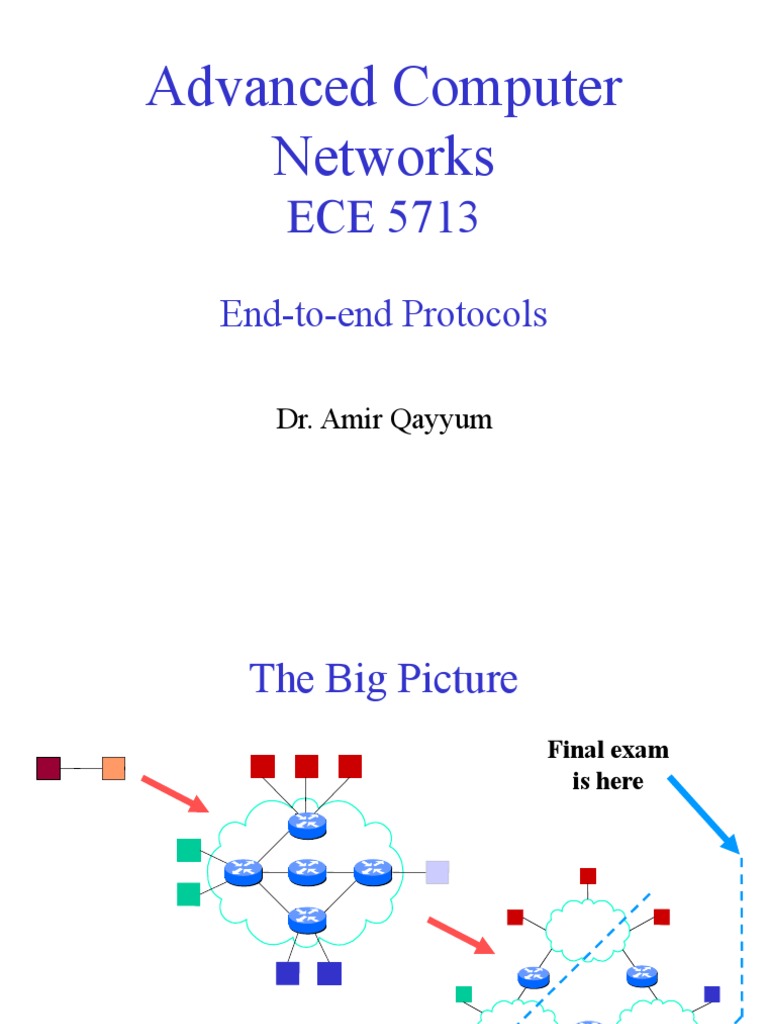

Advanced Computer

Networks
ECE 5713

End-to-end Protocols

Dr. Amir Qayyum

 The Big Picture
Final exam
is here

You are here

2
 The Big Picture

application

end-to-end } today’s topic

}
IP
most
coverage
data link
until
now
physical

3
 End-to-end Protocols
Outline
(reading: Peterson and Davie, Ch. 5)
End-to-end service model
Protocol examples
– User Datagram Protocol (UDP)
– Transmission Control Protocol (TCP)
Connection Establishment/Termination
Sliding Window Revisited
Flow Control; and adaptive Timeout
– Remote Procedure Call (RPC)
4
 Where we are now …
• Understand how to
– Build a network on one physical medium
– Connect networks together (with switches)
– Implement a reliable byte stream on a variable
network (like the Internet)
– Implement a UDP/TCP connection/channel
– Address network heterogeneity
– Address global scale
• Today’s topic
– End-to-end issues and common protocols

5
 End-to-End Service Model
• Recall user perspective of network
– Define required functionality/services
– Implementation is irrelevant
• Focus of end-to-end protocols (transport layer)
– Communication between applications (users)
– Translating from host-to-host services (network layer)
• Services implemented in end-to-end protocols
– Those that cannot be done well in lower layers (i.e., on
a per-hop basis); duplicate effort should be avoided
– Those not needed by all applications

6
 End-to-End Service Model
• Services provided by underlying network: IP -
“best effort” delivery
– Messages sent from a host, delivered to a host (no
distinction between entities sharing a host)
– Drops some messages
– Reorders messages
– Delivers duplicate copies of a message
– Limits messages to some finite size
– Delivers messages after an arbitrarily long delay

7
 End-to-End Service Model
• Common end-to-end services demanded by
applications
– Multiple connections (application processes) per host
– Guaranteed message delivery
– Messages delivered in the order they are sent
– Messages delivered at most once
– Arbitrarily large message support
– Synchronization between sender and receiver
– Flow control by the receiver

8
End-to-End Protocol Challenge
• Given IP service model
• Provide service model demanded by
applications

• Service models to consider

– Demultiplexing only (UDP)
– Everything on the previous list (TCP)
– Reliable request/response (RPC)

9
 User Datagram Protocol (UDP)
• Thin veneer over IP services
• Addresses multiplexing of multiple connections
• Unreliable and unordered datagram service
• No flow control
• Endpoints identified by ports (multiplexing)
– 16-bit port space
– Well-known ports for certain services (see /etc/services)
• Checksum to validate header
– Optional in IPv4, but mandatory in IPv6 (why ?)

10
 UDP Header Format
0 16 31
source port destination port
UDP length UDP checksum
• Length includes 8-byte header and data
• Checksum (purpose ?)
– Uses IP checksum algorithm
– Computed on pseudo-header, UDP header and data
0 8 16 31
source IP address
destination IP address
0 17 (UDP) UDP length
11
Reliable Byte-Stream (TCP)
Outline
Connection Establishment/Termination
Sliding Window Revisited
Flow Control
Adaptive Timeout

12
 Transmission Control Protocol (TCP)
• Service model implements requirements listed earlier
– Multiple connections per host
– Guaranteed and in-order delivery
– Messages delivered at most once
– Arbitrarily large messages
– Synchronization between sender and receiver
– Flow control
• Multiplexing mechanism equivalent to that of UDP
• Checksum mechanism also equivalent, but
mandatory
13
 TCP Overview
• Flow control: restricts rate to something
manageable by receiver
• Congestion control: restricts rate to something
manageable by network
• Connection-oriented: setup and teardown required
• Full duplex
– Data flows in both directions simultaneously
– Point-to-point communication
• Byte stream abstraction: no boundaries in data

14
 TCP Byte Stream
• Application writes bytes
• TCP sends segments
• Application reads bytes

Application process Application process

Write Read
bytes bytes
…

…
TCP TCP
Send buffer Receive buffer

…
Segment Segment Segment
Transmit segments

15
 Data Link versus Transport
• Potentially connects many different hosts
– Need explicit connection establishment and termination
• Potentially different RTT
– Need adaptive timeout mechanism
• Potentially long delay in network
– Need to be prepared for arrival of very old packets
• Potentially different capacity at destination
– Need to accommodate different node capacity
• Potentially different network capacity
– Need to be prepared for network congestion
16
 TCP Outline
• TCP vs. a sliding window on a direct link
• Model of use
• Segment header format and options
• States and state diagram (think-pair-share)
• Sliding window implementation details
• Flow control issues
• Bit allocation limitations
• Adaptive retransmission algorithms

17
TCP vs. Sliding Window on Direct Link
• RTT varies
– Among peers (hosts at other end of connections)
– Over time
– Requires adaptive approach to retransmission (and
window sizes)
• Packets can be
– Delayed for long periods (assume 60 seconds)
– Reordered in the network
– Must be prepared for arrival of very old packets

18
TCP vs. Sliding Window on Direct Link
• Peer capabilities vary
– Minimum link speed on route
– Buffering capacity at destination
– Requires adaptive approach to window sizes
• Network capacity varies
– Other traffic competes for most links
– Requires (global) congestion control strategy
• Why not implement more functionality in IP,
e.g., ordering guarantees or congestion control ?

19
 End-to-End Argument
• A function should not be provided at a given layer
unless it can be completely and correctly
implemented at that layer
• In-order delivery: hop-by-hop ordering guarantee
is not robust to path changes or multiple paths
F
A
E

B D
C
20
 End-to-End Argument
• Congestion control
– Should be stopped at source
– But network can provide feedback
100Mbps
1Mbps
A 5Mbps E
100Mbps 10Mbps 1Mbps
100Mbps C D 10Mbps
B 5Mbps F
100Mbps 10Mbps

blue should get 9Mbps, but gets only 5Mbps with hop-by-hop drops
21
 TCP Model of Use
• Connection setup via 3-way handshake
• Data transport
– Sender writes some data
– TCP
• Breaks data into segments
• Sends each segment over IP
• Retransmits, reorders, and removes
duplicates as necessary
– Receiver reads some data
• Teardown through 4-step exchange

22
 TCP Connection Setup
• TCP Connection Setup via 3-way Handshake
– J and K are (different) sequence numbers for messages
– Sequence numbers need not start at zero

SYN J

Active Passive
SYN K
participant participant
ACK J+1 (server)
(client)
ACK K+1

23
 TCP Data Transport Model
• Data broken into segments
– Limited by maximum segment size (MSS)
– Defaults to 536 bytes
– Negotiable during connection setup
– Typically set to MTU of directly connected network
minus size of IP and TCP headers (40 bytes)
• Three events send segment
– >= MSS bytes of data ready to be sent
– Explicit PUSH operation by application
– Periodic timeout

24
 TCP Connection Teardown
• TCP connection teardown in 4 steps
– Either client or server can initiate connection teardown
– FIN is associated with sequence number space (why?)

active close FIN J

ACK J+1 passive close

closes connection
client FIN K server

ACK K+1
25
TCP Segment Header & Pseudo-Header
0 4 10 16 31
source port destination port
sequence number
ACK sequence number
hdrlen 0 flags advertised window
TCP checksum urgent pointer
options (variable)
0 8 16 31
source IP address
destination IP address
0 6 (TCP) TCP length
26
 TCP Segment Header
• 16-bit source and destination ports
• 32-bit send and ACK sequence numbers
• 4-bit header length in 4-byte words (minimum 5)
• Six 1-bit flags
– URG: segment contains urgent data
– ACK: ACK sequence number is valid
– PSH: do not delay delivery of data
– RST: reset connection (rejection or abnormal
termination); no sequence number associated
– SYN: synchronize segment for setup
– FIN: final segment for teardown

27
 TCP Segment Header
• 16-bit advertised window
– Space remaining in receive window
• 16-bit checksum
– Uses IP checksum algorithm
– Computed on header, data, and pseudo-header
• 16-bit urgent data pointer
– If URG=1
– Index of last byte of urgent data in segment

28
 TCP Segment Format
• Each connection identified with 4-tuple:
– (SrcPort,SrcIPAddr,DsrPort,DstIPAddr)
• Sliding window + flow control
– ACK, SequenceNum, AdvertisedWindow

Data(SequenceNum)

Sender Receiver

Acknowledgment +
AdvertisedWindow

• Flags
– SYN, FIN, RESET, PUSH, URG, ACK 29
TCP Options – Existing & Proposed
• Negotiate maximum segment size (MSS)
– Each host suggests a value
– Minimum of two values is chosen
– Prevents IP fragmentation over first/last hops
• Packet timestamp
– Allows RTT calculation for retransmitted packets
– Extends sequence number space for identification of
stray packets (packets arriving very late)
• Negotiate advertised window granularity
– Allows larger windows
– Good for routes with large bandwidth-delay products
30
 TCP State Description
• CLOSED disconnected
• LISTEN waiting for incoming connection
• SYN_RCVD connection request received
• SYN_SENT connection request sent
• ESTABLISHED ready for data transport
• CLOSE_WAIT connection closed by peer
• LAST_ACK closed by peer, closed locally, await ACK
• FIN_WAIT_1 connection closed locally
• FIN_WAIT_2 closed locally and ACK’d
• CLOSING closed by both sides “simultaneously”
• TIME_WAIT wait for network to discard related packets
31
 State Transition Diagram
CLOSED
Active open/SYN
Passive open Close
Close

LISTEN

SYN/SYN + ACK Send/SYN

SYN/SYN + ACK
SYN_RCVD SYN_SENT
ACK SYN + ACK/ACK

Close/FIN ESTABLISHED

Close/FIN FIN/ACK
FIN_WAIT_1 CLOSE_WAIT
AC FIN/ACK
ACK K Close/FIN
+
FI
FIN_WAIT_2 N
/A CLOSING LAST_ACK
CK

ACK ACK
Timeout after
FIN/ACK two segment
TIME_WAIT CLOSED
lifetimes
32
 Think-Pair-Share
• Describe the path taken
– By a server under normal conditions, and
– By a client under normal conditions,
– Assuming that the client closes the connection first.
• Consider the TIME_WAIT state
– What purpose does this state serve ?
– Prove that at least one side of a connection enters this
state before returning to CLOSED
– Explain how both sides might enter this state

33
 Sliding Window Implementation
• Sequence numbers are indices into byte stream
• ACK sequence number is actually next byte
expected (as opposed to last byte received)
• Receiver buffers contain
– Data ready for delivery to application until requested
– Out-of-order data out to maximum buffer capacity
• Sender buffers contain
– Unacknowledged data
– Unsent data out to maximum buffer capacity

34
 Sliding Window
application
• Sender side
TCP
LastByteAcked LastByteSent LastByteWritten

Window time
max buffer size
– Green: sent and acknowledged
– Red: sent (or can be sent) but not acknowledged
– Blue: available but not within send window

35
 Sliding Window
application
• Receiver side
TCP
NextByteRead NextByteExpected LastByteReceived

Advertised window time

max buffer size
– Green: received and ready to be delivered
– Red: received and buffered
– Blue: received and discarded

36
 Sliding Window Math
Sending application Receiving application

TCP TCP
LastByteWritten LastByteRead

LastByteAcked LastByteSent NextByteExpected LastByteRcvd

• Sending side • Receiving side

– LastByteAcked < = – LastByteRead <
LastByteSent NextByteExpected
– LastByteSent < = – NextByteExpected < =
LastByteWritten LastByteRcvd +1
– buffer bytes between – buffer bytes between
LastByteAcked and NextByteRead and
LastByteWritten LastByteRcvd
37
 Flow vs. Congestion Control
• Flow control prevents buffer overflow at
receiver (only source and dest. are relevant)
• Congestion control addresses bandwidth
interactions between distinct packet flows

• TCP provides both

– flow control based on advertised window
– congestion control will be discussed later …

38
 TCP Flow Control Issues
• Problem: slow receiver application
– Advertised window goes to 0
– Sender cannot send more data
– Non-data packets used to update window ?
– Receiver may not spontaneously generate, or
update may be lost
• Solution: smart sender/dumb receiver
– Sender periodically sends a 1-byte segment,
ignoring advertised window of 0
– Eventually, window opens
– Sender learns of opening from next ACK of
1-byte segment
39
 TCP Flow Control Issues
• Problem: app. delivers tiny pieces of data to TCP
– e.g., telnet in character mode
– Each piece sent as segment, returned as ACK
– Very inefficient
• Solutions
– Delay transmission to accumulate more data
– Nagle’s algorithm
• Send first piece
• Accumulate data until first piece ACK’d
• Send accumulated data and restart accumulation
• Not ideal for some traffic, e.g., mouse motion

40
 TCP Flow Control Issues
• Problem: slow application reads data in tiny pieces
– Receiver advertises tiny window
– Sender fills tiny window
– Known as silly window syndrome
• Solution: due to Clark
– Advertise window opening only when MSS or ½ of
buffer is available
– Sender delays sending until window is MSS or ½ of
receiver’s buffer (estimated)
– Overridden by using PUSH

41
 TCP Flow Control Math
• Send buffer size: MaxSendBuffer
• Receive buffer size: MaxRcvBuffer
• Receiving side
– LastByteRcvd - LastByteRead < = MaxRcvBuffer
– AdvertisedWindow = MaxRcvBuffer -
(NextByteExpected - NextByteRead)
• Sending side
– LastByteSent - LastByteAcked < = AdvertisedWindow
– EffectiveWindow = AdvertisedWindow - (LastByteSent
- LastByteAcked)
– LastByteWritten - LastByteAcked < = MaxSendBuffer
– block sender if (LastByteWritten - LastByteAcked) + y >
MaxSenderBuffer
• Always send ACK in response to arriving data segment
• Persist when AdvertisedWindow = 0
42
 TCP Bit Allocation Limitations
• Sequence numbers vs. packet lifetime
– Assumed that IP packets live less than 60 seconds
– Can we send 232 (4G) bytes in 60 seconds ?
– Only need a data rate of 573 Mbps!
– Less than an STS-12 line... (< Gigabit Ethernet)
• Advertised window vs. delay-bandwidth
– Only 16 bits (64kB) for advertised window
– For cross-country RTT of 100 milliseconds, adequate
for a mere 5.24 Mbps!

43
 Protection Against Wrap Around
• 32-bit SequenceNum

Bandwidth Time Until Wrap Around

T1 (1.5 Mbps) 6.4 hours
Ethernet (10 Mbps) 57 minutes
T3 (45 Mbps) 13 minutes
FDDI (100 Mbps) 6 minutes
STS-3 (155 Mbps) 4 minutes
STS-12 (622 Mbps) 55 seconds
STS-24 (1.2 Gbps) 28 seconds

44
 Keeping the Pipe Full
• 16-bit AdvertisedWindow

Bandwidth Delay x Bandwidth Product

T1 (1.5 Mbps) 18KB
Ethernet (10 Mbps) 122KB
T3 (45 Mbps) 549KB
FDDI (100 Mbps) 1.2MB
STS-3 (155 Mbps) 1.8MB
STS-12 (622 Mbps) 7.4MB
STS-24 (1.2 Gbps) 14.8MB
45
 TCP Extensions

• Implemented as header options

• Store timestamp in outgoing segments
• Extend sequence space with 32-bit
timestamp (PAWS)
• Shift (scale) advertised window

46
Adaptive Retransmission Algorithm
• Original algorithm used only RTT estimate
• Theory: measure RTT for each segment + its ACK
– Estimate RTT
– Timeout is 2 * RTT to allow for variations
• Practice
– Use exponential moving average ( = 0.8 to 0.9)
– Estimate =  * estimate + (1 - ) measurement

Measured
RTT depends on 

time
47
Adaptive Retransmission Algorithm
• Problem: it did not handle variations well
Measured
RTT

time
• Ambiguity for retransmitted packets: was ACK in
response to first, second, etc. transmission ?
transmission

retransmission
RTT ? ? ?

48
 Adaptive Retransmission
(Original Algorithm)
• Measure SampleRTT for each segment/ACK pair
• Compute weighted average of RTT
– EstRTT = a x EstRTT + b x SampleRTT
– where a + b = 1
- a between 0.8 and 0.9
- b between 0.1 and 0.2
• Set timeout based on EstRTT
– TimeOut = 2 x EstRTT

49
 Karn/Partridge Algorithm
Sender Receiver Sender Receiver
Orig Orig
in al tra in al tra
n smis n smis
s io n s io n
SampleR TT

SampleR TT
Retr
ans miss AC K
ion
Retr
ansm
issio
n
ACK

• Do not sample RTT when retransmitting

• Double timeout (RTT estimate) after each retransmission
• Still did not handle variations well
• Did not solve network congestion problems as desired
50
 Jacobson/ Karels Algorithm
• Estimate variance of RTT
– Calculate mean interpacket RTT deviation as an approximation of
variance (Diff = RTT_estimate – measurement)
– RTT_estimate = a x RTT_estimate + (1- a ) x measurement
– Using another exponential moving average
– Deviation = β x |RTT_estimate - measurement| + (1 - β) deviation
– β = 0.25; α = 0.875 in RTT_estimate
• Use variance estimate as component of RTT estimate
– next_RTT (timeout) = RTT_estimate + 4 x deviation
• Protects against high jitter
• Algorithm only as good as clock granularity(500ms on Unix)
• Accurate timeout mechanism important to congestion control
51
Remote Procedure Call
Outline
Protocol Stack

52
 Remote Procedure Call (RPC)
• Central premise: apply the familiar to the unfamiliar
– programmers understand procedure calls
– programmers do not understand client-server interactions
• Idea
– translate some calls into server request messages
– wait for reply, return reply value
– transparent to programmer!
• Transport protocol matching the needs of applications
involved in a request / reply message exchange

53
 RPC Timeline
Client Server

Reque Blocked
st

Blocked Computing
Reply

Blocked

54
 Remote Procedure Call (RPC)
• More than just a protocol: popular mechanism for
structuring distributed systems
• More complicated than local procedure calls
– Complex network between calling and called process
– Different architecture and data representation formats
• Complete RPC mechanism has two components
– Dealing with undesirable properties of network
– Packaging arguments into messages and vice-versa
(stub compiler)
55
Remote Procedure Call Semantics
write_check (UNIV, 13500, “tuition payment”);
• your machine looks up the bank server
• asks the server about the checking service
• receives port number for checking service
• packages up arguments with type write_check
• tags package (message) with your identification
• sends request to checking service on bank server
(potentially as several UDP packets)
• waits for a reply
56
 Remote Procedure Call Semantics
write_check (UNIV, 13500, “tuition payment”);
• bank’s checking service receives request from
your home machine (possibly reassembling UDP
packets)
• verifies your identity (possibly via RPC to an
authority)
• identifies request as a write_check request
• unpackages arguments, possibly converting data
to another format
• calls write_check handler function with arguments
57
Remote Procedure Call Semantics
write_check (UNIV, 13500, “tuition payment”);
• At bank’s checking service, RPC layer receives
return value from handler function
• packages up arguments with type
write_check_reply
• tags package (message) with your bank’s
identification and unique ID for previous request
• sends reply to your machine (potentially as
several UDP packets)
58
Remote Procedure Call Semantics
write_check (UNIV, 13500, “tuition payment”);
• your machine receives reply from bank
(possibly reassembling UDP packets)
• verifies bank’s identity (possibly via RPC to
an authority)
• identifies reply as a write_check_reply
• finds corresponding request
• unpackages return value, possibly converting
data to another format
• returns value to caller
59
 RPC Components
• Protocol Stack
– BLAST: fragments and reassembles large messages
– CHAN: synchronizes request and reply messages
– SELECT: dispatches request to the correct process
• Stubs Caller Callee
(client) (server)

Arguments Return Arguments Return

value value
Client Server
stub stub

Request Reply Request Reply

RPC RPC
protocol protocol

60
 Bulk Transfer (BLAST)
Sender Receiver
• Unlike AAL and IP, tries to Frag
men
recover from lost fragments Frag
men
t1

Frag t2
• Strategy men
t3

– selective retransmission Frag

Frag
men
t4
– aka partial acknowledgements men
t5

• Sender: Frag
men
t6
– after sending all fragments, set
SRR
timer DONE Frag
– if receive SRR, send missing men
t3
Frag
fragments and reset DONE men
t5
– if timer DONE expires, free
SRR
fragments
61
 BLAST: Receiver Details
• When first fragments arrives, set timer LAST_FRAG
• When all fragments present, reassemble and pass up
• Four exceptional conditions:
– if last fragment arrives but message not complete
• send SRR and set timer RETRY
– if timer LAST_FRAG expires
• send SRR and set timer RETRY
– if timer RETRY expires for first or second time
• send SRR and set timer RETRY
– if timer RETRY expires a third time
• give up and free partial message
62
 BLAST Header Format
• MID must protect against wrap 0 16 31
ProtNum
around MID

• TYPE = DATA or SRR Length

• NumFrags indicates number of NumFrags Type

fragments FragMask

Data
• FragMask distinguishes among
fragments
– if Type=DATA, identifies this fragment
– if Type=SRR, identifies missing
fragments

63
 Request / Reply (CHAN)
• Guarantees message delivery
• Synchronizes client with server
• Supports at-most-once semantics
Simple case Implicit Acks
Client Server Client Server
Requ R eq
est ues t
1
y1
ACK Repl
y Requ
Repl es t 2
ACK y2
Repl

…
64
 CHAN Details
• Lost message (request, reply, or ACK)
– set RETRANSMIT timer
– use message id (MID) field to distinguish
• Slow (long running) server
– client periodically sends “are you alive” probe, or
– server periodically sends “I’m alive” notice
• Want to support multiple outstanding calls
– use channel id (CID) field to distinguish
• Machines crash and reboot
– use boot id (BID) field to distinguish

65
 CHAN Header Format
typedef struct {
u_short Type; /* REQ, REP, ACK, PROBE */
u_short CID; /* unique channel id */
int MID; /* unique message id */
int BID; /* unique boot id */
int Length; /* length of message */
int ProtNum; /* high-level protocol */
} ChanHdr;

typedef struct {
u_char type; /* CLIENT or SERVER */
u_char status; /* BUSY or IDLE */
int retries; /* number of retries */
int timeout; /* timeout value */
XkReturn ret_val; /* return value */
Msg *request; /* request message */
Msg *reply; /* reply message */
Semaphore reply_sem; /* client semaphore */
int mid; /* message id */
int bid; /* boot id */
} ChanState;

66
 Synchronous vs Asynchronous
Protocols
• Asynchronous interface
xPush(Sessn s, Msg *msg)
xPop(Sessn s, Msg *msg, void *hdr)
xDemux(Protl hlp, Sessn s, Msg *msg)
• Synchronous interface
xCall(Sessn s, Msg *req, Msg *rep)
xCallPop(Sessn s, Msg *req, Msg *rep, void *hdr)
xCallDemux(Protl hlp, Sessn s, Msg *req, Msg *rep)
• CHAN is a hybrid protocol
– synchronous from above: xCall
– asynchronous from below: xPop/xDemux

67
chanCall(Sessn self, Msg *msg, Msg *rmsg){
ChanState *state = (ChanState *)self->state;
ChanHdr *hdr;
char *buf;

/* ensure only one transaction per channel */

if ((state->status != IDLE))
return XK_FAILURE;
state->status = BUSY;

/* save copy of req msg and ptr to rep msg*/

msgConstructCopy(&state->request, msg);
state->reply = rmsg;
/* fill out header fields */
hdr = state->hdr_template;
hdr->Length = msgLen(msg);
if (state->mid == MAX_MID)
state->mid = 0;
hdr->MID = ++state->mid;

68
/* attach header to msg and send it */
buf = msgPush(msg, HDR_LEN);
chan_hdr_store(hdr, buf, HDR_LEN);
xPush(xGetDown(self, 0), msg);

/* schedule first timeout event */

state->retries = 1;
state->event = evSchedule(retransmit, self, state->timeout);

/* wait for the reply msg */

semWait(&state->reply_sem);

/* clean up state and return */

flush_msg(state->request);
state->status = IDLE;
return state->ret_val;
}

69
retransmit(Event ev, int *arg){
Sessn s = (Sessn)arg;
ChanState *state = (ChanState *)s->state;
Msg tmp;

/* see if event was cancelled */

if ( evIsCancelled(ev) ) return;

/* unblock client if we've retried 4 times */

if (++state->retries > 4) {
state->ret_val = XK_FAILURE;
semSignal(state->rep_sem);
return;
}

/* retransmit request message */

msgConstructCopy(&tmp, &state->request);
xPush(xGetDown(s, 0), &tmp);

/* reschedule event with exponential backoff */

evDetach(state->event);
state->timeout = 2*state->timeout;
state->event = evSchedule(retransmit, s,
state->timeout);
}

70
chanPop(Sessn self, Sessn lls, Msg *msg, void *inHdr)
{
/* see if this is a CLIENT or SERVER session */
if (self->state->type == SERVER)
return(chanServerPop(self, lls, msg, inHdr));
else
return(chanClientPop(self, lls, msg, inHdr));
}

71
chanClientPop(Sessn self, Sessn lls, Msg *msg, void *inHdr)
{
ChanState *state = (ChanState *)self->state;
ChanHdr *hdr = (ChanHdr *)inHdr;

/* verify correctness of msg header */

if (!clnt_msg_ok(state, hdr))
return XK_FAILURE;

/* cancel retransmit timeout event */

evCancel(state->event);

/* if ACK, then schedule PROBE and exit*/

if (hdr->Type == ACK)
{
state->event = evSchedule(probe, s, PROBE);
return XK_SUCCESS;
}

/* save reply and signal client */

msgAssign(state->reply, msg);
state->ret_val = XK_SUCCESS;
semSignal(&state->reply_sem);
return XK_SUCCESS;
}

72
 Dispatcher (SELECT)
• Dispatch to appropriate Client Server

procedure
Caller Callee

xCall xCallDemux

• Synchronous counterpart SELECT SELECT

to UDP xCall xCallDemux

CHAN CHAN

• Address Space for xPush xDemux xPush xDemux

Procedures
– flat: unique id for each
possible procedure
– hierarchical: program +
procedure number

73
 Example Code
Client side
static XkReturn
selectCall(Sessn self, Msg *req, Msg *rep)
{
SelectState *state=(SelectState *)self->state;
char *buf;

buf = msgPush(req, HLEN);

select_hdr_store(state->hdr, buf, HLEN);
return xCall(xGetDown(self, 0), req, rep);
}
Server side
static XkReturn
selectCallPop(Sessn s, Sessn lls, Msg *req, Msg *rep, void
*inHdr)
{
return xCallDemux(xGetUp(s), s, req, rep);
}

74
Simple RPC Stack
SELECT

CHAN

BLAST

IP

ETH

75
VCHAN: A Virtual Protocol
static XkReturn
vchanCall(Sessn s, Msg *req, Msg *rep)
{
Sessn chan;
XkReturn result;
VchanState *state=(VchanState *)s->state;

/* wait for an idle channel */

semWait(&state->available);
chan = state->stack[--state->tos];

/* use the channel */

result = xCall(chan, req, rep);

/* free the channel */

state->stack[state->tos++] = chan;
semSignal(&state->available);
return result;
}

76
 SunRPC
• IP implements BLAST-equivalent SunRPC

– except no selective retransmit

UDP

• SunRPC implements CHAN-equivalent IP

– except not at-most-once

ETH

• UDP + SunRPC implement SELECT-equivalent

– UDP dispatches to program (ports bound to programs) 77
– SunRPC dispatches to procedure within program
 SunRPC Header Format
• XID (transaction id) 0
XID
31 0
XID
31

is similar to CHAN’s MsgType = CALL MsgType = REPLY

MID RPCVersion = 2 Status = ACCEPTED
• Server does not Program Data
remember last XID it Version
serviced Procedure
• Problem if client Credentials (variable)

retransmits request Verifier (variable)

while reply is in Data

transit

78
Multimedia Applications

79
Streaming Stored Audio/Video:
Using a Web Server

80
 Streaming Stored Audio/Video:
Using a Web Server with a Metafile

81
Streaming Stored Audio/Video:
Using a Media Server

82
Streaming Stored Audio/Video:
Using a Media Server and RTSP

83
 Real-time Transport Protocol (RTP)
• Application-Level Framing
• Data Packets
– sequence number
– timestamp (app defines “tick”)
• Control Packets (send periodically)
– loss rate (fraction of packets received since last report)
– measured jitter

84
Time Relationship

85
 Jitter
• Jitter is introduced in real time data by the delay
between packets

86
Timestamps

87
 Playback Buffer
• To prevent jitter, we can timestamp the packets
and separate arrival time from the playback time

88
 Real-time Traffic Issues
• A playback buffer is required for real-time
traffic
• A sequence number on each packet is
required for real-time traffic
• Real-time traffic needs the support of
multicasting
• Mixing means combining several streams of
traffic into one stream
89
 Transport Protocol for RTP
• TCP, with all its sophistication, is not suitable for
interactive multimedia traffic because we cannot
allow retransmission of packets
• UDP is more suitable than TCP for interactive
traffic. However, we need the services of RTP,
another transport layer protocol, to make up for
the deficiencies of UDP

90
 Transport Protocol for RTP
• RTP uses a temporary even-numbered UDP port
• RTCP uses an odd-numbered UDP port number
that follows the port number selected for RTP

91
RTCP Message Types

92
