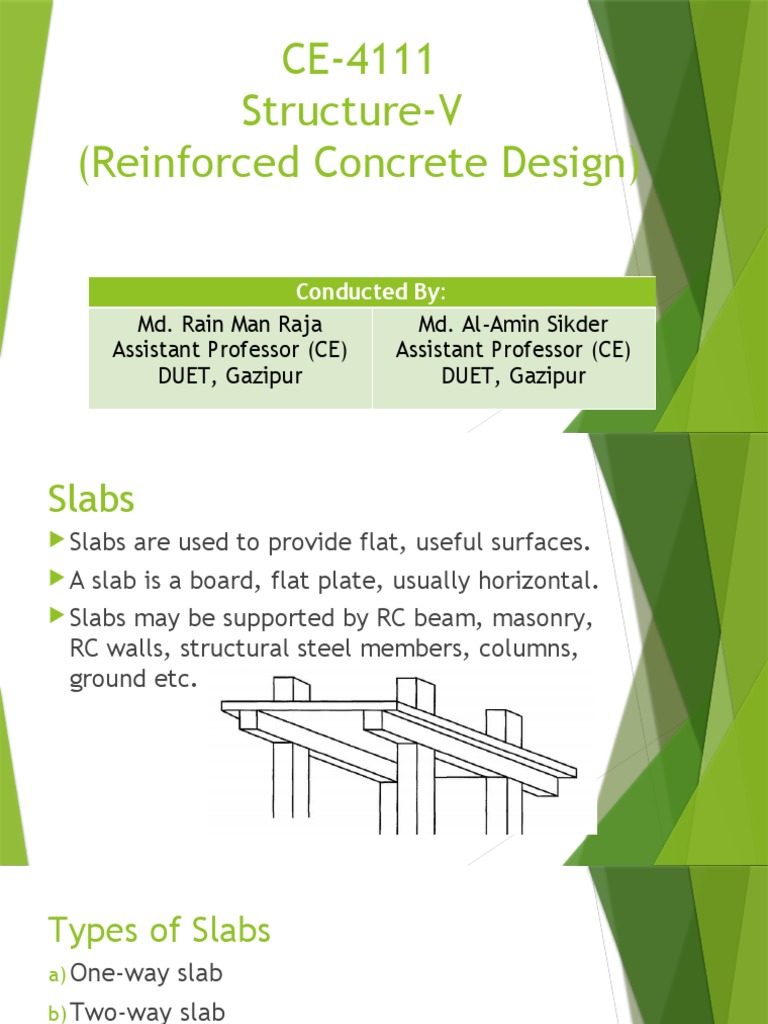

CE-4111

Structure-V
(Reinforced Concrete Design)

Conducted By:
Md. Rain Man Raja Md. Al-Amin Sikder
Assistant Professor (CE) Assistant Professor (CE)
DUET, Gazipur DUET, Gazipur
Slabs
 Slabs are used to provide flat, useful surfaces.
A slab is a board, flat plate, usually horizontal.
 Slabs
may be supported by RC beam, masonry,
RC walls, structural steel members, columns,
ground etc.
Types of Slabs
a) One-way slab
b) Two-way slab
c) Flat Slab
d) Flat Plate Slab
e) Grid or Waffle or Rib Slab.
Types of Slabs
a) One-way slab
Types of Slabs
a) One-way slab
 Supported on two opposite sides.
 One-way load transfer path.
 Although slab is supported by beams in all sides,
if aspect ratio (Length/Width ratio) ˃ 2.0 then
most of the loads will be transferred by the
short direction.
 Main reinforcements will be provided in short
direction.
Types of Slabs
b) Two-way slab
Types of Slabs
b) Two-way slab
 Supported on all sides.
 Supported on beams or directly on columns.
 Two-way load transfer path.
 Aspect ratio (Length/Width ratio) ≈ 1.0
 When loaded, slabs bend into a dished surface
rather then a cylindrical one.
 Slabs must be reinforced in both direction.
Types of Slabs
c) Flat Slab
Types of Slabs
d) Flat Plate Slab
Types of Slabs
d) Waffle or Ribbed Slab
Slab Design Methods
ACI Coefficient Method.
Design using Beam Method.
Direct Design Method.
Equivalent Frame Method.
Yield Line Analysis.
Strip Method.
One-way Slab Design

Fig.: One-way Slabs

One-way Slab Design

Fig.: One-way Slabs

 One-way Slab Design
Structural Action:
 Simply supported along its two opposite long
edges.
 Free
of any support along the two opposite short
edges.
 Bending of the slab is approximately cylindrical.
 Curvatures and bending moments are same in the
strips ‘s’ spanning in the short direction.
One-way Slab Design

Fig.: One-way Slabs

One-way Slab Design

Fig.: One-way Slabs

 One-way Slab Design
For the Purposes of Analysis and Design:
 A unit strip (1ft. or 1m) of slab is cut out.
 This strip is considered as rectangular beam
• Width = 1ft.=12 inch
• Depth= h
• Length= la
h
la

 The strip can be analyzed and designed by the W

method that were used for rectangular beams.
 One-way Slab Design
Minimum Thickness h of Non-prestressed
One-way Slabs
Support Condition Slab Thickness h
Simply Supported l/20
One end Continuous l/24
Both end Continuous l/28
Cantilever l/10
 One-way Slab Design
Temperature and Shrinkage Reinforcement:
 Assignment No. 01
 One-way Slab Design
Minimum Ratios of Temperature and Shrinkage
Reinforcement
Reinforcement Used Steel Ratio
Grade (psi) ρ
Grade 40 (fy=40,000psi) or 0.0020
Grade 50 (fy=50,000psi)
Grade 60 (fy=60,000psi) 0.0018
Larger than Grade 60 0.0018×60,000/fy

*Temperature and Shrinkage Reinforcement Ast= ρbh in2.

 One-way Slab Design
ACI Moment Coefficients
0 1/8 0

Fig. 01: Moment Coefficients for Simply supported Spans.

Fig. 01: Moment Coefficients for more than two Spans.

 One-way Slab Design
ACI Moment Coefficients

Fig. 02: Moment Coefficients for two Spans only.

Fig. 02: Slabs with spans not exceeding 10 ft.

 One-way Slab Design
A reinforced concrete slab is built integrally with its supports and
consists of two equal spans, each with a clear span of 15 ft. The
service load is 100 psf, and 4000 psi concrete is specified for
use with a yield stress equal to 60,000 psi. Design the slab,
following the provisions of Working Stress Design (WSD)
Method.

15 ft. 15 ft.
 One-way Slab Design
Data Available:
Span Length, L = 15 ft.
Service Load = 100 psf.
f’c = 4,000 psi.
fy = 60,000 psi.

Helping Data:
Es = 29×106 psi
Ec = 57000√f’c = 57000×√4000 = 3.605×106 psi
fs = 0.40fy = 0.40×60,000 =24000 psi
fc = 0.45f’c = 0.45×4,000 =1800 psi
 One-way Slab Design
Step-01: Minimum Slab Thickness
h = l/28 = (15×12)/28 = 6.43 in. ≈ 6.50 in.

Step-02: Load Calculation

Self wt. = 6.5/12×150 = 81 psf.
Service Load = 100 psf.
Total w = 181 psf. = 0.181 kips

Step-03: Moment Calculation

At the interior support: -M = 1/9×wl2 = 1/9×0.181×152 = 4.53 ft-kips
 One-way Slab Design
Step-03: Moment Calculation continuous……
At midspan: : +M = 1/14×wl2 = 1/14×0.181×152 = 2.91 ft-kips
At the exterior support: -M = 1/24×wl2 = 1/24×0.181×152 = 1.70 ft-kips

Step-04: Check Depth

Effective Depth, n = Es/Ec = 29×106/3.605×106 = 7.95 ≈ 8.0
d= r = fs/fc = 24000/1800 = 13.33
= k = n/(n+r) = 8.0/(8.0+13.33) = 0.375
= 1.13 in. j = 1-k/3 = 0.875
R = (½)fcjk = 295.31
