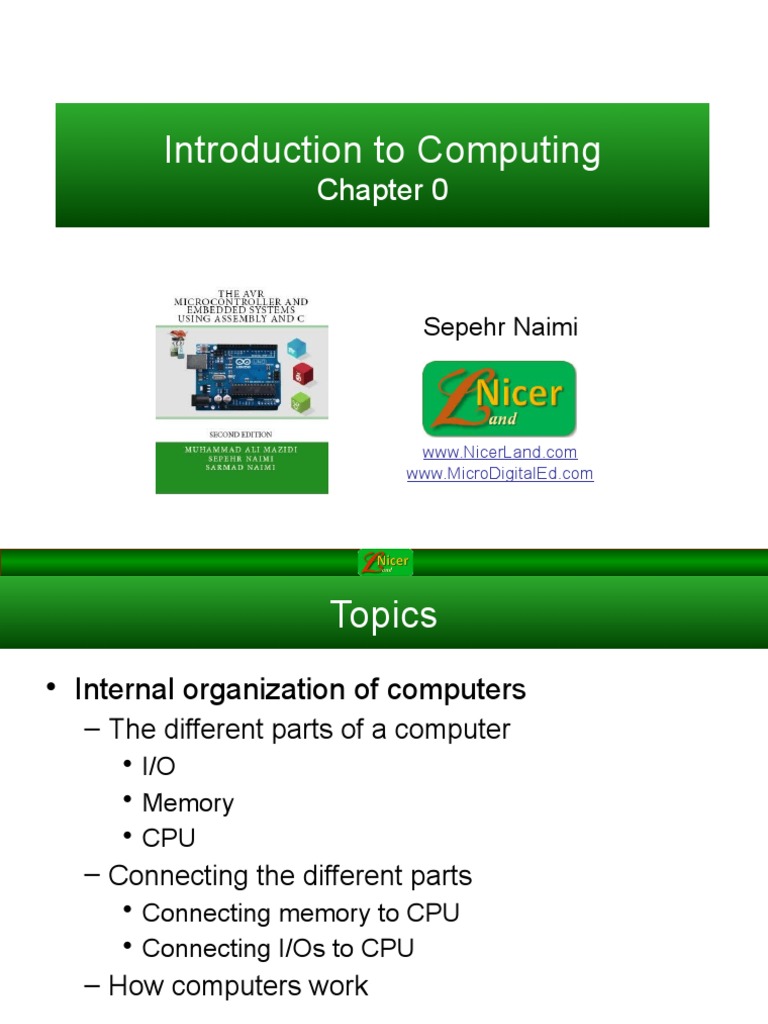

Introduction to Computing
Chapter 0

Sepehr Naimi

www.NicerLand.com
www.MicroDigitalEd.com
 Topics
www. Micro Digital Ed. com
BIHE university

• Internal organization of computers

– The different parts of a computer
• I/O
• Memory
• CPU
– Connecting the different parts
• Connecting memory to CPU
• Connecting I/Os to CPU
– How computers work

2
 Internal organization of computers
www. Micro Digital Ed. com
BIHE university

• CPU
• Memory
• I/O
– Input
• E.g. Keyboard, Mouse, Sensor
– Output
• E.g. LCD, printer, hands of a robot

3
 Memory
www. Micro Digital Ed. com
BIHE university

• Everything that can store, retain, and recall

information.
– E.g. hard disk, a piece of paper, etc.

4
 Memory characteristics
www. Micro Digital Ed. com
BIHE university

• Capacity
– The number of bits that a memory can store.
• E.g. 128 Kbits, 256 Mbits
• Organization
– How the locations are organized 4 bits
0

128 locations
• E.g. a 128 x 4 memory has 128 locations,
1
2

4 bits each

…
• Access time 127

– How long it takes to get data from memory

5
 Memory
www. Micro Digital Ed. com
BIHE university

• Semiconductors

• Non-semiconductors The pictures are copied from http://www.wikipedia.org/

6
 Semiconductor memories
www. Micro Digital Ed. com
BIHE university

• ROM RAM •
– Mask ROM SRAM (Static RAM) –
– PROM (Programmable DRAM (Dynamic RAM) –
ROM) NV-RAM (Nonvolatile –
– EPROM (Erasable RAM)
PROM)
– EEPROM (Electronic
Erasable PROM)
– Flash EPROM

7
 Memory\ROM\ Mask ROM
www. Micro Digital Ed. com
BIHE university

• Programmed by the IC manufacturer

8
 Memory\ROM\ PROM (Programmable ROM)
www. Micro Digital Ed. com
BIHE university

• OTP (One-Time Programmable)

– You can program it only once

9
 Memory\ROM\ EPROM (Erasable Programmable ROM)
www. Micro Digital Ed. com
BIHE university

• UV-EPROM
– You can shine ultraviolet (UV) radiation
to erase it
– Erasing takes up to 20 minutes
– The entire contents of ROM are erased

2764

10
 Memory\ROM\ EEPROM (Electrically Erasable
www. Micro Digital Ed. com
Programmable ROM) BIHE university

• Erased Electrically
– Erased instantly
– Each byte can be erased separately

11
 Memory\ROM\ Flash ROM
www. Micro Digital Ed. com
BIHE university

• Erased in a Flash
• the entire device is erased at once

12
 Semiconductor memories
www. Micro Digital Ed. com
BIHE university

• ROM RAM •
– Mask ROM SRAM (Static RAM) –
– PROM (Programmable DRAM (Dynamic RAM) –
ROM) NV-RAM (Nonvolatile –
– EPROM (Erasable RAM)
PROM)
– EEPROM (Electronic
Erasable PROM)
– Flash EPROM

13
 Memory\RAM\ SRAM (Static RAM)
www. Micro Digital Ed. com
BIHE university

• Made of flip-flops (Transistors)

• Advantages: 2K x 8
– Faster SRAM

– No need for refreshing

• Disadvantages:
– High power consumption
– Expensive

14
 Memory\RAM\ DRAM (Dynamic RAM)
www. Micro Digital Ed. com
BIHE university

• Made of capacitors
• Advantages:
– Less power consumption
– Cheaper
– High capacity
• Disadvantages:
– Slower
– Refresh needed

15
 Memory\RAM\ NV-RAM (Nonvolatile RAM)
www. Micro Digital Ed. com
BIHE university

• Made of SRAM, Battery, control circuitry

• Advantages:
– Very fast
– Infinite program/erase cycle
– Non-volatile
• Disadvantage:
– Expensive

16
 Internal parts of computers\CPU
www. Micro Digital Ed. com
BIHE university

• Tasks:
– It should execute instructions
• It should recall the instructions one after another
and execute them

17
 Connecting memory to CPU
www. Micro Digital Ed. com
BIHE university

• Memory pin out

18
 Connecting memory
Writing
Reading memory to CPU
to memory
from

Address
www. Micro Digital Ed. com

Address
BIHE university

CS
CS
OE
Data
Data
WE
WE
Time
Time

19
 Connecting I/Os to CPU
www. Micro Digital Ed. com
BIHE university

• CPU should have

lots of pins! Mouse

Network
CPU Keyboard

Sound Card
Graphic Card

20
 Connecting I/Os to CPU using bus
www. Micro Digital Ed. com
BIHE university

Address bus

Data bus
Write
Control bus Read

CPU
I/O 0 I/O 1 I/O 2 I/O n

21
 Connecting I/Os and Memory to CPU
www. Micro Digital Ed. com
BIHE university

Address bus

Data bus
Write
Control bus Read

CPU I/O 0 I/O 1 I/O 2 I/O n

22
 Connecting I/Os and memory to CPU using bus
www. Micro Digital Ed. com
BIHE university

0
1

How could we manage it? 2

3

0
Address bus

Data bus
Write
Control bus Read

CPU
I/O 0 I/O 1 I/O 2 I/O n

23
 Connecting I/Os and Memory to CPU using bus
www. Micro Digital Ed. com
(Peripheral I/O) BIHE university

0
1
..
63

Address bus

Data bus
Write
Control bus Read
IO/MEM
CPU
I/O 0 I/O 1 I/O 2 I/O n

24
 Connecting I/Os and Memory to CPU using bus
www. Micro Digital Ed. com
(Memory Mapped I/O) BIHE university

0 The logic circuit

1 enables CS
..
How could we make the logic 15
when address is
circuit? between 0 and
15
Logic circuit
Address bus

Data bus
Solution
Control 1.
bus Write
Write the address range in binary
Read
2. Separate the fixed part of address

CPU3. Using a NAND, design a logic circuit whose output

activates when the fixed address is given to it.
a7 a6 a5 a4 a3 a2 a1 a0
From address 0  0 0 0 0 0 0 0 0 a4
I/O 16 I/O 17 I/O a5
18
a6
I/OCS
n
To address15  0 0 0 0 1 1 1 1 a7

25
 Another example for address decoder
www. Micro Digital Ed. com
BIHE university

• Design an address decoder for address of 300H

to 3FFH.

Solution
1. Write the address range in binary
2. Separate the fixed part of address
3. Design the logic circuit.

a8 a7 a6 a5 a4 a3 a2 a1 a0
a11 a10 a9 a8
a11 a8
a9
From address 300H  0 0 1 1 0 0 0 0 0 0 0 0 a10 CS
a11
To address 3FFH  001111111111

An easy way of
designing

26
 Inside the CPU
www. Micro Digital Ed. com
BIHE university

• PC (Program Counter)
• Instruction decoder
• ALU (Arithmetic Logic Unit)
• Registers

PC A
ALU B

CPU C
D
Instruction decoder registers

27
 How computers work 0 31h
31
1 C4h A [17]
26h BA
www. Micro Digital Ed. com

2
BIHE university

3 81h A  [6]
4 EAh AA+B
5 0h [7]A
6 5h
7

Logic circuit
Address bus

Data bus
Write
Control bus Read

ALU
CPU A
B
PC: 10 C
D I/O 16 I/O 17 I/O 18 I/O n
Inst. Dec. registers

28
 How computers work 0 31h
1 C4h A [17]
26h BA
www. Micro Digital Ed. com

2
BIHE university

3 81h A  [6]
4 EAh AA+B
5 0h [7]A
6 5h
7

Logic circuit
Address bus 17

Data bus
Write
Control bus Read

ALU
CPU A
B
PC: 1 C 9

D I/O 16 I/O 17 I/O 18 I/O n

Inst. Dec. registers

31

29
 How computers work 0 31h
1 C4h
C4 A [17]
26h BA
www. Micro Digital Ed. com

2
BIHE university

26
3 81h A  [6]
4 EAh AA+B
5 0h [7]A
6 5h
5
7

Logic circuit
Address bus 17
6

Data bus
Write
Control bus Read

ALU
CPU 9
A
B
PC: 1
2
3 C
D I/O 16 I/O 17 I/O 18 I/O n
Inst. Dec. registers

30
 How computers work 0 31h
1 C4h A [17]
26h BA
www. Micro Digital Ed. com

2
BIHE university

3 81h
81 A  [6]
4 EAh
EA
AA+B
5 0h [7]A
6 5h
7

7 Logic circuit
Address bus
Eh
Data bus
Write
Control bus Read

+E
ALU
CPU A
9
B
E
5

PC: 4
35 C
D I/O 16 I/O 17 I/O 18 I/O n
Inst. Dec. registers

31
 How Instruction decoder works
www. Micro Digital Ed. com
BIHE university

Opcode Operand Opcode Operand

Instruction

Instruction

Operation Code Meaning

000 Ax
0011 0001 0 31h
1100 0100 1 C4h A [17] 001 A  [x]
0010 0110 2 26h BA 010 A  A – register (x)
1000 0001 3 81h A  [6]
1110 1010 4 EAh AA+B 011 AA+x
0000 0000 5 0h [7]A
0000 0101
100 A  A + register (x)
6 5h
7 101 AA–x
110 Register (xH)  Register (xL)
111 [x]  A

32
 Von Neumann vs. Harvard architecture
www. Micro Digital Ed. com
BIHE university

Data bus Data bus

Code Data
Memory Address bus CPU Address bus Memory
Control bus Control bus

• Harvard architecture

Code Data
Memory Memory

Data bus
CPU Address bus
Control bus

• Von Neumann architecture
