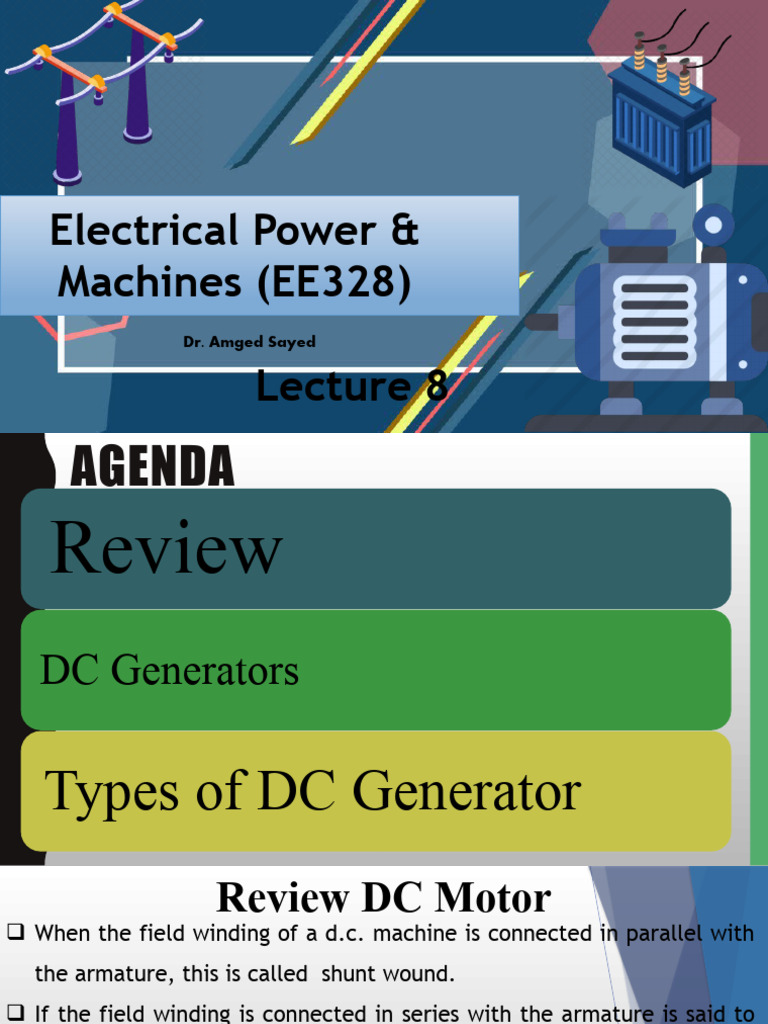

Electrical Power &

Machines (EE328)
Dr. Amged Sayed

Lecture 8
 AGENDA
Review
DC Generators

Types of DC Generator
Dr. Amged Sayed 2
 Review DC Motor
 When the field winding of a d.c. machine is connected in parallel with
the armature, this is called shunt wound.
 If the field winding is connected in series with the armature is said to
be series wound
 The generated e.m.f.,
 The supply voltage, V is given by:

Dr. Amged Sayed

 Review DC Motor
 If T is torque, then the mechanical power developed by motor is given
by Tω watts
 Hence
 For a given machine,

Dr. Amged Sayed

 DC Generator
The Principle of a Generator
If a conductor moves or ‘cuts’ through a magnetic field, voltage will be
induced between the terminals of the conductor at which the magnitude
of the induced voltage is dependent upon the velocity of the wire .

Dr. Amged Sayed

 DC Generator
The Generated e.m.f
 The field excitation is shown as a voltage, Vf ,

generating the field current, If , that flows

through resistor, Rf , and the field coil, Lf.

 The armature circuit, consists of a voltage source
representing the back emf, Eb, the armature

resistance, Ra, and the armature voltage, Va

 To the machine acts as a generator, Va < Eb and Ia 6

Dr. Amged Sayed

 DC Generator
Types of Generator
D.c. generators are classified according to the method of their field
excitation. These groupings are:
(i) Separately-excited generators, where the field winding is connected
to a source of supply other than the armature of its own machine.
(ii) Self-excited generators, where the field winding receives its supply
from the armature of its own machine, and which are sub-divided into :-
(a) shunt, (b) series, and (c) compound wound generators.
7

Dr. Amged Sayed

 Types of DC Generator
(1) Separately-excited generator
 When a load is connected across the armature terminals, a load
current Ia will flow.
 The terminal voltage V will fall from its open-circuit e.m.f. E due to a
volt drop caused by on the armature resistance, Ra

Dr. Amged Sayed 8

 Types of DC Generator
Example
A generator is connected to a 60Ω load and a current of 8 A flows. If the
armature resistance is 1Ω determine (a) the terminal voltage, and (b) the
generated e.m.f.

Solution
a) The terminal voltage

Dr. Amged Sayed 9

 Types of DC Generator
Example
A separately-excited generator develops a no-load e.m.f. of 150 V at an
armature speed of 20 rev/s and a flux per pole of 0.10 Wb. Determine the
generated e.m.f. when (a) the speed increases to 25 rev/s and the pole
flux remains unchanged, (b) the speed remains at 20 rev/s and the pole
flux is decreased to 0.08 Wb, and (c) the speed increases to 24 rev/s and
the pole flux is decreased to 0.07 Wb.
Solution
a) generated e.m.f. E

Dr. Amged Sayed 10

 Types of DC Generator
Example
A separately-excited generator develops a no-load e.m.f. of 150 V at an
armature speed of 20 rev/s and a flux per pole of 0.10 Wb. Determine the
generated e.m.f. when (a) the speed increases to 25 rev/s and the pole
flux remains unchanged, (b) the speed remains at 20 rev/s and the pole
flux is decreased to 0.08 Wb, and (c) the speed increases to 24 rev/s and
the pole flux is decreased to 0.07 Wb.
Solution
b)
c)

Dr. Amged Sayed 11

 Types of DC Generator
Characteristic of Separated excited Generator
The two principal generator characteristics are:
a) Generated voltage/field current characteristics, called the open-
circuit characteristic (O.C.C)
b) The terminal voltage/load current characteristic, called the load
characteristic.

Dr. Amged Sayed 12

 Types of DC Generator
Applications:
 A separately-excited generator is used only in special cases, such as
when a wide variation in terminal voltage is required, or when exact
control of the field current is necessary.
 Its disadvantage lies in requiring a separate source of direct current
 They are used as supply source of DC motors, whose speeds are to be
controlled for various applications

Dr. Amged Sayed 13

 Types of DC Generator
(2) Self-excited generator Shunt-Wound Generator
 In a shunt wound generator the field winding is connected in parallel
with the armature.
 The field winding has a relatively high resistance and therefore the
current carried is only a fraction of the armature current.
 The Generated e.m.f voltage

Dr. Amged Sayed 14

 Types of DC Generator
(2) Self-excited generator Shunt-Wound Generator
 The armature current
 The field current is
 :- is the load current

Dr. Amged Sayed 15

 Types of DC Generator
Example
A shunt generator supplies a 20 kW load at 200 V through cables of
resistance, RD =100 mΩ. If the field winding resistance, Rf = 50 Ω and the
armature resistance, Ra = 40 mΩ, determine (a) the terminal voltage, and
(b) the e.m.f. generated in the armature.
Solution
a) Load current
Voltage drop in cables = (100)(100m)=10 V
The terminal voltages= 200+10=210 V

Dr. Amged Sayed 16

 Types of DC Generator
Example
A shunt generator supplies a 20 kW load at 200 V through cables of
resistance, RD =100 mΩ. If the field winding resistance, Rf = 50 Ω and the
armature resistance, Ra = 40 mΩ, determine (a) the terminal voltage, and
(b) the e.m.f. generated in the armature.
Solution
b) armature current
The field current
Hence
The generated e.m.f,

Dr. Amged Sayed 17

 Types of DC Generator
(2) Self-excited generator Shunt-Wound Generator
a. The Open circuit Characteristic
 The generated e.m.f., E is proportional to ɸω, hence at constant
speed, E ɸ.
 Also the flux ɸ is proportional to field current If until magnetic
saturation of the iron circuit of the generator occurs.

Dr. Amged Sayed 18

 Types of DC Generator
(2) Self-excited generator Shunt-Wound Generator
b. The Load Characteristic
 At no load, the terminal voltage is the internal induced voltage whose
characteristic is a doted line.
 When the load is supplied by the generator, increasing the load current
(IL), increases the armature current increasing drop, thus V decreases.

Dr. Amged Sayed 19

 Types of DC Generator
(2) Self-excited generator Shunt-Wound Generator
Applications
 The shunt-wound generator is the type most used in practice,
 But the load current must be limited to a value that is well below the
maximum value.
 This then avoids excessive variation of the terminal voltage. Typical
applications are with battery charging and motor car generators.

Dr. Amged Sayed 20

 Types of DC Generator
(3) Self-excited generator Series-Wound Generator
 In the series-wound generator the field winding is connected in series
with the armature .

Dr. Amged Sayed 21

 Types of DC Generator
(3) Self-excited generator Series-Wound Generator
 The generated e.m.f. E, is proportional to ɸω and at constant speed ω.
The E is proportional to ɸ.
 For values of current below magnetic saturation, the flux ɸ is
proportional to the current.
 For values of current above those required for magnetic saturation, the
generated e.m.f. is approximately constant.
 The values of field resistance and armature resistance in a series-
wound machine are small, hence the terminal voltage V is equal to E.
Dr. Amged Sayed 22
 Types of DC Generator
(3) Self-excited generator Series-Wound Generator
 The field winding is in series with the armature
 it is not possible to have a value of field current when the terminals
are open circuited, thus it is not possible to obtain an open circuit
characteristic.
 Applications: It can be used as a ‘booster’ on d.c. transmission lines
and Arc welding.

Dr. Amged Sayed
