Deep

Learning

Dr. Felix Gonda

Assistant Professor of Computer Science

Email: uojdeeplearning@gmail.com
Web: https://uojai.github.io/deeplearning
U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

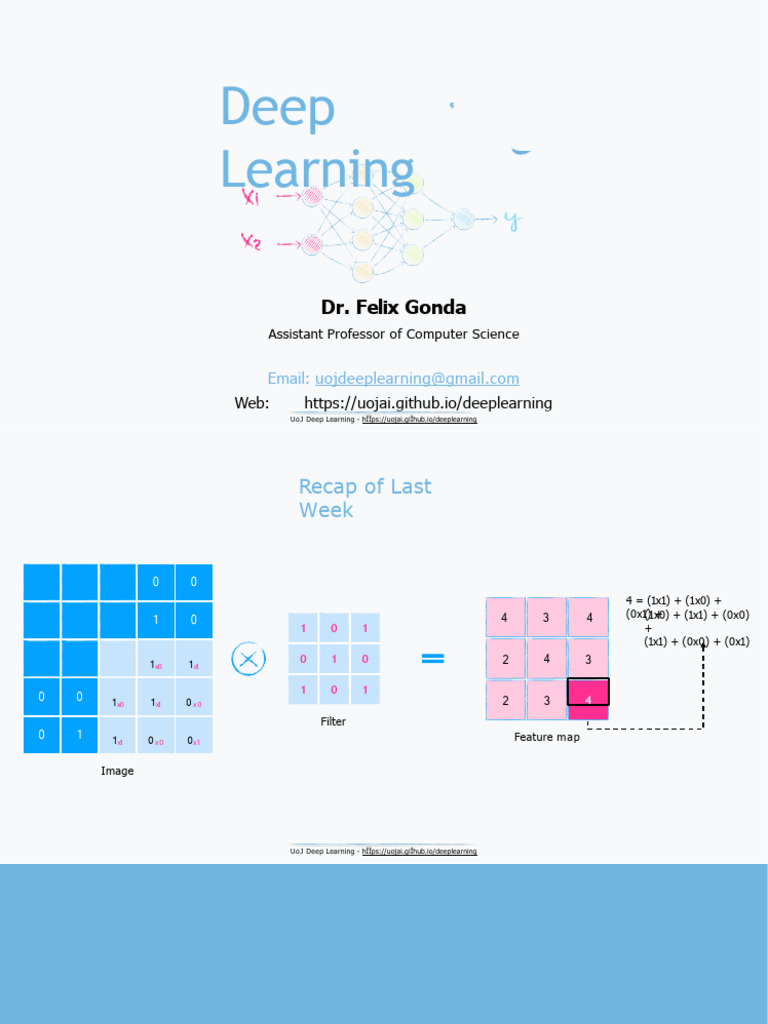

 Recap of Last
Week

1 1 1 0 0
4 = (1x1) + (1x0) +
4 3 4 (0x1) + + (1x1) + (0x0)
(1x0)
0 1 1 1 0
1 0 1 +
(1x1) + (0x0) + (0x1)
0 0 1x1 1x0 1x1 0 1 0 2 4 3

1 0 1
0 0 1x0 1x1 0 x0 2 3 4
Filter
0 1 1x1 0 x0 0x1 Feature map


U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

Convolutional Neural Networks
(CNNs)

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 CNNs for
classification

Fully
Input Convolution
MaxPooling Connected
Image (Feature Maps)
Layer

Three Main Operations to a CNN:

1. Convolution: apply filters to generate feature maps.
2. Non-linearity: often ReLU
3. Pooling: down sampling operation on each feature map.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Convolution Layers: Local
Connectivity
For a neuron in hidden
layer:
• Take inputs from patch
• Compute weighted sum
• Apply bias

Hidden layer
Input 1

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Convolution Layers: Local
Connectivity
For a neuron in hidden
layer:
• Take inputs from patch
• Compute weighted sum
• Apply bias

Hidden layer Hidden layer 2

Input 1

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Convolution Layers: Local
Connectivity
For a neuron in hidden
layer:
• Take inputs from patch
• Compute weighted sum
• Apply bias

4x4 filter:
Matrix of weights Wi.j
4 4

Wij + Xi+p,j+q + b

i= j=
1 1
for neuron (p, q) in hidden layer
Hidden layer
Input 1. Applying a window of weights
1
2. Computing linear combinations
3. Activating with non-linear function

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 CNNs Spatial Arrangement of Output
Volume
Dept
h

Layer Dimensions:
hxwxd

Height Where h and w are spatial dimensions

and
d (depth) = number of filters
3
2 Stride:
Filter step size
Receptive Field:
Locations in input image that a node
3
Width is path connected to.
2
3

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Introducing Non-
Linearity

Input Feature Map Rectified Feature Map Rectified Linear Unit

Black=negative, white=positive values Only non-negative values. (ReLU)

+v
e

-ve +v
e

-ve

g(y) = max(0 ,y)

• Apply after every convolution operation (i.e., after convolution layers)

• ReLU: pixel-by-pixel operation that replaces all negative values by zero. Non-linear operation.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Poolin
g

1 1 2 4
Max pool with
2x2 filters and
stride of 2
5 6 7 8 6 8

3 2 1 0 3 4

• Reduced dimensionality
1 2 3 4 • Spatial invariance

How else can we downsample and preserve spatial

invariance?

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Representation Learning in Deep
CNNs

Low Level Features Mid Level Features High Level Features

Edges, dark spots Eyes, ears, nose Facial structure

Convolution Layer Convolution Layer 2 Convolution Layer 3

1

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 CNNs for Classification: Feature
Learning

0.9 Car
0.1 Truck
0.0 Van
0.0 Plane
0.0 Bus

0.0 Bicycle

Input Convolution + Pooling Convolution + Pooling Fully

Flatten SoftMax
ReLU ReLU Connected

Feature Learning Classification

1. Learn features in input image through convolution

2. Introduce non-linearity through activation function (real world data is non-linear)
3. Reduce dimensionality and preserve spatial invariance with pooling

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 CNNs for Classification: Class
Probabilities

0.9 Car
0.1 Truck
0.0 Van
0.0 Plane
0.0 Bus

0.0 Bicycle

Input Convolution + Pooling Convolution + Pooling Fully

Flatten SoftMax
ReLU ReLU Connected

Feature Learning Classification

softmax( yi ) ey
1. Convolution and pooling layers output high-level features of input
2. Fully connected layer uses these features for classifying input image = i i
j ey
3. Express output as probability of image belonging to a particular
class

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Putting it all
together

Number of features to learn.

model
model = tf.keras.Sequential()

first layer
model.add( tf.keras.layers.Conv2d(filters=32, filter_size=(3,3), activation=‘relu’) )
model.add( MaxPool2D(pool_size=(2,2), strides=2) )

second layer
model.add( tf.keras.layers.Conv2d(filters=64, filter_size=(3,3), activation=‘relu’) )
model.add( MaxPool2D(pool_size=(2,2), strides=2) )

fully connected classifier

model.add( tf.keras.layers.Flatten() )
model.add( tf.keras.layers.Conv2d(units=1024, activation=‘relu’) )
model.add( tf.keras.layers.Dense(units=10, activation=‘softmax’) )

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

An Architecture for Many
Applications

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 CNNs for Classification: Feature
Learning

0.9 Car
0.1 Truck
0.0 Van
0.0 Plane
0.0 Bus

0.0 Bicycle

Input Convolution + Pooling Convolution + Pooling Fully

Flatten SoftMax
ReLU ReLU Connected

Feature Learning Classification

Object detection
Segmentation
Probabilistic control

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

Classification: breast cancer
screening.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Object
Detection

Taxi

Class label y

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Object
Detection

Taxi

Class label y

Taxi

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Object
Detection

Taxi

Output:
Taxi: (xl, yl, wl,
hl)

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Object
Detection

Taxi

Output:
Taxi: (xl, yl, wl,
hl)

Person

Taxi
Output:
Taxi: (x1, y1, w1,
h1)
Person: (x2, y2,
w2,h2)
Person:
Truck (x3,y3,w3,h3)

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

Naive Solution to Object
Detection

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

Naive Solution to Object
Detection

Class?

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

Naive Solution to Object
Detection

Class?

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Naive Solution to Object
Detection

Class?

Problem: way too many inputs. This results in too many scales, positions, and
sizes.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Object Detection with R-
CNNsfind regions that we think have objects. Use CNN to classify.
R-CNN algorithm:

Warped region

Aeroplane: No

Person: Yes

CNN Car: No

1. Input 2. Extract region 3. Compute 4. Classify

Image proposals CNN regions
(~2K) Features

Problems:
• Slow! Many regions; time intensive
inference.
• Brittle! Manually defined region proposals.
U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning
 Faster R-CNN Learns Region
Proposals

Image input directly into

convolutional feature extractor.
Fast! Only input image once.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Faster R-CNN Learns Region
Proposals

Region proposal
Region Proposal Network network to learn
candidate regions.
Feature maps Learned, data driven

Image input directly into

convolutional feature extractor.
Fast! Only input image once.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Faster R-CNN Learns Region
Proposals

Feature
extraction Proposals
over proposed
regions Region proposal
Region Proposal Network network to learn
candidate regions.
Feature maps Learned, data driven

Image input directly into

convolutional feature extractor.
Fast! Only input image once.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Faster R-CNN Learns Region
Proposals
Classifier
Classification of regions -> Object detection

ROI Pooling

Feature
extraction Proposals
over proposed
regions Region proposal
Region Proposal Network network to learn
candidate regions.
Feature maps Learned, data driven

Image input directly into

convolutional feature extractor.
Fast! Only input image once.

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Semantic Segmentation: Fully Convolutional
Networks
FCN: Fully Connected Network
Network designed with all convolutional layers, with
downsampling and upsampling operations.

Goal: for every pixel in the input image, learn what class
it belongs to.

Med-res: Med-res:
D2 x H/4 x W/4 D2 x H/4 x W/4

High-res:
D3 x H/4 x
W/4
Input: High-res: High-res: Prediction:
3xHXW D1 x H/2 x D1 x H/2 x HXW
W/2 W/2

Pixels of cow is differentiated

from sky, grass, etc

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Semantic Segmentation: Biomedical Image
Analysis

Automatic segmentation of neural tissue in 3D electron microscopy images using deep

learning.
Credits: https://www.aivia-software.com/

Original Image Confidence Map 2D Segmentation 3D Reconstruction

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

Mid term
exam

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Mid-Term
Examination
When: Tuesday, November 24th,
2023
Where: Senate Hall
Time: Noon
• Neural Network Basics • Convolutional Neural • TensorFlow
• Biological Neural Networks Networks • Creating a model
• Structure of a neuron • Convolution • Layer types
• Neural Model • Pooling • Input
• Artificial Neural Networks • CNN structure • Convolution
• Perceptron • CNN applications • Fully Connected
• MultiLayer Perceptron (MLP) • Classification • Pooling
• Deep Neural Networks • Object • Drop out
• Activation Functions Detection • Training
• Loss function • Segmentation
• Backpropagation
• Stochastic Gradient Decent
• Optimization (learning rate, mini
batches)
• Underfitting, Overfitting
• Regularization (Dropout, Early
Stoping)
• U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning
 See Instructor after
Lecture

Chris Sagin Alexander Monday Yok Muorwel Emmanuel Simon Sadig

Akie Isaac Deng Dhieu Kiir Yoll Dhieu Tariir Abdun Ngong Mathiang

Aluel Akeen Aguot Akeen John Buosh Mayiek Maper Christopher Adhar Mathon

David Gabriel Gatjiek Riak Matuor Ayor Kuol Dinando Majok

John Kulang Leme Achoul Isaac Sebit Faustino Mathew Doru Sylvanus Yama

Kuol Stephen Hoth Bong Sabir Basall Shatta Fadul Favicky Matur Mamer

Mary John Ajugo Ladu Stephen Jada Paul Kuot Agoth Majok

M o u Thiik Riiny Giir Koang Peter Makuil Richard George

Hana Noreldeen
Nelson Mawien Wieu Khamis Moderia Suzy John

Bosco Selfador Kabashi Francis Mathew Soak Kuri Lazarus Ajang Lual

Emmanuel Martin Loro Clement Malak Akech

Dominic Olelang Moi Sabio Sizy John Bornone Ladu

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning

 Next…
Laboratory on Creating a CNN For Sign Language
Numbers
@ UoJ Computer Lab

U o J Deep Learning - hĪĪps://uojai.giĪhub.io/deeplearning
